This is the Blue variant of the HC-02 Wireless Bluetooth Module without Baseplate Compatible with HC-05 / HC- 06 in Bluetooth and NRF Modules. Available at ₹315.06 (₹267.00 + GST) with free shipping across India.

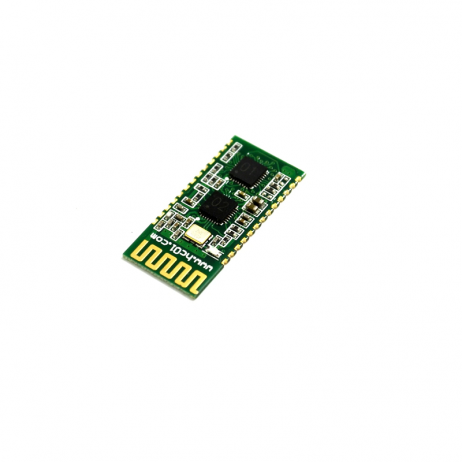

HC-02 Wireless Bluetooth Module without Baseplate Compatible with HC-05 / HC- 06:
The HC-02 Bluetooth serial communication module is a data transmission module that uses the Bluetooth V2.0 protocol. It has high stability, ultra-low power consumption, and industrial-grade performance. Users do not need to worry about complex wireless communication configuration and transmission algorithms. They only need to connect the devices through TTL serial port. The HC-02 slave module can be powered and connected to the mobile phone for data transmission. It can also work with HC-05 or HC-06 host modules.
Specification-
| Supply voltage | 3.2 – 6V DC |
|---|---|
| Signal voltage | 3.2 – 6V DC |
| Range | ~10m (in open air) |
| Interface | UART (RX and TX) |
| Baud rate in standard modes | : 9600 (adjustable) |
| Default Bluetooth pin/password | 1234 |
| Bluetooth version | 2.0/4.0 BLE |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 2 × 1 cm |
Package Includes:
1 x HC-02 Wireless Bluetooth Module without Baseplate Compatible with HC-05 / HC- 06
HC-02 Wireless Bluetooth Module without Baseplate Overview
The HC-02 Wireless Bluetooth Module without Baseplate is a serial data transmission device using the Bluetooth V2.0 protocol. Designed as a slave module compatible with HC-05 and HC-06 host modules, it provides a simple TTL UART interface for adding wireless connectivity to microcontroller and embedded projects.
Key Features of HC-02 Wireless Bluetooth Module without Baseplate
- Supply voltage range: 3.2 – 6 V DC for direct connection to various power sources
- Signal voltage: 3.2 – 6 V DC TTL-level RX/TX interface
- Transparent serial link up to 9600 bps (default), baud rate adjustable
- On-board LED indicator shows Bluetooth pairing and connection status
- Wireless range up to ~10 m in open air
- Genuine HC-02 modules with fast shipping from Zbotic
Applications and Use Cases
- Wireless serial communication for Arduino, ESP8266, ESP32 and other microcontroller boards
- Remote sensor data logging and telemetry in home automation systems
- Bluetooth link for robot control and mobile app interfacing
- Serial-to-Bluetooth bridge for PC or laptop without onboard Bluetooth
- Wireless debugging console for embedded firmware development
How to Use HC-02 Wireless Bluetooth Module without Baseplate
Connect the HC-02 module’s VCC and GND pins to a 3.2–6 V DC supply, then wire its TX pin to your microcontroller’s RX and its RX pin to TX. Power up the module, search from your host device (mobile phone or PC), and pair using the default code. Once connected, send and receive data over the UART interface just like a wired serial port.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the default Bluetooth pairing code for HC-02?
The HC-02 module uses the standard Bluetooth PIN “1234” (or “0000” on some firmware versions) for initial pairing. You can enter this code when prompted by your host device.
Can I use HC-02 as a master device?
No, the HC-02 operates as a slave-only module. If you need master functionality, pair an HC-05 configured as a master with this HC-02 slave module for two-way communication.
What is the effective wireless range of the HC-02 module?
In open air, the HC-02 achieves up to approximately 10 meters of reliable Bluetooth connectivity. Obstacles and interference may reduce this range in practical environments.
