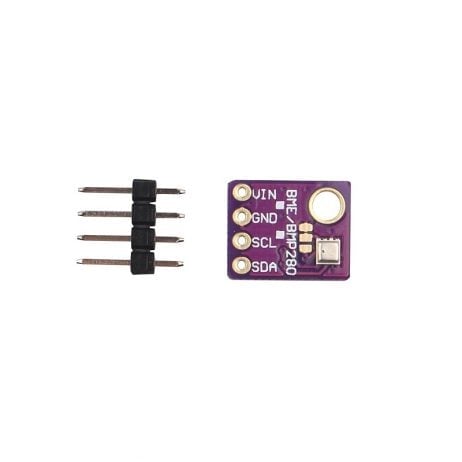

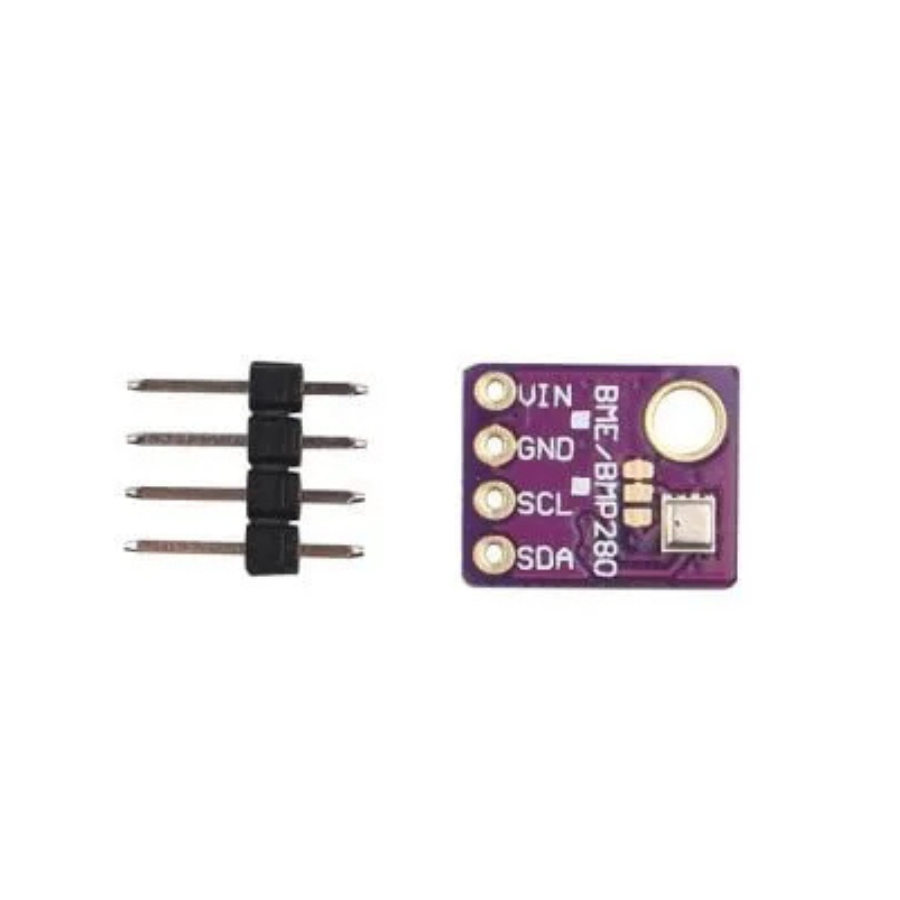

This is the 5V variant of the GY-BME280-5V Temperature and Humidity Sensor in Temperature & Humidity Sensor. Available at ₹258.42 (₹219.00 + GST) with free shipping across India.
Product Description
The BME280 is a small and low-power environmental sensor that can measure temperature, humidity and pressure. It is ideal for mobile applications that need to save space and battery life.
Applications:
- Context awareness, e.g. skin detection, room change detection
- Fitness monitoring/well-being
- Warning regarding dryness or high temperatures
- Measurement of volume and airflow
- Home automation control
- Control heating, ventilation, air conditioning (HVAC)
- Internet of things
- GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)
- Indoor navigation (change of floor detection, elevator detection)
- Outdoor navigation, leisure, and sports applications
- Weather forecast
- Vertical velocity indication (rise/sink speed)
Features:
- The BME280 is a great new chip that was originally designed for the next generation of smartphones.
- With an I2C connection, you have access to enough weather data to make some pretty good predictions for your local area.

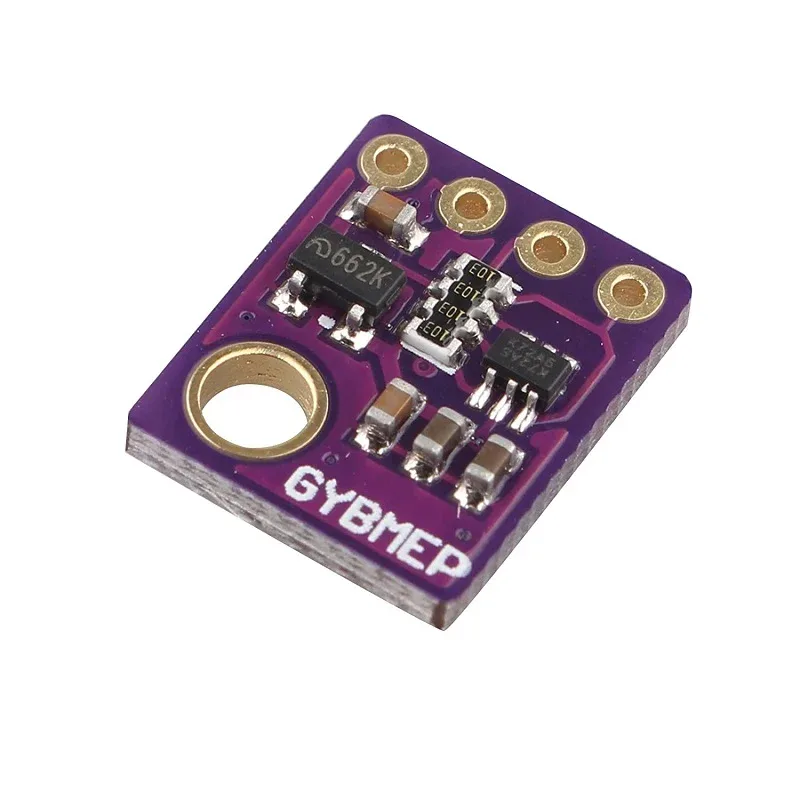

- BME280, the precision sensor, is soldered onto PCB.
- Not only the pressure and the temperature, but this sensor can also measure humidity.
- It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
Specification-
| Operating Voltage (VDC) | 1.8 ~ 5 |
|---|---|
| Interface | I2C (up to 3.4MHz) SPI (up to 10 MHz) |
| Operating Temperature (°C): | -40 to 85 |
| Operating Humidity Range | 0-100% |
| Operating Pressure Range | 300-1100 hPa |
| Resolution | Temperature: +-1°C Humidity: +-3% Pressure: +-1Pa |
| I2C Address | SDO LOW: 0x76 SDO HIGH: 0x77 |
| Length (mm): | 12 |
| Width (mm) | 10 |
| Height (mm) | 2 |
| Weight (g): | 3 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 8 × 2 cm |
Package Includes:
1 x GY-BME280-5V Temperature and Humidity Sensor
Sensor Calibration Techniques: Offset, Gain and Linearization
A sensor fresh out of the packet rarely gives perfect readings. The raw output deviates from the true...
Read More →
LiDAR TF-Luna: Short Range Detection for Robots with Arduino
Table of ContentsWhat Is the TF-Luna LiDAR?How Time-of-Flight LiDAR WorksTF-Luna SpecificationsWiring TF-Luna to Arduino (UART Mode)Wiring TF-Luna to...
Read More →
ADXL345 Accelerometer: Tilt and Vibration Sensing with Arduino
Table of ContentsWhat Is the ADXL345?How MEMS Accelerometers WorkADXL345 Key FeaturesWiring ADXL345 via I2CWiring ADXL345 via SPIArduino Code:...
Read More →Technical Specifications
| Model | GY-BME280-5V |
|---|---|
| SKU | AI2478 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GY-BME280-5V Temperature and Humidity Sensor is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
