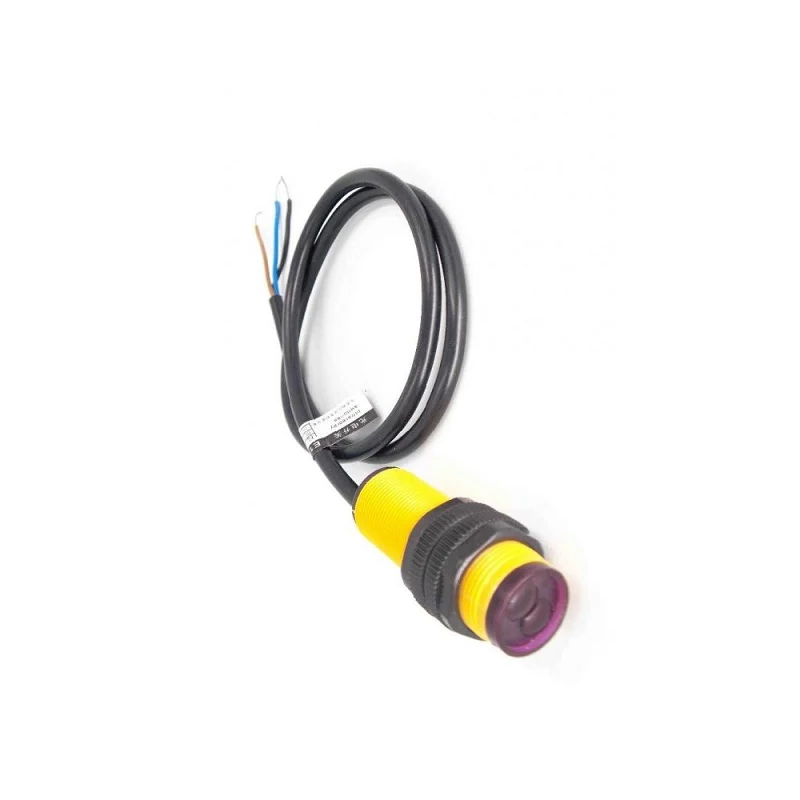

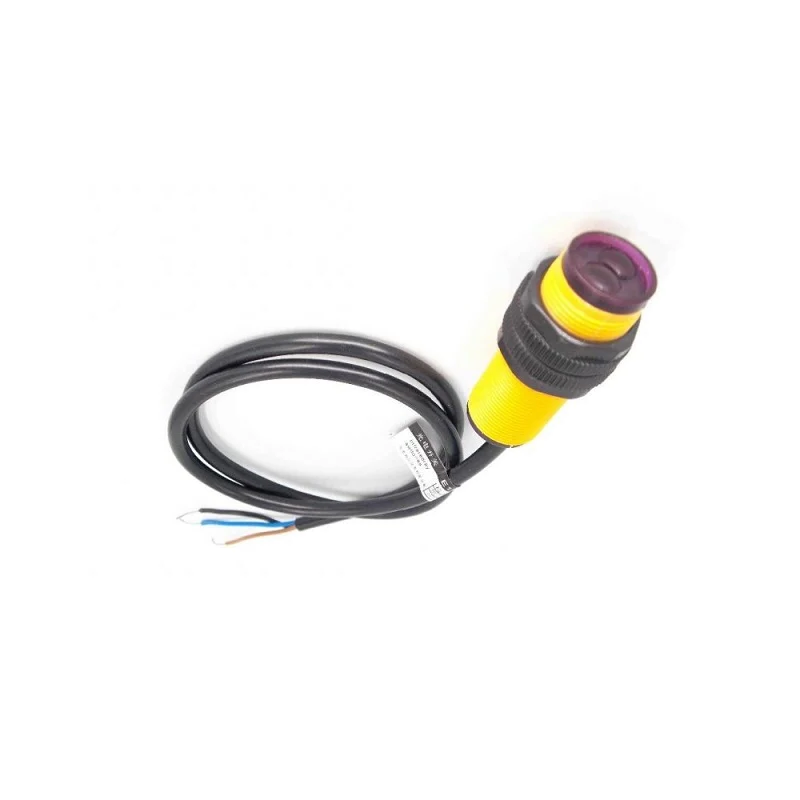

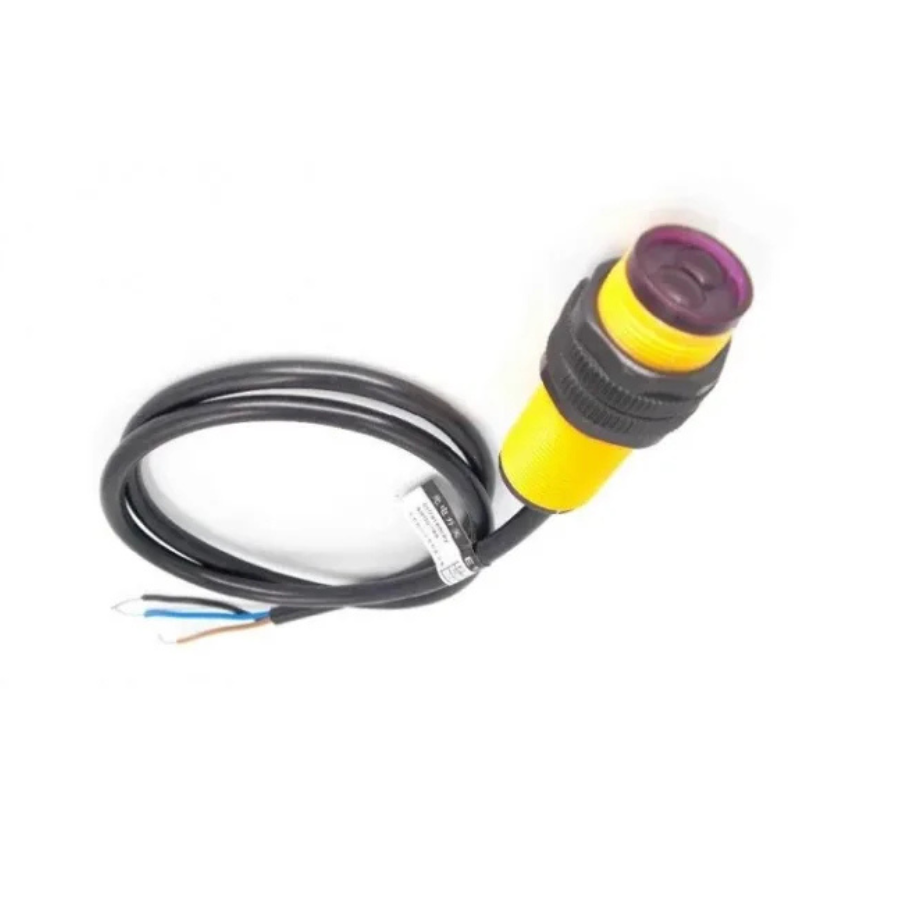

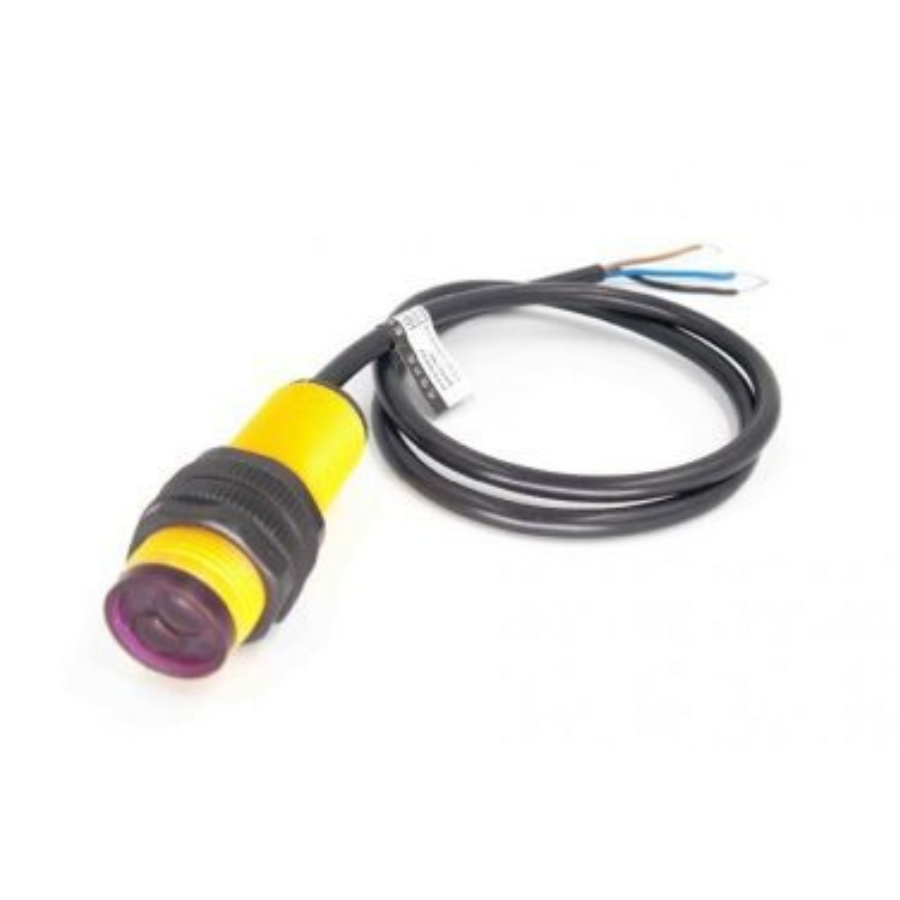

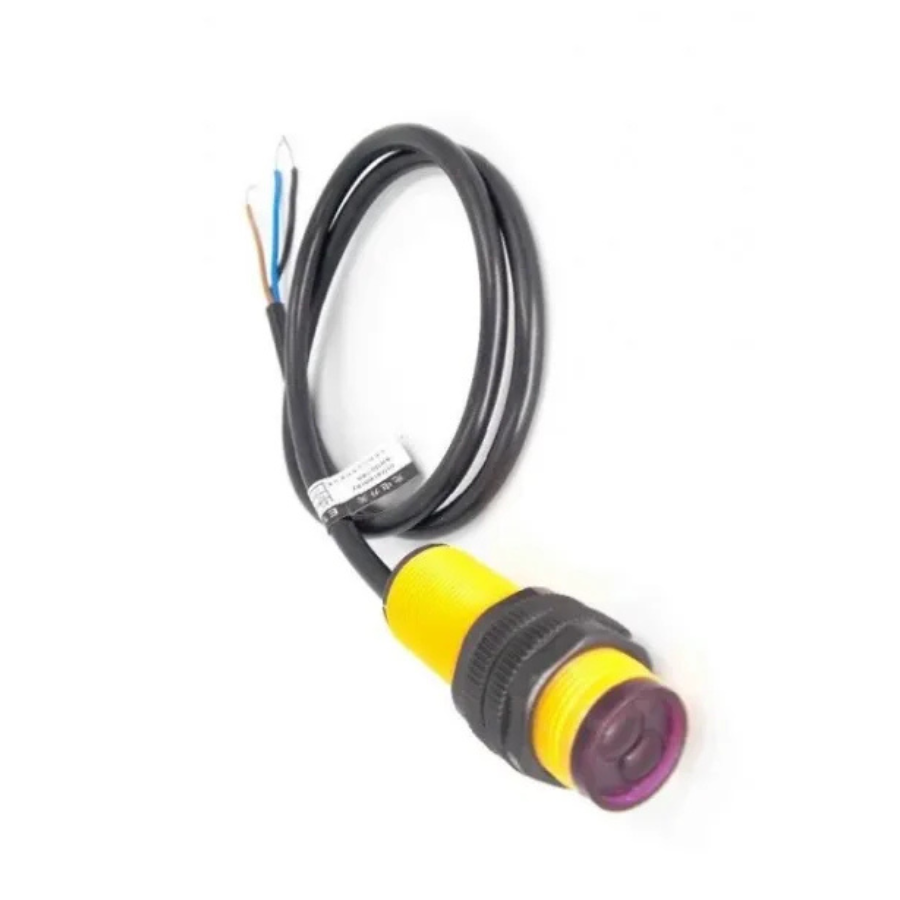

The E18-D80NK Mini Adjustable Infrared Sensor Switch 3-80cm is a photoelectric switch sensor that combines a transmitter and a receiver. It can adjust the detection distance according to the need. The sensor can detect objects within a range of 3-80cm.
The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, and easy to assemble. It can be widely used for obstacle avoidance in robots, interactive media, industrial assembly lines, and many other applications.
The switching signal output changes depending on the presence of obstacles. It stays high when there are no obstacles and stays low when there are obstacles. There is a bright light behind the probe that indicates the detection range of 3cm – 80cm.
Connection
Red wire: 5V
Green wire: GND
Yellow wire: Digital output
OR
Brown wire: 5V
Blue wire: GND
Black wire: Digital output.
- Diffuse reflective type.
- Digital output.
- Adjustable detection distance.
- Low consumption.
- Compact size.
Specification:
| Light source | Infrared |
|---|---|
| Sensing Range | 3cm to 80cm |
| Input Voltage (V) | 5 V DC |
| Current Consumption | 300mA |
| Dimensions (Dia.xLength.) mm | 17.68 x 50 |
| Cable Length (Meter) | 1 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 8 × 7 × 4 cm |
Useful Links :
How to interface with Adjustable Infrared Sensor
Package Includes:
1 x E18-D80NK Mini Adjustable Infrared Sensor Switch 3-80cm.
