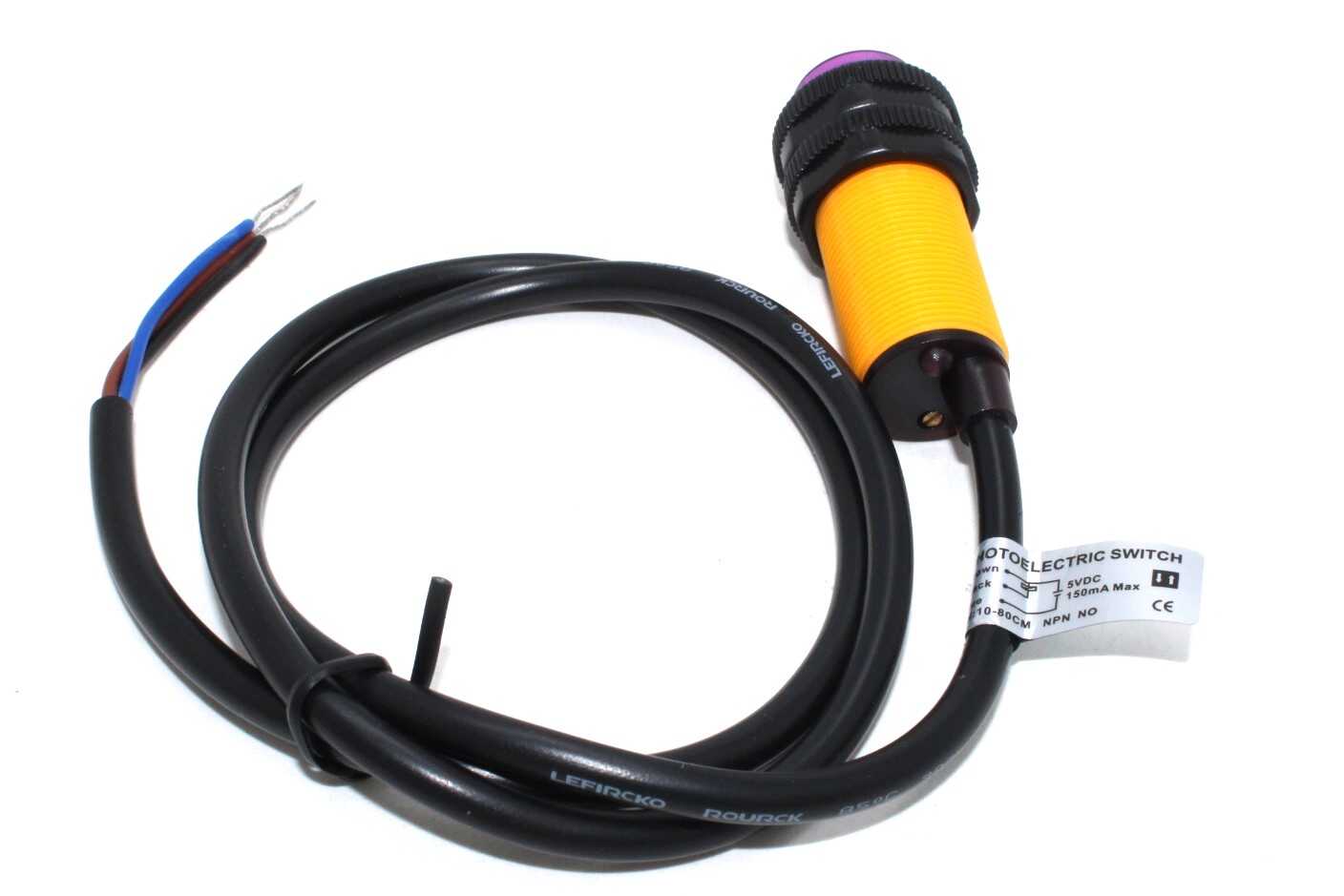

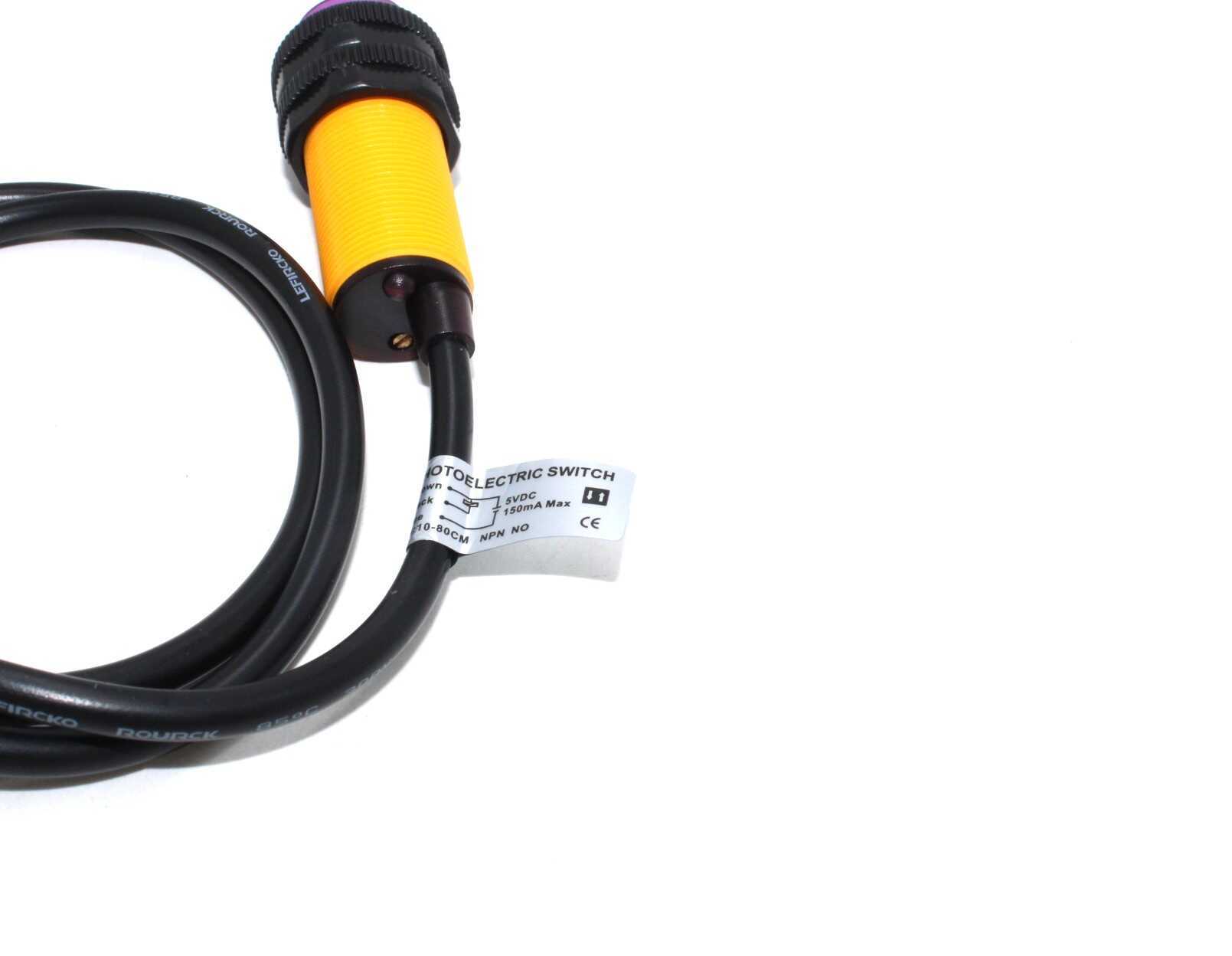

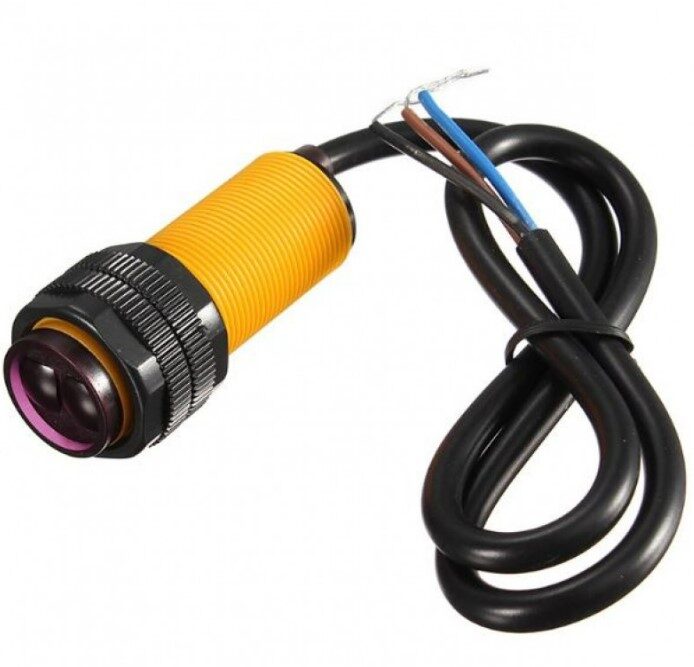

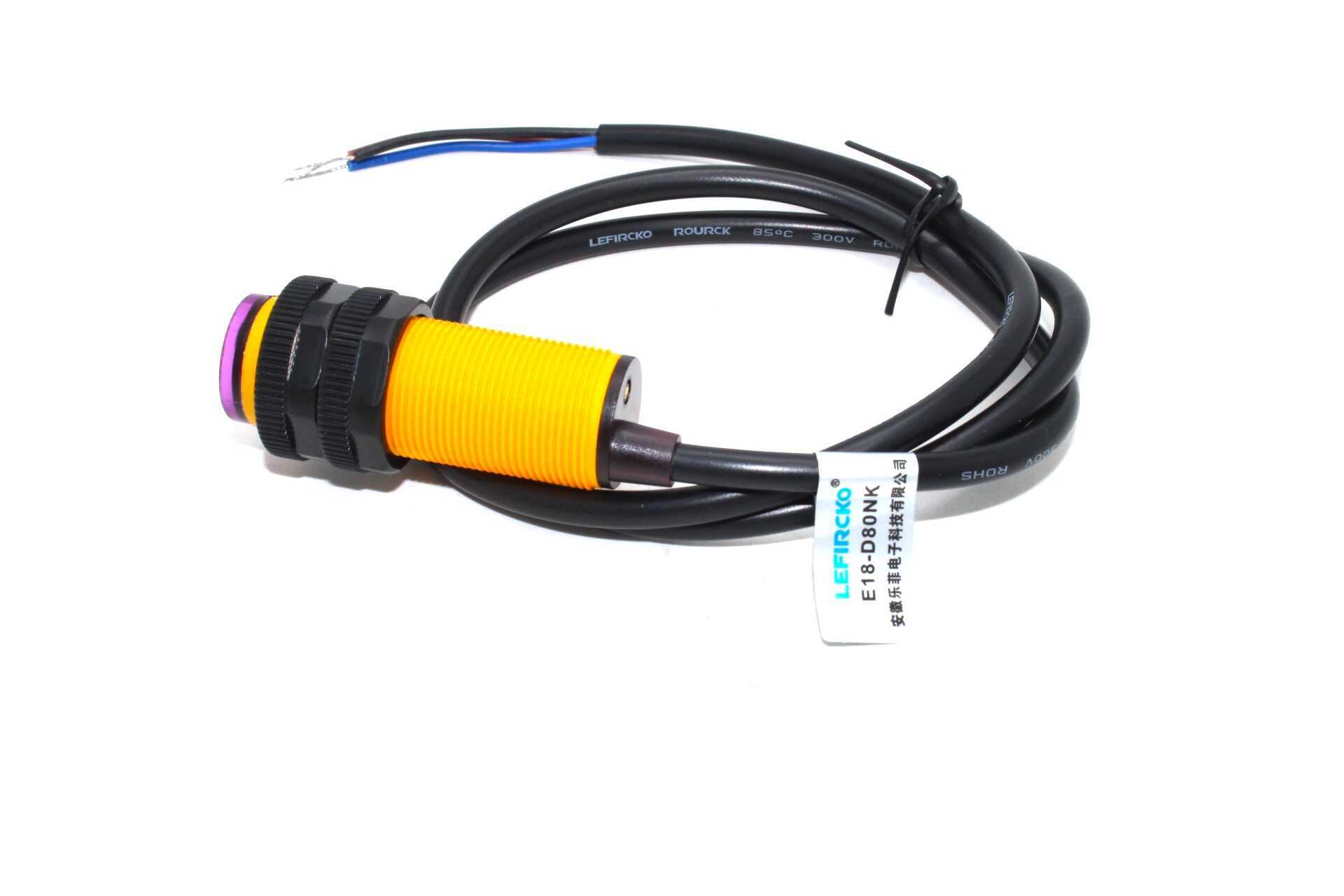

This is the 80cm variant of the E18-D80NK NPN- NO Adjustable IR Sensor Proximity Switch 3-80cm Range in Other Proximity Sensor & Modules. Available at ₹140.42 (₹119.00 + GST) with free shipping across India.
Product Description
- The E18-D80NK NPN-NO Adjustable IR Sensor Proximity Switch offers a compact solution by combining both a transmitter and receiver into a single photoelectric switch sensor. With an adjustable detection range of 3 to 80 cm, it provides flexibility for various applications. This versatile, cost-effective, and user-friendly sensor is perfect for tasks such as robot obstacle avoidance, interactive media systems, and industrial assembly lines.

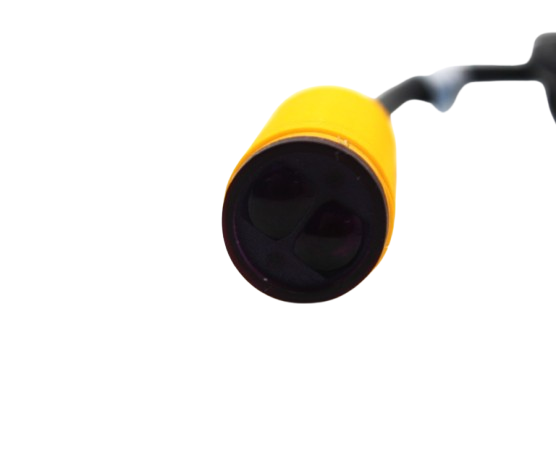

- The sensor outputs a switching signal that changes based on the presence of obstacles: it remains high when no obstacles are detected and switches low upon detection. Equipped with a bright light positioned behind the probe, it efficiently identifies objects within its 3 cm to 80 cm detection range.
Connections: –
- Red wire: 5V
- Green wire: GND
- Yellow wire: Digital output
OR
- Brown wire: 5V
- Blue wire: GND
- Black wire: Digital output.
Features
- Less influence on the color of reflected objects, reflectivity.
- Compact size.
- Industrial grade quality.
- Can detect colour difference from certain range.
- TTL output low whenever sensor senses a obstacle.
- Adjustable Detection distance of 3cm to 80cm.
- External control circuit unnecessary.
- Low cost.
- Output indication LED.
- Digital output.
- Low consumption.
Specification:
| Light source | Infrared |
|---|---|
| Sensing Range | 3cm to 80cm |
| Input Voltage (V) | 5 |
| Current Consumption | 150mA |
| Cable Length (m): | 1 |
Package Includes

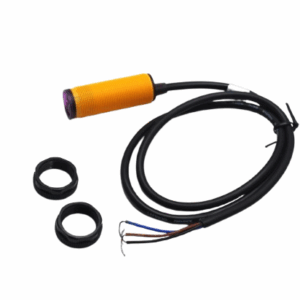

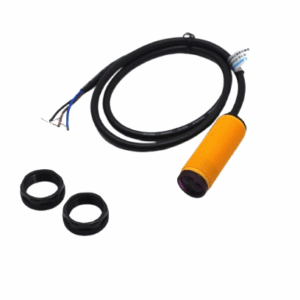

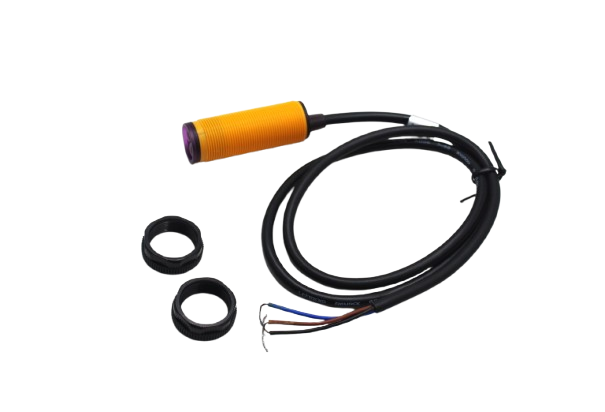

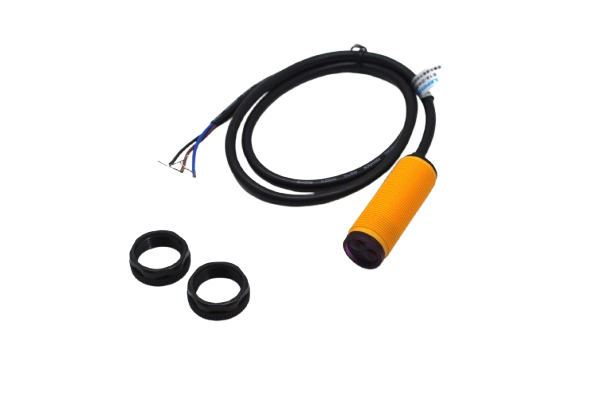

- 1 x E18-D80NK NPN-NO Adjustable Infrared Sensor Switch 3-80cm.
