This is the Green variant of the Green SN04-N NPN BN -5-30V Inductive Proximity Sensor Switch NO 3 Line in Other Proximity Sensor & Modules. Available at ₹226.96 (₹192.34 + GST) with free shipping across India.
Looking for Sn04 Sensor 30v Geprc? Green SN04-N NPN BN -5-30V Inductive Proximity Sensor Switch NO 3 Line is available at Zbotic with fast shipping across India.
This SN04-N NPN NO 5mm Distance Detector Proximity Sensor Switch Module will detect the presence of a metallic object within 4mm of the surface of the sensor.
The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered and increases in brightness when an object is detected.

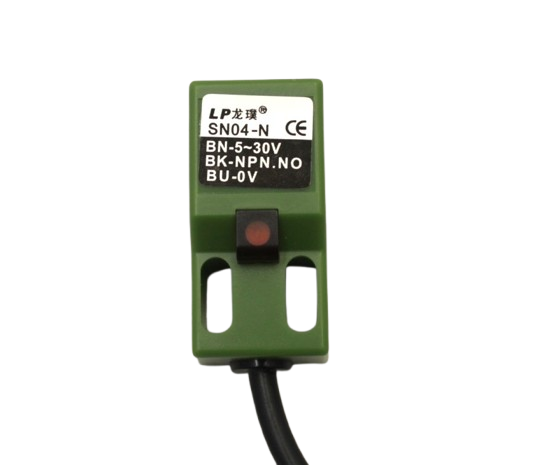

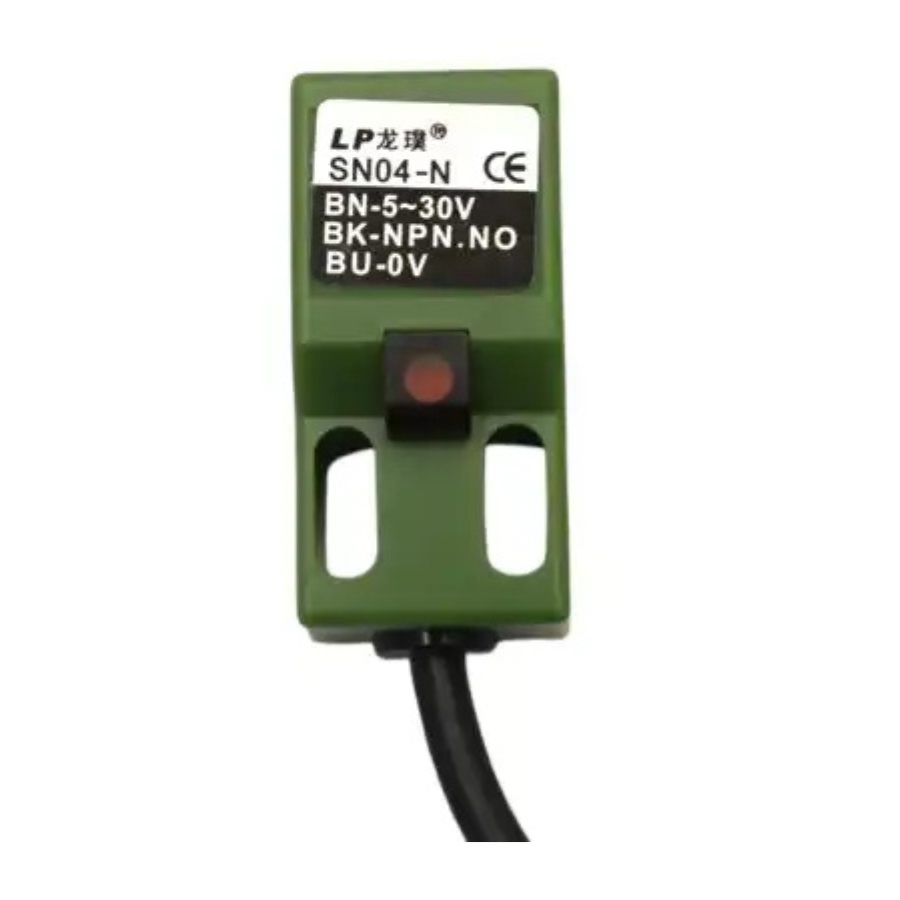

Wire Connections:
- Brown wire: DC BN 5-30v
- Blue wire: 0 V (GND).
- Black wire: signal.
Note: This product is available in two colors as Green and Blue, which are shipped randomly to our customers.
Features :
- Red LED checks the state of the proximity sensor
- High repeated positioning accuracy
- High switching frequency
- Wide voltage range
- Antivibration, dust, water and oil prevention
- Reverse power protection, short circuit protection, directly connecting with PLC
- It can replace small switches and limit switches.
Package Includes :
1 x Green SN04-N NPN BN -5-30V Inductive Proximity Sensor Switch NO 3 Line
Green SN04-N NPN BN -5-30V Inductive Proximity Sensor Overview
The Green SN04-N NPN BN -5-30V Inductive Proximity Sensor is a three-wire, normally open switch designed to detect metallic objects up to 4 mm from its sensing face. Powered by a 5–30 V DC supply, it provides reliable object detection for machine automation and status monitoring.
Key Features of Green SN04-N NPN BN -5-30V Inductive Proximity Sensor
- Inductive sensing distance: up to 4 mm for steel targets
- NPN, normally open (NO) output for sinking current to ground
- Wide supply voltage range: 5–30 V DC
- 3-wire connection: brown (V+), blue (GND), black (signal)
- Built-in LED indicator lights on power and brightens upon detection
- Detects metal objects through thin, non-metallic covers
- Fast shipping across India from Zbotic
Applications and Use Cases
- Position sensing on conveyor belts to count metal parts
- Automation limit switch for CNC and milling machines
- Metal detection through plastic or thin protective casing
- End-of-travel detection on robotic arms and sliders
- Presence monitoring of shafts or gear teeth in industrial equipment
- Integration with PLC and microcontroller control panels
How to Use Green SN04-N NPN BN -5-30V Inductive Proximity Sensor
Mount the sensor perpendicular to the target path, wire the brown lead to your 5–30 V DC supply, connect the blue lead to ground, and run the black lead to your controller’s input. Power the unit and verify the LED glows. Place a metal object near the sensing face—when within 4 mm, the LED brightens and the black wire switches low to signal detection.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
1. What types of metal can the SN04-N detect?
The SN04-N reliably senses ferrous metals such as iron and steel within a 4 mm range. Detection distance may be slightly lower for non-ferrous metals like aluminum or brass.
2. How do I wire this NPN sensor to a PLC?
Connect the brown wire to +5–30 V DC, the blue wire to 0 V GND, and the black wire to the PLC’s sinking input. When a metal object is detected, the sensor pulls the black wire low to signal your PLC.
3. Can the sensor detect through a protective cover?
Yes. The SN04-N can detect metal objects through thin, non-metallic materials such as plastic or acrylic up to its standard sensing distance of around 4 mm.
