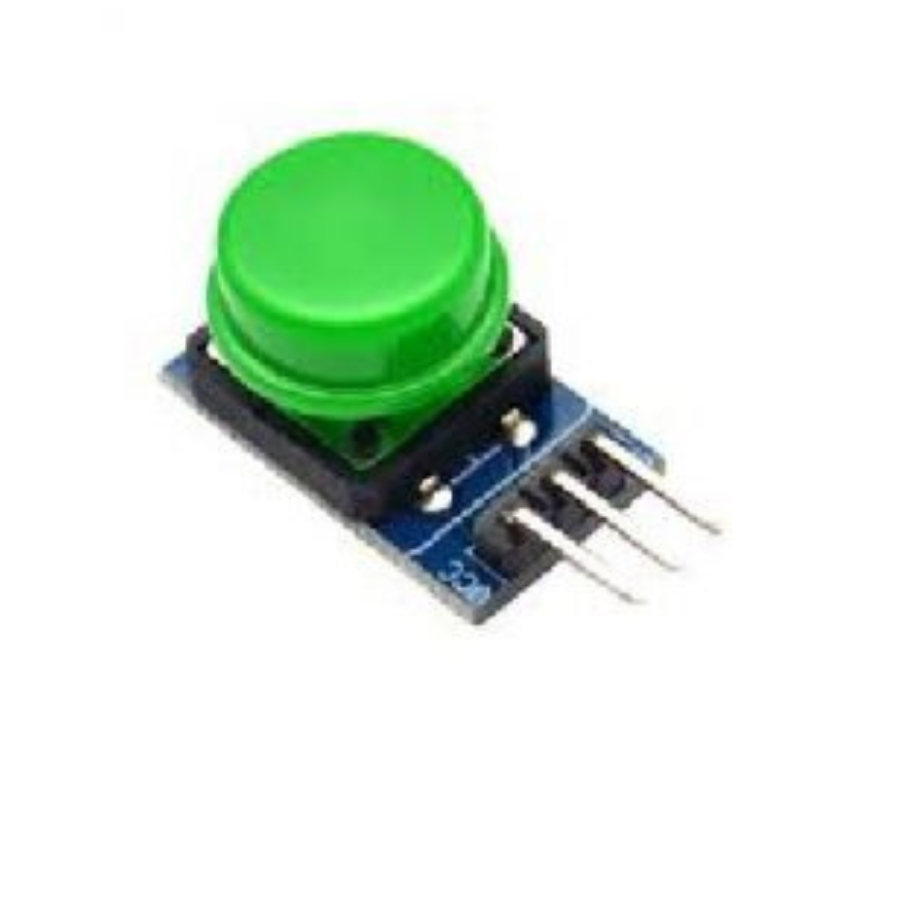

This is the Green variant of the Green Electronic Building Blocks Big Key Button Module High Level Output in Electronic Switches/Keypads Modules. Available at Original price was: ₹33.04.₹17.23Current price is: ₹17.23. (₹14.60 + GST) with free shipping across India.
PRODUCT DESCRIPTION
This module features a large key button designed for green electronic building blocks. It enables the use of an analog port to detect button states via a sensor expansion board. Multiple buttons can be utilized with this module. The button is of high quality and is compatible with the sensor expansion board port, outputting a low level when pressed and a high level upon release.Features:
- This button module kit includes 1PCS of button modules with a Green cap.
- When you press the button, it will output a high level and it will turn to be LOW when you release it.
- Great for Children and Visual programming aids.
Specification:
| Interface | Standard electronic block (GND, VCC, SIG) |
|---|---|
| Working voltage | 2-5.5VDC |
| Working Current | 0.55mA(MAX) |
| Output | Digital Level (press high, release low) |
| Length (mm): | 20 |
| Width (mm) | 15 |
| Height (mm) | 14 |
| Weight (gm) | 2 |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 7 × 5 × 1 cm |
Package Includes:
1 x Green Key Button Module High-Level Output
Green Electronic Building Blocks Big Key Button Module High Overview
The Green Electronic Building Blocks Big Key Button Module High is a large-cap button designed for use with standard electronic building block systems. It provides a clear digital signal—outputting HIGH when pressed and LOW when released—allowing you to detect button states easily via a sensor expansion board.
Key Features of Green Electronic Building Blocks Big Key Button Module High
- Green cap big key button compatible with standard electronic block interface (GND, VCC, SIG)
- Digital level output: HIGH on press, LOW on release for reliable signal detection
- Wide working voltage range of 2–5.5 VDC for use with various microcontroller platforms
- Low maximum working current of just 0.55 mA for energy-efficient operation
- Plug-and-play design for sensor expansion boards; kit includes 1 PCS button module
- Genuine product with fast shipping from Zbotic India store
Applications and Use Cases
- Interactive control panels in DIY robotics and automation projects
- Input interface for educational kits and visual programming environments
- Prototype user controls on breadboards or custom PCBs via sensor expansion boards
- Menu navigation buttons in Arduino or micro:bit based projects
- Multiple button arrays for game controllers or sound-triggered installations
How to Use Green Electronic Building Blocks Big Key Button Module High
Simply connect VCC to a 2–5.5 V supply, GND to system ground, and SIG to the input port of your sensor expansion board. When the green key is pressed, the module outputs a HIGH signal; when released, it returns to LOW. Read this digital level in your microcontroller’s code to trigger actions or events in your project.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does this button module support?
The module operates between 2 VDC and 5.5 VDC, making it compatible with both 3.3 V and 5 V microcontroller systems.
How does the output signal behave when the button is pressed?
Pressing the green key outputs a HIGH digital level on the SIG pin; releasing the button returns the output to LOW for straightforward detection.
Can I use multiple buttons together?
Yes, you can connect multiple button modules to different ports on your sensor expansion board for multi-button input configurations.
Technical Specifications
| Color | Green |
|---|---|
| SKU | AI2933 |
| Weight | 0.00325 kg |
| Availability | In Stock |
Applications & Use Cases
The Green Electronic Building Blocks Big Key Button Module High Level Output is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
