Looking for Mini Dry Reed Module? Mini Dry Reed Pipe Module is available at Zbotic with fast shipping across India.
Mini Dry Reed Module – Description:

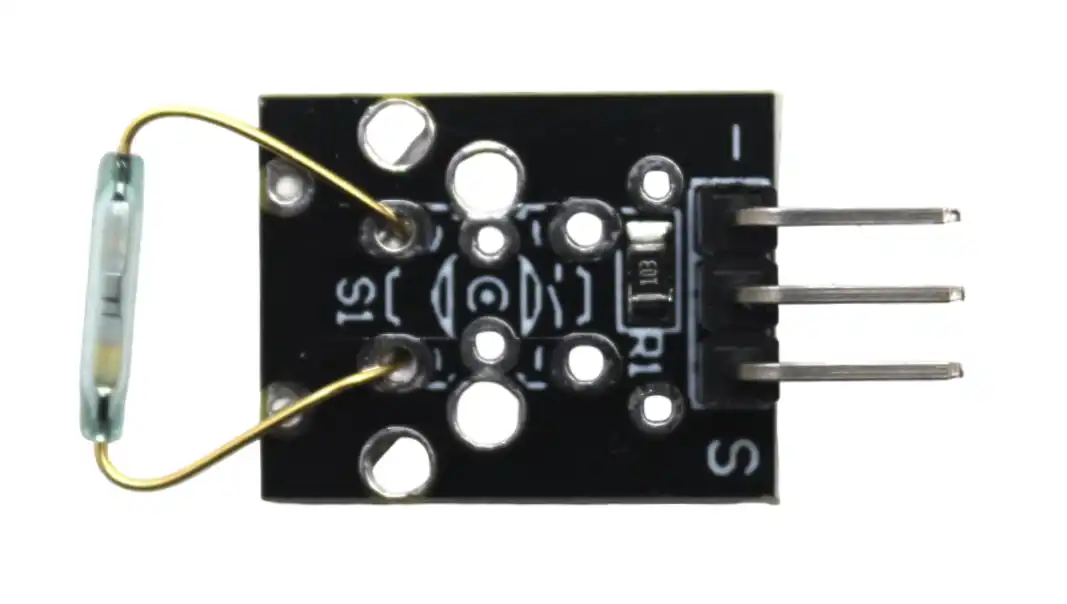

A Mini Dry Reed Pipe Module is a magnetic sensor that is normally open and gets closed when exposed to a magnetic field. The module consists of a 10kΩ resistor and a small reed switch actuated by a magnetic field, commonly used in mechanical systems as proximity sensors.
It is compatible with popular electronic platforms like Arduino, Teensy, etc.
Features:
-
This module is ideally suited to adding a magnetic switch to your project.
-
Apply to a switchboard, duplicator, washing machine, refrigerator, camera, electronic scale, gas meter, and water meter, etc.
Specification:
| Item Type | Electronic Switch |
|---|---|
| Operating Voltage (VDC) | 3.3 to 5 |
| Output Type | Digital |
| Length (mm) | 18.6 |
| Width (mm) | 6 |
| Height (mm) | 3 |
Package Includes:
-
1 x Mini Dry Reed Pipe Module
Mini Dry Reed Pipe Module Overview
The Mini Dry Reed Pipe Module is a compact, normally-open magnetic switch sensor that closes its contacts when exposed to a magnetic field. Operating from 3.3 V to 5 V, it provides a clean digital output for proximity sensing, position detection, or security applications.
Key Features of Mini Dry Reed Pipe Module
- Normally-open reed switch actuated by an external magnet
- On-board 10 kΩ resistor for stable digital signal conditioning
- Wide operating voltage range: 3.3 V to 5 V DC
- Compact pipe-style form factor for easy mounting in tight spaces
- Compatible with Arduino, Teensy, Raspberry Pi and other 3.3 V/5 V logic boards
- Genuine module stocked at Zbotic with fast shipping across India
Applications and Use Cases
- Door and window security sensors for alarm systems
- Rotation or RPM detection on shafts fitted with a small magnet
- Liquid or gas meter pulse counting in utility monitoring
- Position feedback in camera sliders and automation rigs
- End-stop detection on 3D printers, CNC machines or duplicators
How to Use Mini Dry Reed Pipe Module
Simply connect the module’s VCC pin to a 3.3 V–5 V supply, GND to ground, and the OUT pin to a digital input on your microcontroller. Mount the module so that a small magnet on the moving part passes within a few millimeters of the reed switch. In code, detect the digital HIGH/LOW transitions to trigger events or count pulses.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the operating voltage range of the Mini Dry Reed Pipe Module?
The module works on a 3.3 V to 5 V DC supply and can be powered directly from most microcontroller voltage rails.
How close must the magnet be to activate the reed switch?
Activation typically occurs when a small neodymium magnet is within 5–10 mm of the reed switch, depending on magnet size and orientation.
Which controllers can interface with this module?
The digital output is compatible with Arduino, Teensy, Raspberry Pi GPIO, ESP32 and any other platform supporting 3.3 V or 5 V logic inputs.
Technical Specifications
| SKU | AI2507 |
|---|---|
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Mini Dry Reed Pipe Module is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
