Product Description

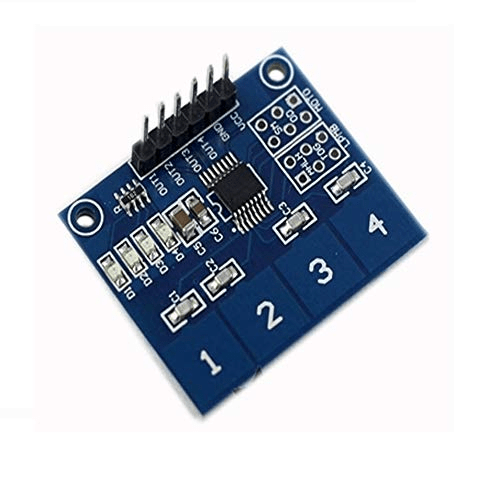

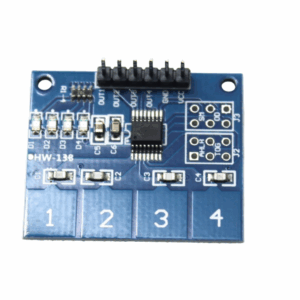

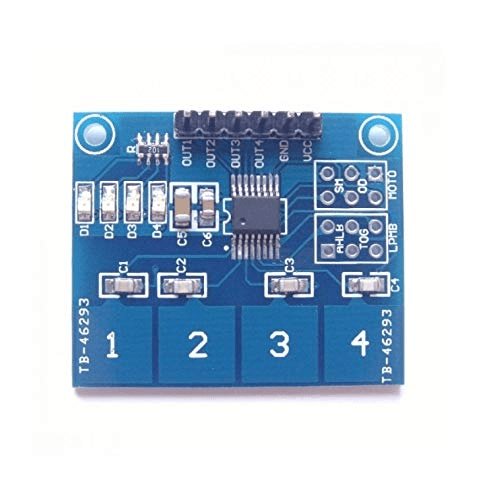

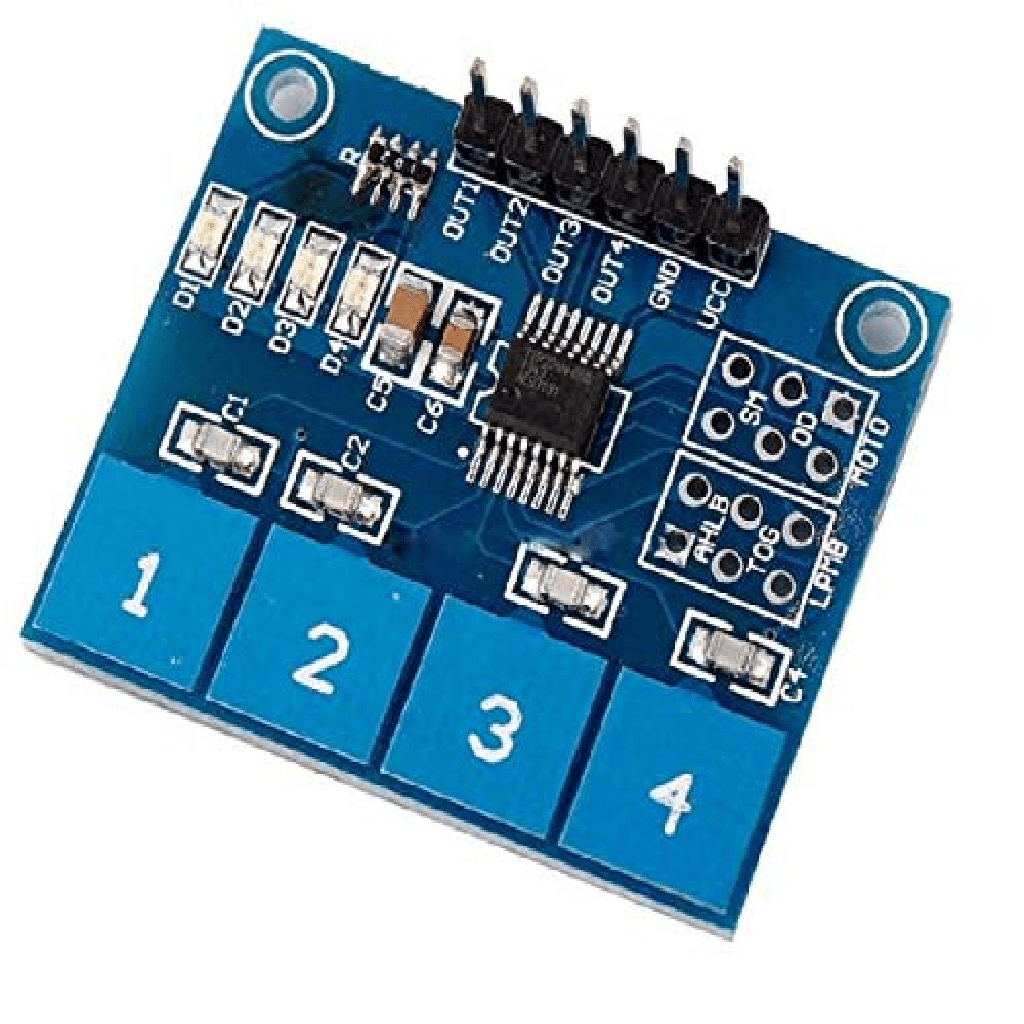

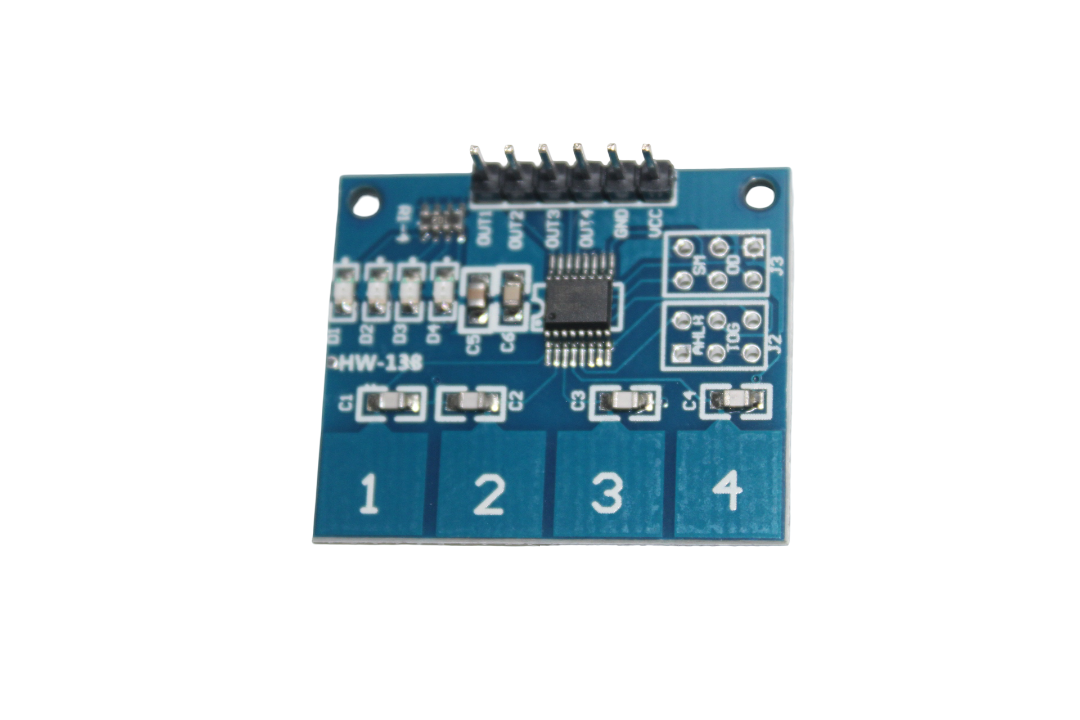

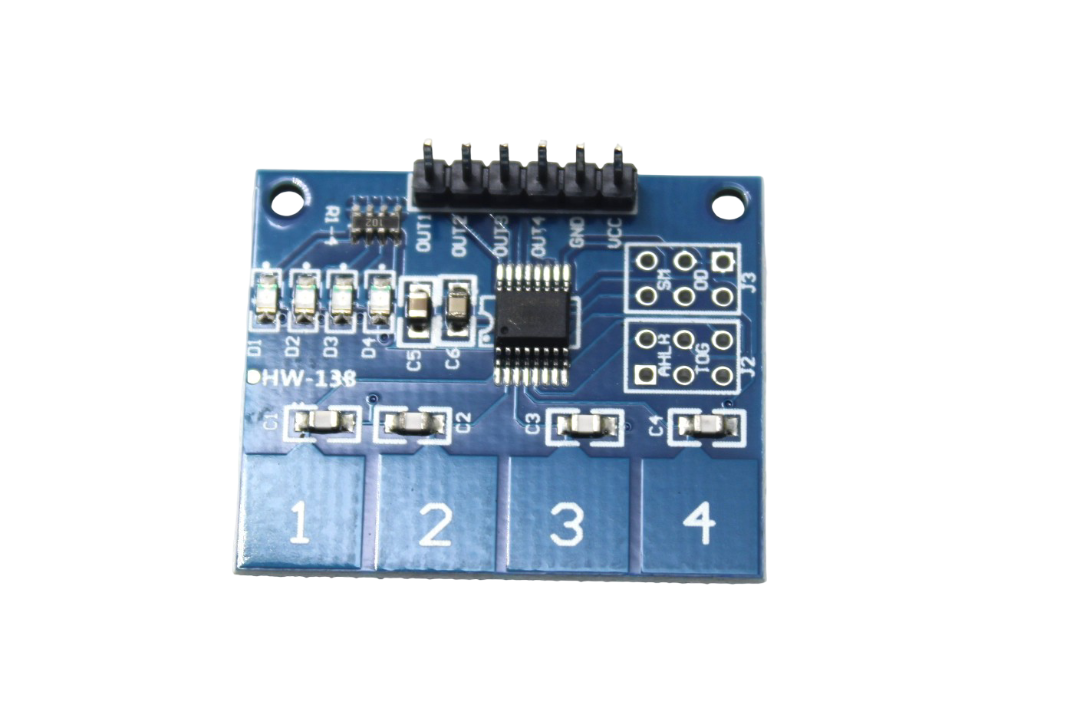

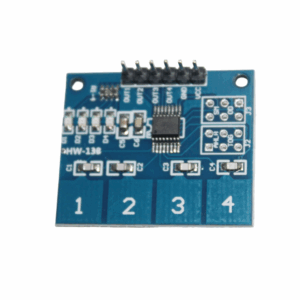

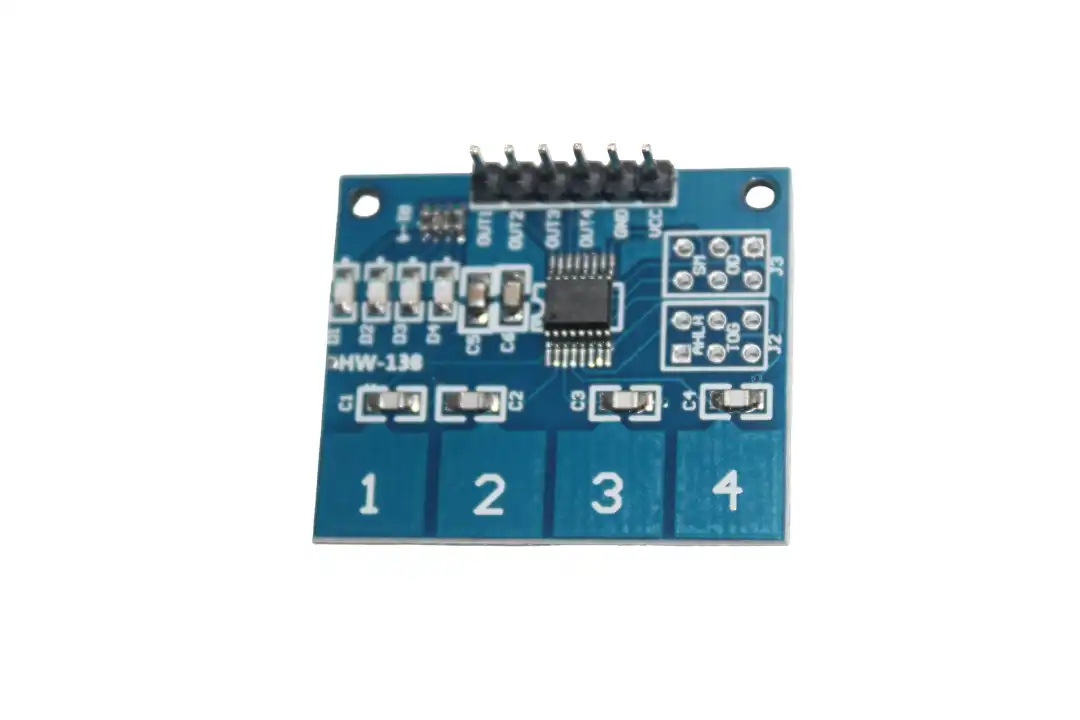

- This 4-switch digital touch sensor utilizes capacitive sensing technology, featuring the TTP 224 IC designed for touchpad control with a four-finger-sized touchpad. The board includes jumpers to adjust the keypress output mode to either Timed or Toggle, and Active High or Active Low. It also offers jumper settings to modify the response time for pressed keys, allowing for a 60ms fast mode or a 160ms low-power mode.
- On the output side, the board has 6-pin headers, with 4 pins designated for connection to the digital I/O of any microcontroller board, such as Arduino or ARM STM32. Additionally, it features 4 SMD status LEDs to indicate the status of each pressed key. The TTP 224 4 Channel Digital Touch Sensor is compatible with all Arduino boards and is suitable for applications in human-machine interfaces (HMI) and as a replacement for mechanical buttons.
Features
- TTP224 4-way switch digital touch capacitive touch sensor module
- 4 keyboard TTP224 capacitive touch sensor IC
- Onboard 4-level status indicator
Spcification
| Item Type: | Electronic Switch |
|---|---|
| Model Type: | Touch Switch |
| Operating Voltage (VDC): | 2 to 5.5 |
| Response Time (mS) | 160mS @ Low Power Mode, Output 60mS @ Fast Mode |
| Length (mm): | 35 |
| Width (mm): | 29 |
| Height (mm): | 10 |
| Weight (g): | 3 |
| Shipping Weight | 0.005 kg |
Package Includes
- 1 x TTP224 4-way Capacitive Touch Switch Module.
Technical Specifications
| Model | TTP224 |
|---|---|
| SKU | AI0313 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The TTP224 4-way Capacitive Touch Switch Module is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
