12 MM Momentary Tactile Push Button Module DC 5V Switch

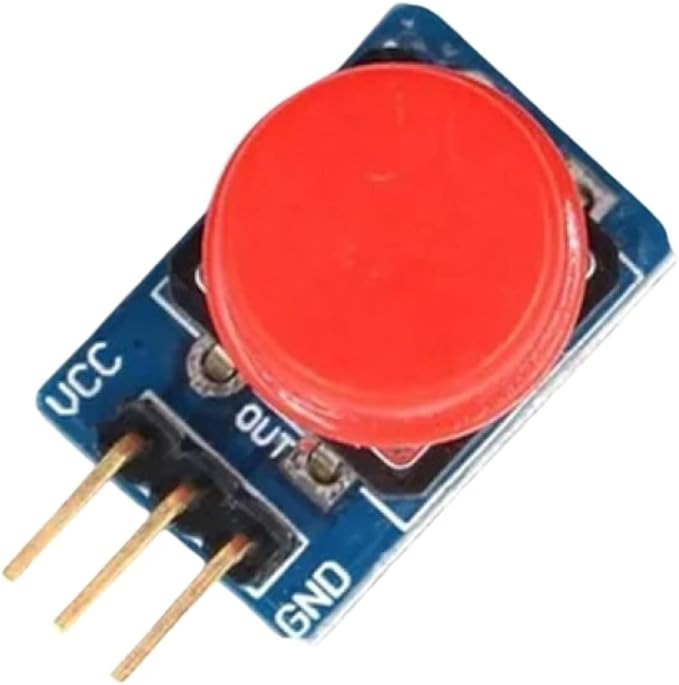

12mm Push Button Module with Red Cover 3 Pins.

– The 12mm Push Button Module with Red Cover is a commonly used button (pulsator) for giving activation orders in specific projects or equipment. It is typically activated through pulsing.
– What sets this model apart is that it comes pre-soldered on a PCI card, featuring three output pins (VCC, OUT, and GND). These pins allow for direct connection to a microcontroller via TTL-level digital communication.
– The 12mm Push Button Module with Red Cover has various applications. It is commonly employed as an electronic button that functions similarly to an electrical switch. When pressed, it closes the contact, allowing VCC energy to flow through the OUT-output pin while tightened. This module can be used for various functionalities.

FEATURES:

– Push Button Module 12mm.
– Comes with a red cover.
– TTL level digital output.
– Easy connection.
– VCC, OUT and GND pins.
– OUT pin equal to VCC (when pressed).
– Small dimensions.
– Ideal for control panels.

SPECIFICATIONS:

Cover Color: Red.

Voltage: 3.3V/5V/12VDC.

Pins: VCC / OUT / GND.

Cover Diameter: 12mm.

Dimensions (LxWxH): 20x12x14mm.

Package Include:

1 x 12 MM Momentary Tactile Push Button Module DC 5V Switch.
