This is the Red variant of the Red Electronic Building Blocks Big Key Button Module High Level Output in Electronic Switches/Keypads Modules. Available at ₹22.89 (₹19.40 + GST) with free shipping across India.
Looking for Red Electronic Building Module? Red Electronic Building Blocks Big Key Button Module High Level Output is available at Zbotic with fast shipping across India.
Product description

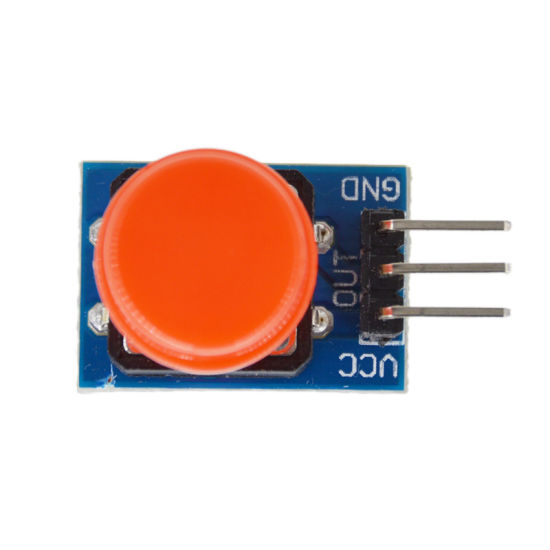

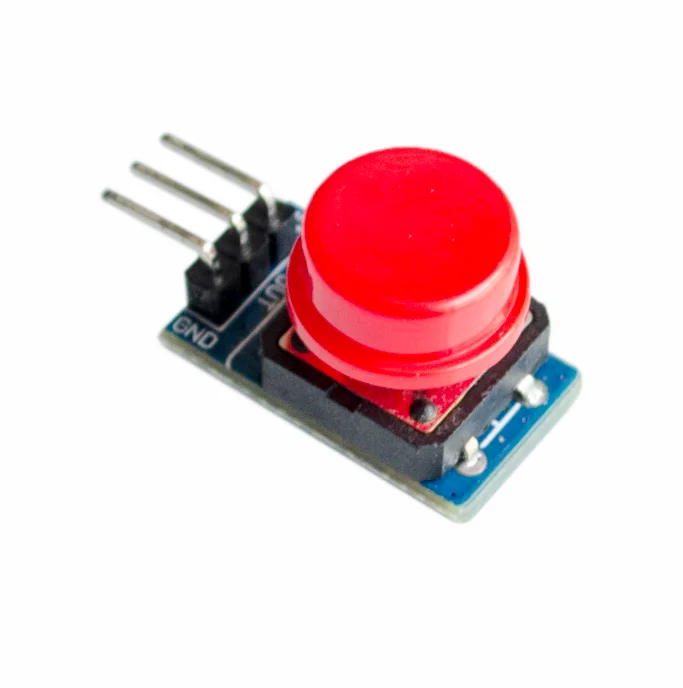

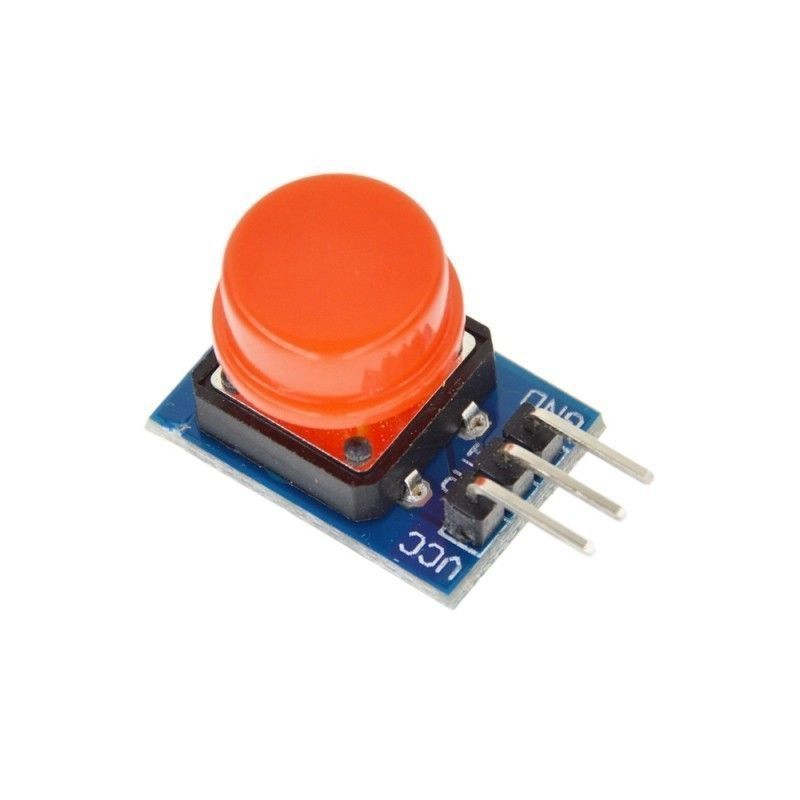

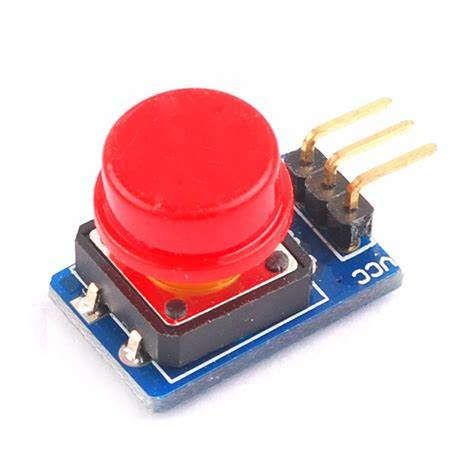

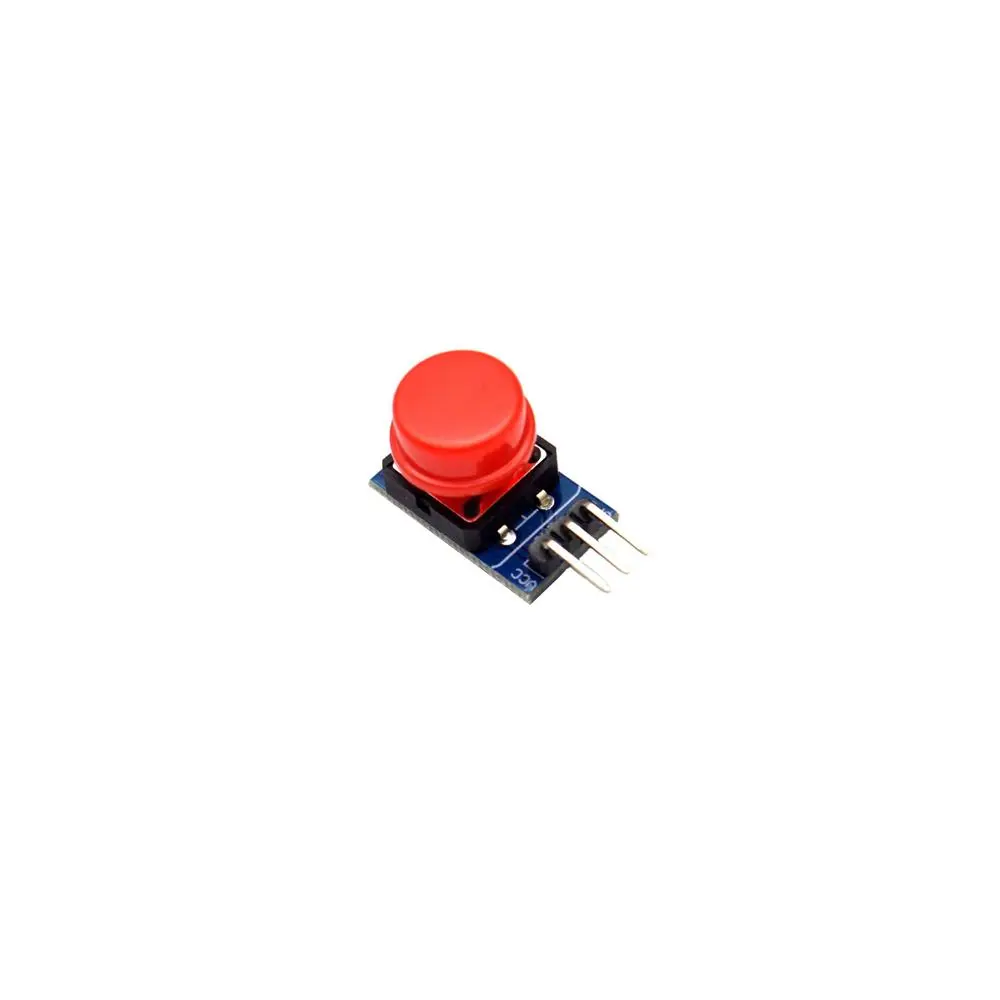

This is a module for a big key button that is red and electronic. You can use an analog port to read the key states with a sensor expansion board. This way, you can use multiple buttons at once. The button is high-quality and compatible with the sensor extension board port. When you press the button, it outputs a low level. When you release it, it maintains a high level.
Features:
- This button module kit includes 1PCS of button modules with Red cap.
- When you press the button, it will output a high level and turn to be LOW when you release it.
- Great for Children and Visual programming aids.
- Great for DIY projects
Specification:
| Interface | Standard electronic block (GND, VCC, SIG) |
|---|---|
| Working voltage | 2-5.5VDC |
| Working Current | 0.55mA(MAX) |
| Output | Digital level (press high, release low) |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 7 × 5 × 2 cm |
Package Includes:1 x Red Electronic Building Blocks Big Key Button Module High Level Output
Red Electronic Building Blocks Big Key Button Module High Overview
The Red Electronic Building Blocks Big Key Button Module High Level Output is a large, easy-to-press button designed for DIY electronics projects. It uses a standard three-pin interface (GND, VCC, SIG) to send a digital high signal when pressed and low when released, making it ideal for interactive controls and sensor expansion boards.
Key Features of Red Electronic Building Blocks Big Key Button Module High
- Standard electronic block interface with GND, VCC and SIG pins for plug-and-play connectivity
- Operates at 2–5.5 V DC with a low working current of just 0.55 mA (max)
- Digital output: outputs high level on press and low level on release
- Oversized red cap for clear visual feedback and easy actuation
- Compatible with common sensor expansion boards for multiple button setups
- Fast shipping from Zbotic across India, ready to power your next project
Applications and Use Cases
- Arduino and Raspberry Pi input button for digital control projects
- Children’s STEM kits and visual programming environments
- Robotics control panels requiring reliable manual triggers
- DIY game controllers and arcade-style interactive displays
- Prototype interfaces for appliances, alarms and user feedback
How to Use Red Electronic Building Blocks Big Key Button Module High
Connect the module’s GND to your microcontroller ground, VCC to a 2–5.5 V supply, and SIG to a digital input pin (or sensor expansion board port). In your code, read the SIG pin state to detect when the button is pressed (high) or released (low). Integrate this signal into your control logic, LED indicators, or sound triggers for real-time responses.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does this button module support?
The module operates reliably between 2 V and 5.5 V DC, making it compatible with 3.3 V and 5 V microcontroller platforms.
How do I connect the button to an Arduino?
Simply plug the GND pin into Arduino GND, VCC into 5 V (or 3.3 V), and SIG into any digital input pin. Use digitalRead() to monitor the button’s high/low state.
Is this button compatible with sensor expansion boards?
Yes, the three-pin block interface matches common sensor expansion board ports, allowing you to chain multiple buttons and sensors easily.
Technical Specifications
| Color | Red |
|---|---|
| SKU | AI3081 |
| Weight | 0.0039 kg |
| Availability | In Stock |
Applications & Use Cases
The Red Electronic Building Blocks Big Key Button Module High Level Output is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
