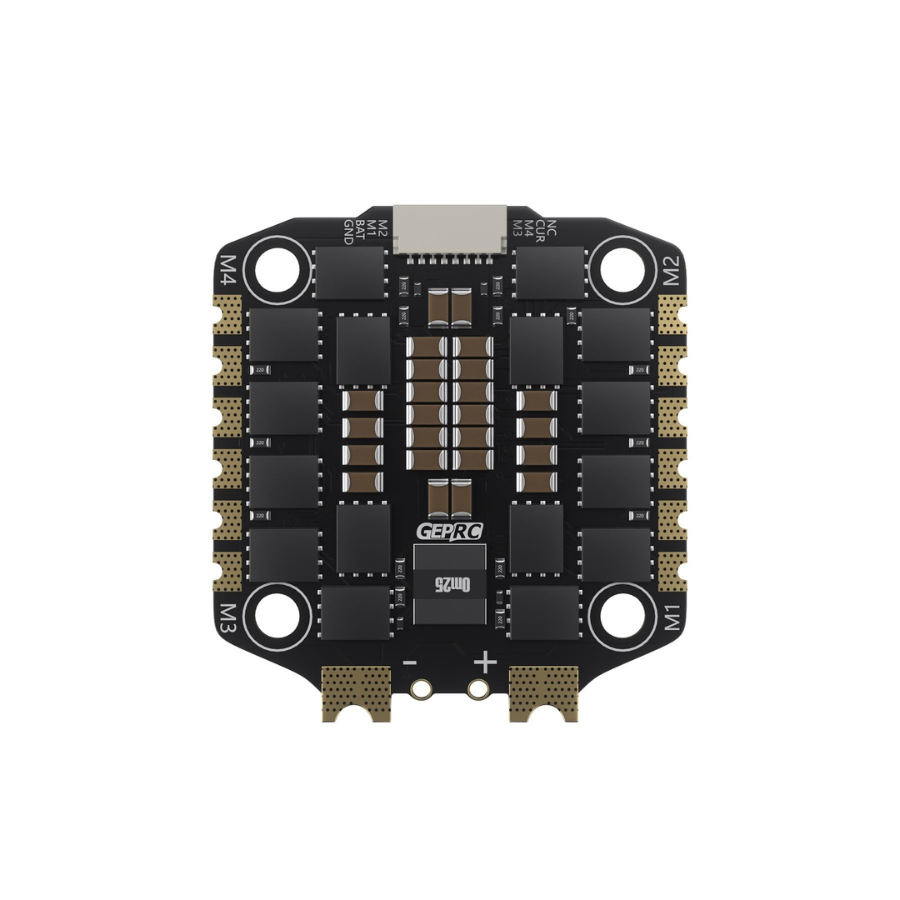

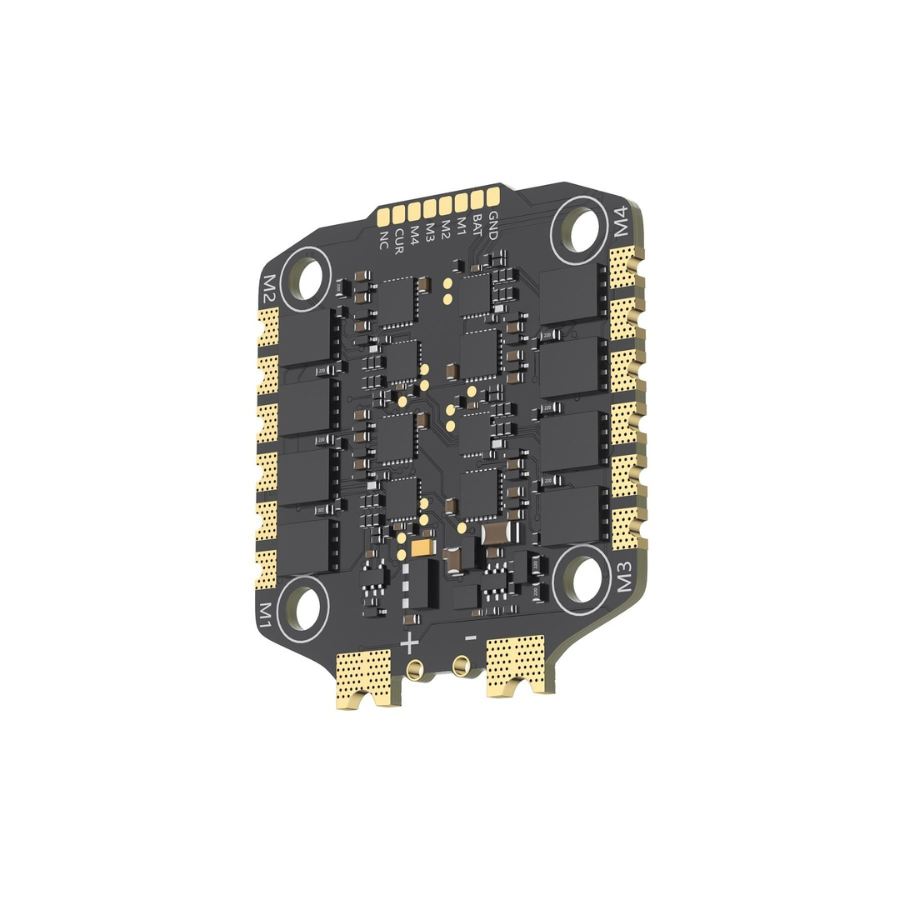

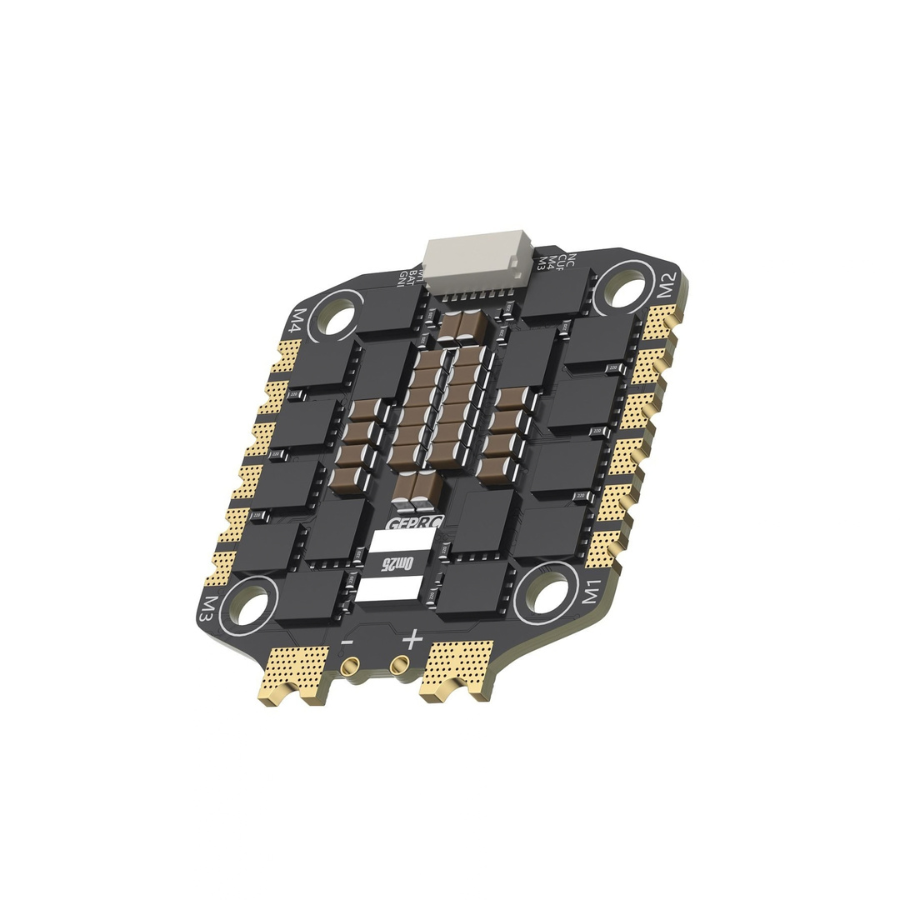

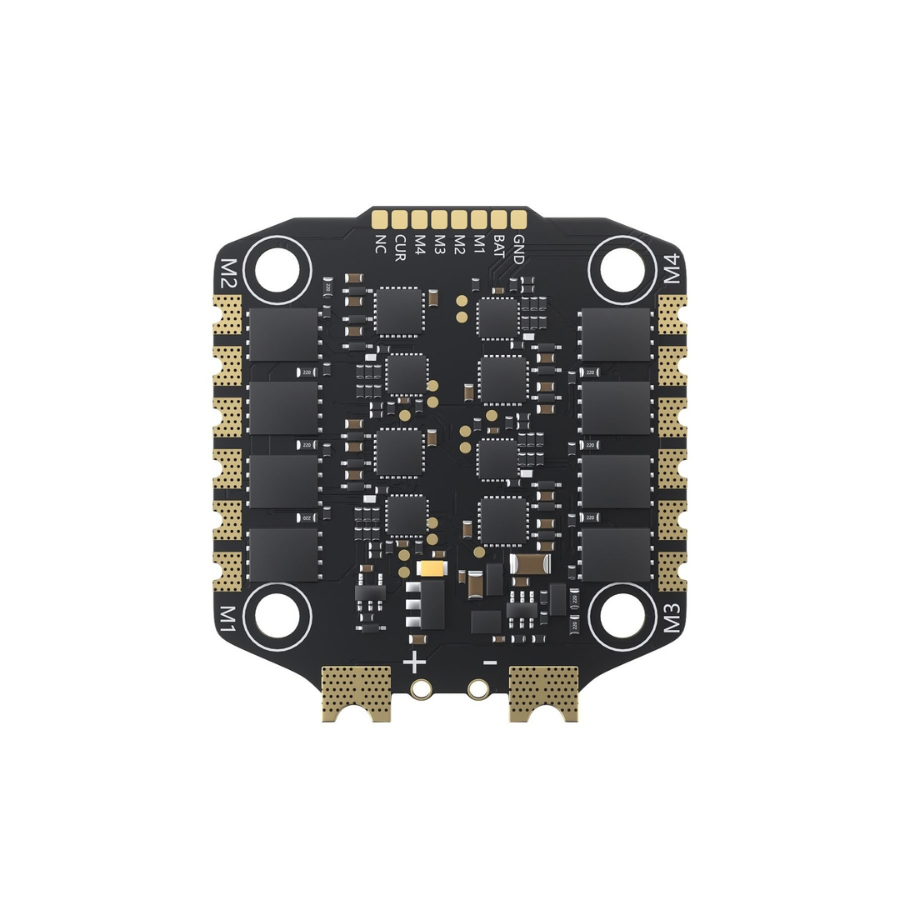

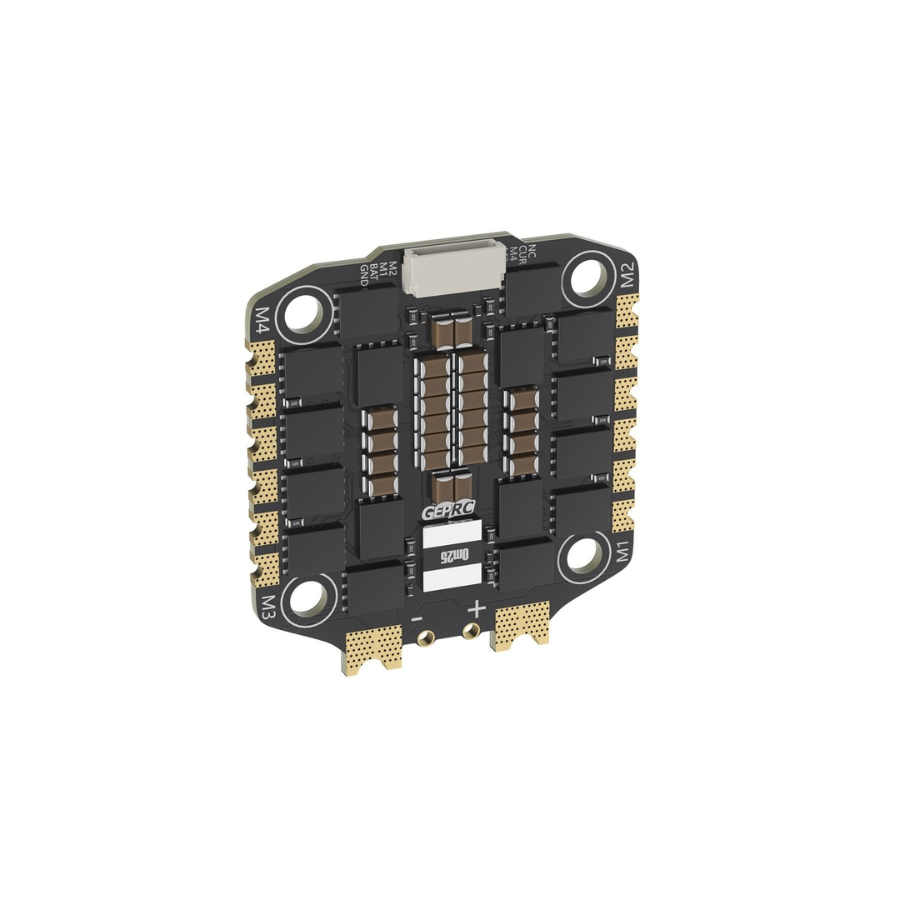

GEPRC TAKER H65_8S_BLS 65A 4IN1 ESC
Description:
The GEPRC TAKER H65_8S_BLS 65A 4-in-1 ESC is an electronic speed controller designed for compatible FPV drones and high-performance UAV builds. Its 4-in-1 design integrates four motor controllers into a single board, helping simplify wiring and installation. With a 65A current rating and BLS ESC configuration, it provides motor speed control for compatible brushless motors in demanding drone applications.
Key Features
- Brand: GEPRC
- Model: TAKER H65_8S_BLS
- Product Type: 4-in-1 Electronic Speed Controller (ESC)
- Current Rating: 65A
- ESC Configuration: BLS
- Integrated Design: Controls four brushless motors through one board
- Application: Compatible FPV drones and custom UAV builds
- Key Benefit: Simplifies wiring and supports efficient motor control
Specifications
- Input Voltage: 3-8S Lipo
- Ammeter: Support
- Continue Current: 65A
- Burst Current: 70A(5 seconds)
- Support Protocol: Dshot 150/300/600
- Size: 42×45.7mm
- Mounting Holes: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 14.9g
- Target: B_X_30
Pacakge Includes
1 x ESC
1 x Capacitor
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x Silicone anti-shake pads
