GEPRC TAKER F722 BLS 60A STACK
Description:

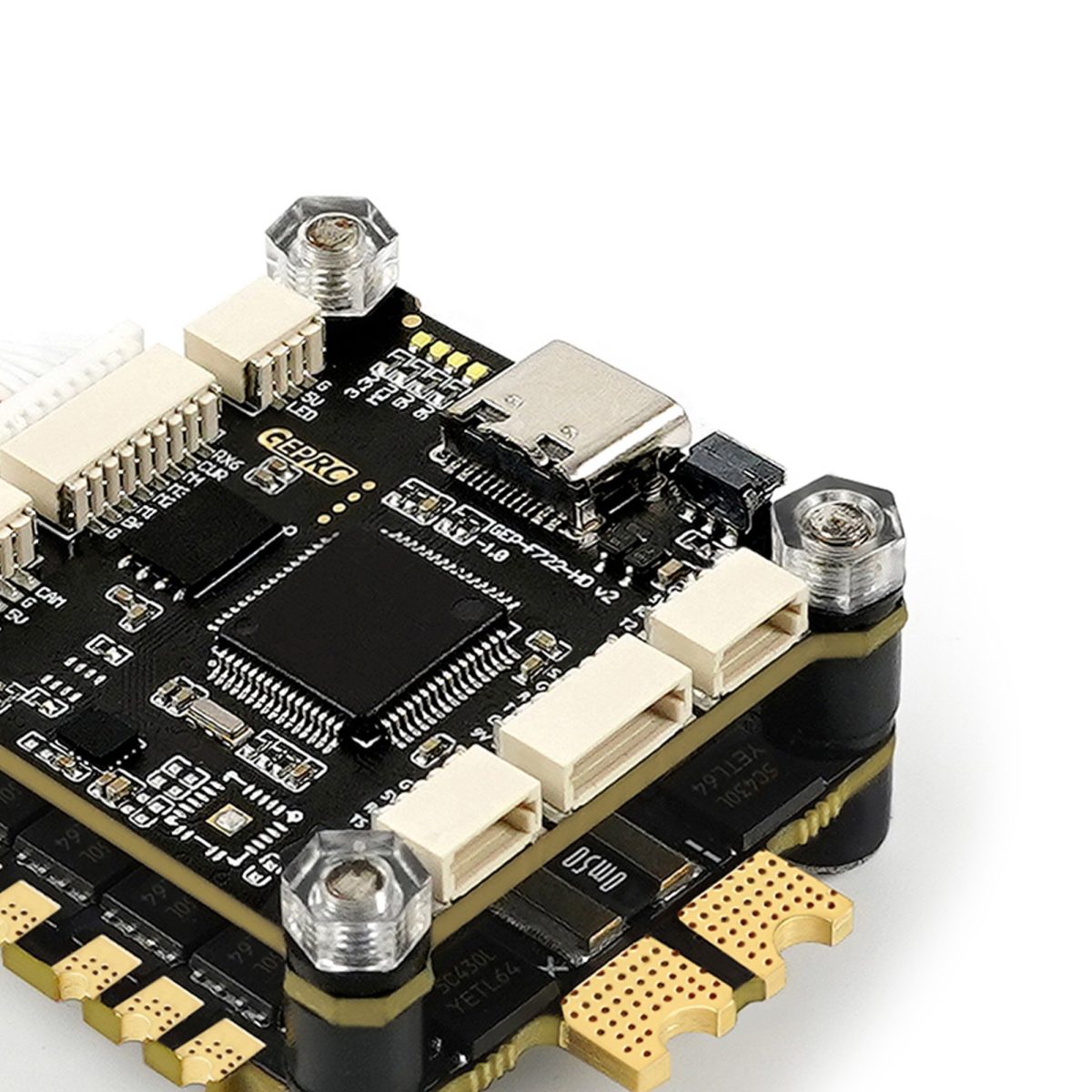

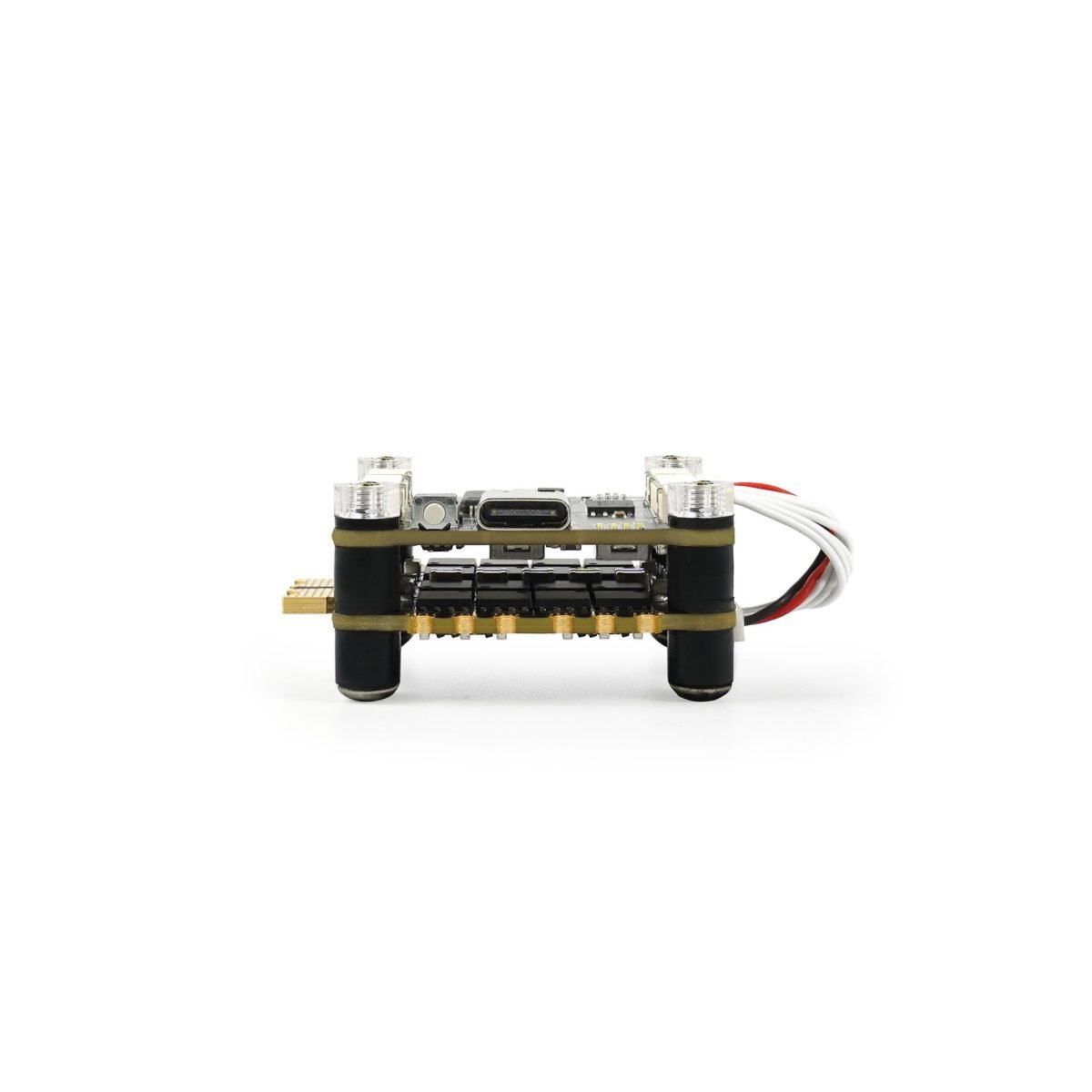

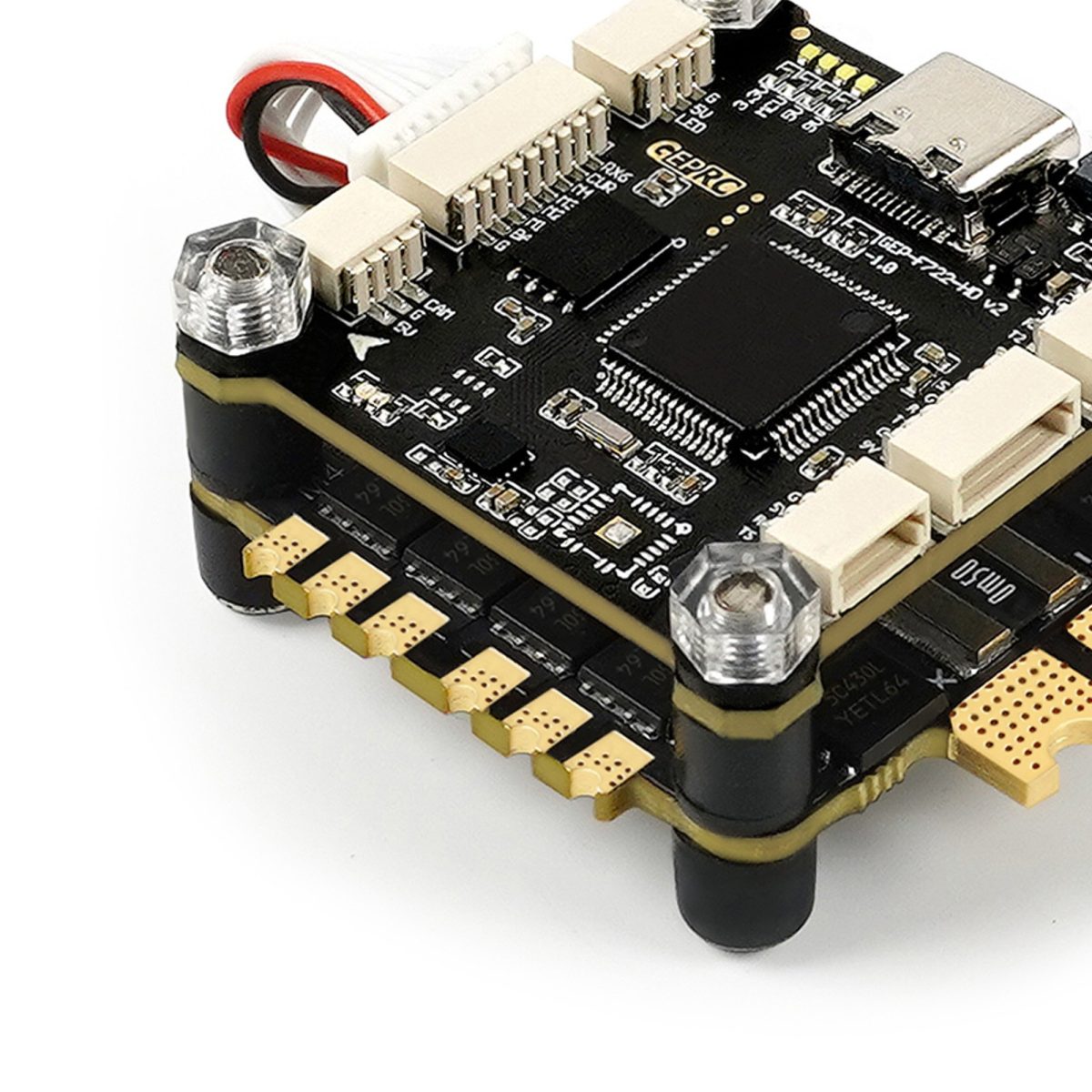

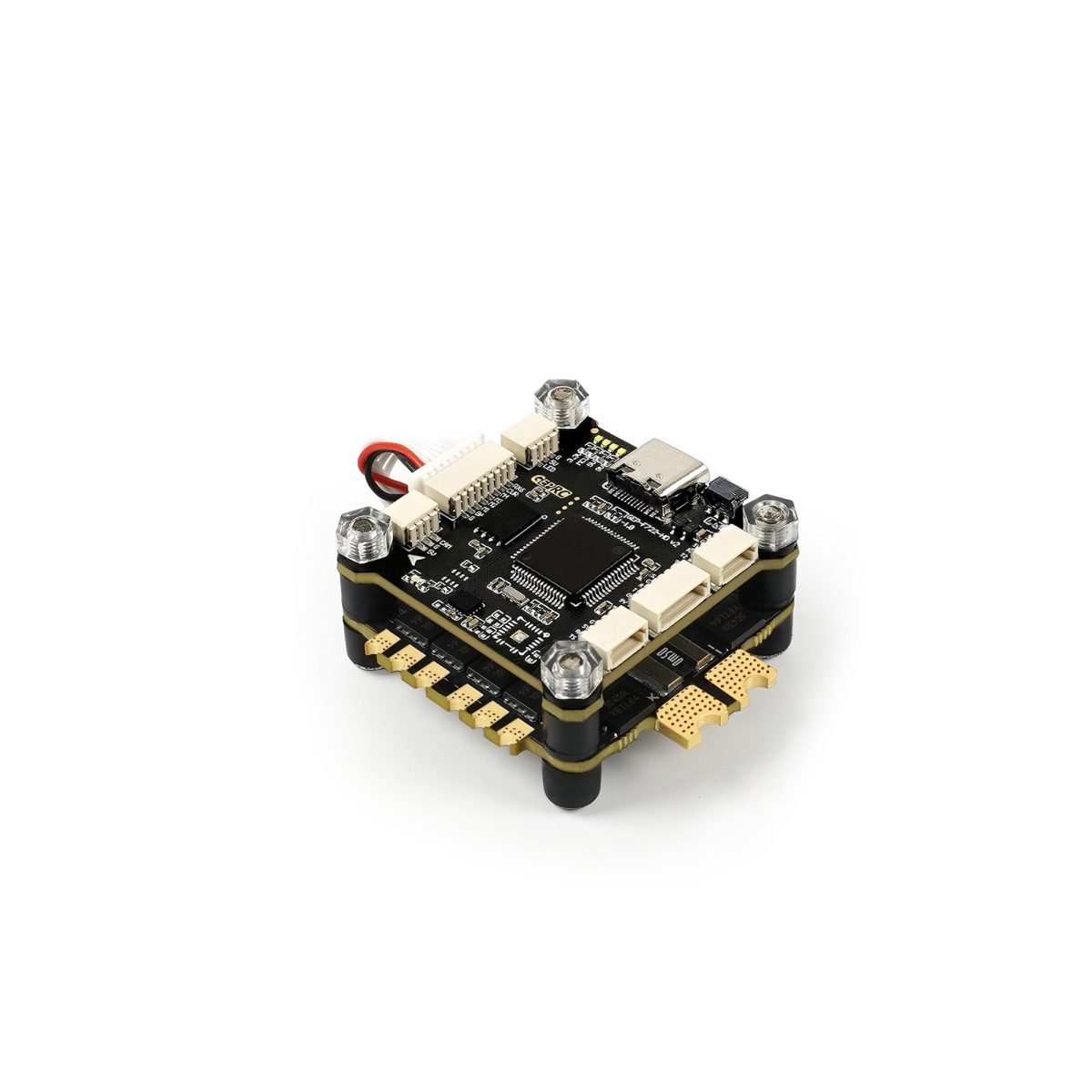

GEPRC TAKER F722 BLS 60A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit.Use STM32F722 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS60A-4IN1 ESC to have a more delicate hand feeling experience.
The TAKER F722 BLS 60A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. [email protected] + 5V@3A dual independent BEC, more stable power supply for external devices.
Features
- Use mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit

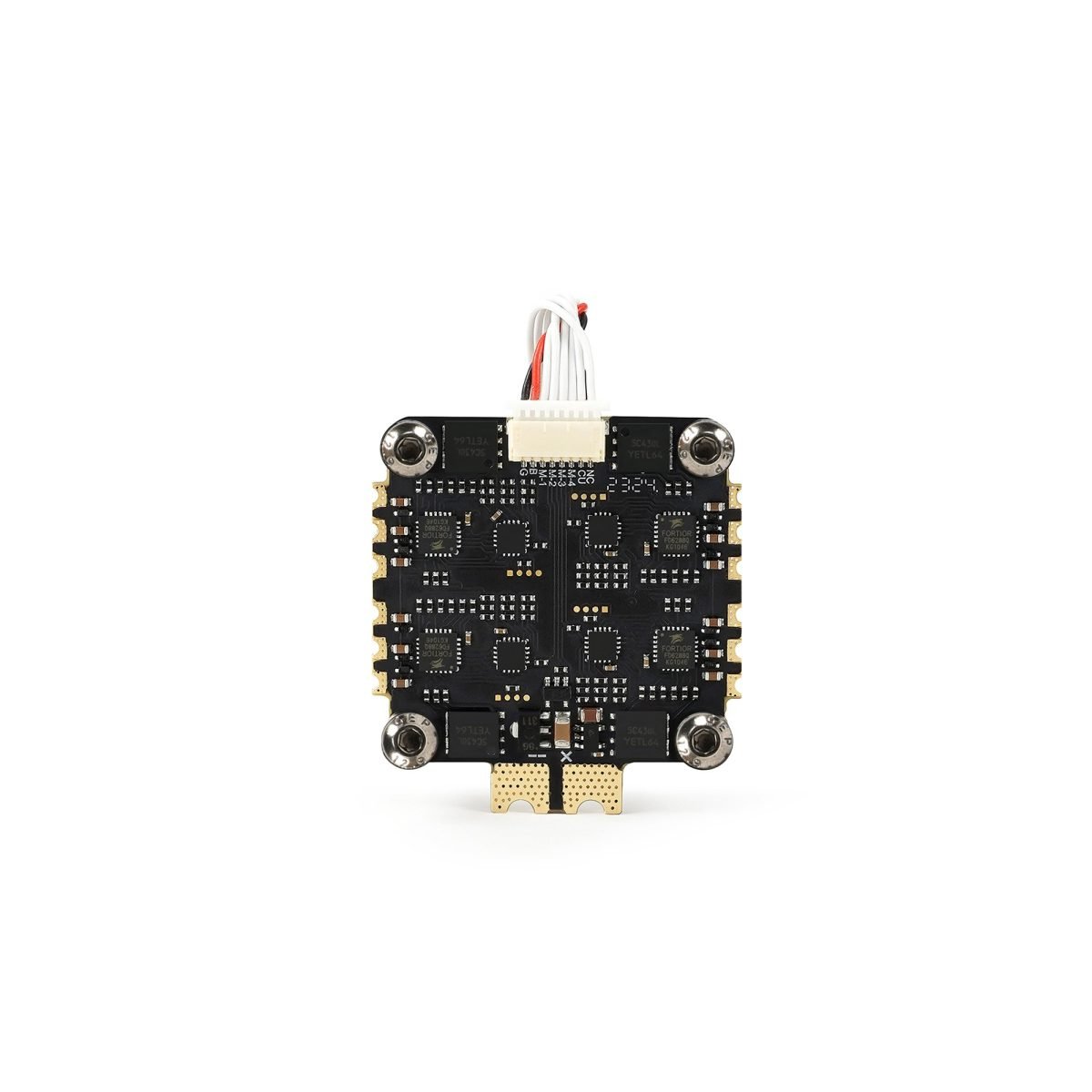

- With GEP-BLS60A-4IN1 ESC, the flying feel is silky
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
Specifications

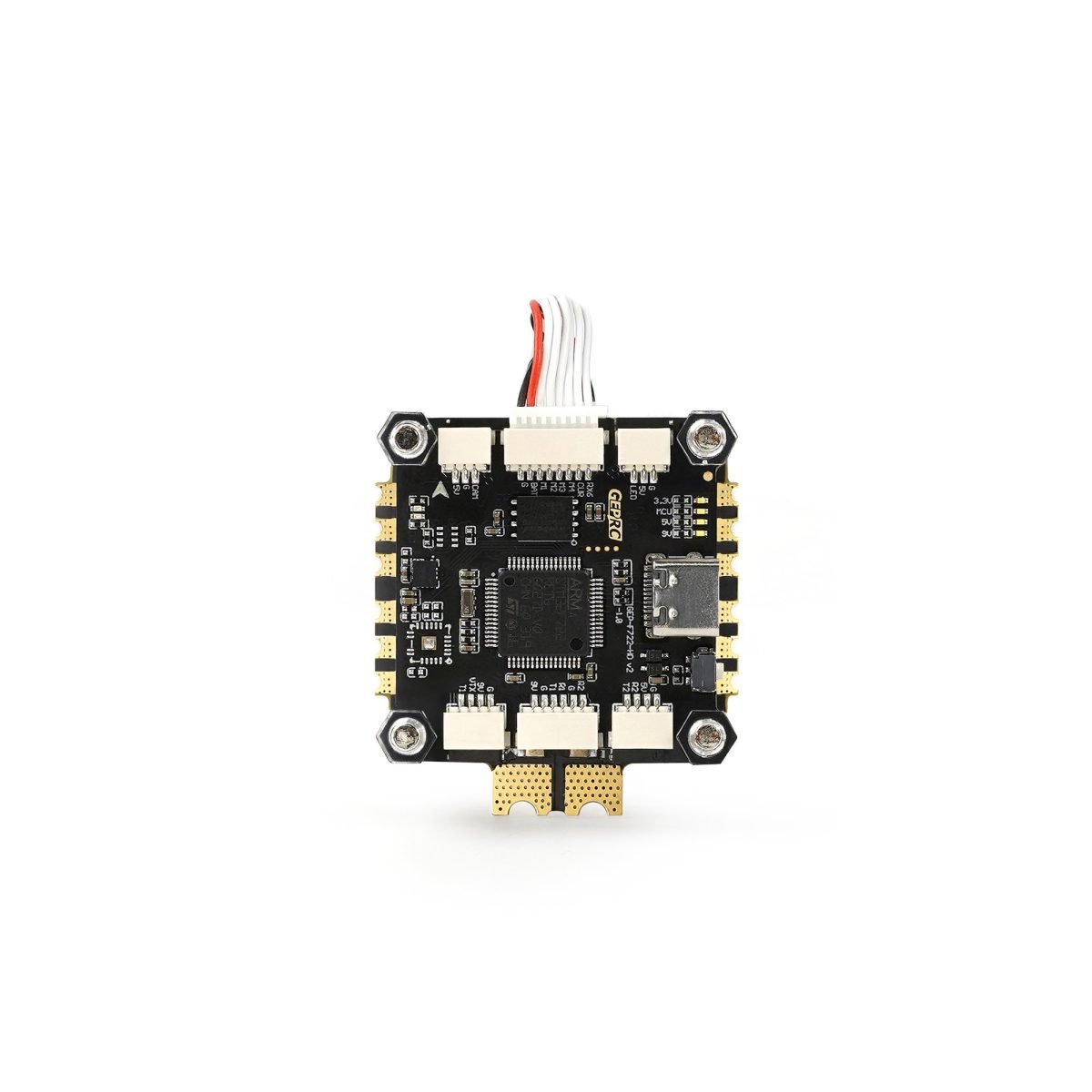

GEP-F722-HD v2 Flight Controller
- MCU：STM32F722
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,[email protected] dual BEC
- Firmware Target：GEPRCF722
- Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage：3-6S LiPo
- UART：5
- Power Filter：Integrated LC filter
- Weight：8.1g
Package Includes:
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
Drone Motor KV Rating Explained: How to Pick the Right Motor
Table of ContentsWhat is KV Rating in a Drone Motor?How KV Affects RPM and PerformanceLow KV vs High...
Read More →
Where to Buy Drone Parts in India: Complete Guide 2026
Whether you are building your first FPV racing quad or assembling a heavy-lift aerial photography rig, knowing where...
Read More →
Drone Insurance Requirements in India 2026
Understanding drone insurance requirements in India for 2026 is essential for every commercial drone operator. With DGCA mandating...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 60A |
| SKU | AI5023 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F722 BLS 60A STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
