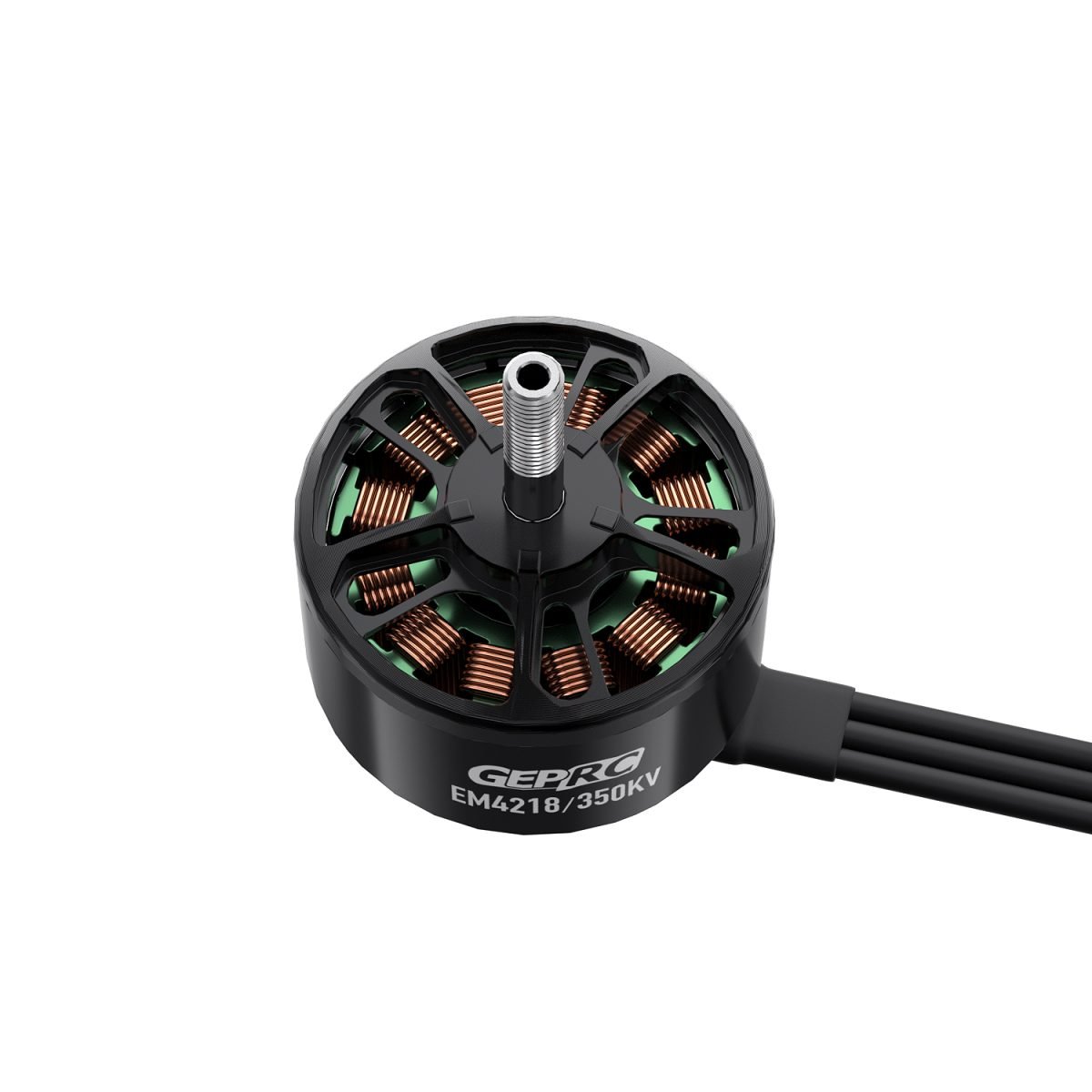

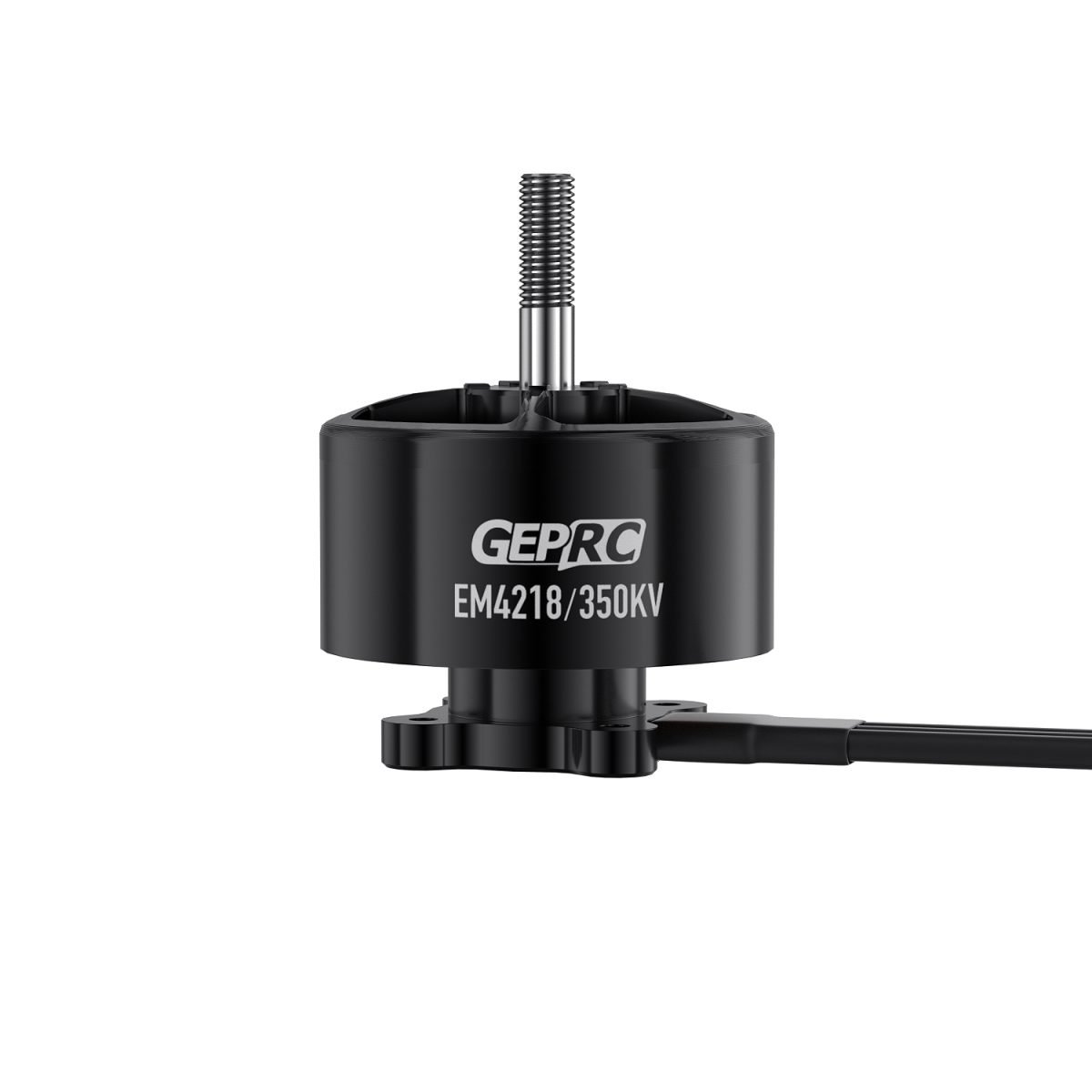

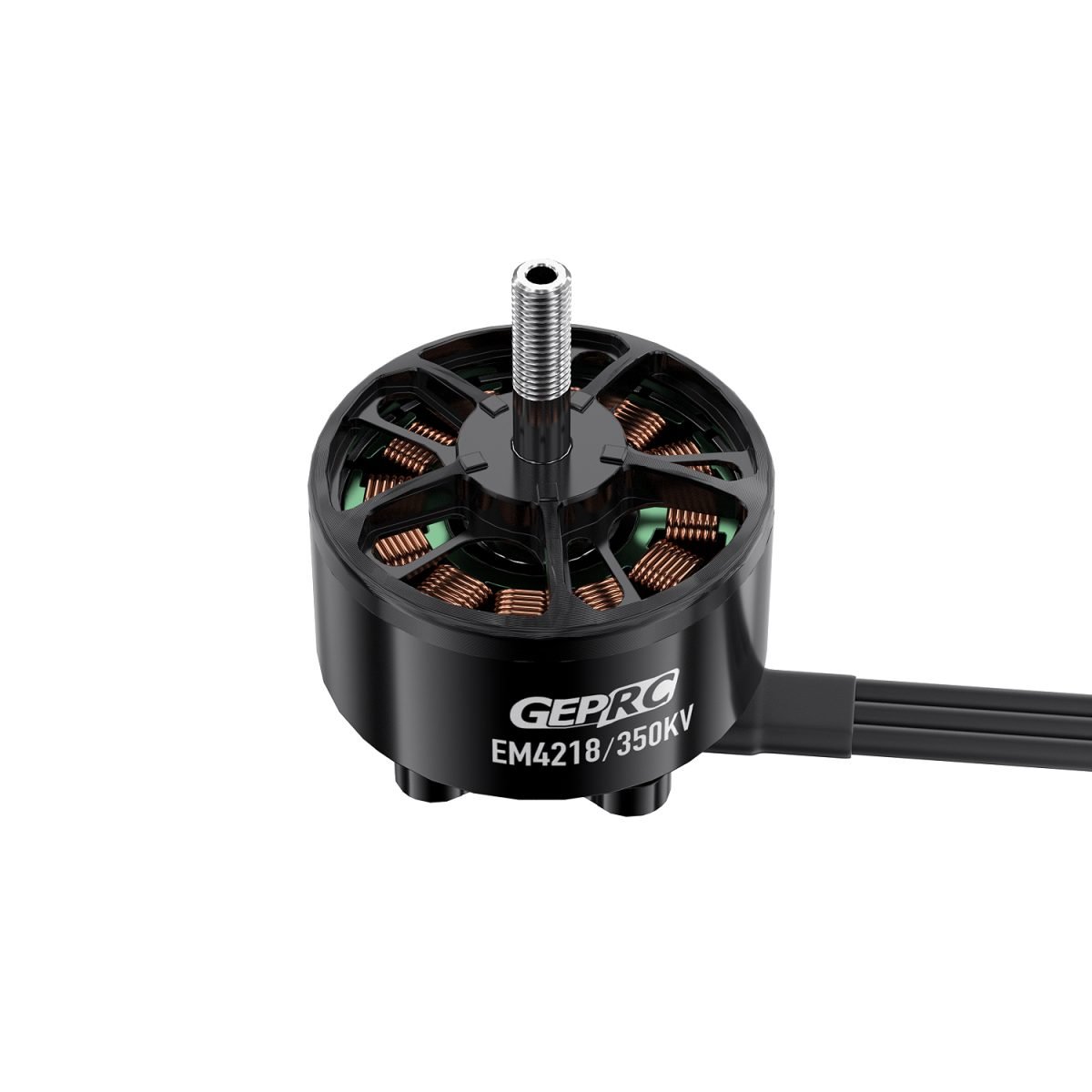

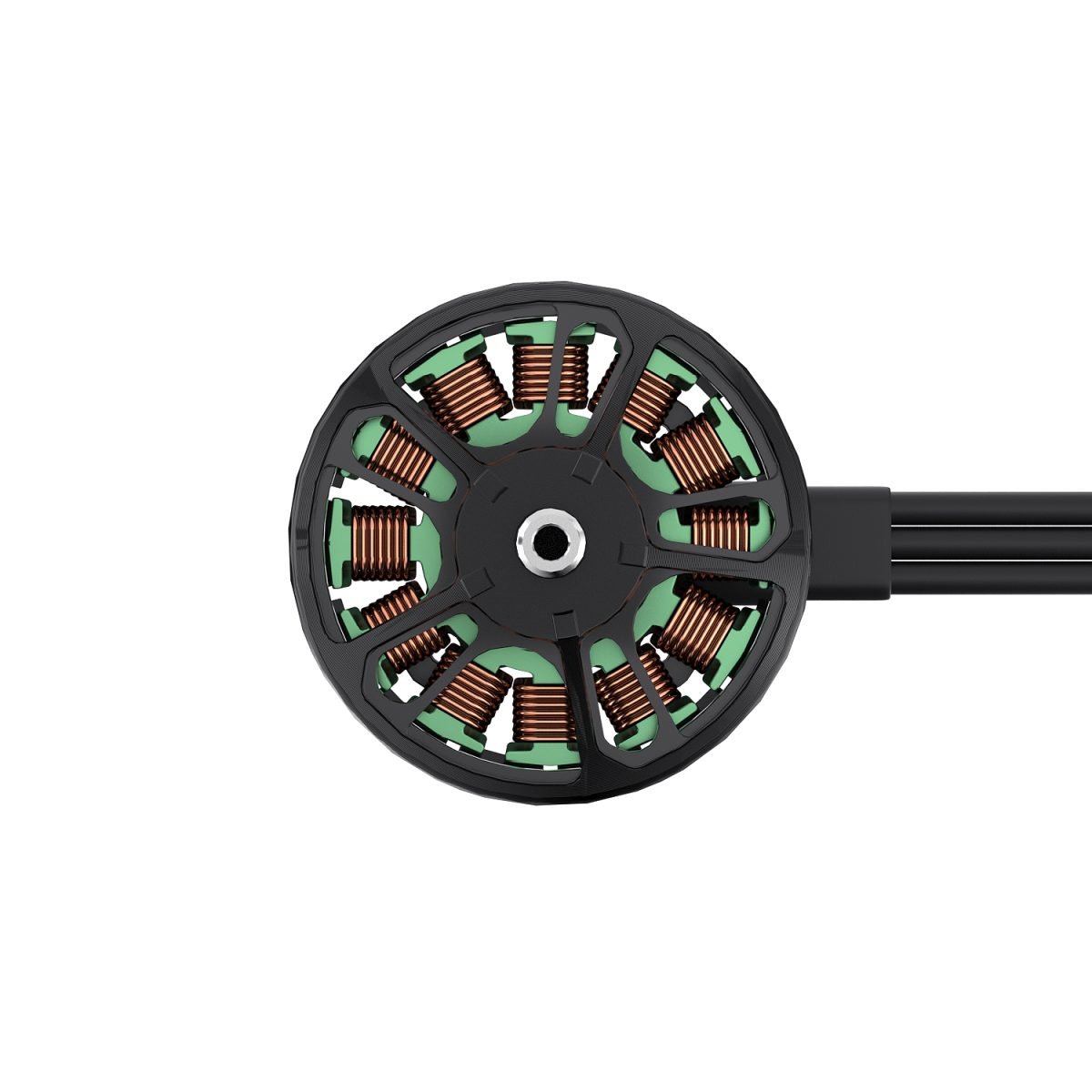

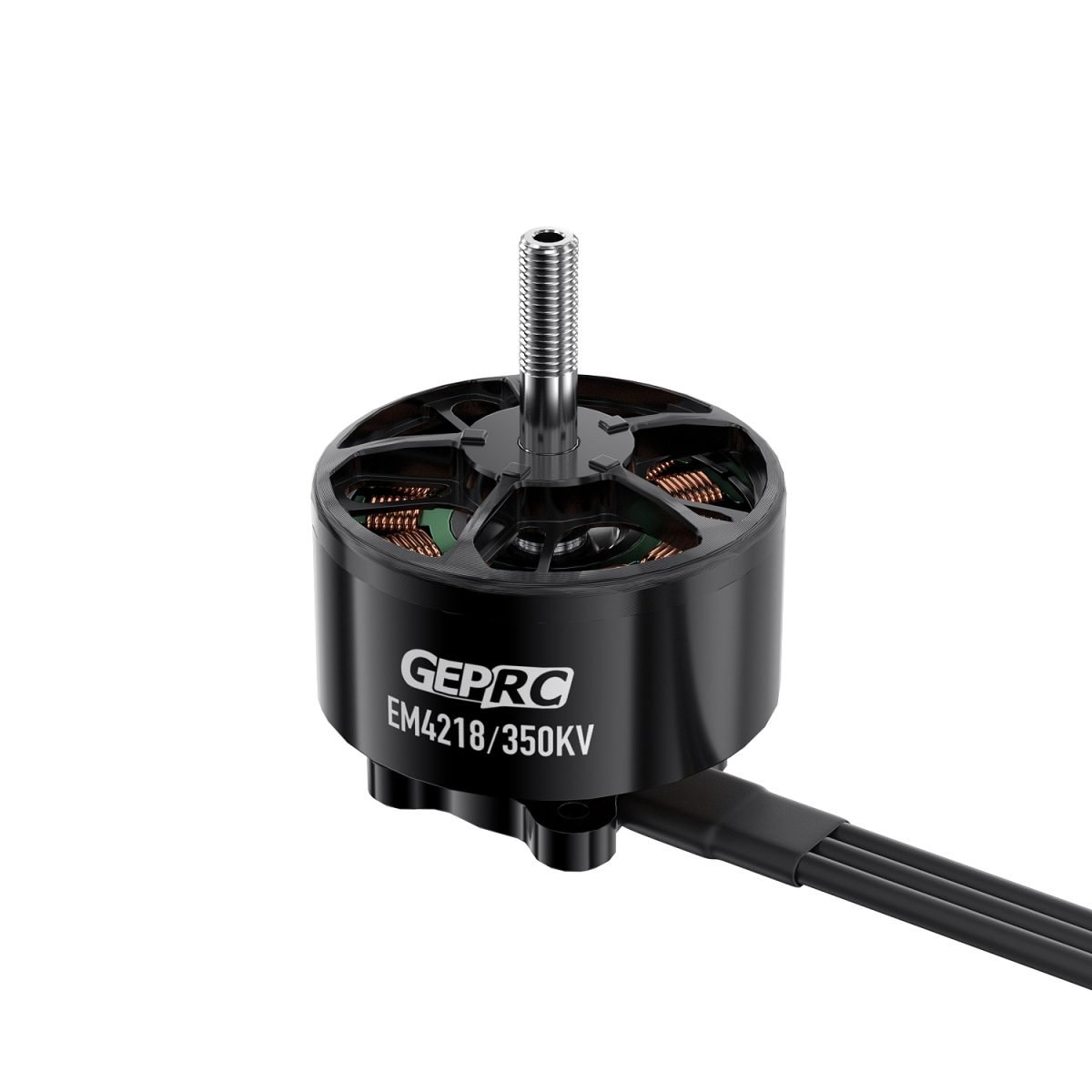

GEPRC EM4218 350KV motor
Description:
The GEPRC EM4218 350KV Brushless Motor is designed for compatible multirotor drones and UAV applications. With its 350KV rating, it is suitable for setups requiring controlled rotational speed and torque when paired with an appropriate battery and propeller combination. It is a suitable choice for custom drone builds where reliable motor performance and smooth operation are important.
Feature:
- New EM series motors designed for long-range FPV
- High-strength M6 steel shaft
- High torque magnetic circuit design
Specifications:
-
Model: EM4218 350KV Motor
-
KV: 350KV
-
Max Watt: 1800W
-
Peak Current: 60A
-
Interphase Resistance: 50mΩ
-
Propeller: 13-15inch Propeller
-
Magnet: N52H
-
Bearing Type: NMB
-
Configuration: 12N14P
-
Dimension: φ49mmx40.1mm
-
Shaft Diameter: φ6mm
-
Shaft Protruding Length: 22.9mm
-
Mounting Holes: 30mmx30mm
-
Lead: 800mm/14AWG
-
Compatible ESC: 60A-80A
-
Input Volts: 33.6V(8S LiPo)
-
Winding: Many-strand copper winding
-
Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)
-
Weight: 289g(included wire)
-
Compatible models: 13-15 inch long-range FPV
Package Includes:
1 x EM4218 motor
4 x M4*12 round head screws
1 x M6 anti-slip nut
ArduCopter Guided Mode: Complete Mission Planner Waypoint Tutorial
Table of ContentsIntroductionPrerequisites and HardwareMission Planner Installation and ConnectionPre-Flight ConfigurationUnderstanding AUTO Mode vs Guided ModeCreating a Waypoint MissionKey...
Read More →
Stepper Motor Half-Step vs Full-Step: Resolution & Torque Trade-offs
Stepper motors are the workhorse of precise motion control — used in 3D printers, CNC routers, laser cutters,...
Read More →
Betaflight Setup Guide: PID Tuning for Beginners
Table of ContentsWhat is Betaflight?What Are PIDs and Why Do They Matter?Tools You Need Before You StartStep 1:...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| KV Rating | 350KV |
| SKU | AI5096 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC EM4218 350KV motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine GEPRC product sourced from authorized channels
Reviews
There are no reviews yet.
