GEPRC EM3115 900KV motor
Description:
The GEPRC EM3115 900KV Brushless Motor is designed for compatible drones and UAV applications that require reliable power and responsive motor performance. With a 900KV rating, it provides rotational speed characteristics suited to drone configurations matched with the appropriate battery, propeller, and ESC. Its brushless design supports smooth operation and makes it suitable for custom aerial platforms and UAV builds.
Key Features
- Brand: GEPRC
- Model: EM3115
- Motor Type: Brushless DC Motor (BLDC)
- KV Rating: 900KV
- Application: Compatible drones and UAVs
- Performance: Designed for responsive motor operation
- Compatibility: Requires a suitable ESC, battery, and propeller combination
- Usage: Custom drone builds and aerial applications
Feature
- New EM series motors，mainly designed for long range FPV.
- High-strength M5 steel shaft
- High torque magnetic circuit design
- 19mmx19mm base

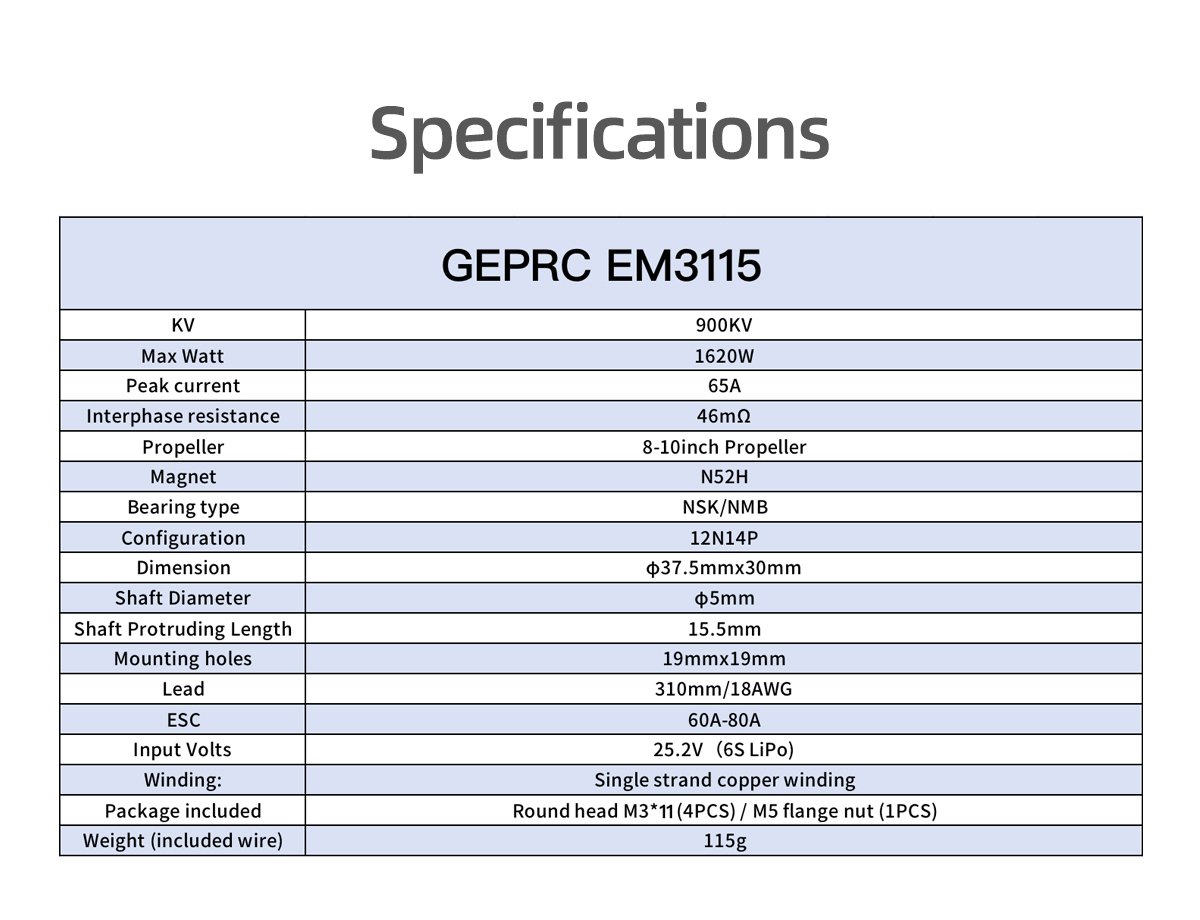

Specifications
- Model: EM3115 900KV Motor
- Max Watt: 1620W
- Peak current: 65A
- Interphase resistance: 46mΩ
- Propeller: 8-10inch Propeller
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 12N14P

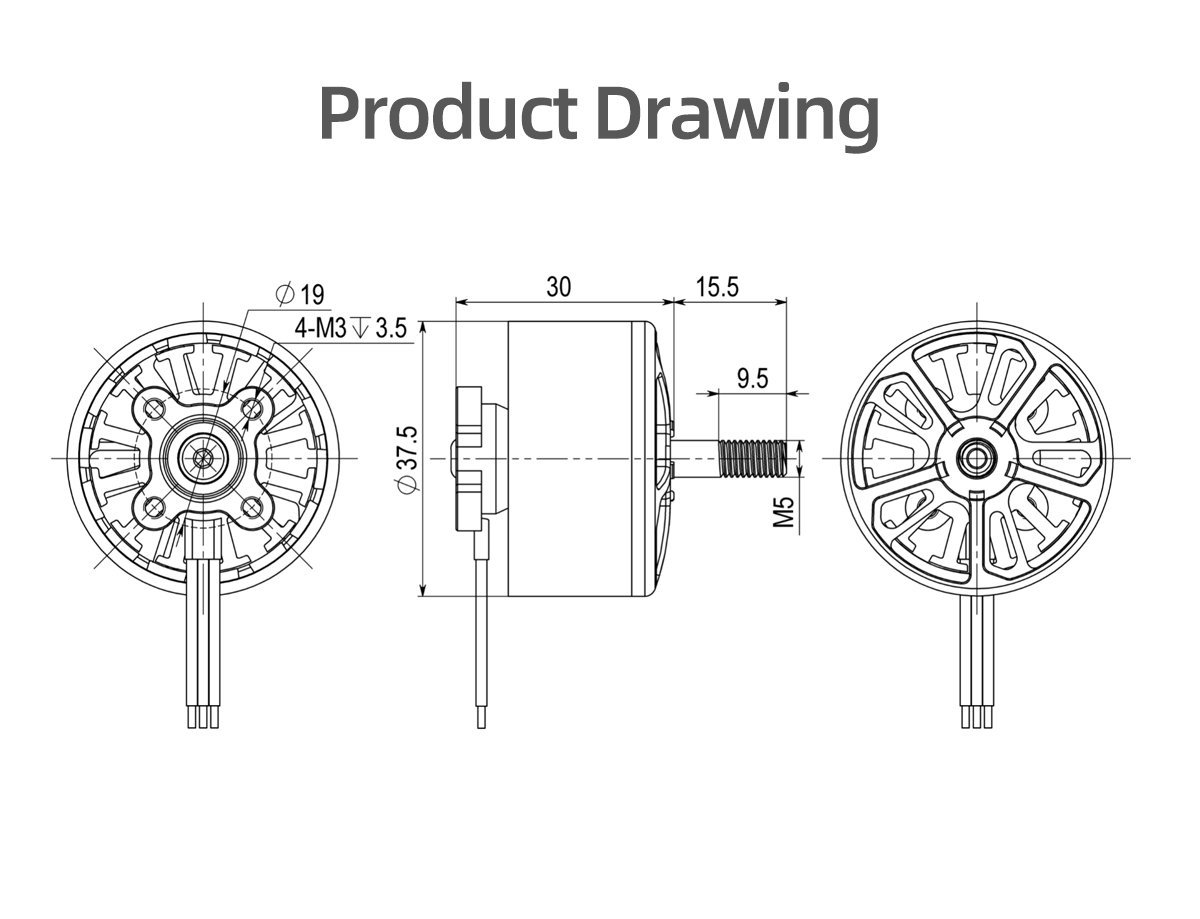

- Dimension: φ37.5mmx30mm
- Shaft Diameter: φ5mm
- Shaft Protruding Length: 16mm
- Mounting holes: 19mmx19mm
- Lead: 310mm/18AWG
- ESC: 60A-80A
- Input Volts: 25.2V（6S LiPo)
- Winding: Single strand copper winding
- Weight: 115g(included wire)
- Suitable for :8-10 inch long range FPV
Pacakge Includes
1 x EM3115 motor
4 x M3*11 round head screws
1 x M5 anti-slip nut
Brushless vs Brushed DC Motor: Which Is Better for Your Project?
The choice between a brushless and a brushed DC motor is one that makers, engineers, and hobbyists face...
Read More →
Altitude Hold Drone Build: Barometer and Optical Flow Sensor Fusion Guide
Table of ContentsWhat Is Altitude Hold and Why Does It Matter?Barometer vs Optical Flow: Understanding Each SensorHow Sensor...
Read More →
INAV vs Betaflight vs ArduPilot: Which Flight Firmware?
Table of Contents Overview: The Three Firmware Giants Betaflight – The FPV Racer's Choice INAV – Navigation Made...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| KV Rating | 900KV |
| SKU | AI5095 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC EM3115 900KV motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine GEPRC product sourced from authorized channels
