This is the Red variant of the GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor in Motors & Drivers & Pumps & Actuators, N20 Gear Motor without Encoder, N20 Micro Gear Motor. Available at ₹237.18 (₹201.00 + GST) with free shipping across India.
Looking for Ga12 Motor? GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor is available at Zbotic with fast shipping across India.

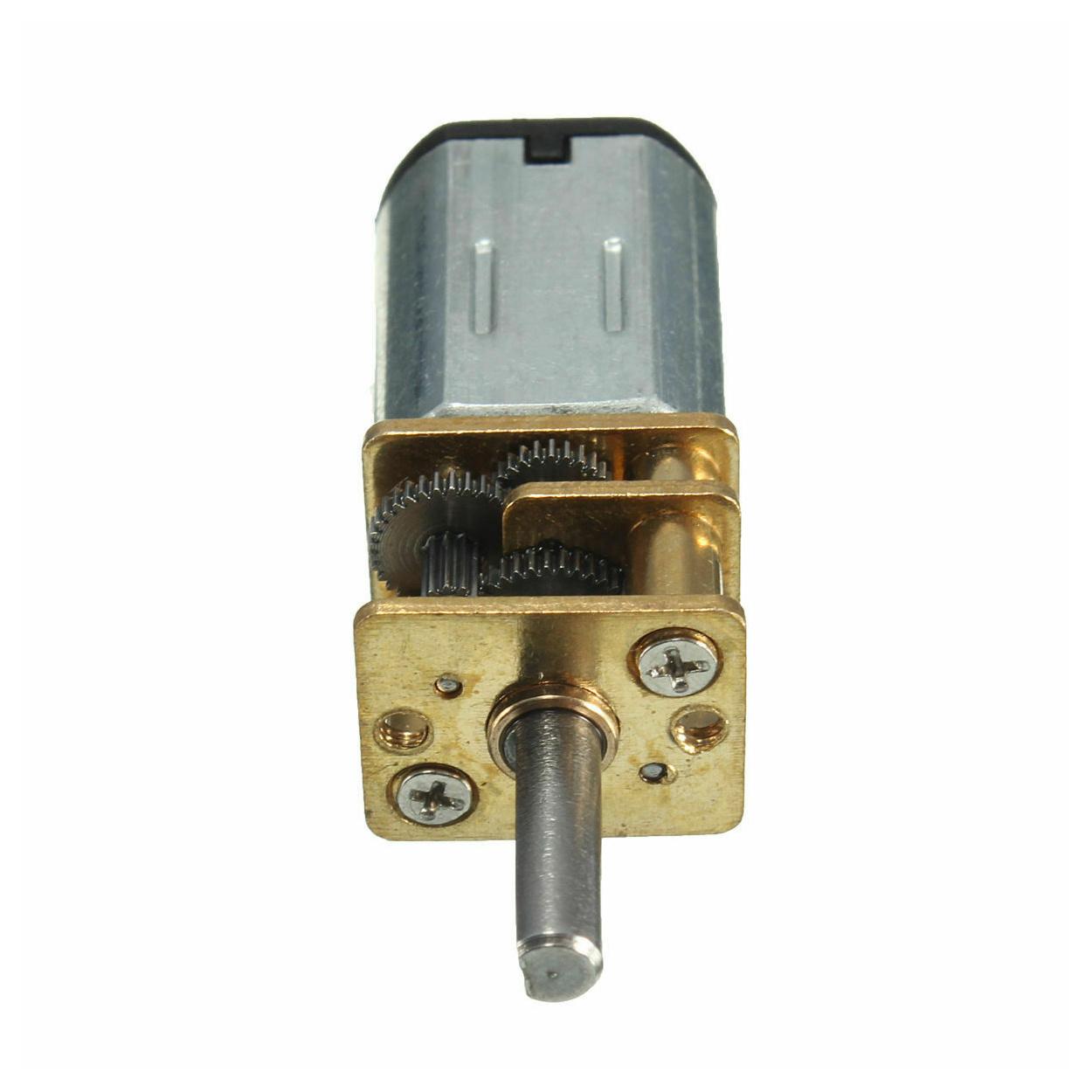

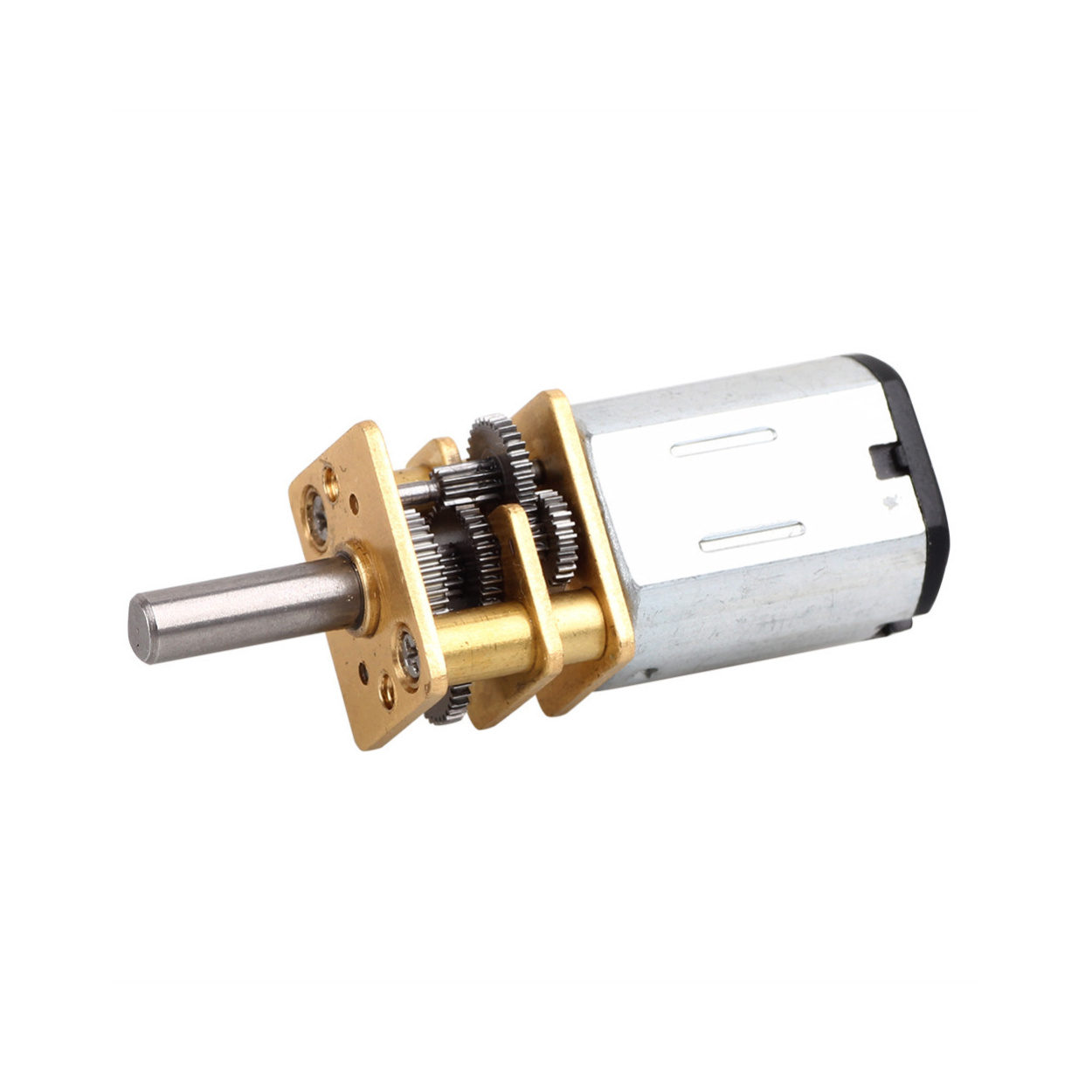

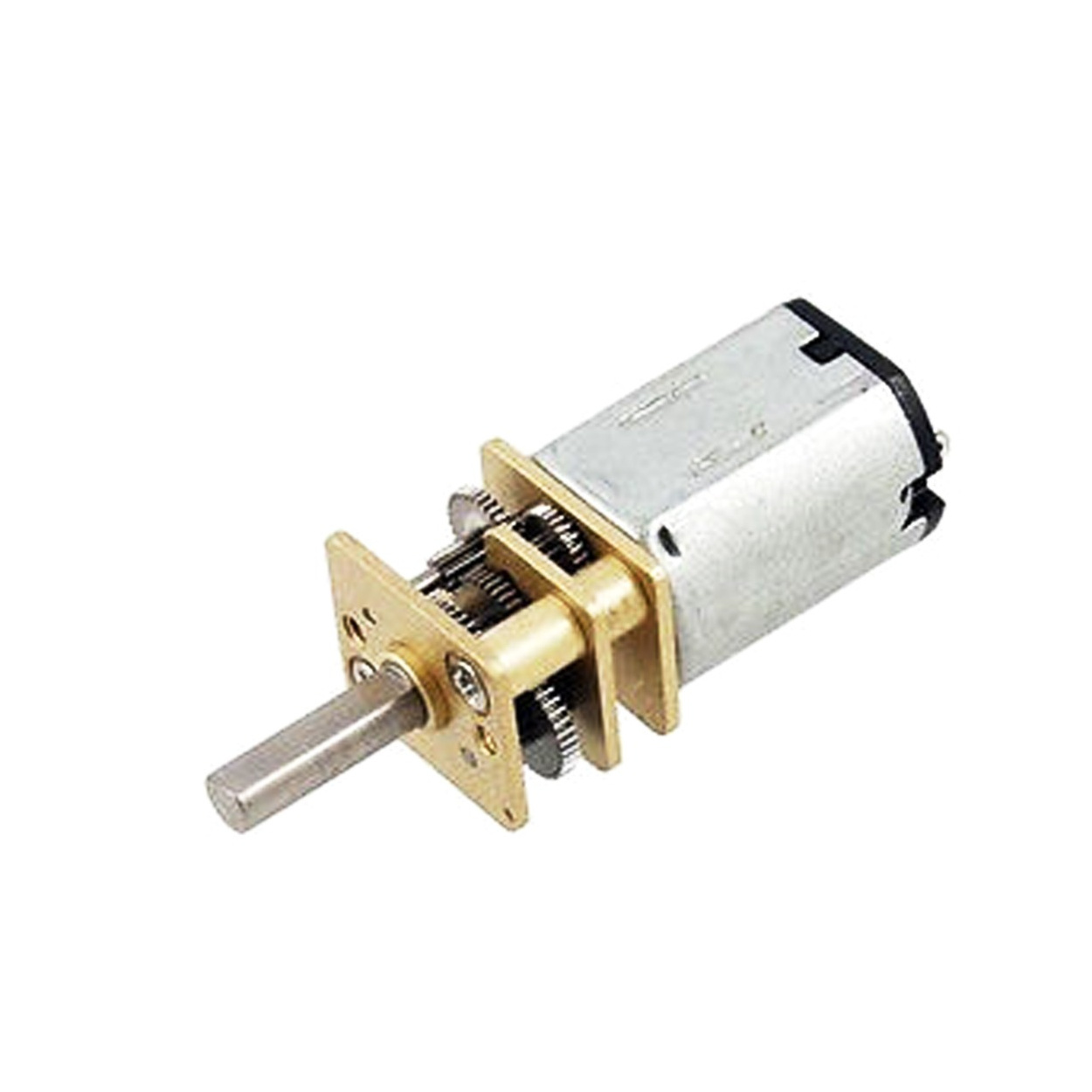

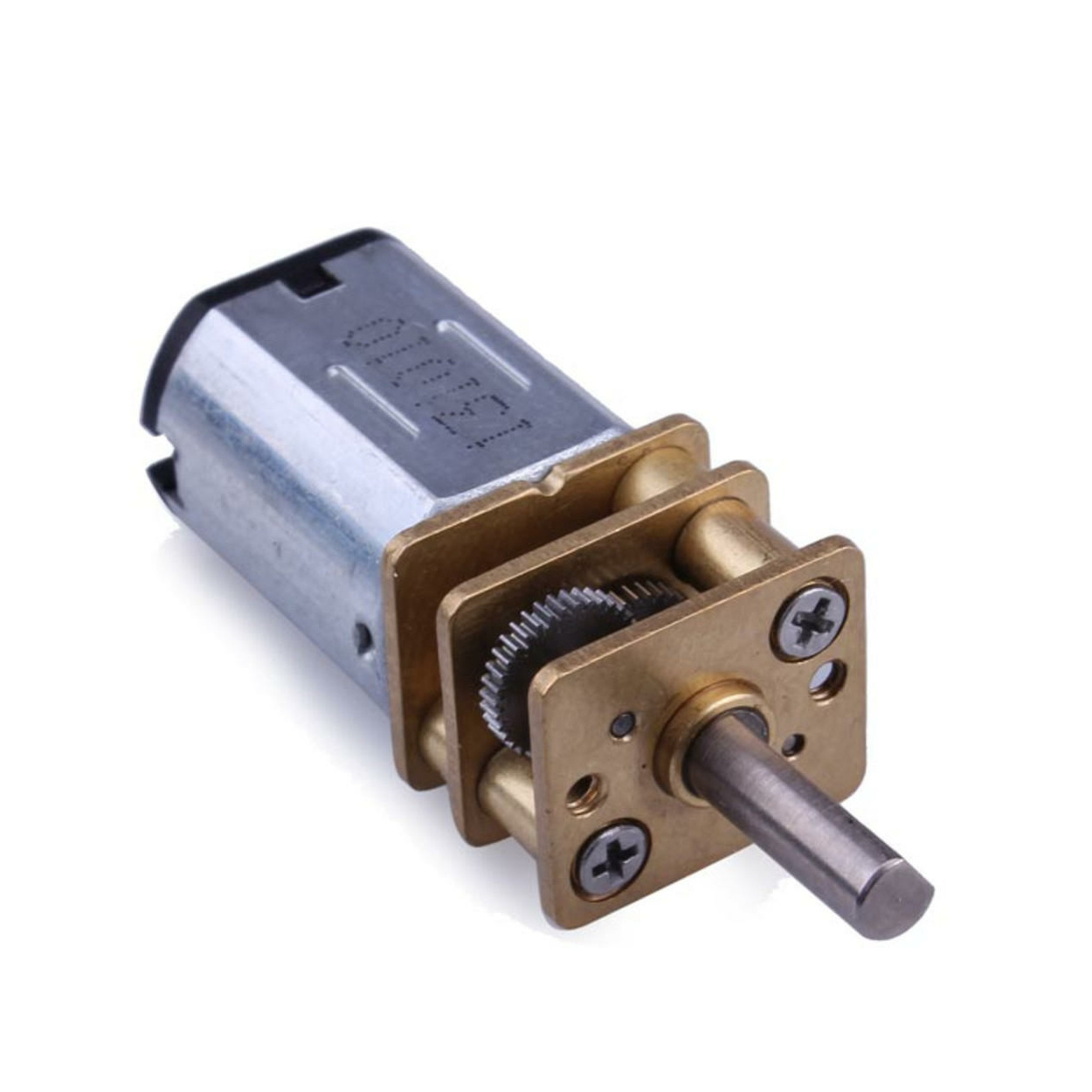

This N20 3v 600 RPM Metal Gear Micro DC Motor with Precious Metal Brush is a lightweight high torque motor suitable for a variety of industrial, home appliances, and hobby applications as well. This motor is equipped with an all-metal gearbox assembly which provides amazing torque for this size of motor. Also, the brushes used in the motor provided are precious metal brushes and not carbon brushes. This ensures a higher working life of the motor compared with the motor with carbon brushes.
Features:
- Brushed DC motor
- Spur gearbox
- Copperplate gear case
- Sleeve bronze bushings Specifications:
Model No: GA12 N20
Motor Type: Center Shaft DC Geared Motor
Base Motor: 30000
RPM: 600
Gear Ratio: 50
Rated Voltage: 3V DC
No Load Current: 0.06 mA
Stall Current: 0.75 A
Rated Torque: 0.18 Kgcm
Stall Torque: 0.65 Kgcm
Shaft Type: D-type Single Side
Shaft Diameter (mm): 3mm
Shaft Length (mm): 9mm
Weight (gm): 12Typical Application:
Robotics, Electric door lock, medical equipment, Electric valve, CameraPackage Includes:
1 x GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor
About Ga12 Motor
GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI4174
- Category: Motors & Drivers & Pumps & Actuators
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Ga12 Motor and other products.
Applications
Ga12 Motor can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Ga12 Motor today and start building.
GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor Overview
The GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor is a compact, center-shaft geared motor designed to deliver high torque at low speeds. Ideal for small-scale robotics, home appliances, and hobby projects, it combines a metal gearbox and precious metal brushes for durable performance.
Key Features of GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor
- Rated Voltage: 3V DC, optimized for low-voltage applications
- Output Speed: 600 RPM with a 50:1 gear reduction for controlled motion
- High Torque: 0.18 kg·cm rated torque, 0.65 kg·cm stall torque for heavy loads
- Precious Metal Brushes: Longer life and consistent conductivity compared to carbon brushes
- All-Metal Gearbox: Copperplate gear case with sleeve bronze bushings for smooth operation
- Lightweight Design: Only 12 g, perfect for weight-sensitive applications
- Fast Shipping from Zbotic: Get genuine stock shipped across India quickly
Applications and Use Cases
- Miniature robotic arms and grippers requiring precise torque
- DIY RC cars and crawlers where compact size and high torque matter
- Automated door locks or window actuators in smart home prototypes
- Educational STEM kits for teaching geared motor fundamentals
- Toy upgrades such as motorized tracks or rotating platforms
- Small pump drives or conveyor belts in desktop machinery
How to Use GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor
Mount the motor using its D-type single-side shaft and secure it with a compatible bracket. Connect a 3V DC power supply with appropriate current capacity (up to 0.75 A stall). Ensure the gearbox is aligned with the driven mechanism, and test at low voltage before full operation. Avoid excessive loads and provide periodic lubrication to the bronze bushings for long-term reliability.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum current draw of this motor?
The GA12-N20 draws 0.06 mA at no load and up to 0.75 A under stall conditions. Ensure your power supply can handle the peak current.
Can this motor run continuously at stall torque?
Continuous operation at stall torque is not recommended. For longevity, run at or below the rated torque of 0.18 kg·cm and provide ample cooling.
How do I mount the motor correctly?
Use the D-type single-side 3 mm shaft to fit into compatible couplings or brackets. Secure the motor body with M2.5 screws and align the gearbox output to your driven part.
