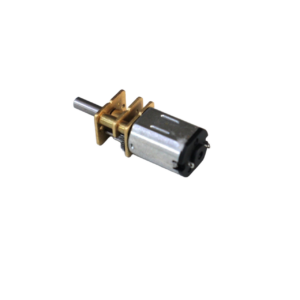

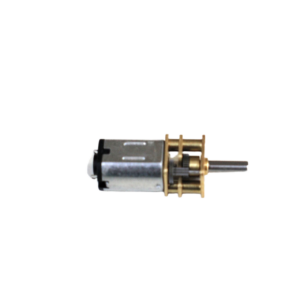

This is the Red variant of the GA12-N20 3V 2000RPM Micro DC Metal Gear Reduction Motor in Motors & Drivers & Pumps & Actuators. Available at ₹286.74 (₹243.00 + GST) with free shipping across India.
This N20 3v 2000 RPM Metal Gear Micro DC Motor with Precious Metal Brush is a lightweight high torque motor suitable for a variety of industrial, home appliances, and hobby applications as well. This motor is equipped with an all-metal gearbox assembly which provides amazing torque for this size of motor. Also, the brushes used in the motor provided are precious metal brushes and not carbon brushes. This ensures a higher working life of the motor compared with the motor with carbon brushes.
Features:
- Brushed DC motor
- Spur gearbox
- Copperplate gear case
- Sleeve bronze bushings Specifications:
-
Model: GA12-N20-60
Rated Voltage: 3V
Revolving Speed: 2000 RPM
Rated Torque: 0.65 kg. cm
Stall Torque: 2.6 kg. cm
Rated Current: 0.08A
Stall Current: 0.67A
Total Length(LxWxH) : 36x12x10mm
Gear Material: Full Metal
Shaft Size : 3 x 9mm(D*L)
Shaft Type : D Type
Net Weight: 12gTypical Application:
Robotics, Electric door lock, medical equipment, Electric valve, CameraPackage Includes:
1 x GA12-N20 3V 600RPM Micro DC Metal Gear Reduction Motor
-
Micro Servo vs Standard Servo: Size, Torque & Use Cases
Table of ContentsHow Servo Motors WorkMicro Servo: SG90 and SimilarStandard Servo: MG996 and SimilarDetailed Comparison TableUnderstanding Torque RatingsPlastic...
Read More →
Motor Noise Filtering: Capacitor Placement on DC Motors
If you have ever noticed your Arduino resetting when a motor starts, your sensor readings jumping erratically while...
Read More →
Stepper Motor Current Setting: A4988 Vref Calculation Guide
Table of ContentsWhy Vref Matters for Stepper MotorsA4988 Driver OverviewVref Formula ExplainedStep-by-Step Vref Setting ProcedurePractical Example: NEMA17 MotorHeat,...
Read More →Technical Specifications
| Model | GA12-N20 |
|---|---|
| Operating Voltage | 3V |
| Speed | 2000 RPM |
| Color | Red |
| SKU | AI4175 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GA12-N20 3V 2000RPM Micro DC Metal Gear Reduction Motor is a versatile motors & drivers & pumps & actuators used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
