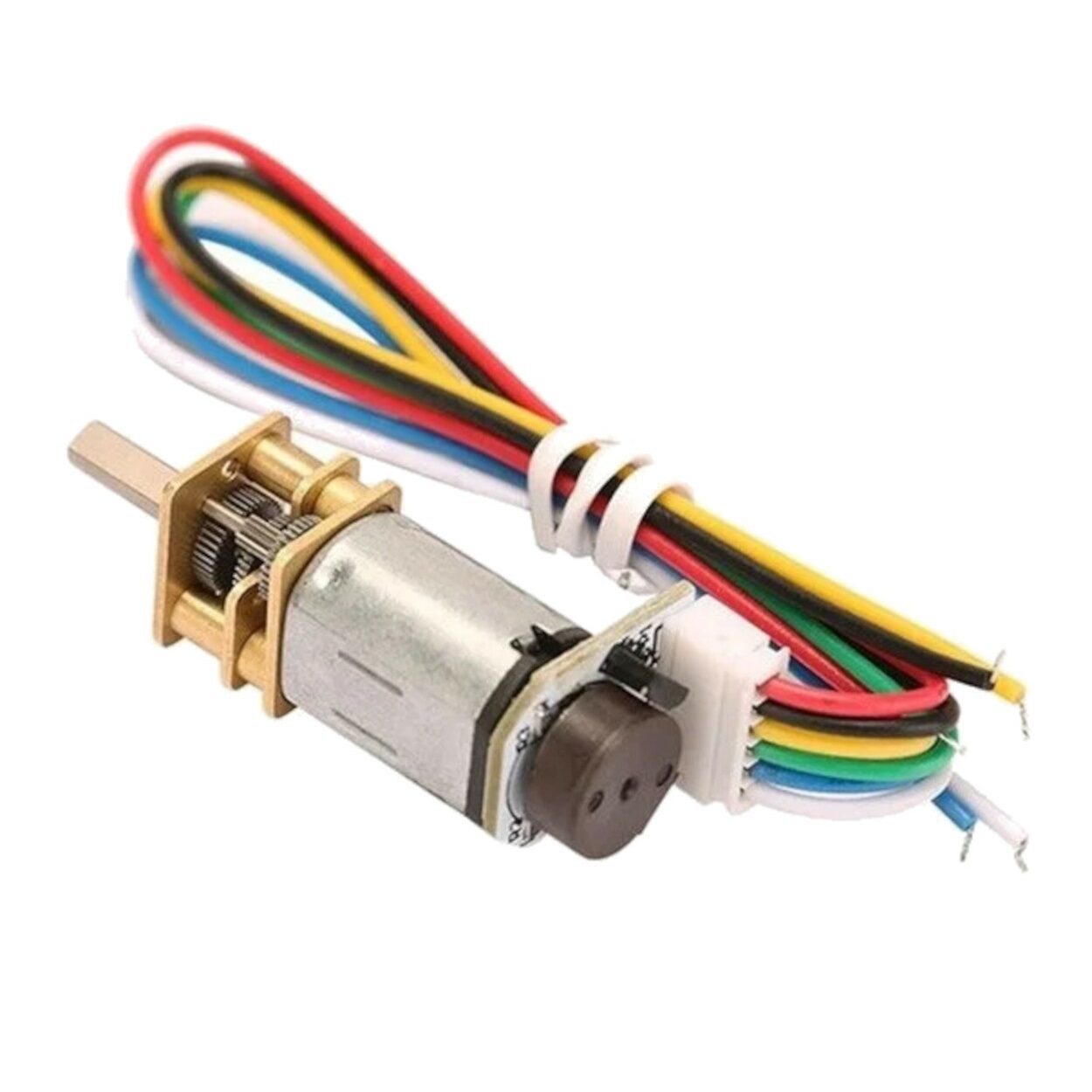

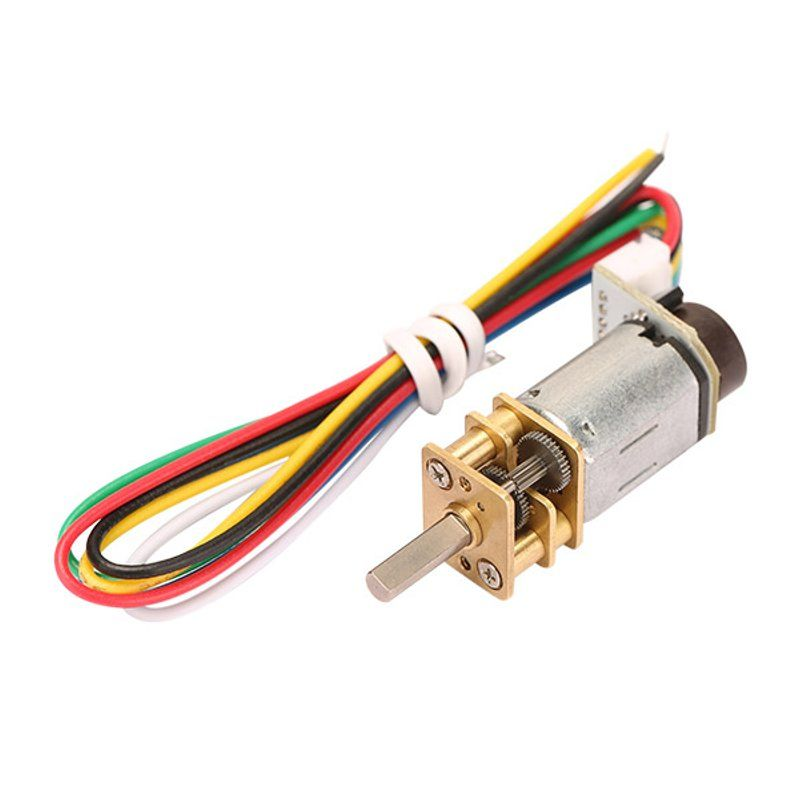

GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder
The N20 12V 750 RPM Metal Gear Micro DC Encoder Motor with Precious Metal Brushes is a compact, high-performance motor ideal for a variety of industrial, home appliance, and hobby applications. Featuring an all-metal gearbox, it delivers exceptional torque relative to its size, offering superior durability and long-lasting performance, thanks to the use of precious metal brushes. When compared to motors with metal or plastic gears, the N20 motor stands out with its higher torque-to-size ratio, making it an excellent choice for space-constrained projects. Whether powering small Industrial IoT devices like electric locks and webcam pan-tilt mechanisms, or hobbyist creations such as robotic cars and electric boats, the N20 motor excels at providing substantial torque in a lightweight package. Additionally, its built-in encoder enables precise positional control, expanding its versatility for a wide range of applications.
Motor Specifications:
- Model: GA12-N20-750
- Rated Voltage: 12V
- Revolving Speed: 750 RPM
- Rated Torque: 0.1 kg. cm
- Stall Torque: 2 kg. cm
- Rated Current: 40 mA
- Stall Current: 1 A
- Gear Material: Full Metal
- Shaft Size : 3 x 9mm(D*L)
- Shaft Type : D Type
Encoder Specifications:
- Encoder Type: Quad
- PPR:7
- CPR:7x 4=28
- CPR at output shaft:7000
Encoder Pinout details:
- M2 (Red) – MOTOR TERMINAL(Motor +)
- M1 (White) – MOTOR TERMINAL (Motor -)
- C2 (Yellow) – ENCODER OUTPUT (A)
- C1 (Green) – ENCODER OUTPUT (A)
- VCC (Black) – SUPPLY OF ENCODER Vcc(5 V)
- GND (Blue) – Gnd
Package Includes :
1 x GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder with Wire
GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder with Wire Overview
The GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder with Wire is a compact N20-sized gearmotor combining a metal gearbox, precious metal brushes and an integrated rotary encoder. It delivers a balanced torque output at 750 RPM and includes a pre-attached wire harness for seamless 12 V DC connection. This motor is ideal for projects demanding precise speed and position feedback in confined spaces.
Key Features of GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder with Wire
- All-metal N20 gearbox for enhanced durability and long service life
- Rated for 12 V DC operation, drawing up to 1 A under load
- 750 RPM no-load speed offers a high torque-to-size ratio
- Built-in rotary encoder for real-time speed and position feedback
- Precious metal brushes ensure stable performance and reduced wear
- Pre-soldered wire harness enables quick integration; fast shipping from Zbotic across India
Applications and Use Cases
- Drive wheels on small mobile robots with closed-loop speed control
- Pan-tilt camera mounts requiring precise angular positioning
- Miniature conveyor belts or sorting lines in small-scale automation
- Educational STEM kits and hobbyist robotics platforms
- DIY CNC plotters, pen plotters and precision actuator modules
How to Use GA12-N20 12V 750RPM Micro DC Reducer Motor Encoder with Wire
Mount the GA12-N20 securely in your chassis using the gearbox housing, connect the two motor power leads to a 12 V DC motor driver or H-bridge, and wire the encoder leads to digital inputs on your microcontroller. Apply 12 V to the motor terminals to start rotation, then read quadrature signals from the encoder wires to implement closed-loop speed or position control. Calibrate your controller’s pulse count to match the motor’s output shaft revolutions.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I control the GA12-N20 motor bidirectionally?
Yes, by using an H-bridge or compatible motor driver you can reverse the 12 V supply polarity to change rotational direction while still reading encoder feedback.
What voltage and current does this motor require?
This micro DC motor operates at a nominal 12 V DC and draws up to 1 A under typical load conditions. Ensure your power supply and driver can deliver stable voltage and current at these ratings.
How do I interface the encoder output?
The integrated rotary encoder provides two quadrature signal wires. Connect these to digital interrupt-capable pins on your microcontroller or encoder input on your motor driver to monitor real-time speed and shaft position.
