FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter(Black) with X8R Duplex Telemetry Receiver

This is the Black variant of the FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter(Black) with X8R Duplex Telemetry Receiver in Drone Transmitter and Receiver. Available at ₹11,999.00 (₹10,168.64 + GST) with free shipping across India.

Looking for X8r Receiver? FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter(Black) with X8R Duplex Telemetry Receiver is available at Zbotic with fast shipping across India.

FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter(Black) with X8R Duplex Telemetry Receiver

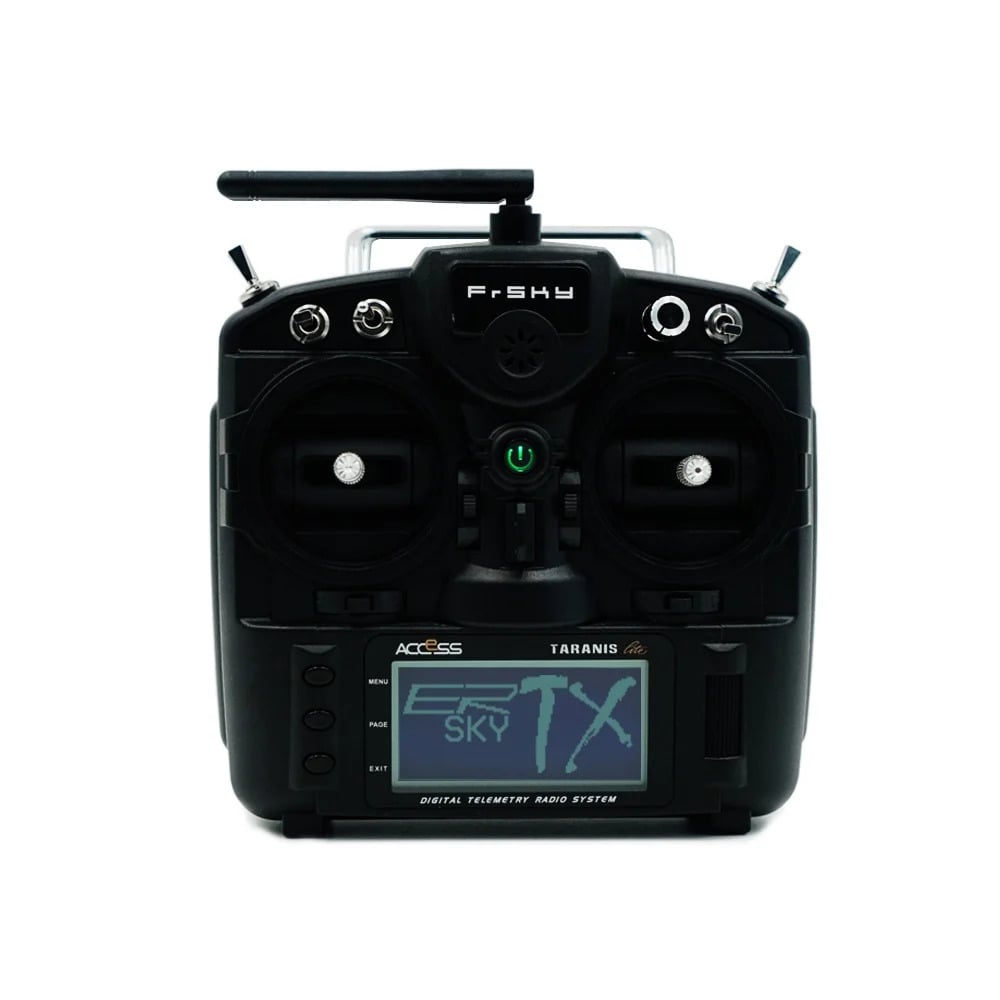

The FrSky Taranis X9 Lite is a remarkable portable radio that seamlessly blends traditional design with the cutting-edge ACCESS protocol. Drawing its classic form factor from the Taranis X9D series, the X9 Lite retains the familiar, comfortable grip design. It also enhances user experience with the addition of a program scroll button for easier menu navigation. For beginners, the X9 Lite includes a wired training function, allowing novices to hone their skills with an instructor’s guidance.

Like the Taranis X-Lite Pro, the Taranis X9 Lite utilizes the latest ACCESS communication protocol, as well as the ErskyTX/OpenTX open-source operating system. It features 24 channels with a faster baud rate and lower latency, thanks to a high-speed module digital interface. Additional ACCESS capabilities, such as wireless firmware updates and configurations, will be gradually unlocked, ensuring a more reliable and secure connection between the remote and the model. The X9 Lite stands out as a fully functional remote control with an array of advanced features.

Features:

1. Ergonomic and compact design
2. Installed with ACCESS protocol
3. Supports spectrum analyzer function
4. High-speed module digital interface
5. G7 Noble potentiometer gimbal
6. Supports wired training function
7. Haptic vibration alerts and voice speech outputs
8. Easily accessible battery compartment (*Batteries not included, adaptive with replaceable 18650 button top Li-ion batteries)

Specifications:

1. Operating system: ErskyTX / OpenTX
2. Number of channels: 24 channels
3. Internal RF module: ISRM-N
4. Operating voltage range: 6.0~8.4V
5. Operating current: [email protected]
6. Operating Temperature: -10℃ ~ 60℃  (14℉ ~ 140℉)
7. Backlit LCD resolution: 128*64
8. Model memories: 60 models (expandable by Micro SD card)
9. Smart Port, Micro SD card slot, Micro USB Port and DSC Port
10. Compatibility: ACCST D16 and ACCESS receivers
11. Dimension: 184*170*101mm (L*W*H)
12. Weight: 505g (without battery)

Package Includes(FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter(Black) with X8R Duplex Telemetry Receiver):

1 x FrSky TRANIS X9 Lite Transmitter – Black

1 x FrSky X8R 8/16ch Full Duplex Telemetry Receiver

1 x User Manual

FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Overview

The FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter (Black) is a compact, ergonomic controller designed for RC pilots who need reliable, two-way ACCESS protocol performance. Bundled with the X8R Duplex Telemetry Receiver, it delivers full telemetry feedback and 24-channel control for multirotors, fixed-wing aircraft, gliders and helicopters.

Key Features of FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio

• ACCESS protocol with two-way communication for low latency telemetry
• 24 programmable channels via internal ISRM-N 2.4 GHz RF module
• ErskyTX / OpenTX firmware with handy program scroll button for menu navigation
• Default Mode 2 (left-hand throttle), configurable in software to suit pilot preference
• Wired training port for instructor-student setup and included X8R Duplex Telemetry Receiver
• Operates on 6.0–8.4 V (190 mA @ 7.4 V) and ships fast from Zbotic across India

Applications and Use Cases

• FPV racing quadcopters requiring rapid throttle and gimbal control
• Fixed-wing aircraft with flaps, spoilers and retracts using multiple mixers
• Helicopter pilots leveraging full telemetry to monitor battery, RPM and temperature
• Novice pilot training via wired instructor-student function
• Gliders and sailplanes needing precise mix settings for airbrakes and spoilers
• Custom robotics and ground vehicles benefitting from multi-channel expandability

How to Use FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio

Start by installing a 2S–3S LiPo (6.0–8.4 V) in the battery bay and power on the X9 Lite. Navigate the OpenTX/ErskyTX menu with the scroll wheel to configure a new model, set the internal RF module to ACCESS mode, and initiate binding. Power up the X8R in bind mode until its LED flashes, then hit “Bind” on the transmitter. Once the LED on the receiver turns solid, your transmitter and X8R telemetry link are live—ready to fly.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How do I bind the X9 Lite to the X8R receiver?

With the X9 Lite powered off, plug the X8R into a LiPo and press its bind button until the LED flashes. Turn on the transmitter, go to Model Setup → Internal RF → Bind in the OpenTX menu, and press ENT. The X8R LED will turn solid once binding is complete.

What battery pack should I use with the transmitter?

The X9 Lite accepts any 2S–3S LiPo battery (6.0–8.4 V). A 2S 1000 mAh pack is ideal for several hours of use while keeping overall weight low.

Can I switch from Mode 2 to another throttle mode?

Yes. Even though Mode 2 is the default, you can reassign sticks in the OpenTX radio settings under “Radio Setup.” Select the desired mode layout (Mode 1–4) and assign throttle/elevator to the preferred gimbals.
