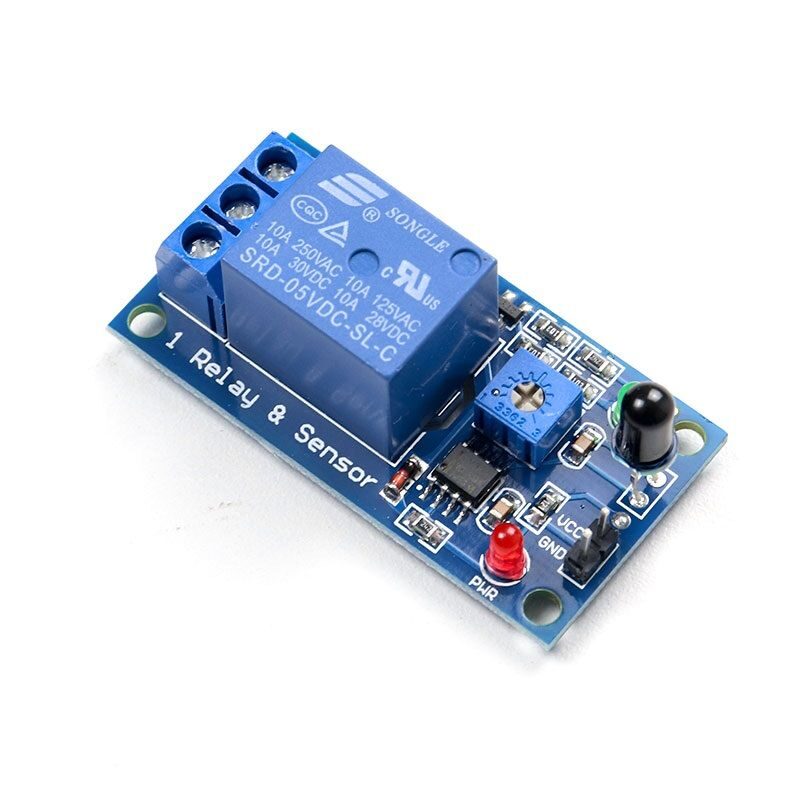

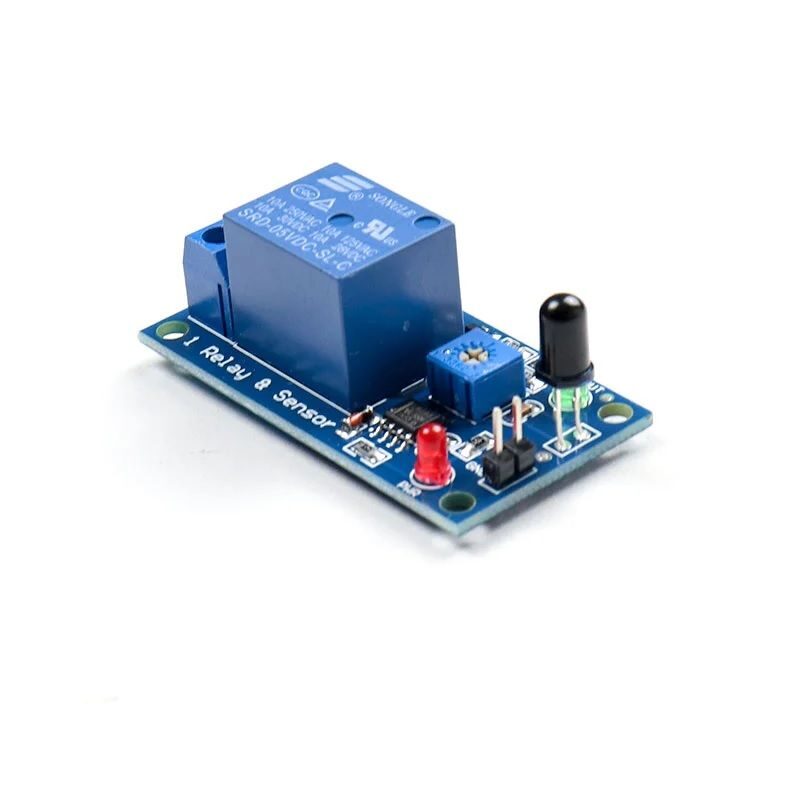

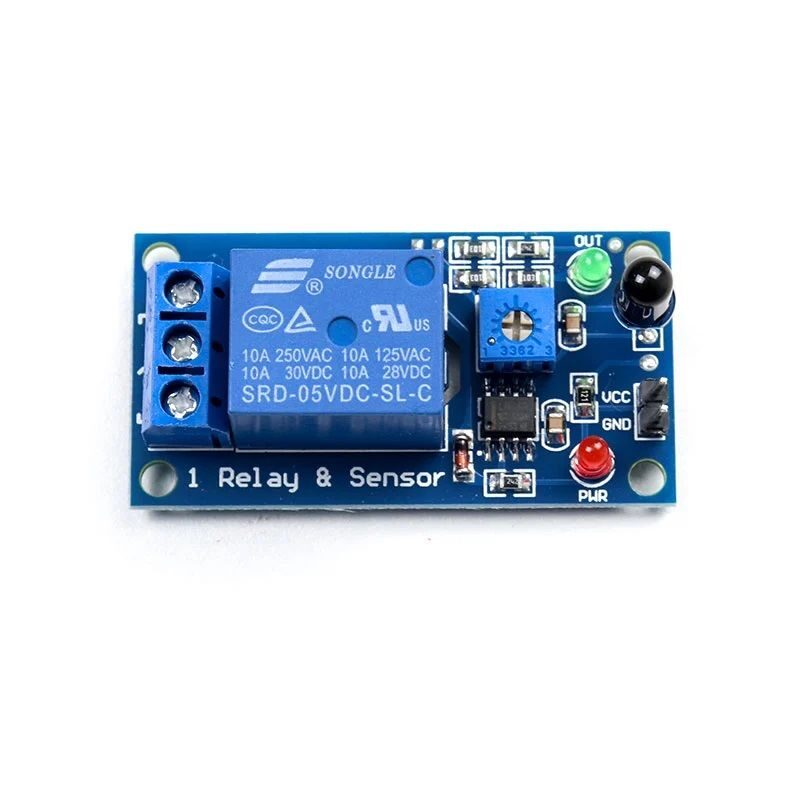

Fire Flame detection Sensor Relay Module
It is a fire flame detection sensor relay Module. The flame sensor can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test.
The detection angle of 60 degrees, and the flame spectrum is particularly sensitive Sensitivity adjustable (shown in blue digital potentiometer adjustment). The comparator output directly triggers the relay.
The output bluish Terminal Block for convenient connections.
Specifications:
| Operating Voltage (VDC): | 3.3 ~ 5 |
|---|---|
| Maximum Voltage(V) | 250V AC |
| Max Operating Current (A) | 10 |
| Supply Current (A) | 150mA |
| Operating Temperature (°C) | -40 to 80 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Operating Distance Range (Meter) | 0.8 |
| Storage condition (℃) | – 65 to 125 |
| Length (mm): | 50 |
| Width (mm): | 26 |
| Height (mm): | 17 |
| Weight (g): | 16 |
Package Includes:
1 x Fire Flame detection Sensor Relay Module
Fire Flame detection Sensor Relay Module Overview
The Fire Flame detection Sensor Relay Module is a compact detection board designed to sense fire or flame wavelengths in the 760 nm to 1100 nm range and directly switch a relay when a flame is detected. Ideal for embedding into safety, alarm or automation systems, it offers adjustable sensitivity and a 60° field of view for reliable flame monitoring.
Key Features of Fire Flame detection Sensor Relay Module
- Wavelength detection from 760 nm to 1100 nm for precise flame sensing
- Up to 80 cm detection distance, scalable with flame size
- 60° field of view with high spectrum sensitivity
- Adjustable sensitivity via onboard blue digital potentiometer
- Comparator output directly drives a relay supporting up to 250 V AC
- Operates on 3.3 V to 5 V DC supply for low-voltage systems
- Easy wiring with bluish terminal block connectors
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Home safety alarms that trigger a siren or shutoff valve upon flame detection
- Industrial furnaces and boilers monitoring to prevent uncontrolled fires
- Robotics projects requiring real-time flame awareness and response
- Kitchen equipment or gas stoves for emergency cut-off controls
- DIY fire-extinguishing systems that auto-activate fans or sprinklers
- Educational kits demonstrating infrared flame sensing with relay output
How to Use Fire Flame detection Sensor Relay Module
Connect the module’s VCC and GND terminals to a 3.3 V–5 V DC supply, wire the relay’s COM and NO/NC pins to your load or alarm circuit, then adjust the blue digital potentiometer until the relay toggles at your desired flame intensity. Mount the sensor facing the target area within its 60° detection cone, and test with a lighter or small flame at incremental distances up to 80 cm.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What supply voltage does the module require?
This flame detection board operates on any DC source between 3.3 V and 5 V, making it compatible with most microcontrollers and power adapters.
How do I adjust its sensitivity?
Turn the onboard blue digital potentiometer with a small screwdriver. Clockwise increases sensitivity (longer detection range), counter-clockwise decreases it.
Can the relay drive household appliances directly?
Yes. The built-in relay contacts switch up to 250 VAC, allowing direct control of mains devices such as alarms, fans or solenoid valves.
