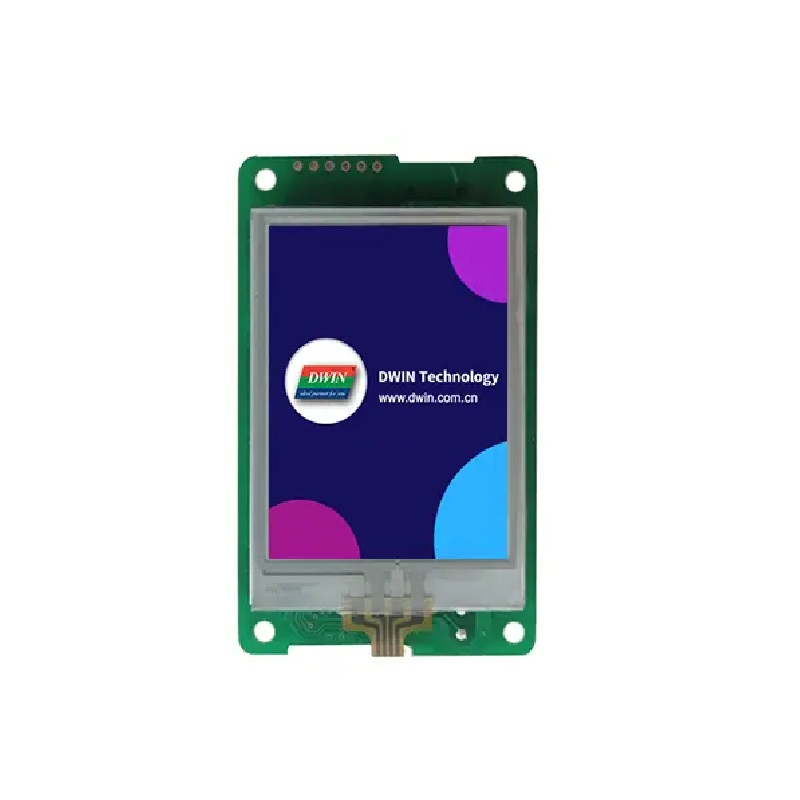

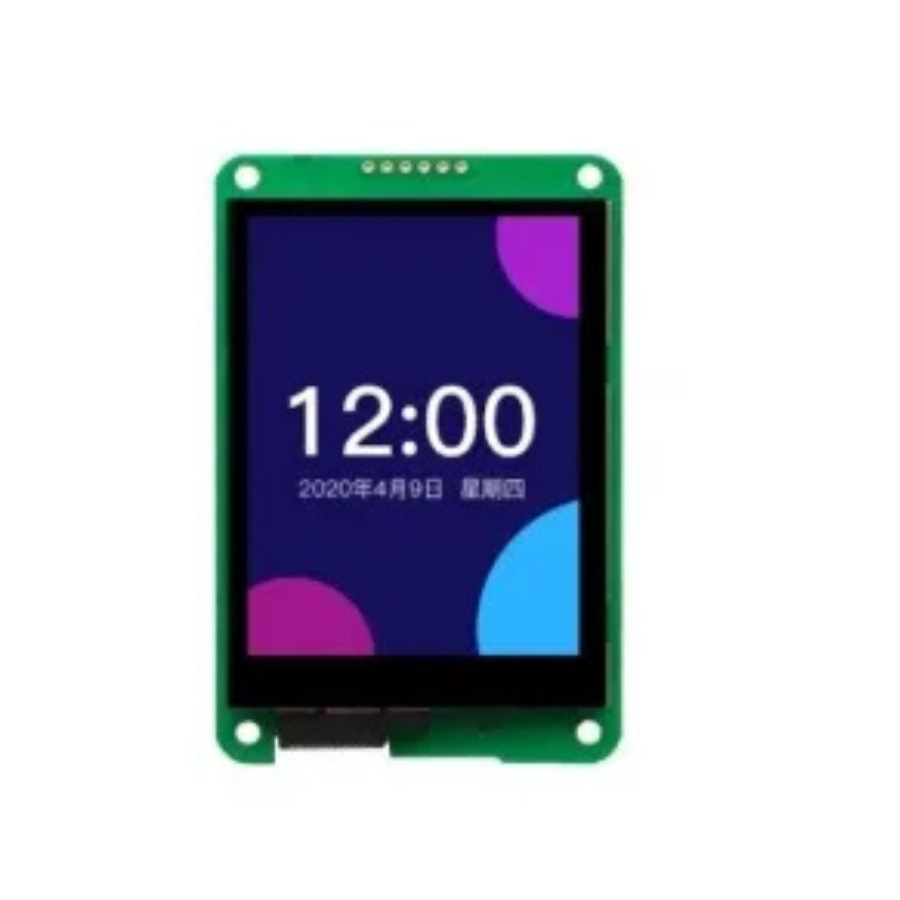

DWIN HMI 2.8 Inch TN LCD Resistive Touch Display
Description:
Introducing the 2.8-inch Smart HMI (Human Machine Interface) LCD module with Resistive touch screen – your gateway to designing intuitive and interactive systems. This versatile LCD module empowers users to craft feature-rich graphical user interfaces (GUIs) on the display, facilitating seamless interaction. With audible tone indications enhancing user experience, this smart LCD is ideal for various applications such as vending machines, where end-users engage directly with the interface.
Compatible with any microcontroller, this module supports serial communication via a standard UART interface, enabling seamless data transfer. Specialized GUI design software facilitates the creation of intuitive interaction flows tailored to your needs. Its flexible communication approach unlocks a multitude of application possibilities, while its fast-response resistive touch technology ensures optimal usability.
Features:
- Size: Compact 2.8″ display, perfect for space-constrained applications.
- Touch Type: Utilizes a responsive resistive touch screen for seamless interaction.
- Resolution: Offers crisp visuals with a resolution of 320×240 pixels.
- Grade: Commercial grade quality ensuring reliability and durability.
- Colour: Vibrant display with support for 65K RGB colors, enhancing user experience.
- Backlight: Equipped with an energy-efficient LED backlight for clear visibility.
- Brightness: Boasts a brightness of 300 nit, ensuring visibility even in challenging lighting conditions.
- Operating Voltage: Operates on a standard 5 Volts supply, making it compatible with various setups.
- Working Temperature: Wide operating temperature range from -20 to 70°C, suitable for diverse environments.
- Supply Voltage: Requires a supply voltage of 4.5 to 5V DC for optimal performance.
- Operating Current: Consumes minimal power with an operating current of 220mA.
- Interface: Features a Serial UART interface for seamless communication with microcontrollers.
- Dimensions: Compact dimensions of 57.6 mm (W) × 43.2 mm (H), ensuring easy integration.
- Weight: Lightweight design, weighing only 44g for easy handling and installation.
With its fast response, rich GUI capabilities, and flexible communication options, the DWIN HMI 2.8 Inch TN LCD Resistive Touch Display opens up a world of possibilities for interactive machine applications. Whether it’s vending machines or other automated systems, this smart LCD module is the perfect solution for enhancing user interaction and functionality.
Specifications:
| Feature | Description |
|---|---|
| Size | 2.8 inches |
| Touch Type | Resistive |
| Resolution | 320×240 pixels |
| Grade | Commercial |
| Colour | 65K RGB colors |
| Backlight | LED |
| Brightness | 300 nit |
| Operating Voltage | 5 Volts |
| Working Temperature | -20 to 70°C |
| Supply Voltage | 4.5 to 5V DC |
| Operating Current | 220mA |
| Dimensions | 57.6 mm (W) × 43.2 mm (H) |
| Weight | 44g |
| Interface | Serial UART |
Datasheet:
Package Includes:
1 x DWIN HMI 2.8 Inch TN LCD Resistive Touch Display
DWIN HMI 2.8 Inch TN LCD Resistive Touch Display Overview
The DWIN HMI 2.8 Inch TN LCD Resistive Touch Display is a compact human–machine interface module featuring a 2.8″ TN panel with resistive touch control. Designed for seamless interaction, it connects to any microcontroller via a standard serial UART and offers intuitive GUI development and audible tone feedback for user actions.
Key Features of DWIN HMI 2.8 Inch TN LCD Resistive Touch Display
- 2.8-inch TN LCD with 320×240 pixel resolution and 65K RGB colors
- Resistive touch panel for precise input and on-screen calibration
- LED backlight delivering 300 nits of brightness for indoor use
- Built-in tone indicator for audible touch confirmation
- Standard serial UART interface compatible with any microcontroller
- Wide operating temperature range from –20 °C to 70 °C
- Compact footprint (57.6 mm × 43.2 mm) and lightweight (44 g)
- Fast shipping across India from Zbotic.in
Applications and Use Cases
- Vending machines with custom GUI for product selection
- Industrial control panels for status displays and parameter entry
- Portable instrumentation and meter readouts
- Home automation dashboards for lighting and climate control
- 3D printer control interfaces and parameter adjustment
- DIY electronics and microcontroller development projects
How to Use DWIN HMI 2.8 Inch TN LCD Resistive Touch Display
Begin by supplying a regulated 4.5–5 V DC source and connect the TX/RX lines to your microcontroller’s UART port. Power on the module, calibrate the resistive touch through on-screen prompts, then upload your GUI layout over serial commands. Adjust backlight brightness as needed and use the built-in tone feedback to confirm touch operations.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What interface does this display use?
The HMI module communicates via a standard serial UART interface, allowing easy connection to Arduino, ESP32, STM32 and other microcontrollers.
What are the power requirements and consumption?
Supply the display with a regulated 4.5–5 V DC source. It typically draws up to 220 mA during operation, including backlight and touch circuitry.
Can the display operate outdoors?
With an operating temperature range of –20 °C to 70 °C and 300 nit brightness, it is best suited for indoor or shaded environments rather than direct sunlight.
