Description:

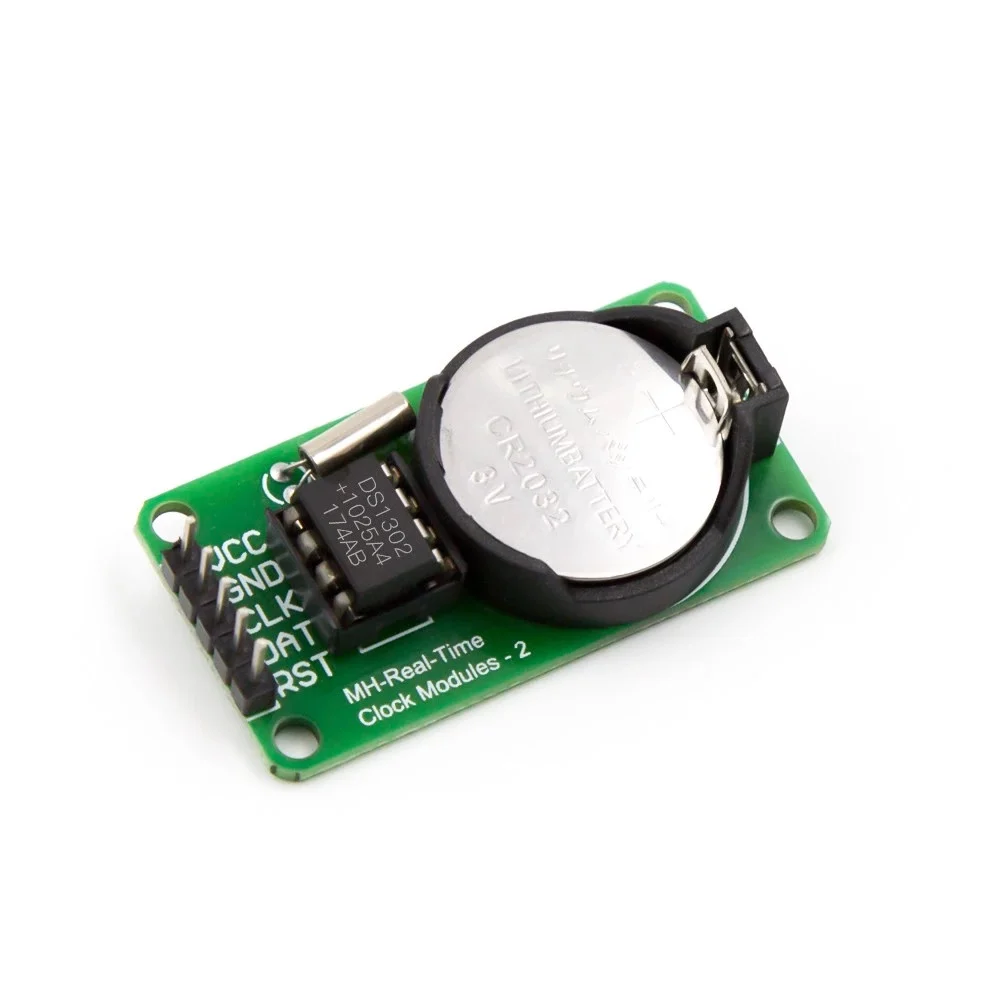

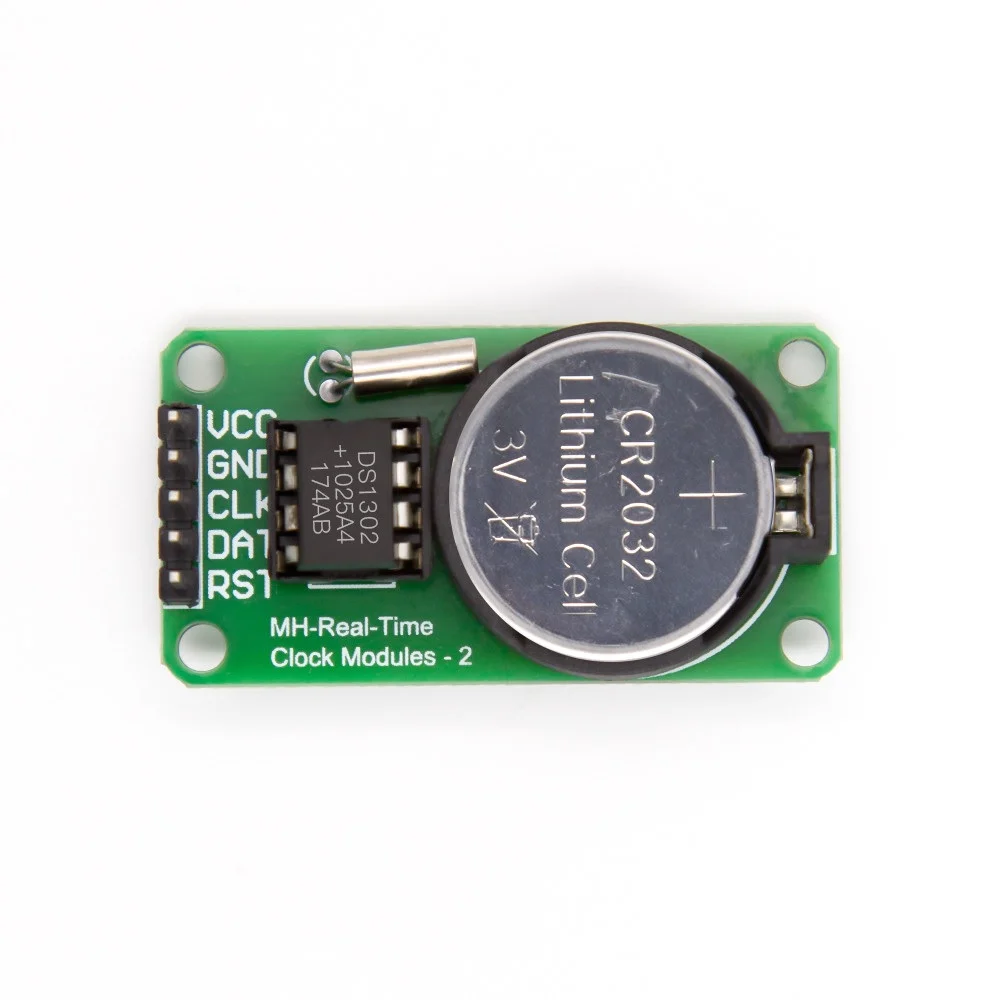

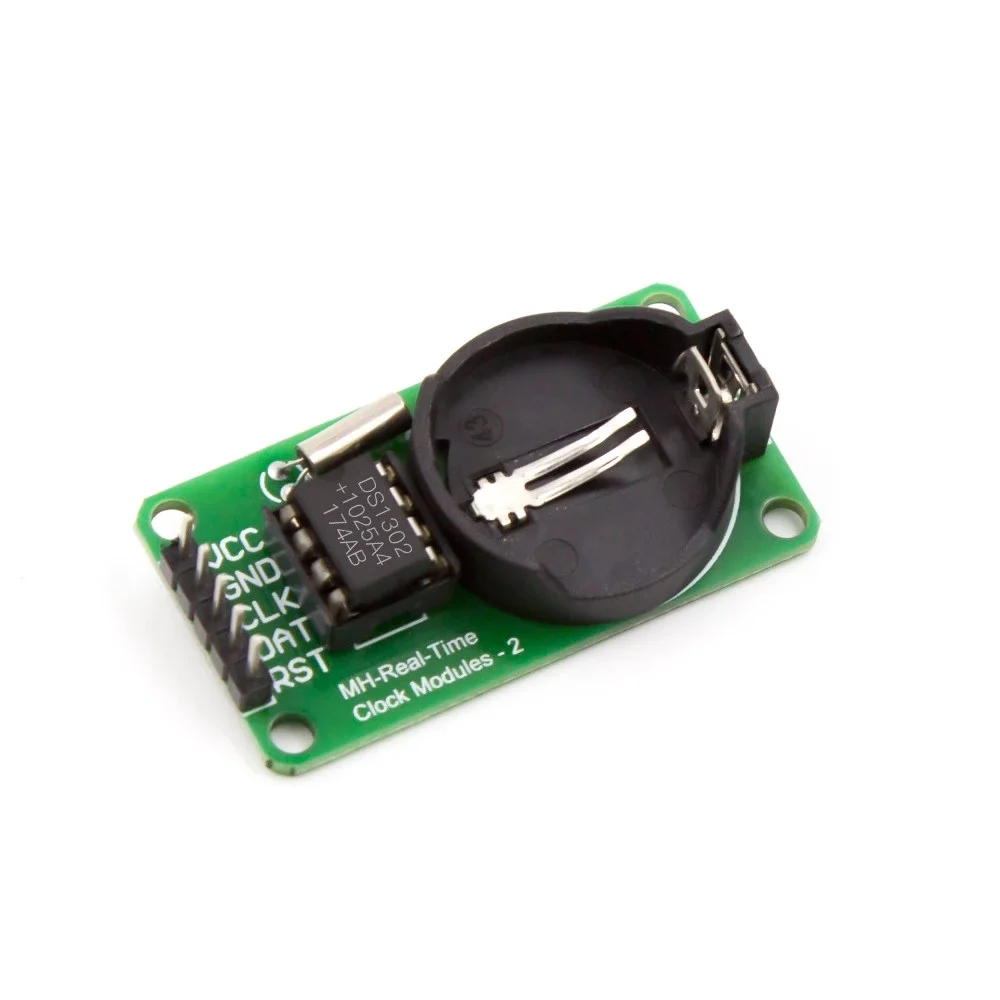

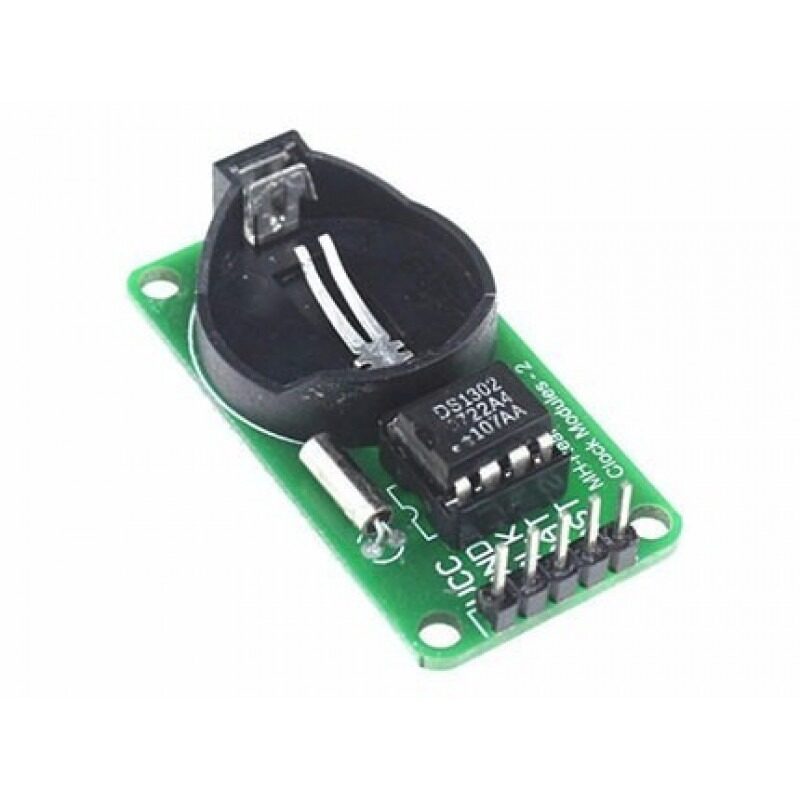

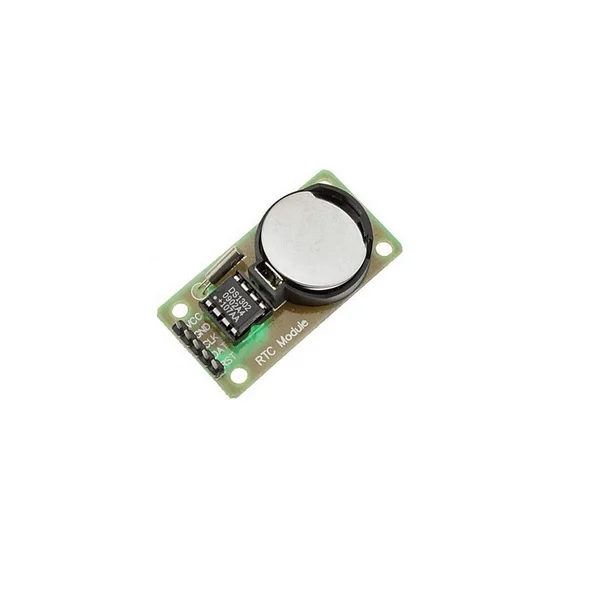

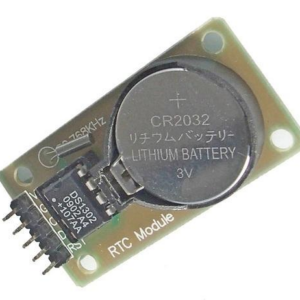

DS1302 Real Time Clock (RTC) Module
The DS1302 Real-Time Clock (RTC) module is designed to keep accurate time, much like a traditional watch. It utilizes a precise oscillator and requires a small battery (not included) to maintain time even when the power is off. This module is perfect for applications where accurate date and time are crucial, such as attendance systems, digital cameras, automated sprinkler systems, and time/calendar displays. With its reliable timekeeping, the DS1302 RTC is an excellent choice for time-sensitive projects.

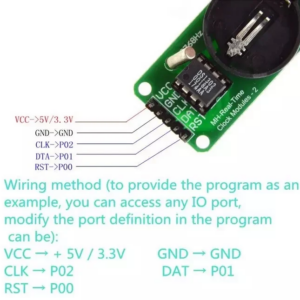

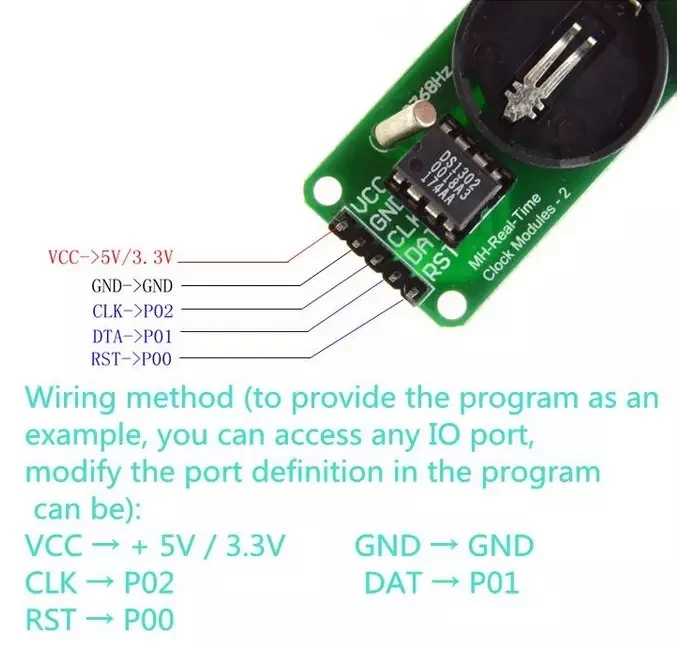

Pin configuration :
- VCC2 → +5 V/3.3V
- GND → GND
- CLK → P02
- DAT → P01
- RST → P00
Features:
- Crystal 32.768KHz, matching capacitance 6pF
- DS1302 8-pin SMD homemade chips
- Seconds, Minutes, Hours, Day of Month, Day of Week, and Year
Specification:
| Input Supply Voltage (VDC) | 3.3 |
|---|---|
| Operating Voltage (VDC) | 2V ~ 5.5 |
| Operating Temperature Range (°C): | -40 to 85 |
| Storage condition (℃) | -55 to 125 |
| Length (mm): | 43 |
| Width (mm) | 23 |
| Height (mm) | 13 |
| Weight (gm) | 9 |
Package Includes :

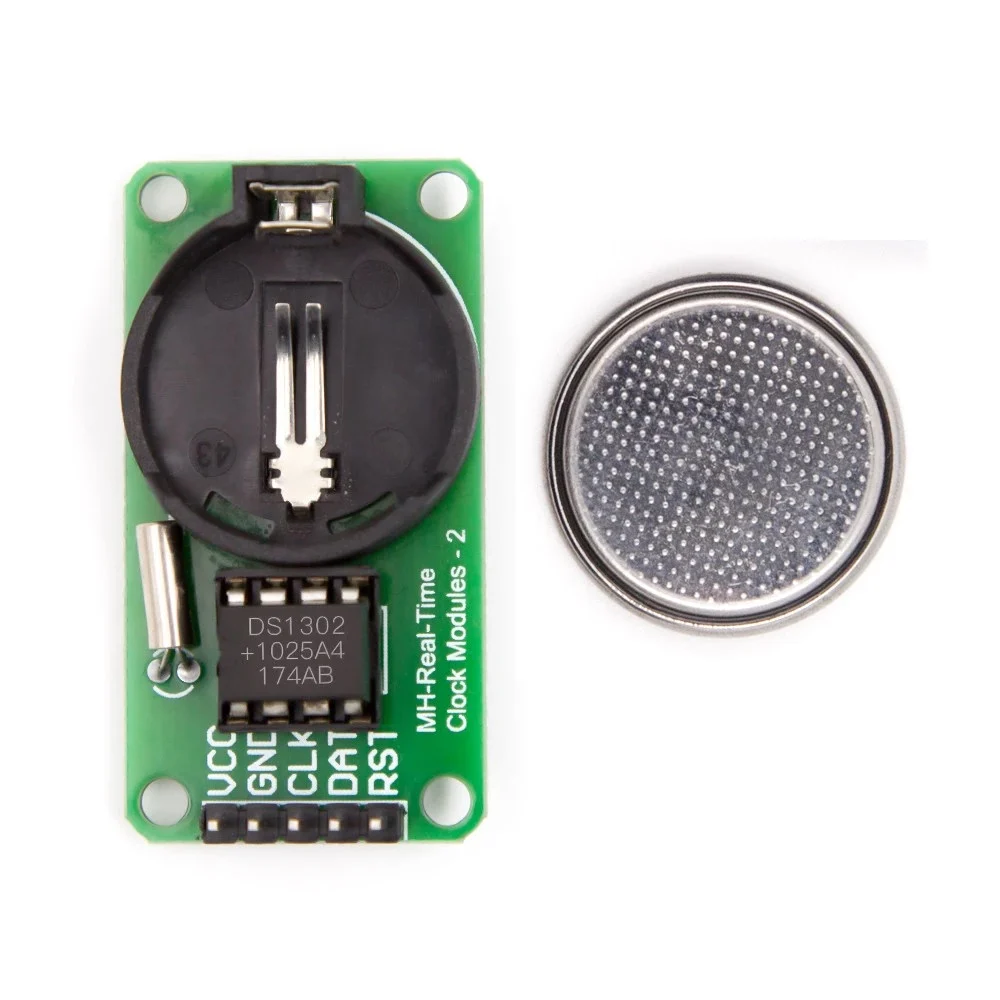

- 1 x DS1302 Real Time Clock Module without battery
Useful Link :
Arduino Playground DS1302 Example
Technical Specifications
| Model | DS1302 |
|---|---|
| SKU | AI0528 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DS1302 Real Time Clock (RTC) Module is a versatile rtc module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
