Drag Chain Engraving Machine 10*15 R18

Drag Chain Engraving Machine 10*15 R28

The Drag Chain Engraving Machine 1015 R18 is a compact yet powerful engraving solution designed to meet the demands of precision engraving tasks. With an engraving area of 1015 cm, it provides ample space for creating intricate designs on various materials. The inclusion of an R18 drag chain ensures smooth cable management, preventing tangling and ensuring uninterrupted operation. This machine excels in precision engraving, offering high accuracy and reliability. Its user-friendly control system enables easy adjustment of engraving parameters, allowing users to achieve desired results with ease. Additionally, its compact design makes it suitable for small workshops or hobbyist setups where space is limited. Overall, the Drag Chain Engraving Machine 10*15 R18 combines precision, versatility, and compactness, making it an ideal choice for a wide range of engraving applications.

Uses and Features:

1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe, plumbing, etc. play traction and protection.
2) Each section towline can open, easy installation and maintenance. Exercise low noise, wear-resistant, high-speed movement.
3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machinery, injection molding machines, robots, overweight transportation equipment, automated warehouses.

Plastic towline structure:
1) The towline shape like tanks chain, composed by a large number of unit links between the rotating freely link.
2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.
3) Unit chain around the chain plate and the upper and lower cover composition, towline can open each section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe, etc. into the towline after opening the cover.
4) Also available separators, the chain separated by space as needed.

Specification:

Material: Reinforced nylon PA66

Length: 1M

Color: Black

Weight:171g

Internal Size: 10 mm

External Size: 15 mm

Bending radius: R18

Package Includes

1 x Drag Chain Engraving Machine 10*15 R18

Drag Chain Engraving Machine 10*15 R18 Overview

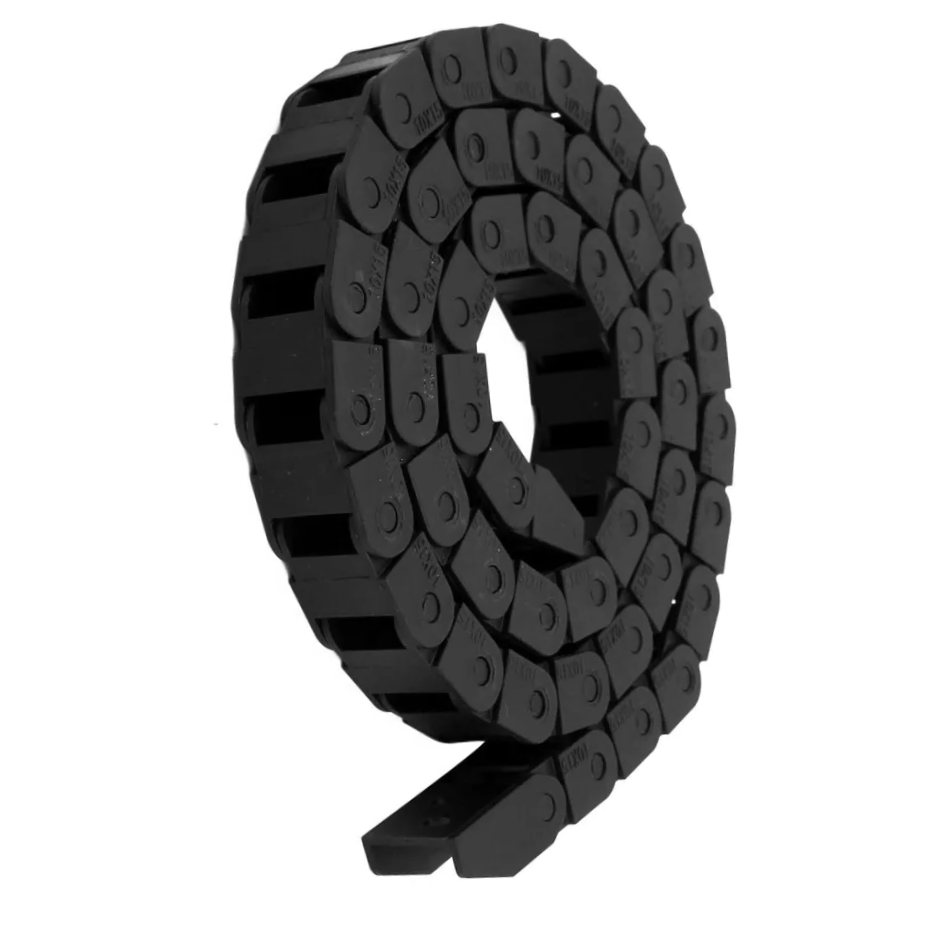

The Drag Chain Engraving Machine 10*15 R18 is a 1-meter long cable carrier made from reinforced nylon PA66, designed specifically for engraving machines and CNC equipment. With a compact internal width of 10 mm, external width of 15 mm and an R18 bending radius, it ensures smooth, tangle-free cable guidance even in tight installations.

Key Features of Drag Chain Engraving Machine 10*15 R18

• High-strength nylon PA66 construction for durability and chemical resistance
• 1 m length segmented into clip-open links for easy installation and custom sizing
• Internal channel of 10 mm allows neat routing of cables, hoses or pneumatic lines
• Bending radius R18 ensures consistent support and prevents cable fatigue
• Lightweight (171 g) design reduces added load on moving axes
• Fast shipping from Zbotic—orders dispatched within 24 hours

Applications and Use Cases

• Cable management on hobbyist and professional engraving machines
• Protecting data and power cables on desktop CNC routers
• Guiding pneumatic tubes in small laser cutting setups
• Organizing wiring harnesses on 3D printers and plotters
• Routing sensor and motor cables on robotic arms in compact workstations

How to Use Drag Chain Engraving Machine 10*15 R18

Measure the length of cable travel required on your engraving machine, then snap open individual chain links to insert cables and hoses. After routing, close the links and secure end connectors to the machine’s mounting points. Adjust link count for the desired travel length and ensure smooth, friction-free movement during operation.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What does R18 bending radius mean?

R18 indicates an 18 mm minimum turning radius, ensuring cables are bent safely without overstress.

Can I cut the chain to fit a shorter travel length?

Yes, individual links are clip-open; simply detach extra segments to achieve the required length and reattach end connectors.

Is this drag chain compatible with other CNC equipment?

Absolutely. The 10 × 15 mm internal channel suits power, signal and pneumatic lines on most small-scale CNC, laser, and 3D printing machines.
