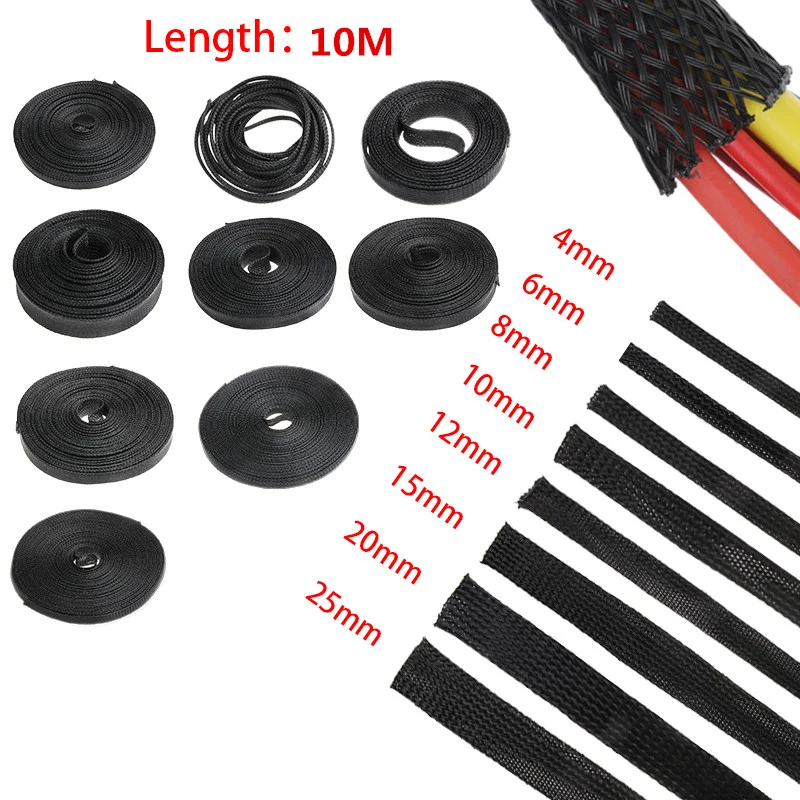

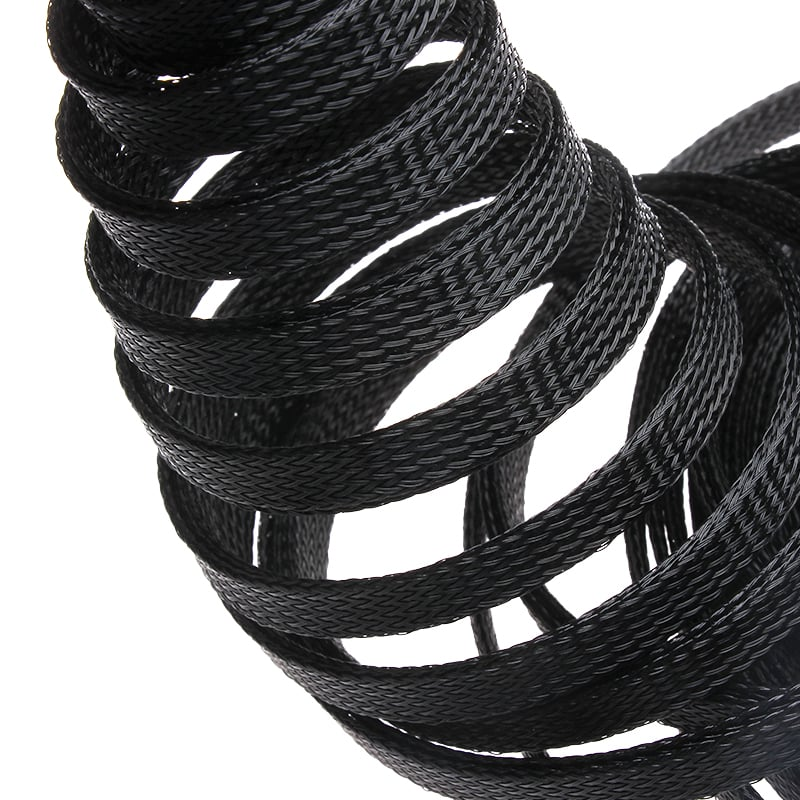

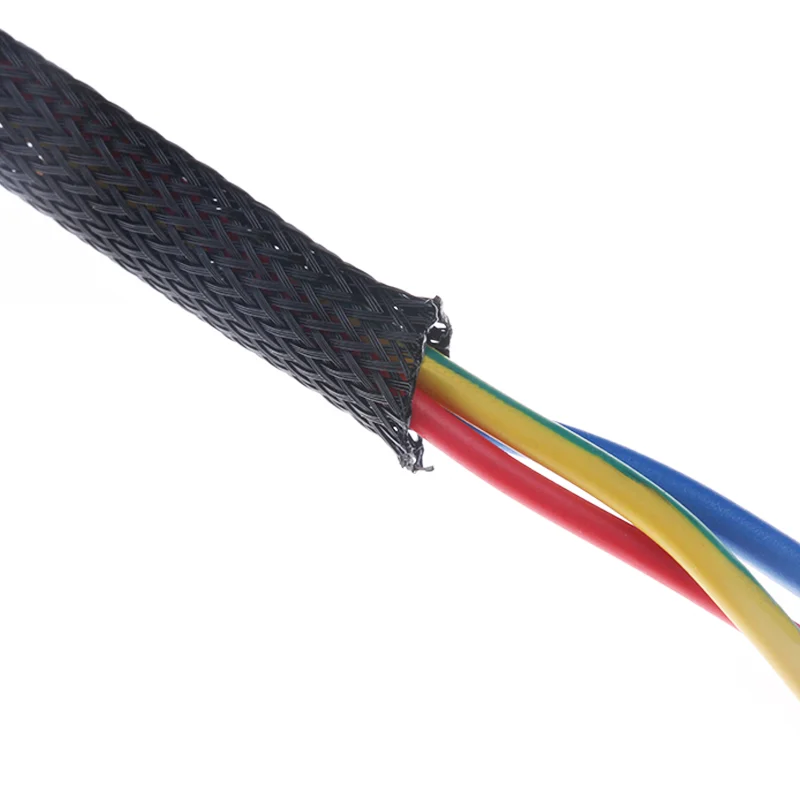

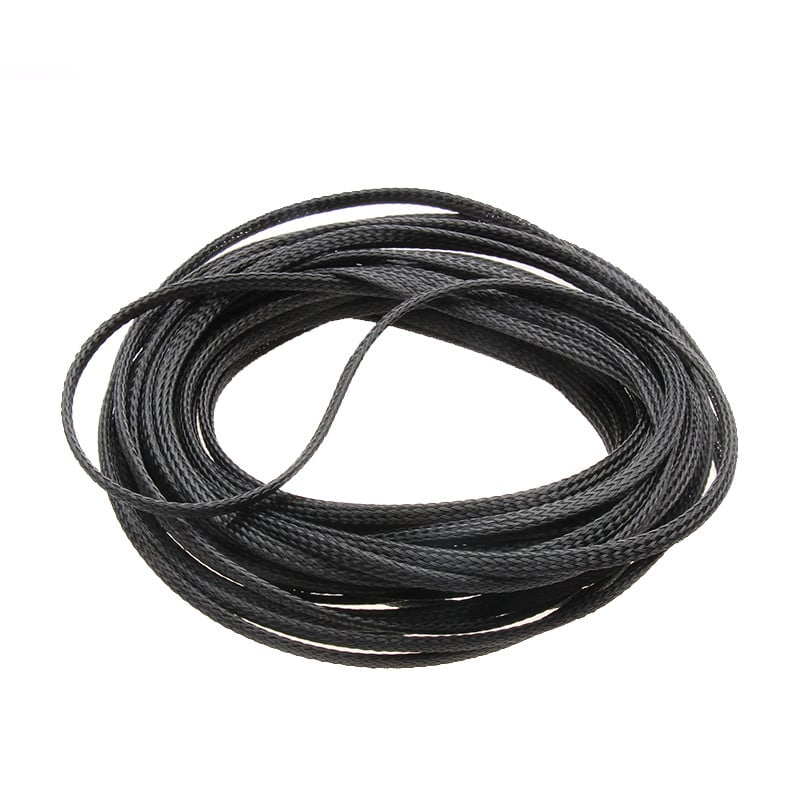

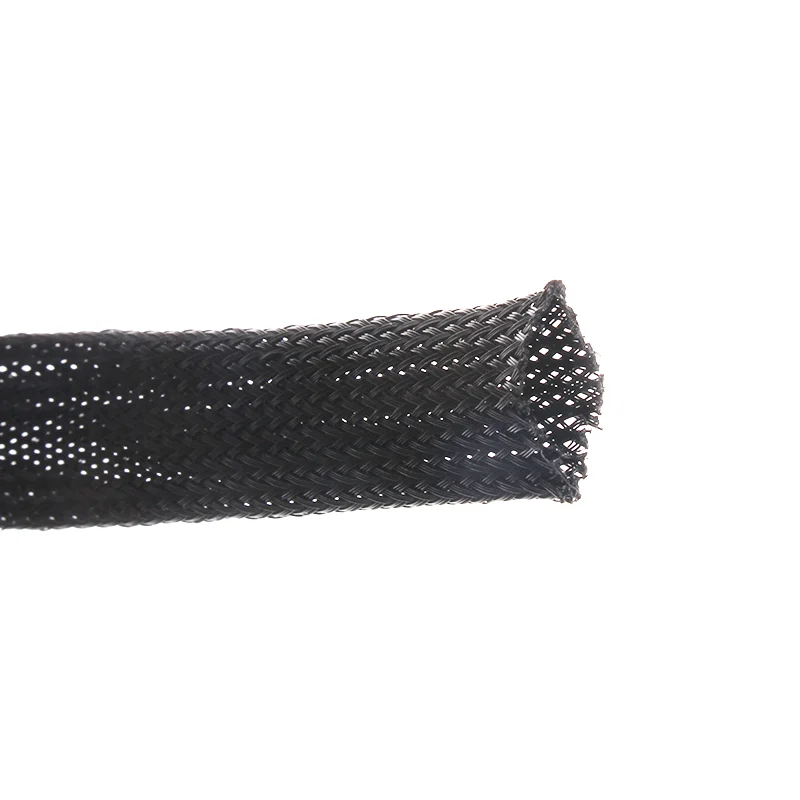

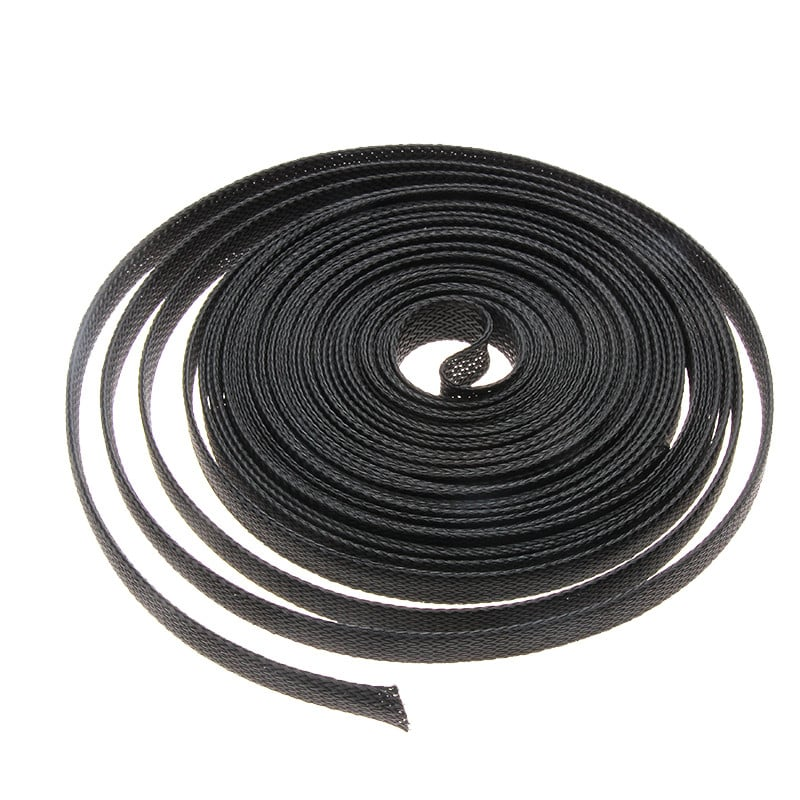

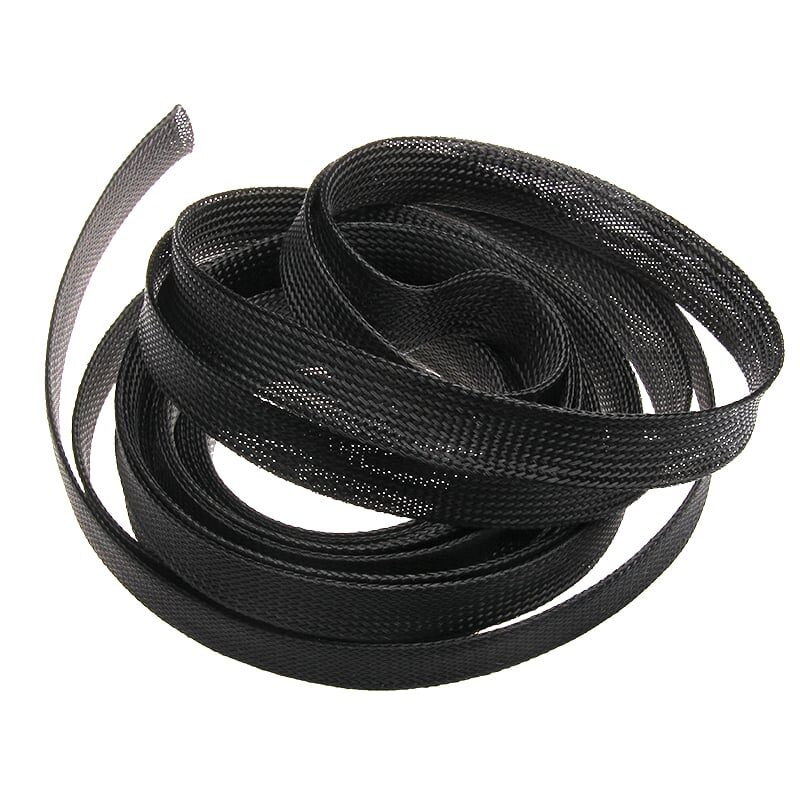

Nylon 8mm Expandable Braided Sleeve for Wire Protection-2M Length
The Nylon Braided Sleeve Mesh Tube/Braided Nylon Sleeve for Wire Protection is a versatile product that can be used for cable and wire protection, insulation, identification and decoration. It helps you organize and manage cable wire harnesses. It is made of PA 6.6, which is softer than PET sleeve, and it can expand to fit different sizes of wires.
The braided sleeving is composed of durable PET monofilament yarns that offer protection for hoses, cable assemblies, wire bundles and fishing rods against abrasion and damage from excessive wear and motion.
The nylon material protects the wires from damage caused by internal and external heat, chemical reactions with the wire insulation and humidity due to its breathable braided structure.
The braided sleeve has a unique physical weave that allows it to stretch up to 150% of its original diameter, like a python. This makes it flexible and adaptable to various shapes and sizes of wires, as well as providing enough air flow to prevent moisture or humidity from accumulating.
We at Robu.in provide a wide range of braided sleeves with different diameters. You can explore and choose the one that suits your project requirements in the category.
Key Benefits
– Easy Application: All braided sleeving products are designed for easy application on bundles, while adjusting to fluctuations in bundle size and shape.
– Superior Protection: In addition to abrasion protection, most braided sleeving products also provide protection against chemicals, salts, solvents, de-icing fluids and petroleum products. Specialty braided sleeving models also provide protection against flame, heat and/or electromagnetic interference.
– Enhanced Appearance: Braided sleeving products wrap around various bundle shapes, sizes and colors, creating a uniform and pleasing look.
Applications
It is commonly used in robotics moving assemblies, such as 3D printers, humanoid robots and many other electrical and industrial wire harnessing applications that require economy and durability.
Features:
- Light Weight & Flexible.
- Expandable type, Easy to Install, remove. Even if some with bulky or large connectors.
- Heavy environmental effect resistance
- Totally expanded the sleeving can reach 150% than the initial dimension.
- Lasts longer than cable ties.
- Very lightweight and hence reduce harness weight.
- Easy access to breakouts
- High resistance to heat, up to 125°C and Self-extinguishing
- Retains its shape after bending or crushing.
- Small curvature radius
- Resistance to the chemical agents
- Obstruction-free cable grooming
- Will not burn, melt or support combustion.
- Heavy duty and flexible
- Super strength for flame, cut, and high abrasion resistance.
Specification:
| Length | 2 Meter |
|---|---|
| Material | Nylon/PET |
| Colour | Black |
| Diameter | 8mm |
| Expansion Ratio | Up to 150% |
| Melting point | 230 °C ± 5 |
| Tinting strength | 100 ± 5 °C |
| Fireproofing Grade | UL94V-2 |
| Temperature Endurance: | -50 °C~ +150 °C |
| Weight | 10g |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
Package Includes:
1 x Nylon 8mm Expandable Braided Sleeve for Wire Protection-2M Length
