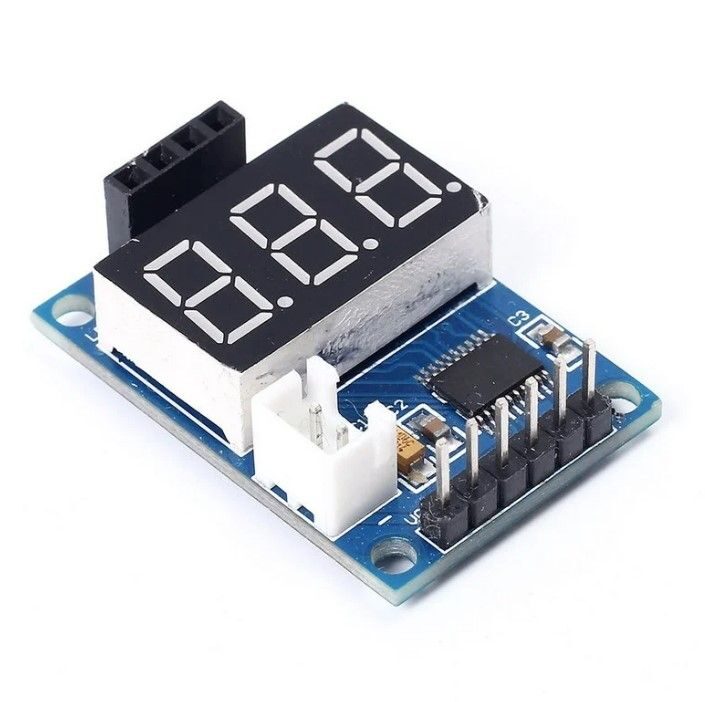

Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board
Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board adopts 8 bit MCU as the main control chip; it can be applied in distance measurement, testing HC-SR04 ultrasonic module performance. And it supports serial port display and digital tube display.
Features :
- Onboard STM8S103 high-performance microprocessor.
- With digital tube display.
- Serial port data output.
- Valid Measurement Distance: 3-400cm.
- Display Unit: cm.
- Max Error: 5V.

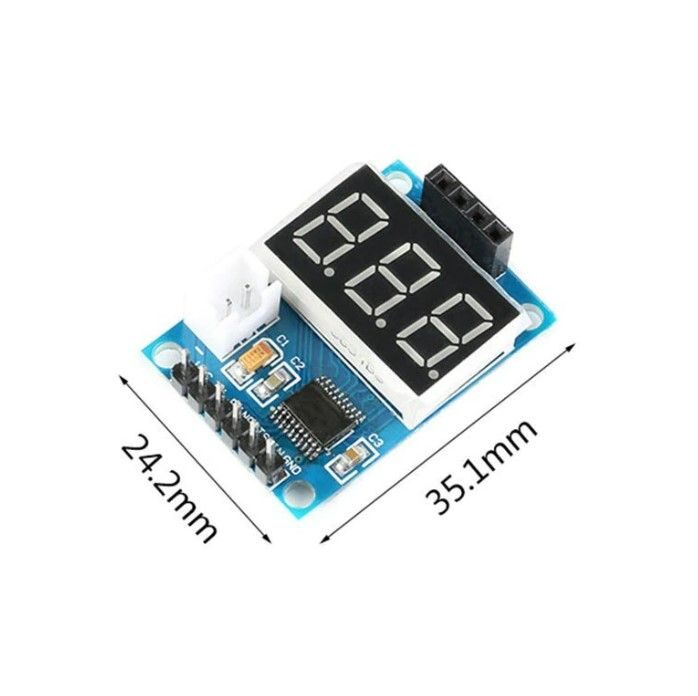

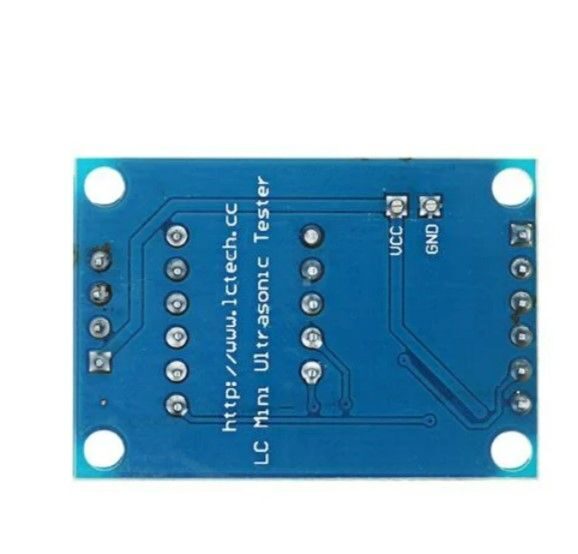

- Board Size: 36 x 25 x 12 mm.
- VCC, GND: 5V power interface.
- 2.54mm White Socket: 5V power interface.
- TX: module serial port transmits pin.
- RX: module serial port receive pin.
- NRST, SWIN: preset STM8 program download port.
Using Introduction:
1. The measurement distance can be displayed via a digital tube and serial port.

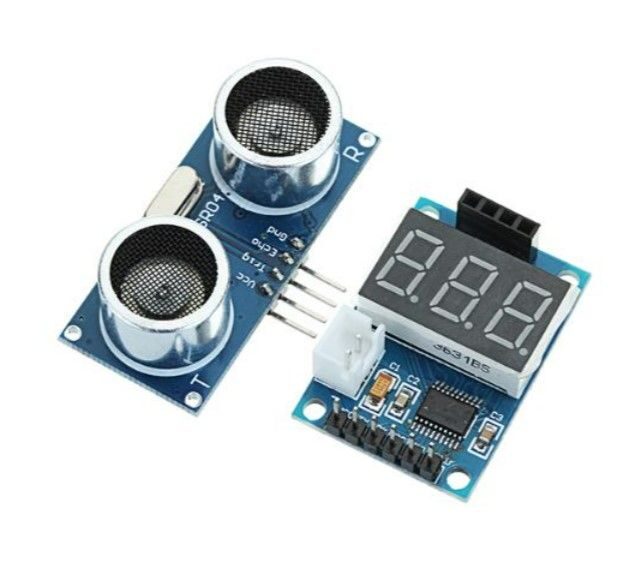

Digital Tube Display: directly plug in the ultrasonic module, connect 5V power.
2. Serial Port: plug-in ultrasonic module, VCC, TX, RX, GND respectively connects 5V, RX, TX, GND of USB to TTL module; serial port communication baud rate 9600, output format “D:XXXrn”; XXX represents distance, unit is cm.
Notice:
1. When measuring the distance, the area of a measured object should be no less than 0.5 square meters, and it should be smooth and has strong reflectivity; otherwise, it will affect the test result.
2. Valid Measurement Distance: 3-400cm; if longer than this range, it will lead to incorrect data or 000 display.
This Package does not include the HC-SR04 ultrasonic sensor.
Package Includes:
1 x Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board.
Digital Display for HC-SR04 Ultrasonic Distance Measurement Overview
The Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board is a compact, plug-and-play module designed to test and display distance readings from an HC-SR04 ultrasonic sensor. It uses an onboard STM8S103 microprocessor to trigger the sensor, calculate echo timing, and present results on a built-in digital tube display in centimeters.
Key Features of Digital Display for HC-SR04 Ultrasonic Distance Measurement
- Onboard STM8S103 high-performance 8-bit microcontroller for precise timing and control
- Integrated digital tube display showing real-time distance in cm
- Serial port data output for logging or interfacing with microcontrollers and PCs
- Wide valid measurement range from 3 cm up to 400 cm
- Compact PCB footprint of 36 × 25 × 12 mm for tight installations
- Standard 2.54 mm socket for 5 VDC power input
- Genuine unit with fast shipping across India from Zbotic
Applications and Use Cases
- Standalone distance meter for quick range checks in workshops
- Performance testing and calibration of HC-SR04 ultrasonic modules
- Integration into robotics for obstacle detection and avoidance tuning
- DIY height or level measurement in home automation projects
- Educational labs and student experiments on ultrasonic sensing
- Pre-flight checks for drone landing-gear clearance simulations
How to Use Digital Display for HC-SR04 Ultrasonic Distance Measurement
Mount a standard HC-SR04 sensor onto the board’s Trig/Echo header, then connect a regulated 5 VDC supply to the 2.54 mm power socket. The STM8S103 MCU will automatically trigger the sensor and compute distance values, which appear instantly on the digital tube. For serial data, link the board’s UART pins to your microcontroller or USB-TTL adapter.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does this board include the HC-SR04 sensor?
No, this product is the display and control board only. You need to mount a standard HC-SR04 ultrasonic module onto its Trig/Echo header.
How do I connect my HC-SR04 sensor to the display board?
Align the HC-SR04’s VCC, GND, Trig and Echo pins with the matching 4-pin header on the board, then supply 5 V DC to the 2.54 mm power socket. The onboard STM8S103 will handle triggering and echo timing, updating the digital tube display automatically.
Can I view readings on my PC?
Yes. The board outputs serial distance data through its UART interface at TTL level. Simply connect to a USB-to-TTL adapter or a microcontroller RX pin to log and display measurements alongside the built-in digital tube.
