This is the Red variant of the DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control in IR and RF Transmitters and Receivers. Available at ₹296.18 (₹251.00 + GST) with free shipping across India.

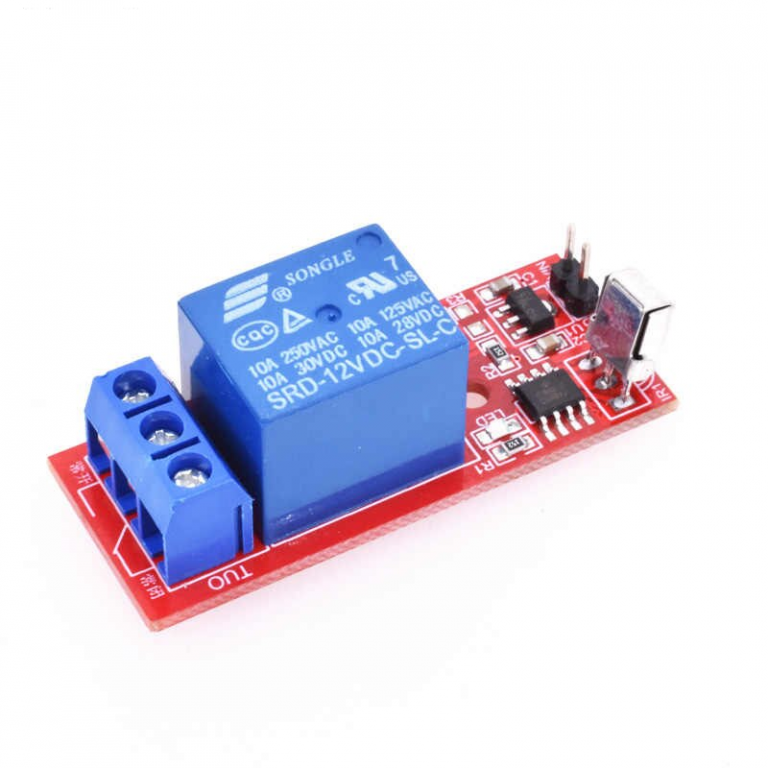

DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control

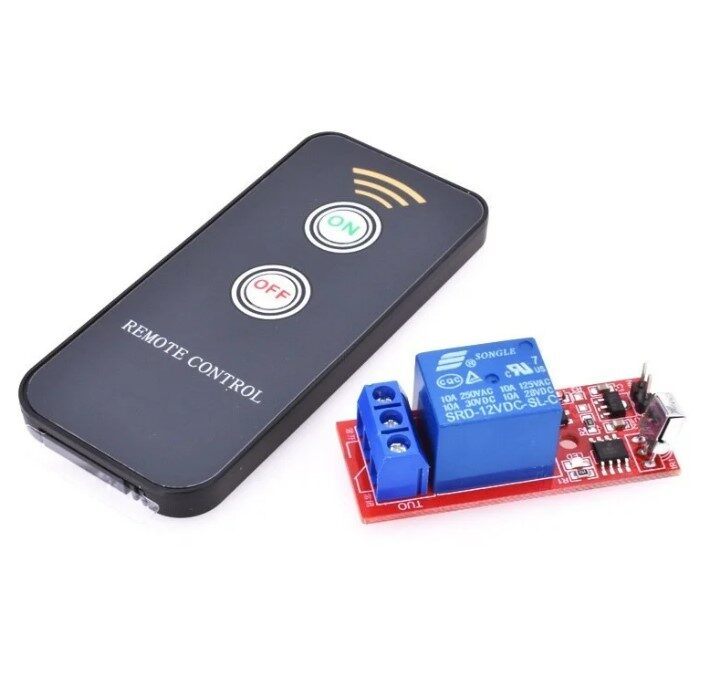

This module is a one channel latching relay module that works with 12V DC power. It has a passive output that can be controlled by a 2-button IR wireless controller that comes with the module. The module can also operate most household electrical appliances. The module has indicator LEDs to show the power output status. The module uses a high current relay. The module can be used for different devices with different current ratings.
Specifications
| Operating Voltage (VDC) | 12 |
| Supply Current (A) | 0.07 |
| Operating Temperature (°C) | -40 to 90 |
| Maximum Supported Output | 10A 28VDC 7A 240VAC 10A 125VAC |
| Operating Distance Range (Meter) | 1 ~ 5 |
| Storage condition (℃) | -40 to 80 |
| Length (mm) | 50 |
| Width (mm) | 20 |
| Height (mm) | 18 |
| Weight (gm) | 30 |
Features
- Work status: Self-locking
- Dedicated remote.
- Indicator LEDs.
- Ideal for home automation.
Package Includes
1 x DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Channels | 1-channel |
| Color | Red |
| SKU | AI0961 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
- Building a custom remote control
- Adding wireless triggering to a project
- Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
