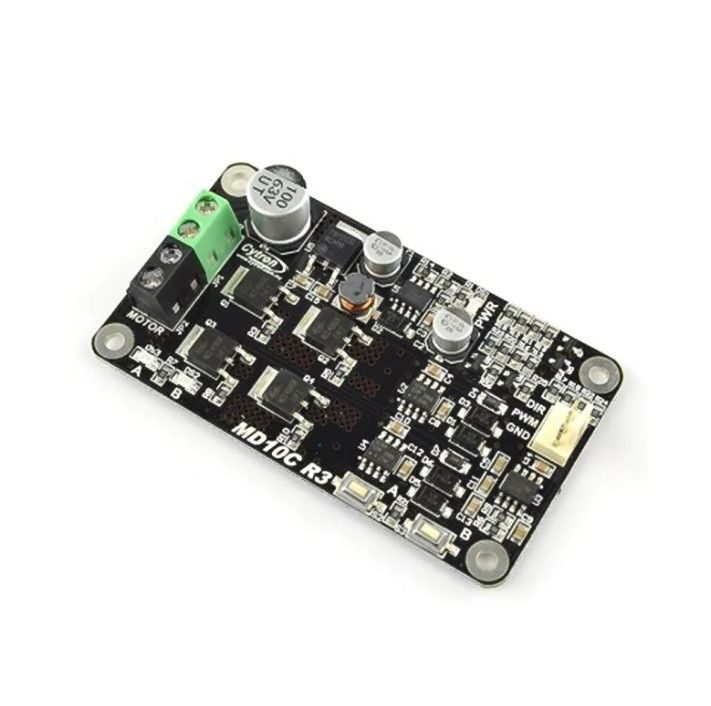

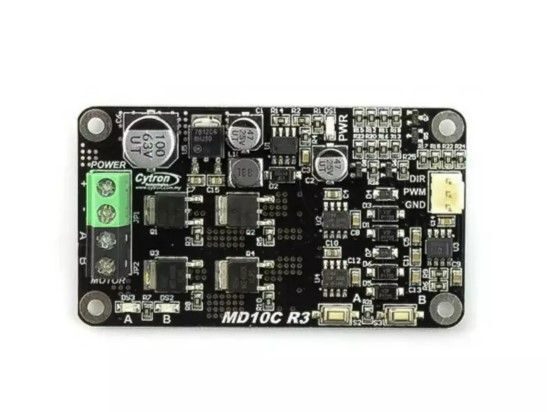

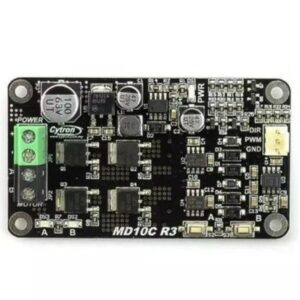

Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C
This is Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C. The MD10C is a newer version of the MD10B which is designed to drive high current brushed DC motor up to 10A 13A continuously.
It offers several enhancements over the MD10B such as support for both locked-antiphase and sign-magnitude PWM signal as well as using full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay.
Note: The MD10C is now upgraded to Rev 3.0. Rev 3.0 can support motor voltage range from 5V to 30V.

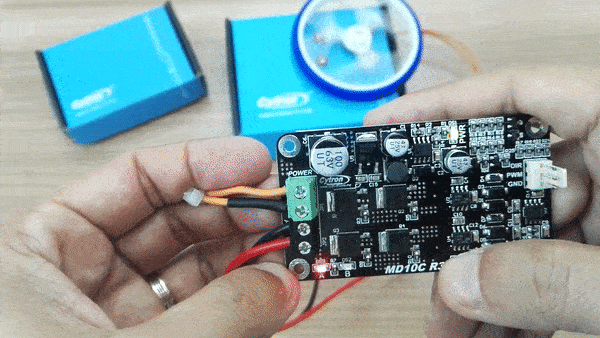

Working with MD10C R3 is as easy as pressing buttons, everyone can do it!
Features
- Bi-directional control of 1 brushed DC motor, single channel.
- Support motor voltage ranges from 5V to 30V.
- Maximum current up to 13A continuous and 30A peak (10 seconds).
- 3.3V and 5V logic level input.
- Solid state components provide faster response time and eliminate the wear and tear of the mechanical relay.
- Fully NMOS H-Bridge for better efficiency and no heat sink is required.
- Speed control PWM frequency up to 20KHz (Actual output frequency is the same as input frequency).
- Support both locked-antiphase and sign-magnitude PWM operation.
- The new MD10C can be powered from a single power source, the Vmotor only. No external Vin is not required.
- Support TTL PWM from microcontroller.
Specifications:
| Item Type: | Motor Driver |
|---|---|
| Model Series: | MD Series |
| Voltage Rating (V): | 5 to 30 |
| Current Rating (A): | 13 to 30 |
| Driver Model | MD10C |
| Operating Voltage (VDC): | 5 to 30 |
| Peak Current (A) | 30 |
| Continuous Current (A) | 13 |
| Operating Modes | PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: No, Analog:No, RC Servo Signal: No |
| Arduino Shield (Y/N) | can be used with Wire connection, No |
| No. of Channels | 1 |
| Battery Protect. Mode (Y/N) | Yes |
| LED Indicator (Y/N) | Yes |
| Cooling Fan (Y/N) | No |
| Test/Manual Button (Y/N) | Yes |
| Polarity Protection (Y/N) | NO |

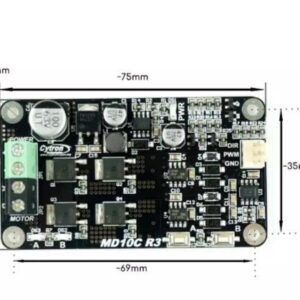

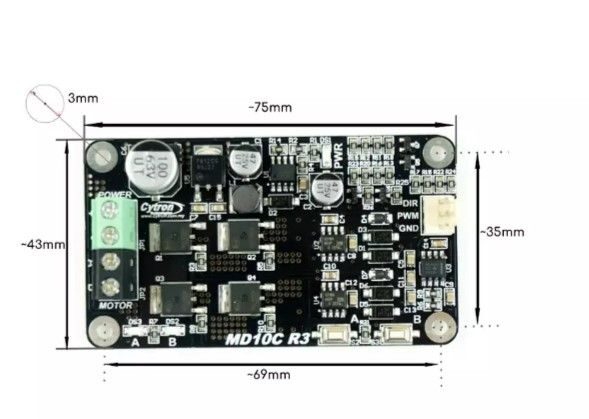

| Dimensions (LxWxH) mm | 75x43x13 |
| Weight (g): | 22 |
Package Includes
1 x Cytron Enhanced 13Amp DC Motor Driver 30A peak MD10C Rev 3.0
1 x 2510 PCB Connector – 3 Ways (Female)
1 x 2510 Terminal Pin
4 x Plastic spacer (~7mm)
Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) Overview
The Cytron Enhanced 13Amp DC Motor Driver (MD10C Rev 3.0) is a single‐channel, bi‐directional H‐bridge designed to drive brushed DC motors with voltages from 5V to 30V. It delivers up to 13A continuous and handles 30A peak for 10 seconds, making it ideal for high‐current motor control without mechanical wear.
Key Features of Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds)
- Bi‐directional control for one brushed DC motor with a fully solid‐state NMOS H‐bridge
- Supports motor voltage range from 5V to 30V (Rev 3.0 upgrade)
- 13A continuous current rating and 30A peak for 10 seconds
- 3.3V and 5V logic‐level input compatible with locked‐antiphase and sign‐magnitude PWM
- No mechanical relay—faster response time and zero contact wear
- No heat sink required under normal operation thanks to high‐efficiency design
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Driving high‐torque brushed DC motors in robotics and robotic arms
- Powering small electric vehicles, RC cars and boats
- Automating conveyor belts and material handling systems
- Prototyping motorized actuators in industrial machines
- Building custom motion control platforms and lab equipment
How to Use Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds)
Connect your motor to M+ and M– terminals, supply 5–30V at the VM input, and tie the ground to the logic ground. Apply PWM and direction signals at 3.3V or 5V logic levels using locked‐antiphase or sign‐magnitude wiring. Power on the board, send PWM to control speed, and toggle direction input to reverse motor rotation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What PWM modes does the MD10C support?
The MD10C supports both locked‐antiphase PWM (single input for speed and direction) and sign‐magnitude PWM (separate inputs for direction and speed), selectable by how you wire the PWM and DIR pins.
Do I need a heatsink for continuous operation?
No heatsink is required under normal continuous current up to 13A, thanks to the efficient full NMOS H‐bridge design. Ensure adequate ventilation if operating near maximum ratings.
Can this driver handle a 24V, 10A motor?
Yes. The MD10C Rev 3.0 supports motor voltages up to 30V and continuous currents up to 13A, making it suitable for a 24V, 10A brushed DC motor.
