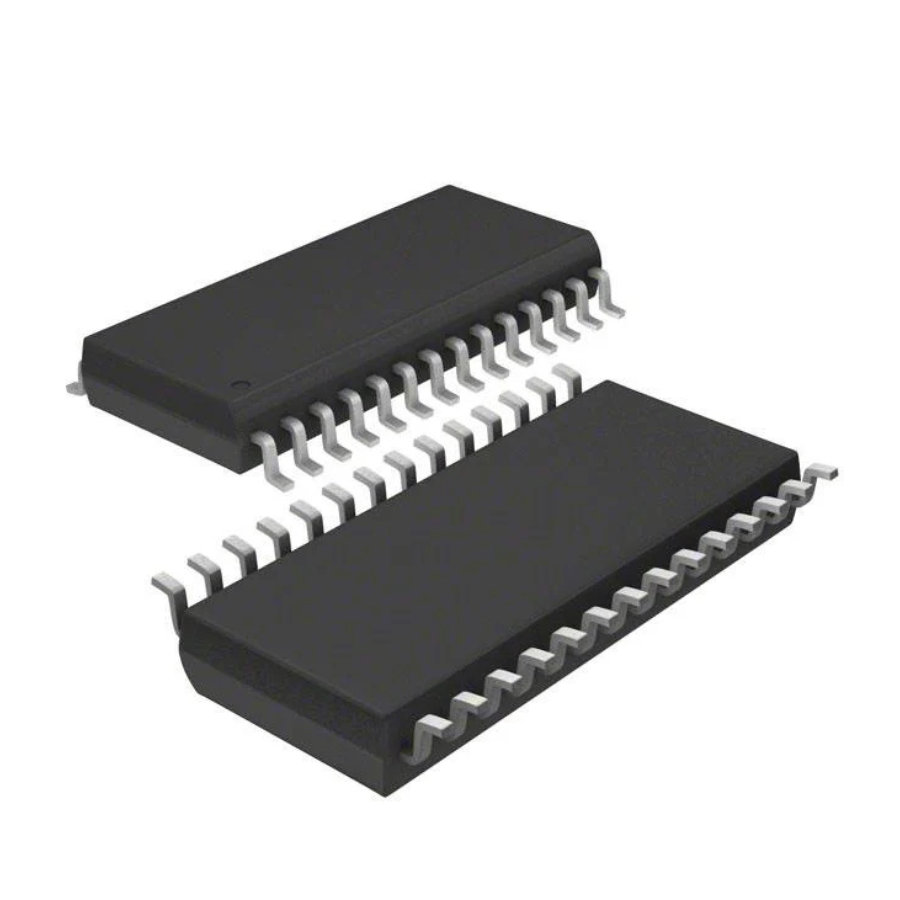

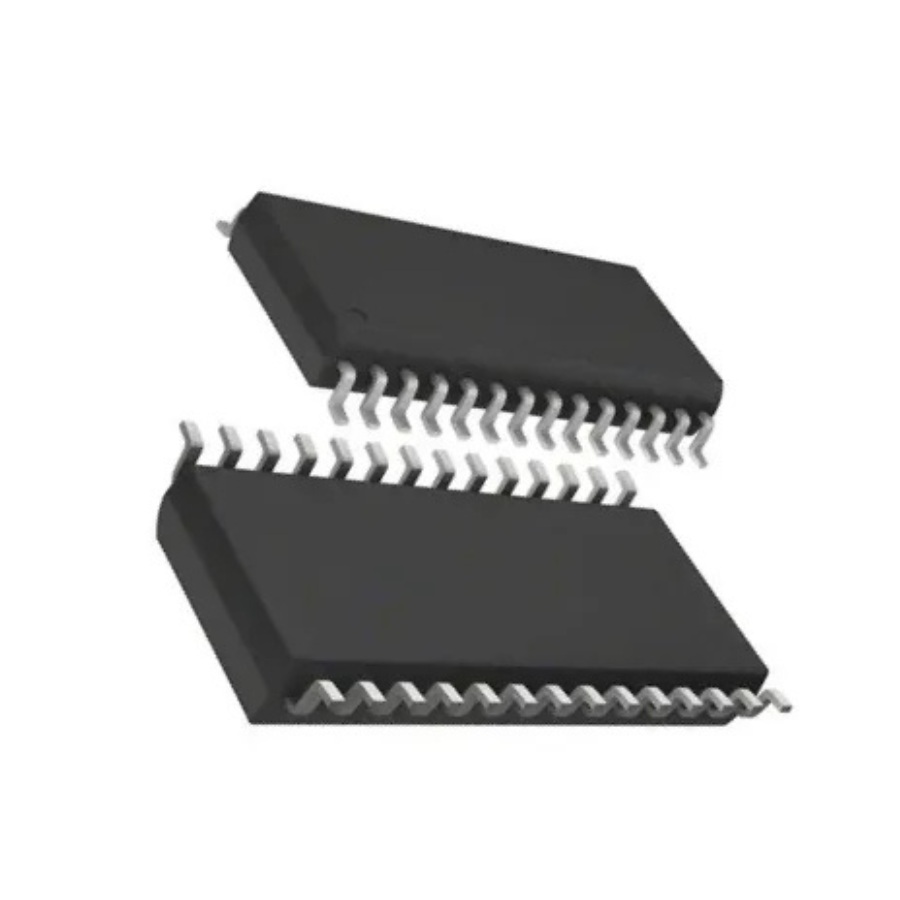

CY8C4245PVI-DS402 ARM MCU IC

Looking for Cy8c4245pvi Ic? CY8C4245PVI-DS402 ARM MCU IC is available at Zbotic with fast shipping across India.

Cy8c4245pvi Ic – CY8C4245PVI-DS402 ARM MCU IC

• ARM MCU, PSOC 4 Family CY8C42xx Series Microcontrollers, ARM Cortex-M0, 32 bit, 48 MHz, 32 KB
• The CY8C4245PVI-DS402 is a programmable system-on-chip (PSoC) microcontroller developed by Cypress Semiconductor. Here’s a detailed description of its features:

Programmability:

• The CY8C4245PVI-DS402 is a highly configurable microcontroller, featuring Cypress’ PSoC architecture, which allows designers to customize the device’s functionality using programmable analog and digital blocks.

Core:

• It is based on an ARM Cortex-M0 processor core, offering a balance of performance and energy efficiency suitable for a wide range of embedded applications.

Peripherals:

• The microcontroller features a variety of integrated peripherals, including GPIO (General Purpose Input/Output) pins for digital interfacing, UART (Universal Asynchronous Receiver/Transmitter) for serial communication, SPI (Serial Peripheral Interface) for interfacing with SPI devices, I2C (Inter-Integrated Circuit) for communication with I2C devices, and ADC (Analog-to-Digital Converter) for analog sensor interfacing.

Programmable Analog Blocks:

• The device includes programmable analog blocks that can be configured to implement functions such as amplifiers, filters, comparators, and more, providing flexibility in analog signal processing.

Programmable Digital Blocks:

• It also features programmable digital blocks that can be configured to implement functions such as counters, timers, PWM (Pulse Width Modulation) generators, and more, enabling flexible digital signal processing and control.

CapSense Technology:

• The CY8C4245PVI-DS402 incorporates Cypress’ CapSense technology, allowing for the implementation of capacitive touch sensing interfaces without the need for external components, making it ideal for touch-sensitive applications.

Low Power Operation:

• With its low-power Cortex-M0 core and advanced power management features, the microcontroller is suitable for battery-powered and energy-efficient applications.

Package:

• It is available in a small footprint package, making it suitable for space-constrained applications.

Development Tools:

• Cypress provides a comprehensive set of development tools, including software development kits (SDKs), integrated development environments (IDEs), and debugging tools, to facilitate rapid prototyping and software development for the CY8C4245PVI-DS402 microcontroller.
• Image may vary from actual product in terms of brand and value printed.

Specification:

Package Includes:

1 x CY8C4245PVI-DS402 ARM MCU IC

Datasheet:

CY8C4245PVI-DS402 ARM MCU IC Overview

The CY8C4245PVI-DS402 is a PSoC 4 family programmable system-on-chip microcontroller featuring an ARM Cortex-M0 core running at up to 48 MHz. Housed in a compact SMD-28 package with 32 KB flash memory, it delivers configurable analog and digital blocks ideal for embedded control and sensing applications.

Key Features of CY8C4245PVI-DS402 ARM MCU IC

• ARM Cortex-M0 32-bit processor core operating at up to 48 MHz
• 32 KB on-chip flash memory for program storage
• PSoC 4 architecture with programmable analog and digital blocks
• Compact SMD-28 surface-mount package for space-constrained PCBs
• Low-power sleep modes to extend battery life in portable devices
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Custom sensor interface designs leveraging on-chip ADCs and comparators
• Embedded control for consumer electronics and home automation modules
• Portable medical and wearable devices requiring low-power operation
• Motor control applications with integrated PWM and timer blocks
• Prototype development using Cypress PSoC Creator for rapid testing

How to Use CY8C4245PVI-DS402 ARM MCU IC

To get started, solder the CY8C4245PVI-DS402 onto your PCB footprint, then install Cypress PSoC Creator IDE on your development PC. Connect the device to your computer via a compatible KitProg or programmer/debugger, configure programmable analog and digital blocks in the IDE, write your firmware in C, and flash the compiled code to the MCU for real-time testing.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which IDE and tools support CY8C4245PVI-DS402?

This MCU is fully supported by Cypress PSoC Creator IDE, which provides schematic-based configuration and code generation. You can program and debug using a compatible KitProg or MiniProg programmer/debugger.

What is the memory capacity of the CY8C4245PVI-DS402?

The device features 32 KB of on-chip flash memory for firmware and up to 2 KB of SRAM for data, making it suitable for mid-size embedded projects.

What package does this MCU come in?

The CY8C4245PVI-DS402 is available in a 28-pin SMD package (SMD-28) designed for automated surface-mount assembly and space-efficient PCB layouts.
