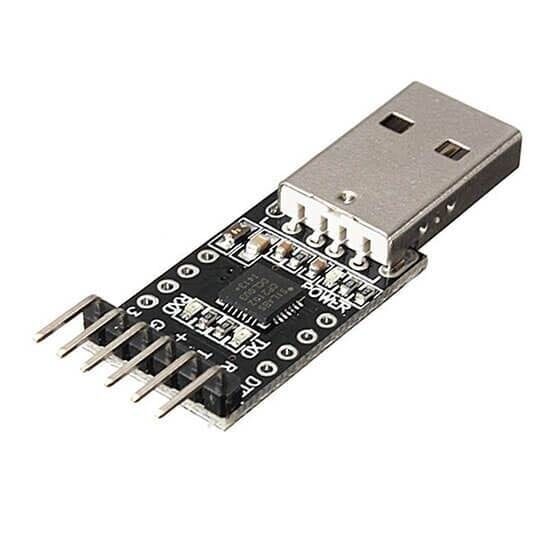

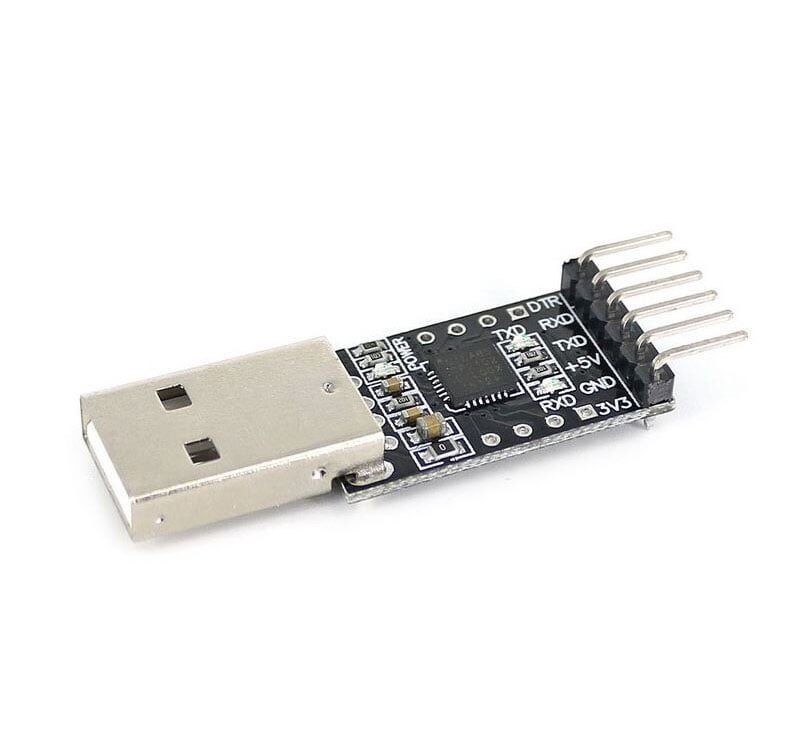

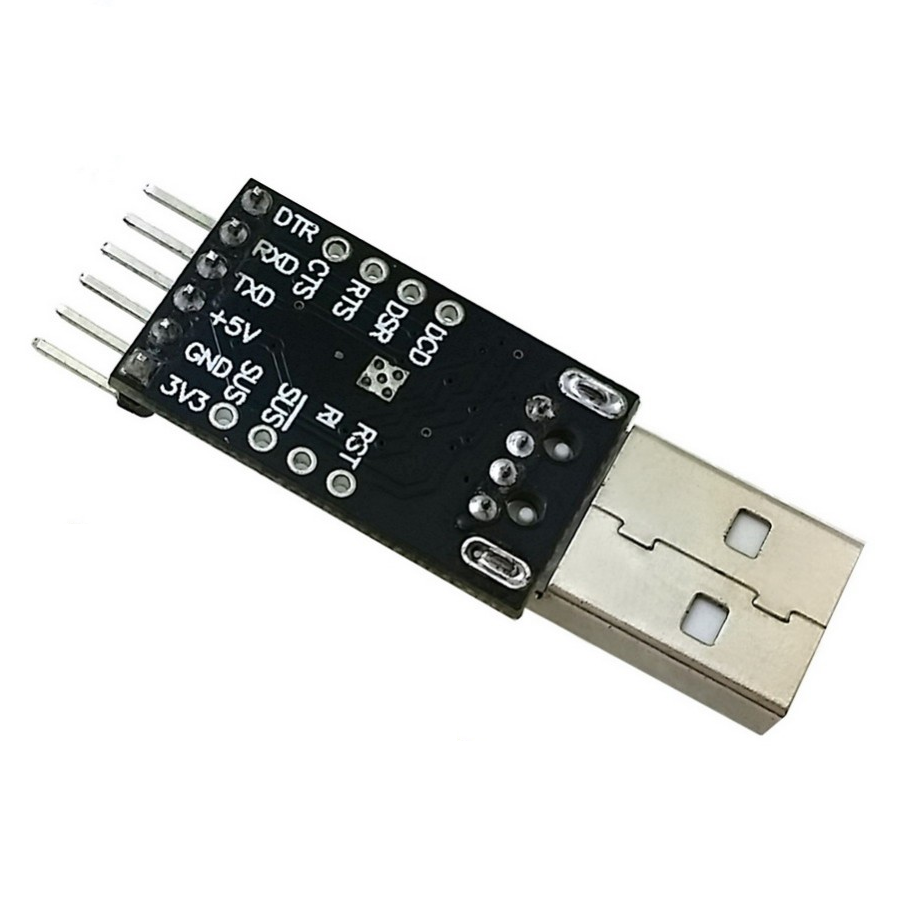

CP2102(6-pin) USB 2.0 to TTL UART serial converter
The CP2102 (6-pin) USB 2.0 to TTL UART serial converter module is a versatile tool tailored for embedded systems necessitating a serial connection to a computer. Its compact design allows for effortless attachment to a USB bus, where it seamlessly emulates a standard COM port, simplifying integration into existing setups.
Notably, the CP2102 module boasts several advantageous features. It operates without the need for an external oscillator and incorporates an onboard voltage regulator, streamlining its deployment in diverse environments. Furthermore, its reprogrammable internal EEPROM enables customization of the device description, enhancing flexibility and adaptability.
Equipped with a full hardware UART with flow control, this converter module supports baud rates ranging from 300bps to 921600bps, ensuring seamless data transmission across various speeds. Additionally, its breakout design facilitates easy connection of the TX/RX pins from microcontrollers or other serial applications to the corresponding RX/TX pins of the breakout, effectively serving as a simple serial cable replacement.
Overall, the CP2102 USB to TTL UART serial converter module is a reliable and versatile solution for establishing serial communication between embedded systems and computers, offering convenience, flexibility, and high performance in a compact form factor.
Supported operating systems.
Windows 98/Me/2000/7
MAC OS-9
MAC OS
X-Windows CE
Linux 2.40 or later
Features:
- Brand new and high quality
- Included USB transceiver, without external circuit device.
- Includes a clock circuit and power-on reset circuit
- With 3.3V and 5V dual power output
- With three LEDs: power indicator, data reception indicator, the data transmission indicator, working status
- Meet the USB2.0 specification requirements
- SUSPEND pin supports USB suspend state
- With self-recovery fuse. In the event of the accidental short circuit, it can effectively protect your computer USB port and Downloader
- With reset signal output, etc. directly to the Arduino board Promini download!
- Asynchronous serial data bus compatible with all handshake and modulation controller interface signals
- The supported data format is 8 data bits, 1 stop bit and parity bits
- Connotation 512 byte receive buffer and 512 bytes transmit buffer.
- Supports hardware handshaking or X-ON/X-OFF
Specification:
| Length (mm): | 42 |
|---|---|
| Width (mm): | 16 |
| Height (mm): | 6 |
| Weight (g): | 4 |
Package Includes:
Technical Specifications
| Model | CP2102 |
|---|---|
| Pin Count | 6-pin |
| Interface / Protocol | UART, USB, TTL |
| SKU | AI0005 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The CP2102(6-pin) USB 2.0 to TTL UART serial converter is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
