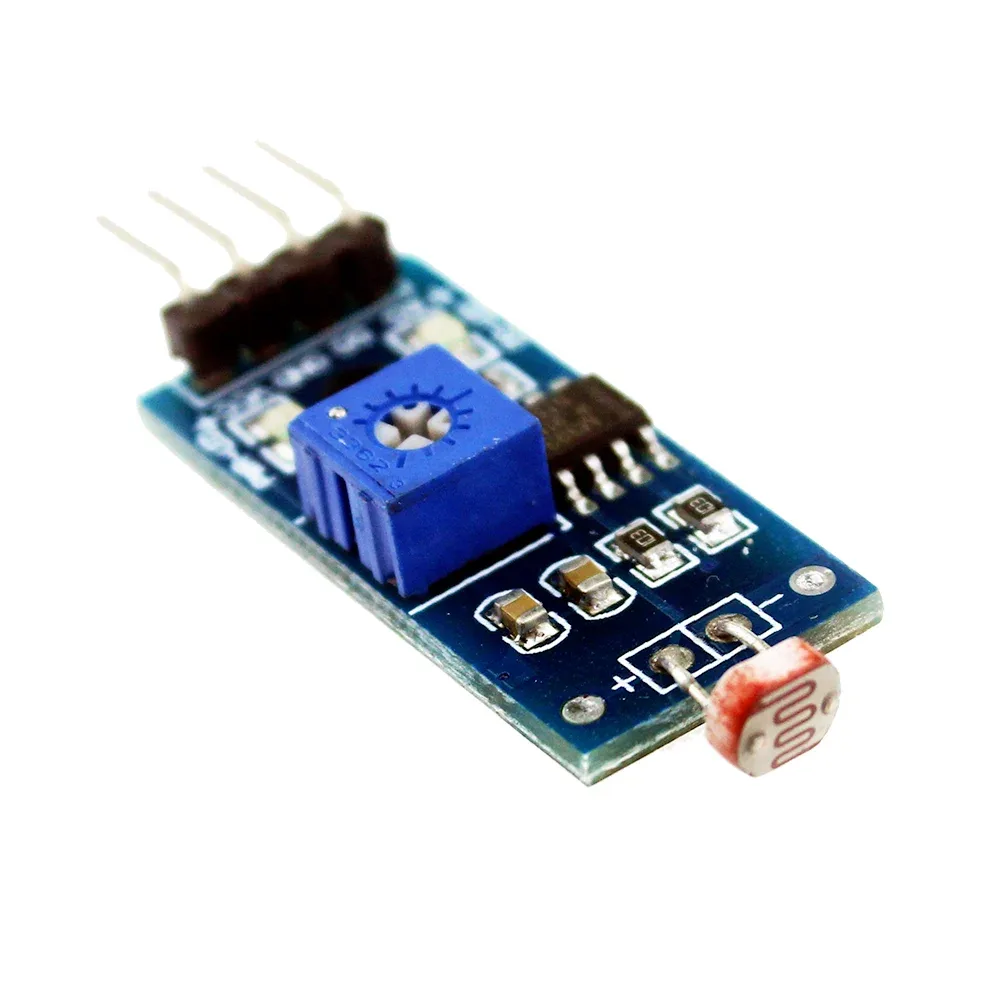

LM393 Photosensitive Light-Dependent Control Sensor LDR Module

LM393 Photosensitive Light-Dependent Control Sensor LDR Module

This LM393 Photosensitive Light-Dependent Control Sensor LDR Module utilizes a high-quality LM393 voltage comparator. It is easy to install, employing a sensitive photosensitive resistance sensor. The comparator’s output signal provides a clean and well-defined waveform.

With an adjustable potentiometer, the driving ability is 15mA, allowing you to adjust the brightness of the light. The working voltage ranges from 3.3V to 5V, and the output is a digital switch output. Due to its sensitivity to light, this module is commonly used for detecting ambient brightness and light intensity.

You can directly use the digital output (DO) port of this board to drive relay modules (which are available in our store), or you can use it as a photoelectric switch. The analog output (AO) can be connected to an AD module, providing a more precise light intensity value through the AD converter.

How to use LDR sensor module click here!

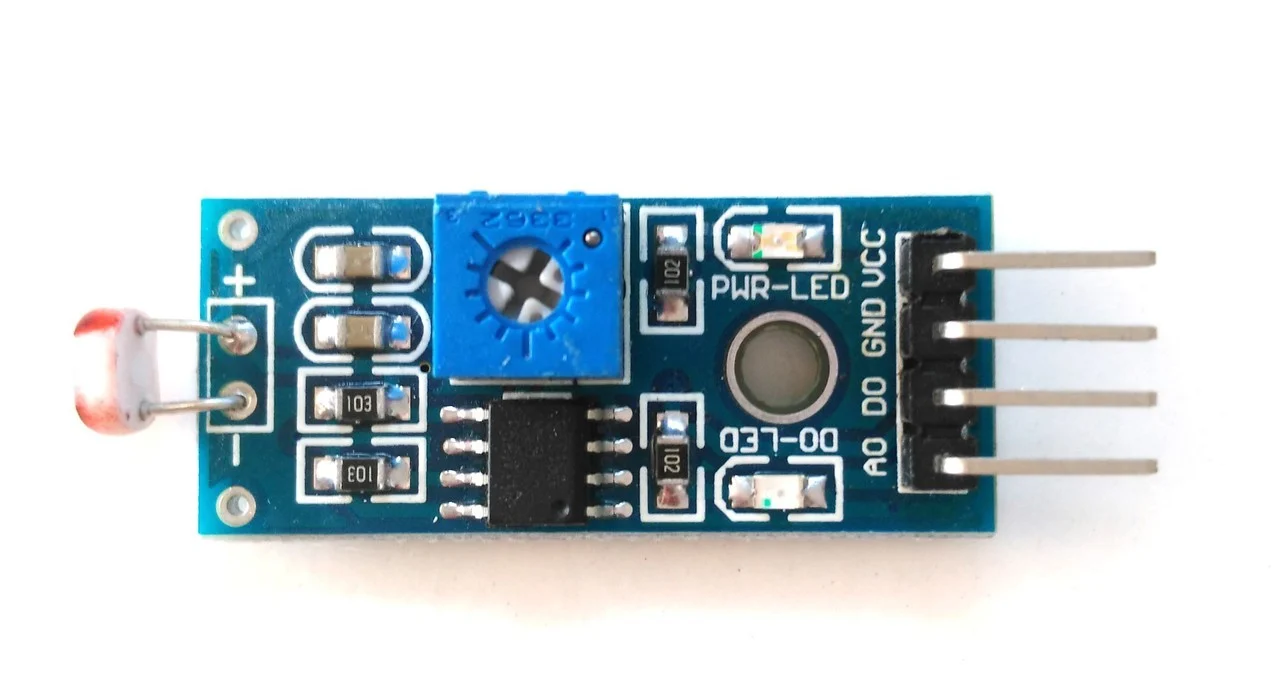

Interface Pin :

1. VCC: +ve power supply.
2. GND: Ground.
3. D0: Digital output signal.
4. A0: Analog Output Signal.

Strong light, LED light, output low level;
Weak light, LED off, output high level;
Sensitivity is adjustable.

Features:

1. It comes with Mounting Hole Screw.
2. Easy to install
3. Signal output indicator light.
4. LDR module 4 PIN
5. Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
6. Output: DO digital switch output (0 and 1), AO analog voltage output Compatible with Arduino, Raspberry, and other microcontroller board.

Specification:

Package Includes:

1 x LM393 Photosensitive Light-Dependent Control Sensor LDR Module.
