CHT 1230 12mm 5mw straight-line Laser Module – Red

This is the Red variant of the CHT 1230 12mm 5mw straight-line Laser Module – Red in LASER Module. Available at ₹180.54 (₹153.00 + GST) with free shipping across India.

Looking for 12mm Module? CHT 1230 12mm 5mw straight-line Laser Module – Red is available at Zbotic with fast shipping across India.

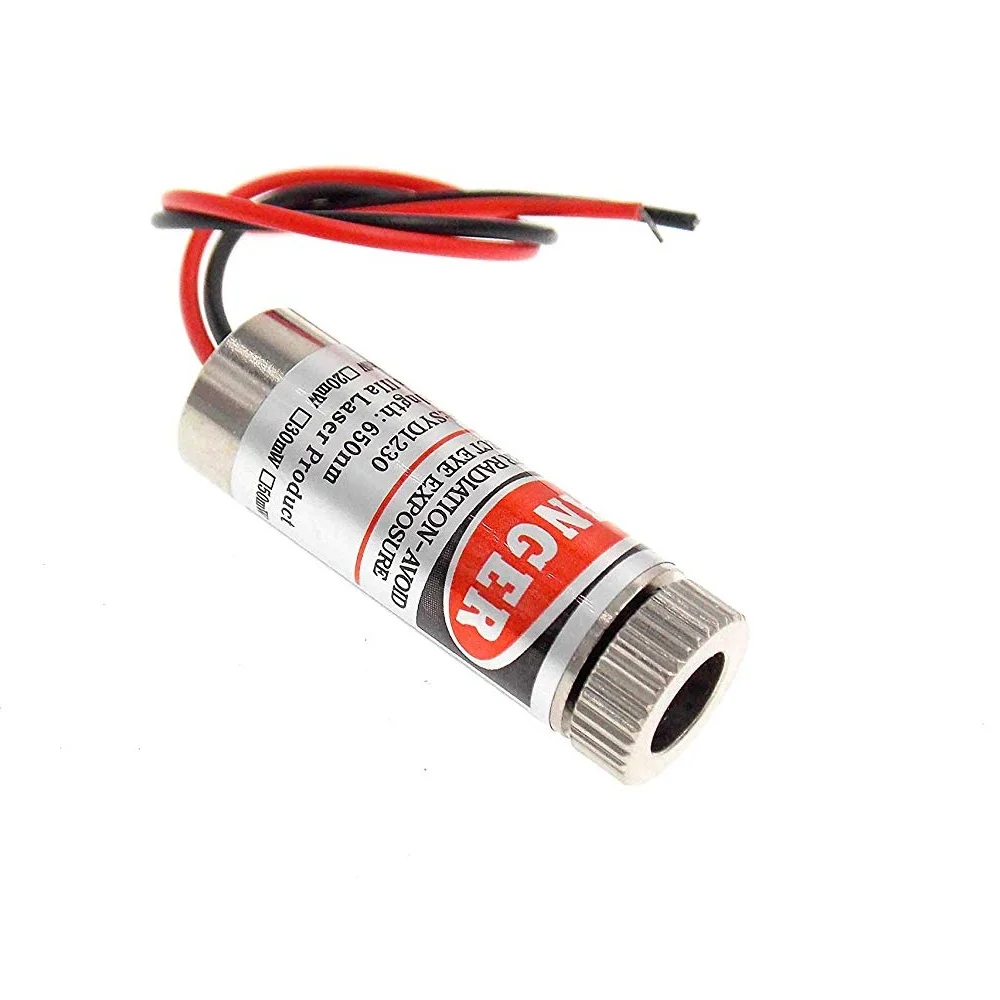

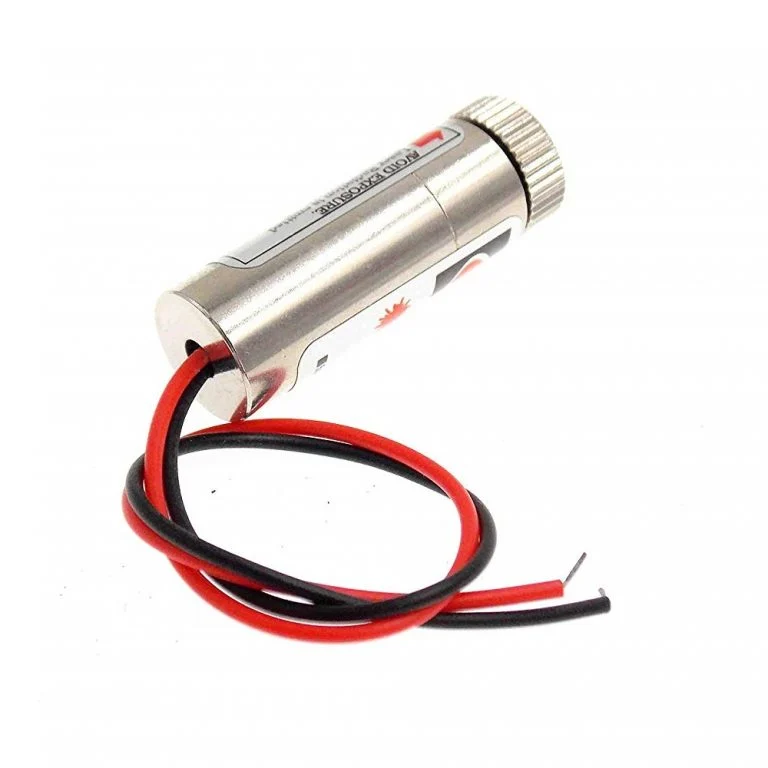

CHT 1230 straight-line Laser Module

This is CHT 1230 12mm 5mw Red straight LINES laser module. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.

It is suitable for 3V-5V 5mW standard, with 6mm outside diameter. It can be used to connect diode tubes for multiple uses.

This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.

Important NOTE and CAUTIONS:

1. It does not emit theRED-Line or Pointsince it is a Single RED straight-LINE module.
2. Please use the DC power supply 3~6V.
3. Careful! This laser module has high output power, please wear goggles when testing or using as it
4. The laser beam must not be directed towards the eyes of a person or an animal in any way.
5. The red cord is an anode, the black cord is a cathode.

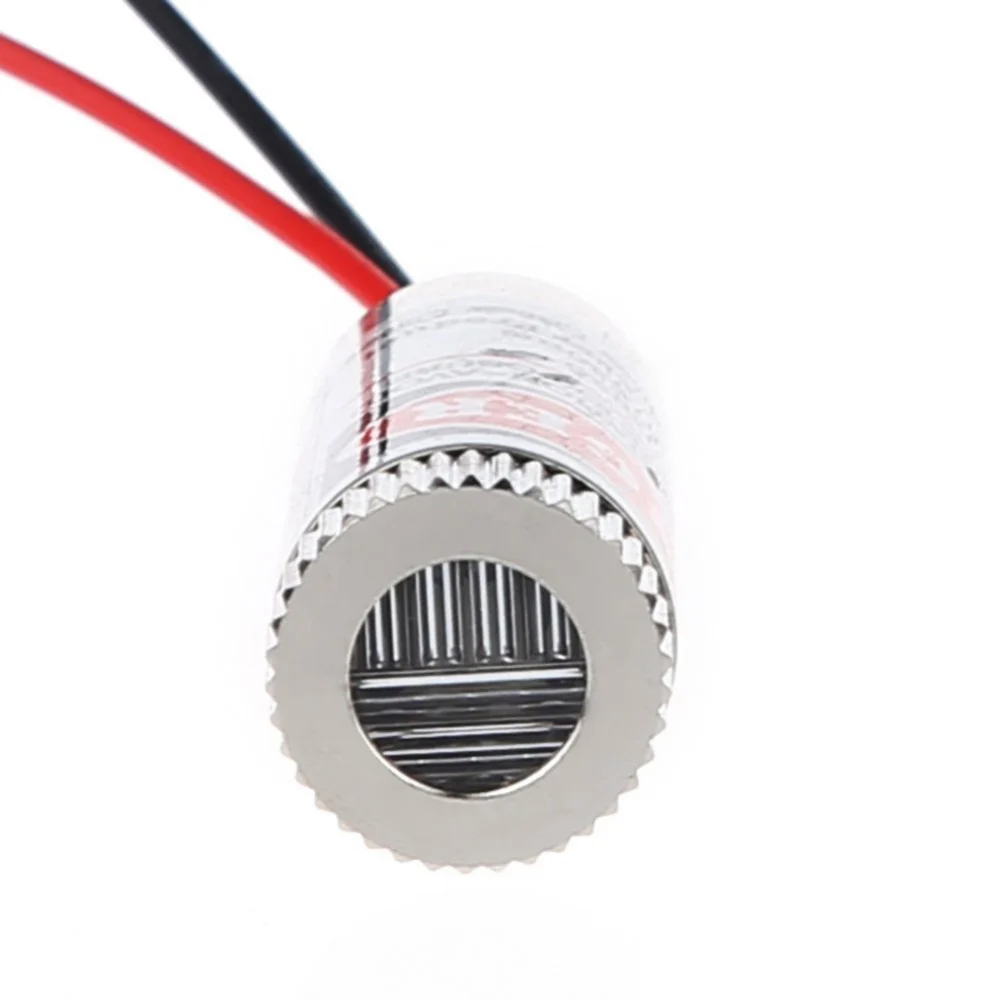

6. Line-cross pattern Design of the head shown in the Image may differ from the actual product, but it doesn’t affect the functionality of the product.

Features:

1. Practical test for point head: reflection visible to random target >1000m
2. The focus point’s Intensity can be adjusted with the help of a lens ring head.

Specification:

Package Includes:

1 x CHT 1230 12mm 5mw straight-line Laser Module – Red

CHT 1230 12mm 5mw straight-line Laser Module – Red Overview

The CHT 1230 is a compact 12 mm diameter laser module that emits a 5 mW red straight-line beam. Designed for easy installation, durability, and portability, it’s ideal for alignment tasks, 3D scanner components, and DIY electronics projects requiring a precise laser line.

Key Features of CHT 1230 12mm 5mw straight-line Laser Module – Red

• 5 mW red laser output for high visibility straight-line projection
• Standard 12 mm metal housing ensures robust durability
• Wide input voltage range: 3 V to 5 V DC compatibility
• Adjustable focus for fine-tuning line thickness and spot size
• Simple two-wire connection (red positive, black ground)
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Line alignment module for Ciclop 3D scanner assemblies
• Integration in Arduino-based laser harp or sensor projects
• Precision marking and measurement in woodworking or metalworking
• Visual guidance and level indication in robotics and automation
• Educational STEM experiments demonstrating optics principles
• Prototype layouts and position tracking in CNC setups

How to Use CHT 1230 12mm 5mw straight-line Laser Module – Red

Mount the laser module in your project’s standard 12 mm holder or bracket, connect the red wire to a 3 V–5 V DC supply and the black wire to ground. Rotate the front housing to adjust the line focus, then secure the module and power on to project a consistent straight-line beam.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the output power of the CHT 1230 laser module?

This module delivers a continuous 5 mW red laser line, suitable for visible alignment tasks and low-power applications.

How do I adjust the focus or line thickness?

Simply rotate the knurled front section of the module to move the internal lens and fine-tune the thickness of the projected line.

What wiring connection does the module require?

The module uses a two-wire setup: red for positive DC input (3 V–5 V) and black for ground. No additional driver circuitry is needed.
