This is the Red variant of the MXD1230 6mm 650nm 5mW Red Line Laser Module in LASER Module. Available at ₹168.74 (₹143.00 + GST) with free shipping across India.
Looking for Mxd1230 Module 6mm? MXD1230 6mm 650nm 5mW Red Line Laser Module is available at Zbotic with fast shipping across India.

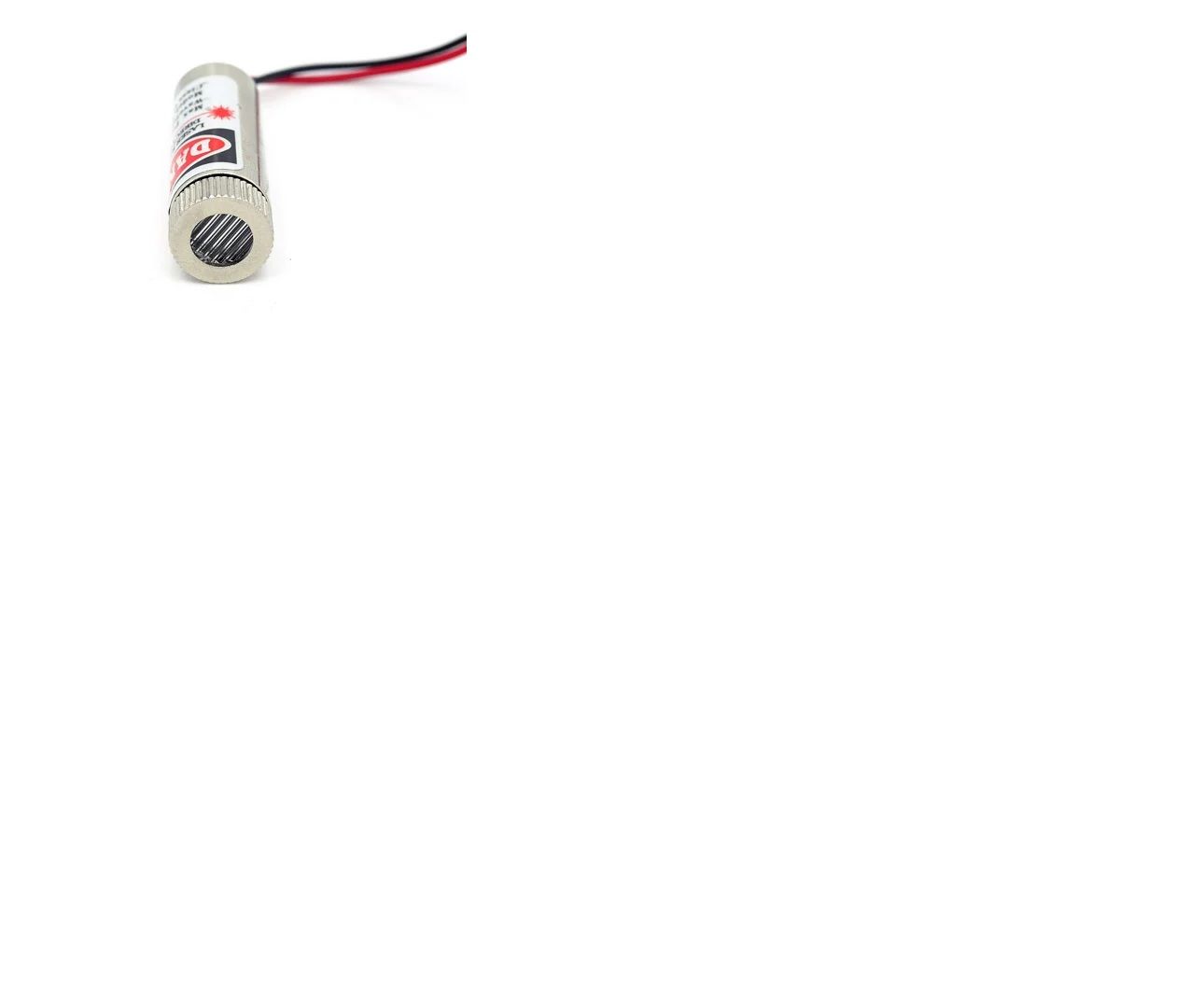

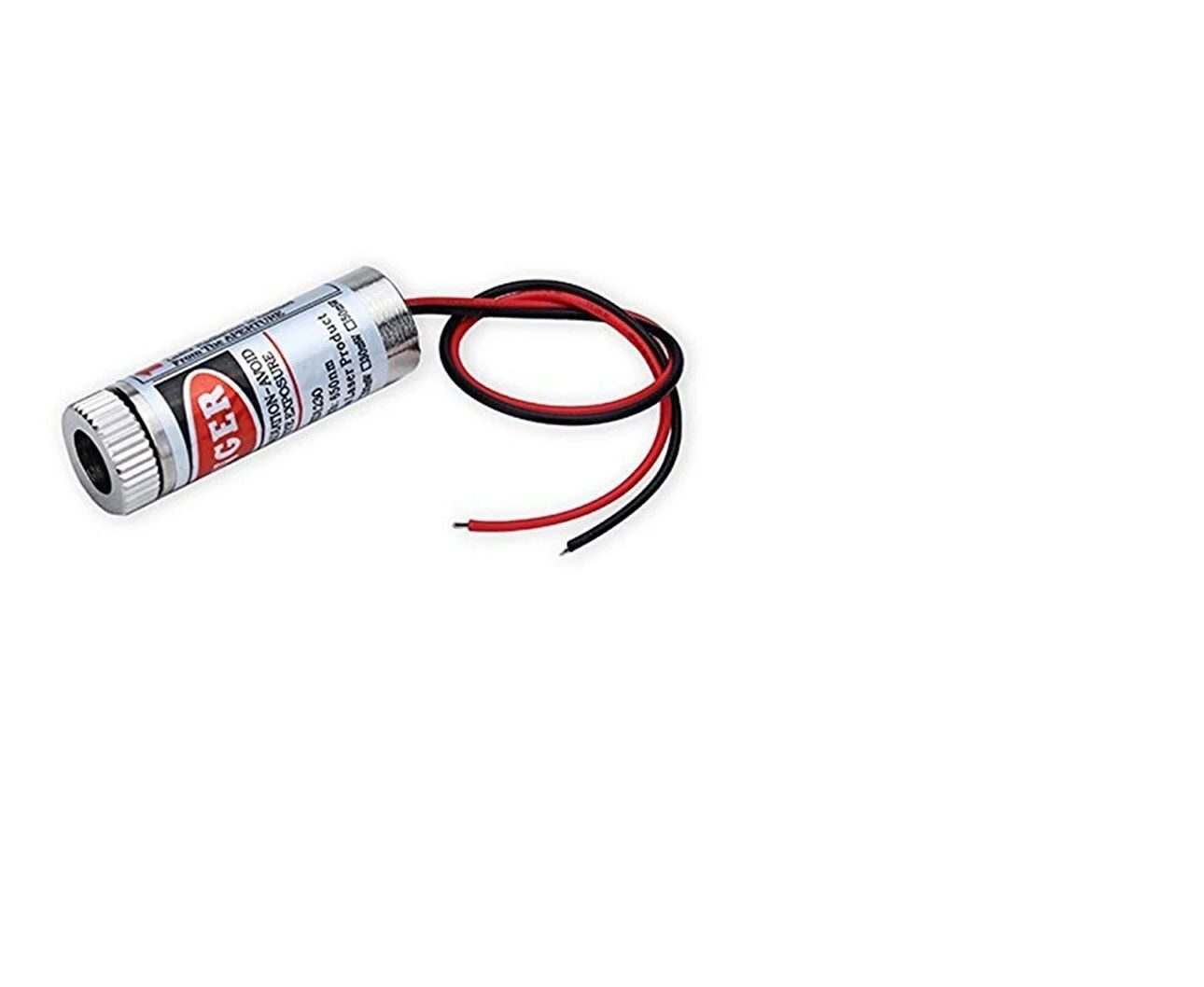

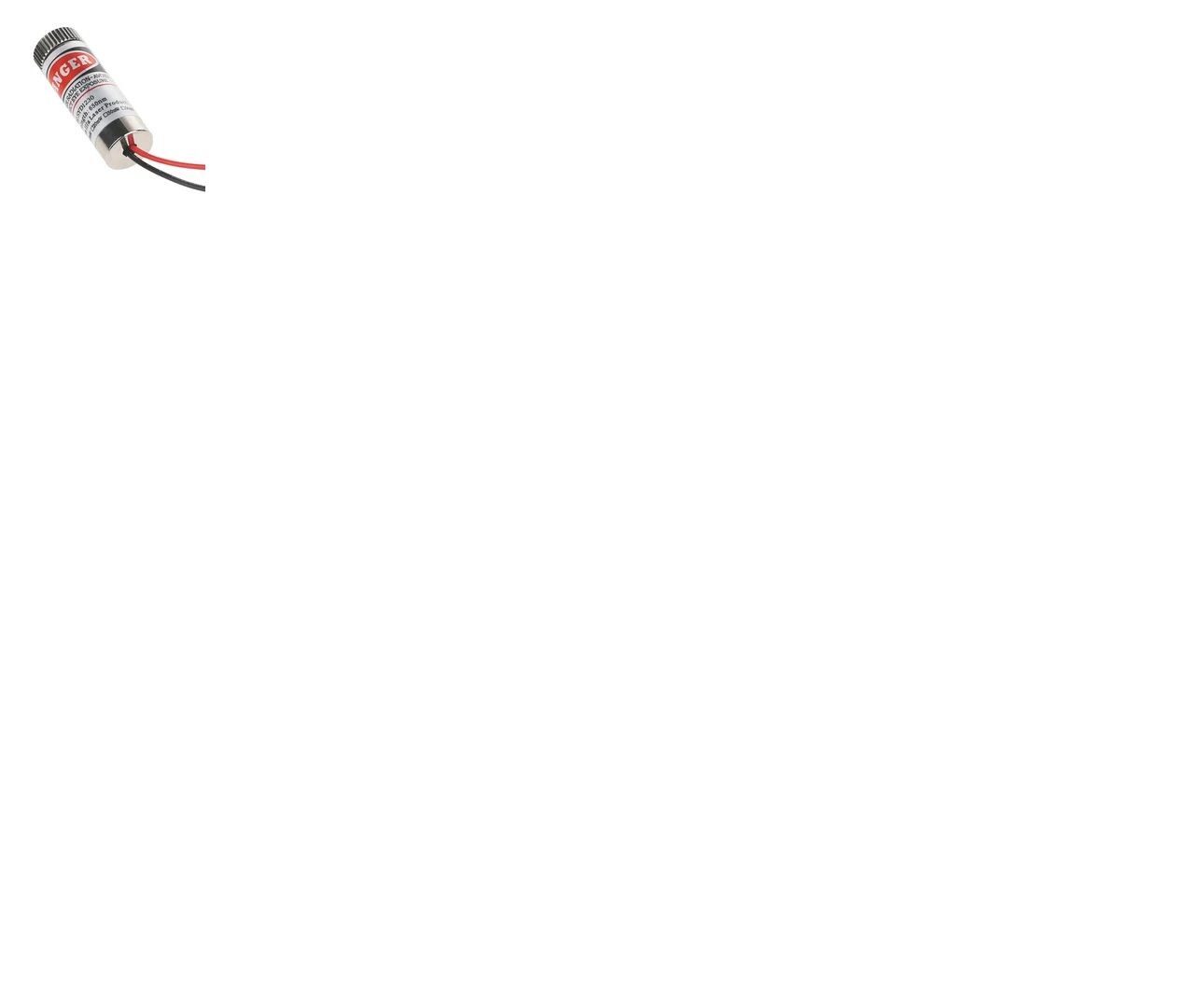

MXD1230 6mm 650nm 5mW Red Line Laser Module
This is MXD1230 650nm 5mW Red Line Laser Module with the adjustable focus point. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.. It can be used to connect diode tubes for multiple uses.
This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.
Note:
- It does not emit the RED-SPOT or Single RED Cross LINE since it is a line laser module.
- Please use the DC power supply 3~6V.
- Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
- The laser beam must not be directed towards the eyes of a person or an animal in any way.
- The red cord is an anode, the black cord is a cathode.
Features :
- Practical test for point head: reflection visible to random target >1000m
- Focus line’s Intensity can be adjusted with the help of lens ring head
Package Includes :
1 x MXD1230 650nm 5mW Red Line Laser Module
MXD1230 6mm 650nm 5mW Red Line Laser Module Overview
The MXD1230 is a compact 6 mm diameter red line laser module emitting at 650 nm with up to 5 mW output power. Its adjustable focus head produces a precise linear beam for alignment, measurement, scanning and DIY electronics applications.
Key Features of MXD1230 6mm 650nm 5mW Red Line Laser Module
- 650 nm red line output with minimum 2.5 mW, typical 3 mW and max 5 mW power
- Wide supply range from 2.3 VDC to 8 VDC (ideal 3–6 V) at 10–25 mA current draw
- Adjustable focus head lets you vary line thickness and spot size
- Compact 6 mm barrel, weighs just 15 g for easy integration
- Durable metal housing and simple two-wire hookup (red/black)
- Genuine MXD1230 modules with fast shipping across India from Zbotic
Applications and Use Cases
- Alignment guide in CNC machines, woodworking and metal fabrication
- Line scanning head for 3D scanner builds (e.g., Ciclop scanner)
- DIY electronics: laser harp, laser radiation sensor or custom light effects
- Precision marking and positioning in assembly fixtures
- Optical experiments in labs and educational projects
- Prototype barcode or edge-detection systems
How to Use MXD1230 6mm 650nm 5mW Red Line Laser Module
Mount the module in a standard 6 mm laser holder or bracket, connect the red wire to your 3–6 V power source and black to ground, then power on. Rotate the front barrel to adjust the focus and line width to your desired setting. Secure wiring and avoid direct eye exposure to the beam.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage and current should I supply to the MXD1230 module?
Supply between 3 V and 6 V DC for optimal performance. The module draws a typical current of 20 mA (minimum 10 mA, maximum 25 mA). Exceeding 8 V may damage the laser diode.
How do I adjust the laser line thickness?
Grip the metal barrel at the front of the module and gently rotate it clockwise or counterclockwise. This changes the lens position, allowing you to fine-tune line focus and thickness.
Can I drive this laser module with an Arduino?
Yes. Connect the module’s red wire to a regulated 5 V source from the Arduino’s VIN or 5 V pin (through a current-limiting resistor if desired), and black to GND. Use digital output pins to switch the laser on and off.
Technical Specifications
| Model | MXD1230 |
|---|---|
| Size | 6mm |
| Color | Red |
| SKU | AI1083 |
| Weight | 0.0091 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MXD1230 6mm 650nm 5mW Red Line Laser Module is a versatile laser module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
