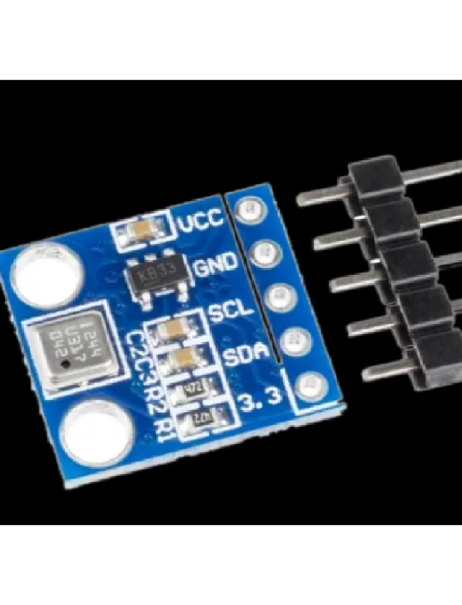

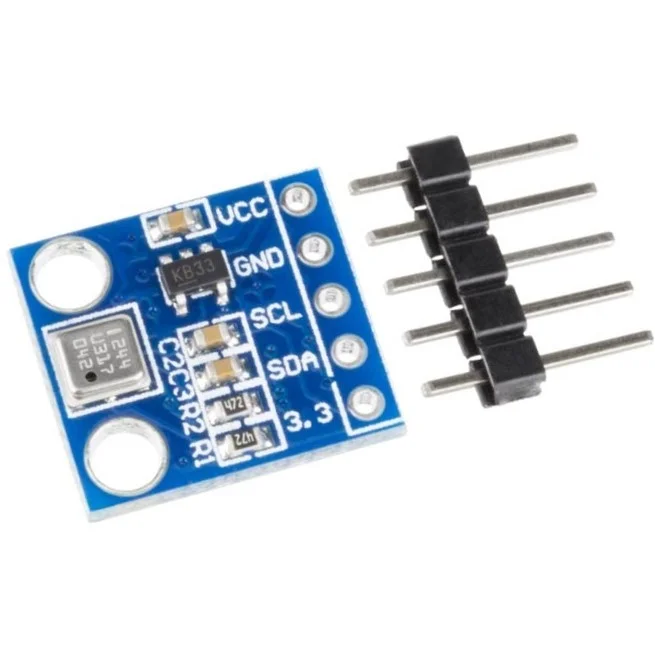

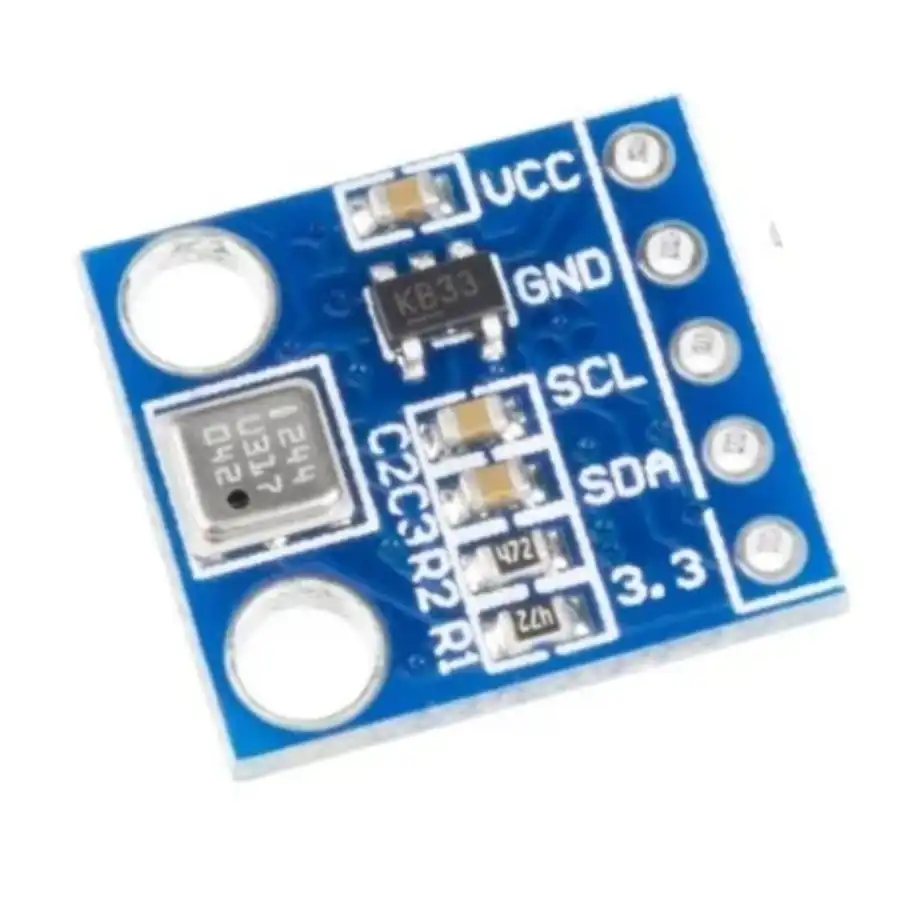

Product Description
This module is a digital barometric pressure sensor based on the BMP-180 chip. It has lower power consumption, smaller size, and higher accuracy than the older BMP-085 sensors. It can measure barometric pressure, temperature, and altitude using the I2C interface with any microcontroller. It has an onboard 3.3V LDO regulator that makes it compatible with a 5V supply. It can measure pressure from 300 to 1100hPa (corresponding to an altitude range of -500m to 9000m relative to sea level) with an accuracy of 0.02hPa (0.17m) in advanced resolution mode. It uses piezo-resistive technology for high accuracy, linearity, EMC robustness, and long-term stability. It is an improved replacement for the BMP-085 sensor.
Application :
- Enhancement of GPS navigation (dead-reckoning, slope detection, etc.)
- In- and out-door navigation
- Leisure and sports
- Weather forecast
- Vertical velocity indication (rise/sink speed)
Features:
- Can measure temperature and altitude.
- Pressure range: 300 to 1100hPa.
- High relative accuracy of ±0.12hPa
- Can work on low voltages.
- 3.4Mhz I2C interface
- Low power consumption (3uA)
- Pressure conversion time: 5msec.
- Potable size
Package Includes:
1 x BMP180 Digital Barometric Pressure Sensor Module
1 x 5 Pin Male Header
Datasheet:
Technical Specifications
| Model | BMP180 |
|---|---|
| SKU | AI2424 |
| Weight | 0.002535 kg |
| Availability | Out of Stock |
Applications & Use Cases
The BMP180 Digital Barometric Pressure Sensor Module is a versatile imu, accelerometer, magnetometer & gyroscope used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
