Unsoldered MPU9250 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Module
Introducing the MPU9250 9-Axis Motion Sensor Module, a state-of-the-art device engineered to deliver precise motion tracking for your projects. Integrating a gyroscope, accelerometer, and magnetometer, this module provides comprehensive 9-axis orientation data, making it perfect for applications such as robotics, RC systems, gaming, and virtual reality. With its advanced sensor technology and reliable performance, the MPU9250 is the ideal solution for accurate motion sensing and tracking.
Key Features:
- Incorporates the MPU-9250, a multi-chip module (MCM) housing a 3-axis accelerometer, gyroscope, and magnetometer in a single compact package.
- Offers comprehensive 9-axis motion tracking, combining precise measurement of orientation, acceleration, and magnetic fields.
- Features a Digital Motion Processor (DMP) for efficient sensor fusion, ensuring accurate and reliable motion tracking data.
- Includes an embedded temperature sensor for environmental monitoring.
- Supports I2C communication with default address 0x68, configurable to 0x69 if AD0 is pulled high.
- Equipped with pull-up resistors on SDA, SCL, and nCS lines, as well as pull-down resistors on FSYNC and AD0, ensuring reliable communication.
- Onboard 3.3V voltage regulator enables operation from 5V sources like Arduino, with an option to bypass the regulator for 3.3V power.
- Designed for a wide range of applications, including FPV, RC, robotics, GPS navigation, gaming, motion-activated functions, and more.
Additional Features:
- Ultra-low noise linear LDO voltage regulator ensures stable power supply.
- Onboard filters reduce noise from motor and other high-current electronics.
- All sensors are connected to the I2C bus for easy integration.
- Built-in logic level converter for I2C communication.
- Power indicator LED for visual feedback.
- Immersion Gold PCB and machine welding process ensure high quality and reliability.
With its versatile features and robust construction, the MPU9250 Sensor Module is your key to unlocking the full potential of motion tracking technology. Whether you’re developing autonomous robots, immersive gaming experiences, or precision navigation systems, this module provides the performance and flexibility you need to bring your projects to life.
Specifications:
| Gyro range | ± 250 500 1000 2000 ° / s |
|---|---|
| Acceleration range | ± 2 ± 4 ± 8 ± 16g |
| Magnetic field range | ± 4800uT |
| Degree of Freedom (DOF) | 9 |
| Interface | I2C |
| Length (mm): | 25 |
| Width (mm): | 15 |
| Height (mm): | 3.5 |
| Weight (g): | 5 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 4 × 2 × 1 cm |
Package Includes :

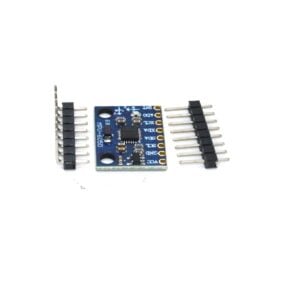

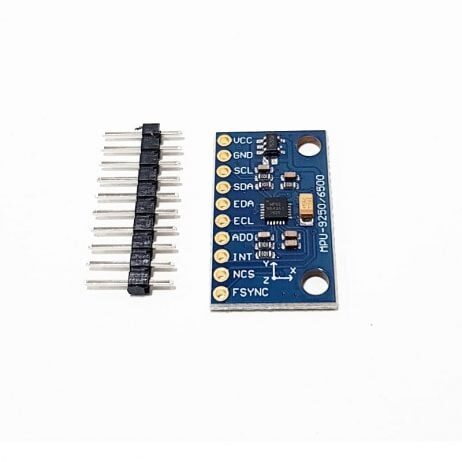

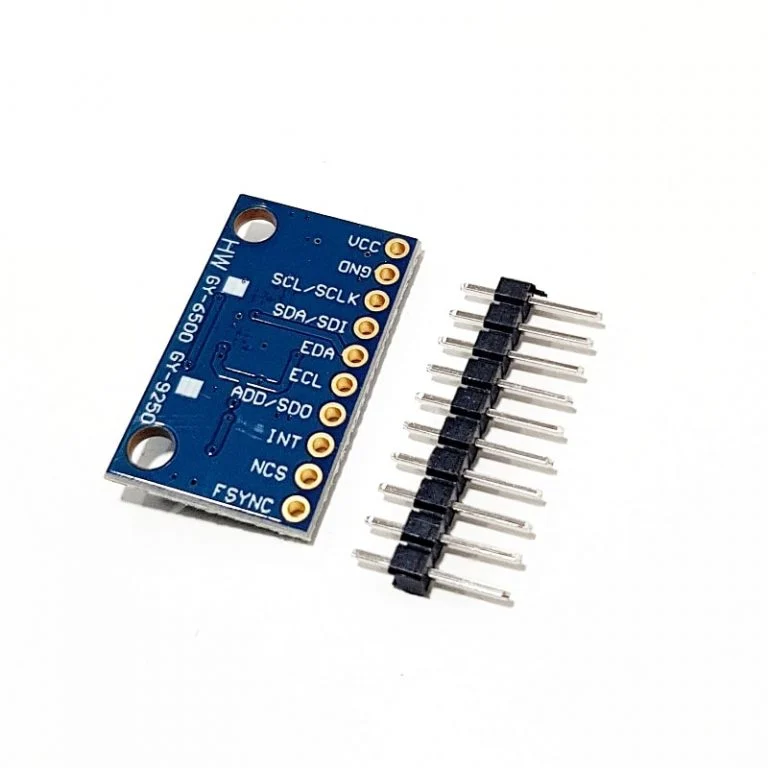

1 x Unsoldered MPU9250 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Module
1 x Jumper Header(Unsoldered).
MPU6500 Datasheet
HMC5883L Datasheet
