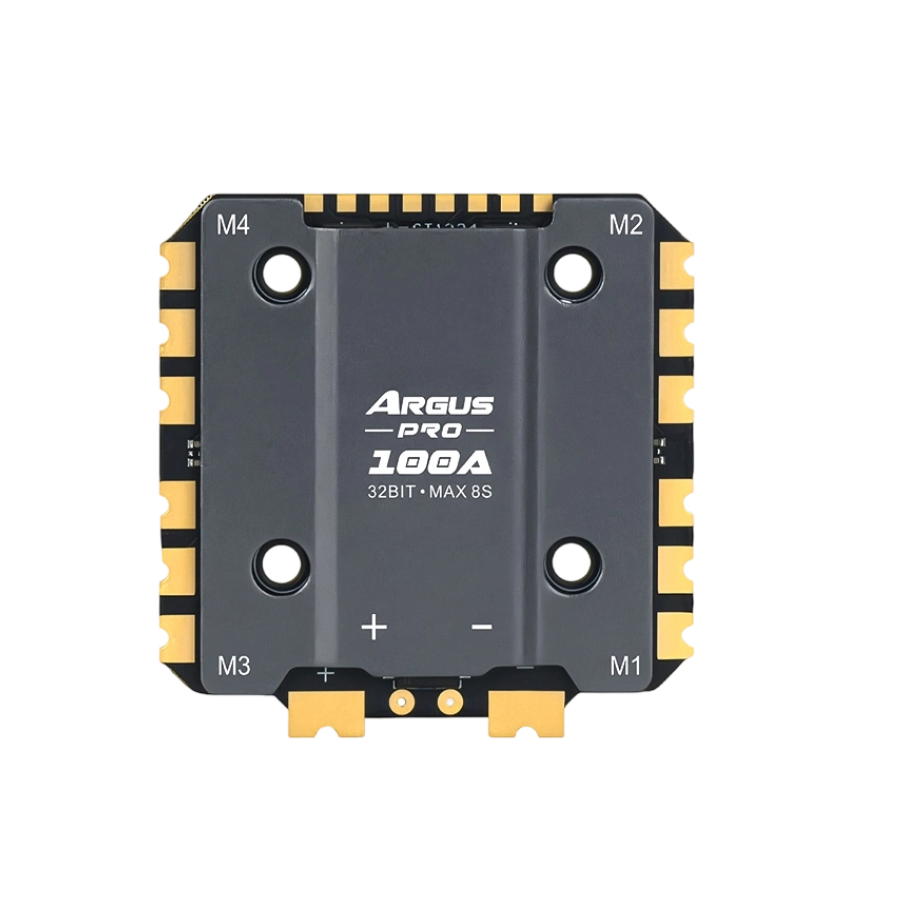

Axisflying Argus Pro 100A 4-8S 32-Bit ESC
Description :
Axisflying Argus Pro Eco 100A ESC is a high-performance 4-in-1 ESC designed for 13–15 inch long-range, cinematic, and heavy-load FPV drones. It features a CNC aluminum heat dissipation shell, supports 8-bit/32-bit dual-mode flight controllers, and delivers precise, fast throttle response with robust protection for extreme flights.
Features :
- CNC aluminum alloy housing: Efficient heat dissipation & full component protection
- 8-bit/32-bit compatible: Supports BLHeli32 (32-bit) / Bluejay (8-bit) firmware
- Precise throttle control: Linear, smooth output for cinematic shooting
- Heavy-load durability: 100A continuous / 110A burst current capability
- Multi-protection: Over-current, over-temperature, over/under-voltage safeguards
- Standard mounting: 30.5×30.5mm hole spacing for stack compatibility
- High-quality MOSFETs: Strong instantaneous load capacity & long-term stability
Recommended Configuration:
- Model: Argus Pro Eco 100A
- Application: 13–15 inch long-range / cinematic / heavy-load FPV drones
- Voltage: 4–8S LiPo
- Firmware: BLHeli32 (32-bit) / Bluejay (8-bit)
- Mount: 30.5×30.5mm
Specifications
| Specification | Value |
|---|---|
| Model | Argus Pro Eco 100A |
| Continuous Current | 100A |
| Burst Current | 110A |
| Input Voltage | 4–8S LiPo |
| Firmware Support | BLHeli32 / Bluejay |
| Telemetry | 32-bit Supported; 8-bit Not Supported |
| Amperage Meter | 200A (32-bit Only) |
| BEC | Not Supported |
| Protection | Over-current, Over-temperature, Over/Under-voltage |
Package Contents
- Argus Pro Eco 100A ESC ×1
- XT90 Power Cable ×1
- Flight Controller Cables (Analog/HD/VTX/RX) ×1 set
- Capacitor ×1
- M3 Mounting Screws & Damping Grommets ×4 sets
US Tariff Information
- Tariff: 3.7% + Section 301 additional duty (as of May 2026)
- Note: Type 86 ($800 duty-free) is terminated; all commercial shipments dutiable.
Package Include:
1x Argus Pro Eco 100A ESC
1x XT90 Power Cable
1x Controller Cables (Analog/HD/VTX/RX) set
1x Capacitor
2x M3 Mounting Screws & Damping Grommets sets
Drone ESC Calibration: Get All Motors Running Synchronized
Table of Contents What Is ESC Calibration and Why Does It Matter? Understanding ESC Signal Types Tools and...
Read More →
Drone Light Show: Synchronized LED Flight Formation
Table of Contents Understanding Drone Light Show Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Betaflight RPM Filter: Eliminate Motor Noise for Smooth FPV Flying
Table of ContentsWhat Is the Betaflight RPM Filter?Why Motor Noise Ruins Your FPV ExperienceHardware Requirements for RPM FilterEnabling...
Read More →Technical Specifications
| Brand | Axis Flying |
|---|---|
| Current Rating | 100A |
| Cell Configuration | 8S |
| SKU | AI4991 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Axisflying Argus Pro 100A 4-8S 32-Bit ESC is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Axis Flying product sourced from authorized channels
