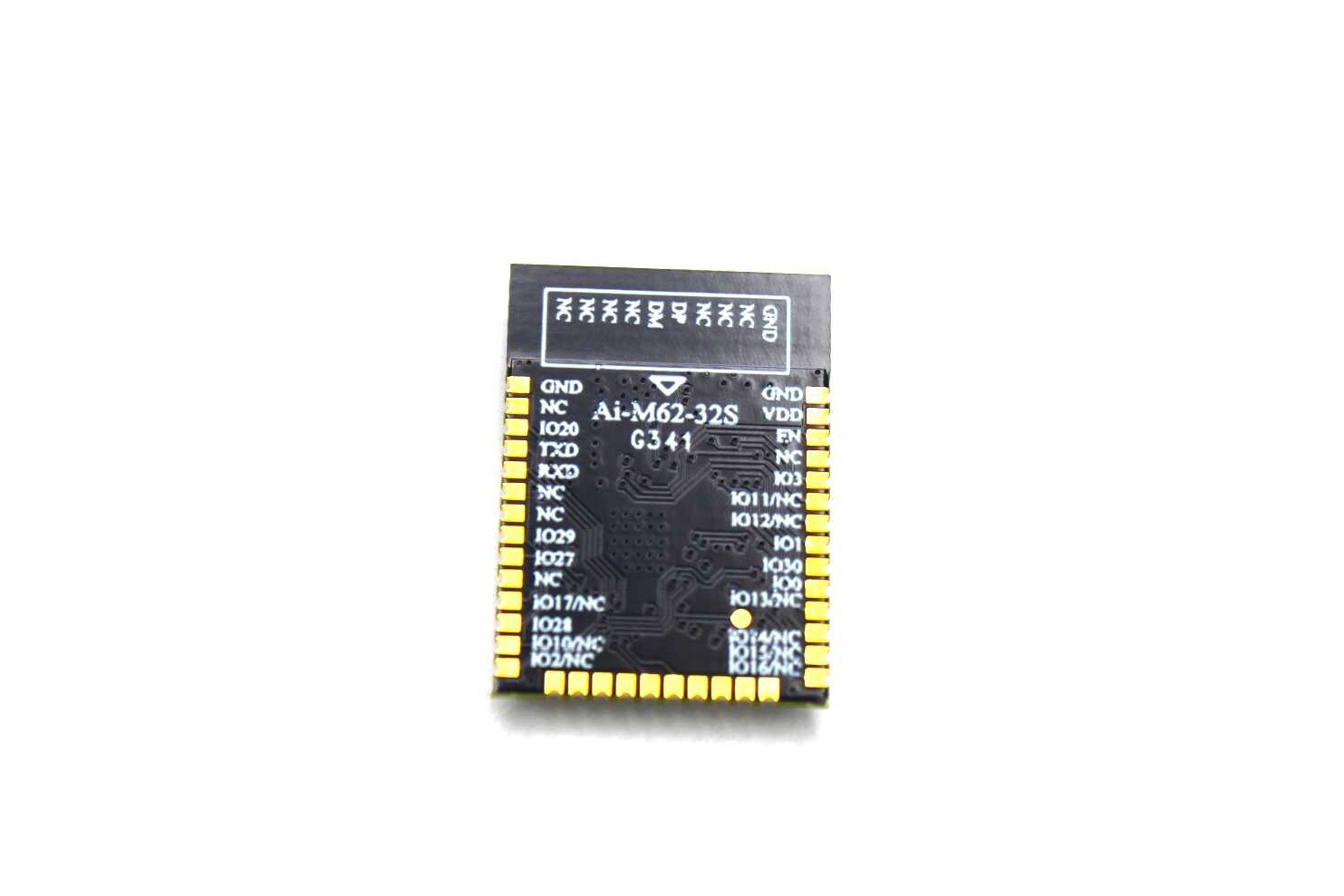

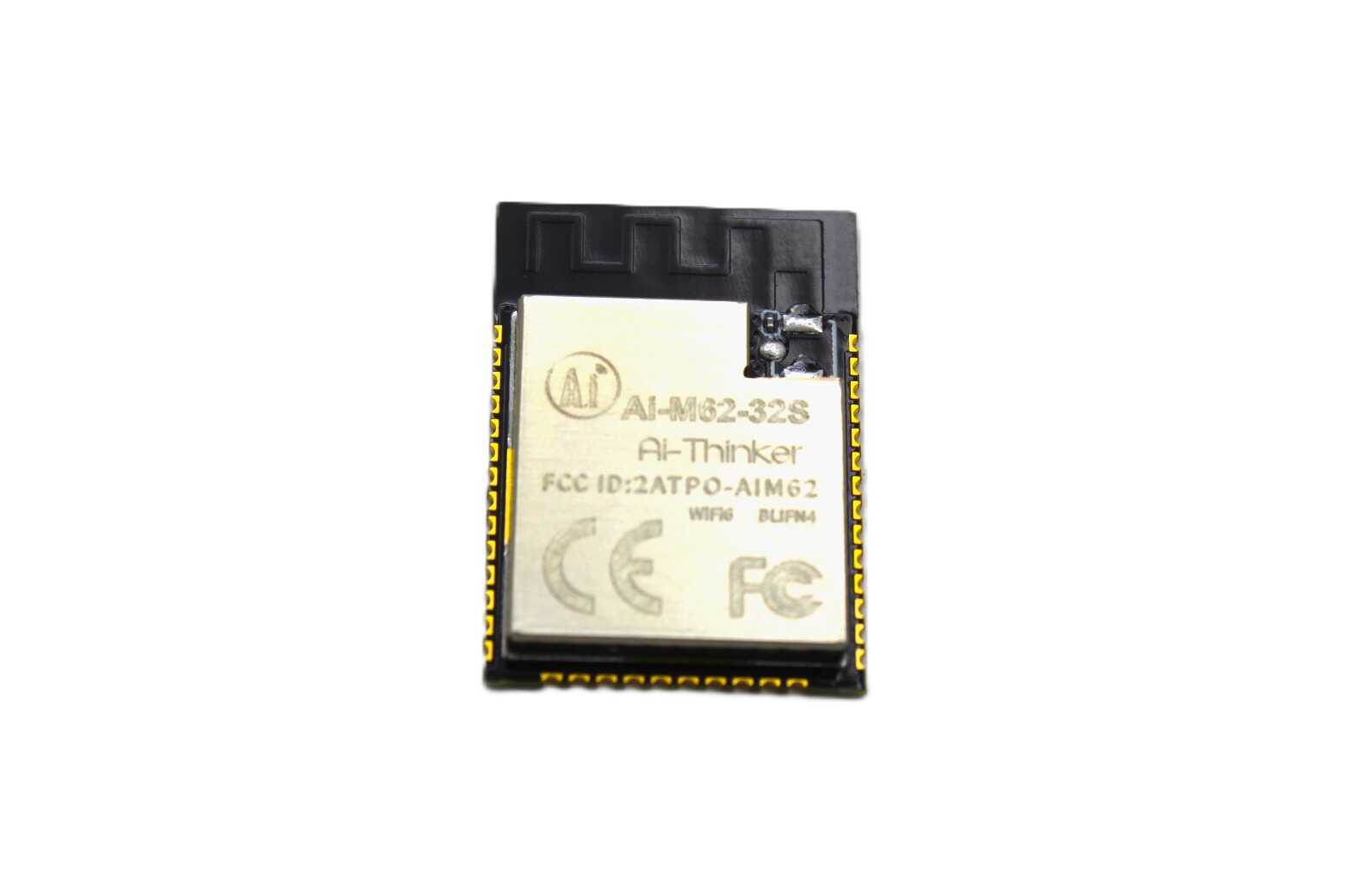

Ai-Thinker Ai-M62-32S Wi-Fi BLE Module

Looking for M62 Module? Ai-Thinker Ai-M62-32S Wi-Fi BLE Module is available at Zbotic with fast shipping across India.

Description:

The Ai-M62-32S is a Wi-Fi 6 + BLE5.3 module created by Ai-Thinker, featuring a BL616 chip as its core processor. It supports Wi-Fi 802.11b/g/n/ax, BLE, and Thread protocols. The BL616 system boasts a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache, and memory, reaching a peak frequency of 320M. The Ai-M62-32S module offers a wealth of peripheral interfaces, such as Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, and GPIO. Its versatile application range includes audio and video multimedia, IoT, mobile and wearable devices, and smart homes. Additionally, the Ai-M62-32S module’s Security Engine supports AES/SHA/PKA/TRNG, image encryption, signature boot, and caters to diverse security needs in IoT applications.

Specifications:

• Model: Ai-M62-32S
• Antenna: Onboard antenna/IPEX seat
• Frequency: 2400~2483.5MHz
• Operating Temperature: -40 ℃ ~ 85 ℃
• Storage Temperature: -40℃ ~ 125℃, < 90%RH
• Power Supply: The power supply voltage is 2.97V ~ 3.6V, and the power supply current is≥ 500mA.
• Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
• IO: 18
• UART: rate Default 115200 bps
• Security: WPS/WEP/WPA/WPA2/WPA3
• Flash: Default 4MByte, Support expansion

Features:

• The package is DIP-38
• Support 2.4GHz frequency
• Support IEEE 802.11 b/g/n/ax
• Support Thread
• Support Wi-Fi/BLE/Thread coexistence
• Support BLE5.3

Package Include:

1 x Ai-Thinker Ai-M62-32S Wi-Fi BLE Module

Datasheet:

Ai-Thinker Ai-M62-32S Wi-Fi BLE Module Overview

The Ai-Thinker Ai-M62-32S is a compact Wi-Fi 6 + BLE 5.3 combo module built around the BL616 RISC-V processor, designed for high-performance wireless connectivity in embedded systems. Ideal for IoT, audio/video streaming and smart home applications, it integrates onboard and IPEX antenna options for flexible deployment.

Key Features of Ai-Thinker Ai-M62-32S Wi-Fi BLE Module

• Supports Wi-Fi 802.11b/g/n/ax, BLE 5.3 and Thread protocols for modern mesh and cloud-linked networks
• BL616 32-bit RISC-V CPU with DSP, FPU and cache—up to 320 MHz for real-time processing
• Onboard antenna plus IPEX seat for easy integration into compact or custom antenna designs
• Rich peripheral set: Audio Codec, USB 2.0, SDU, SD/MMC (SDH), SPI, UART (default 115200 bps), I2C, I2S, PWM, GPDAC, GPDC, ACOMP and 18 GPIOs
• 4 MByte onboard flash (expandable) with built-in security engine supporting WPS, WEP, WPA, WPA2 and WPA3
• Wide temperature range (–40 °C to 85 °C) and low-voltage operation (2.97 V–3.6 V at ≥500 mA)
• Genuine product with fast shipping across India from Zbotic

Applications and Use Cases

• Smart speakers and audio streaming devices leveraging onboard Audio Codec and BLE
• Wireless sensor nodes in industrial automation and environmental monitoring
• Wearable electronics requiring low-power BLE connectivity and secure data transfer
• Smart home controllers for lighting, HVAC and door entry systems via Wi-Fi and Thread
• Portable handheld gadgets with SD/MMC storage and USB 2.0 interface

How to Use Ai-Thinker Ai-M62-32S Wi-Fi BLE Module

To get started, connect the module’s 3.3 V power supply (2.97–3.6 V) and ground, then attach your choice of onboard or IPEX antenna. Use the UART interface at 115200 bps or SPI/I2C to upload firmware or issue AT commands. Configure Wi-Fi and BLE profiles via the BL616 SDK, and leverage available GPIO, PWM or audio interfaces to integrate sensors, speakers or storage devices. Finally, test connectivity and performance in your target environment.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What voltage and current are required to power the Ai-M62-32S?

The module operates from a 2.97 V to 3.6 V DC supply and typically requires a minimum of 500 mA during peak Wi-Fi transmissions. Ensure your power source can handle these requirements with minimal ripple.

How many GPIOs and interfaces does the Ai-M62-32S provide?

The Ai-M62-32S offers 18 GPIO pins plus interfaces for UART, SPI, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, an audio codec, USB 2.0, SDU and SD/MMC, allowing integration with a wide range of peripherals.

Can I expand the flash memory on this module?

Yes. While the Ai-M62-32S ships with 4 MByte of onboard flash, you can attach external flash chips via the SPI interface supported by the BL616 processor to increase storage for firmware or data logging.
