ADTi 20MP 20L V1 APS-C Drone Mapping Cameras

 ADTi 20MP 20L V1 APS-C Drone Mapping Cameras Now

The ADTi 20MP 20L V1 APS-C Drone Mapping Cameras represent the pinnacle of aerial imaging technology. Designed for high-precision mapping and data acquisition, this ADTi Drone Mapping Camera meets the needs of professionals in diverse sectors, including agriculture, land surveying, and infrastructure inspection. The 20MP APS-C sensor provides unmatched image quality and a broad dynamic range. Whether it’s capturing intricate details of agricultural fields, surveying vast tracts of land, or inspecting complex infrastructure, the 20L V1 Drone Camera is your dependable ally for precise and professional outcomes.

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras: Exceptional Performance And Design

The ADTi 20MP 20L V1 APS-C Drone Mapping Camera is designed for efficiency and longevity. It offers a lightweight yet sturdy build, weighing only 108 grams, which makes it compact and easy to carry. Its dimensions of 73 x 62 x 36 mm ensure it fits well with your drone, not affecting its flight dynamics significantly. The camera’s design strikes a perfect balance between its size and weight, enhancing performance while reducing the load on the drone’s battery and propulsion mechanisms.

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras: Innovative Features For Optimal Operation

The Professional Drone Mapping Equipment camera features an array of enhancements for superior mapping and imaging. Its activated cooling fan is a key feature, preventing overheating to maintain peak performance throughout long flight missions. This is vital for preserving image clarity and avoiding thermal damage to the equipment. Moreover, the design of the 20MP Drone Camera For Mapping strikes a balance between image size, storage, and processing needs, facilitating efficient data handling while ensuring high-quality output.

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras: Cutting Edge Sensor Technology

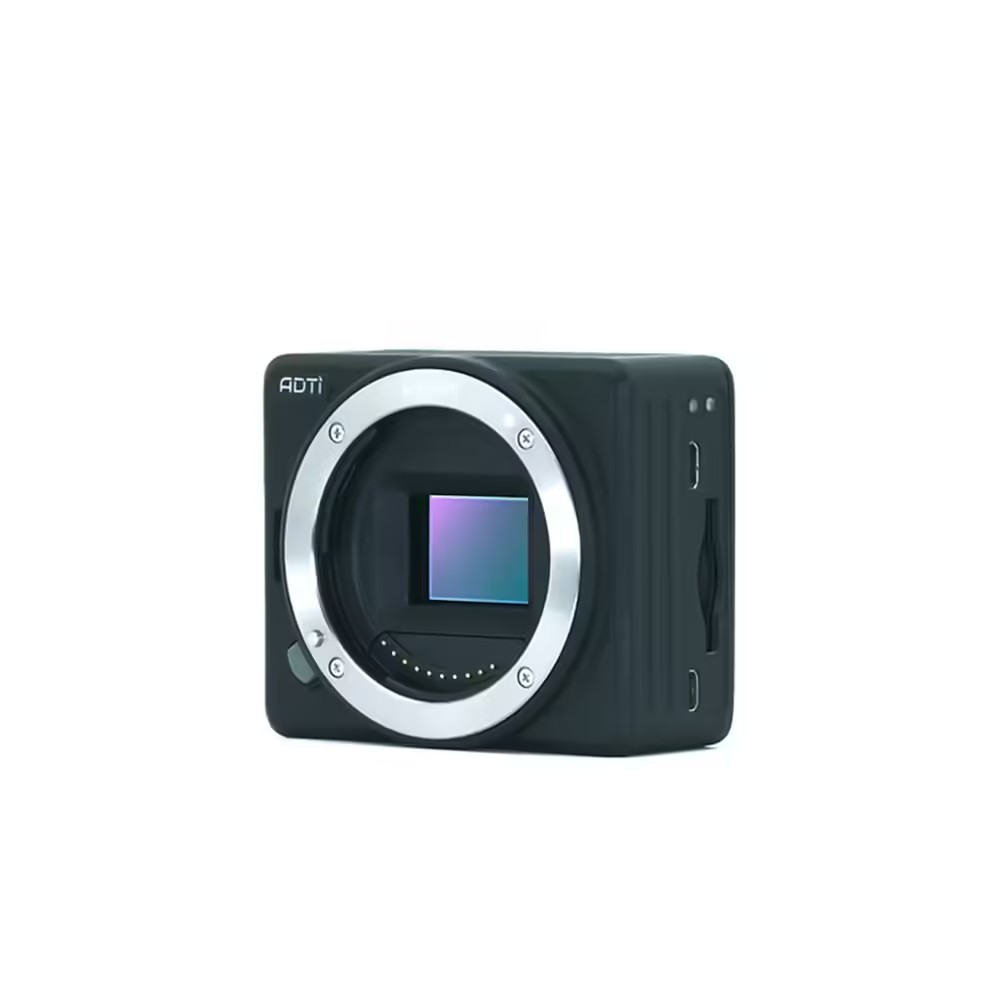

The ADTi 20MP 20L V1 APS-C Drone Mapping Cameras are equipped with a high-performance CMOS sensor from Sony at their core. They boast an effective resolution of 20 megapixels and an APS-C sensor format, enabling the capture of images with remarkable detail and sharpness. The sensor measures 357.3 mm² (23.20 mm x 15.40 mm) with an estimated pixel pitch of 4.25 microns, contributing to its high image quality. It offers a focal length multiplier of 1.5x and a 3:2 aspect ratio. The RGBG color filter array and a fixed anti-aliasing filter provide accurate color rendition and reduce artifacts. Additionally, a color depth of 23.8 bits and a maximum effective ISO of 1,089 support the capture of superior images under various lighting conditions.

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras: Versatile Image And Video Capture

The ADTi 20MP 20L V1 APS-C Drone Mapping Cameras are outstanding in capturing both images and videos, offering a broad spectrum of resolutions for various requirements. For still photography, these high-quality imaging cameras deliver resolutions up to 5456 x 3632 pixels (19.8 MP) in a 3:2 aspect ratio, along with other resolutions like 16.7 MP, 10.0 MP, and 5.0 MP. This range of options provides the flexibility to select the ideal resolution for diverse mapping projects. The camera also accommodates multiple image formats such as JPEG, RAW, and RAW+JPEG, allowing you to choose the format that integrates seamlessly with your workflow.

For video recording, the ADTi 20MP 20L V1 APS-C Drone Mapping Cameras offer high-definition resolutions, including 1920 x 1080 at 60i or 24p and 1440 x 1080 at 30p, to ensure fluid and detailed footage. The supported video formats are AVCHD 2.0 and MP4, and it features HD video output through HDMI, facilitating easy integration with a variety of video recording and editing systems.

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras: Lens And Optics For Precision Imaging

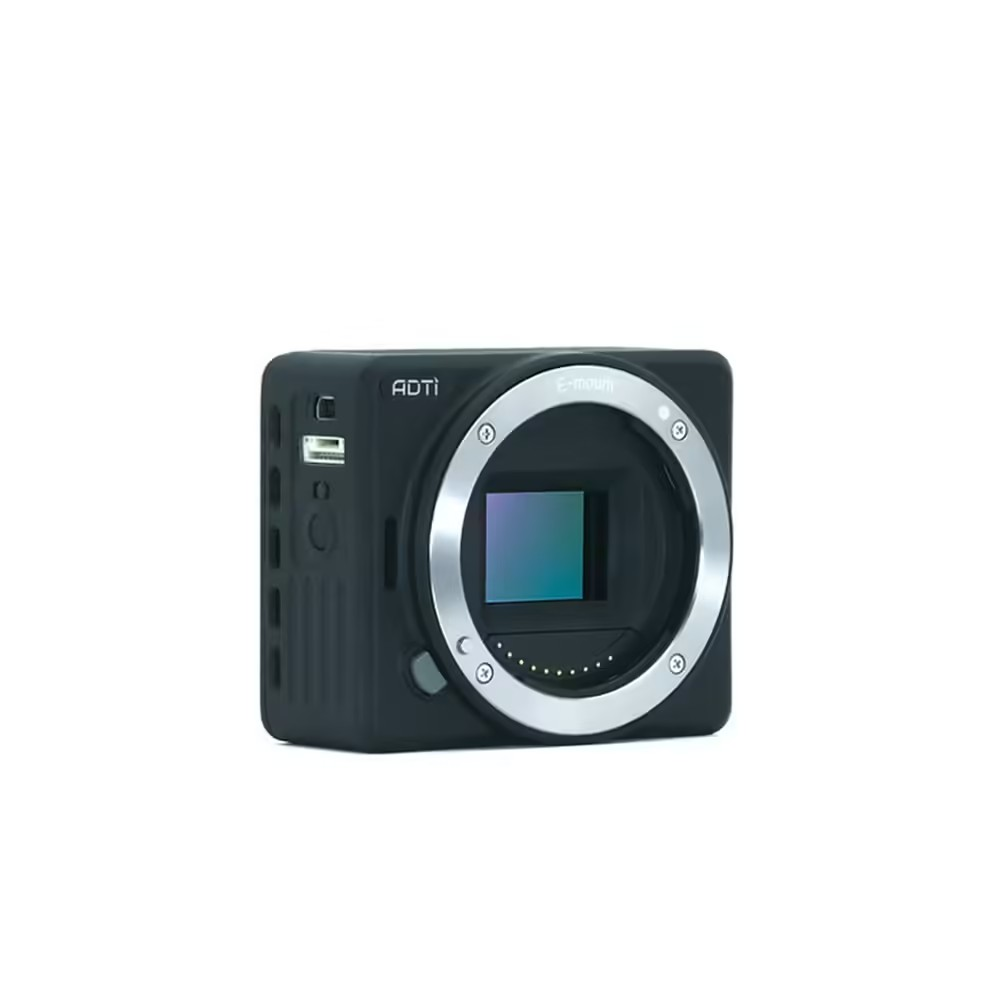

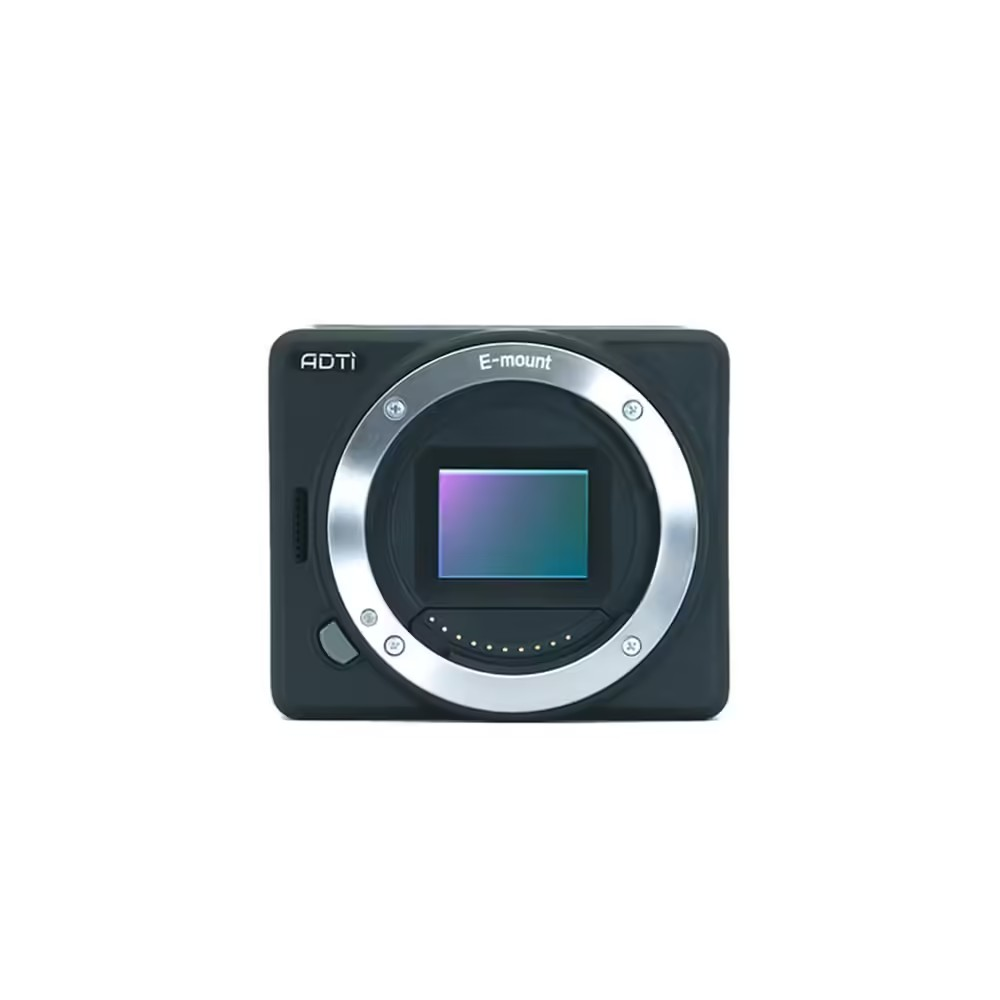

The ADTi 20MP 20L V1 APS-C Drone Mapping Cameras, featuring a Sony E lens mount, provide both automatic and manual focusing options, with a standard focus range from 25 cm to infinity. This versatility allows for accurate focus adjustments across various imaging situations, improving the quality of aerial photography. The lens and optics of this drone camera with an APS-C sensor are engineered to produce crisp, detailed images, ideal for intricate mapping and inspection operations.

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras: User-Friendly Display And Operating Specifications

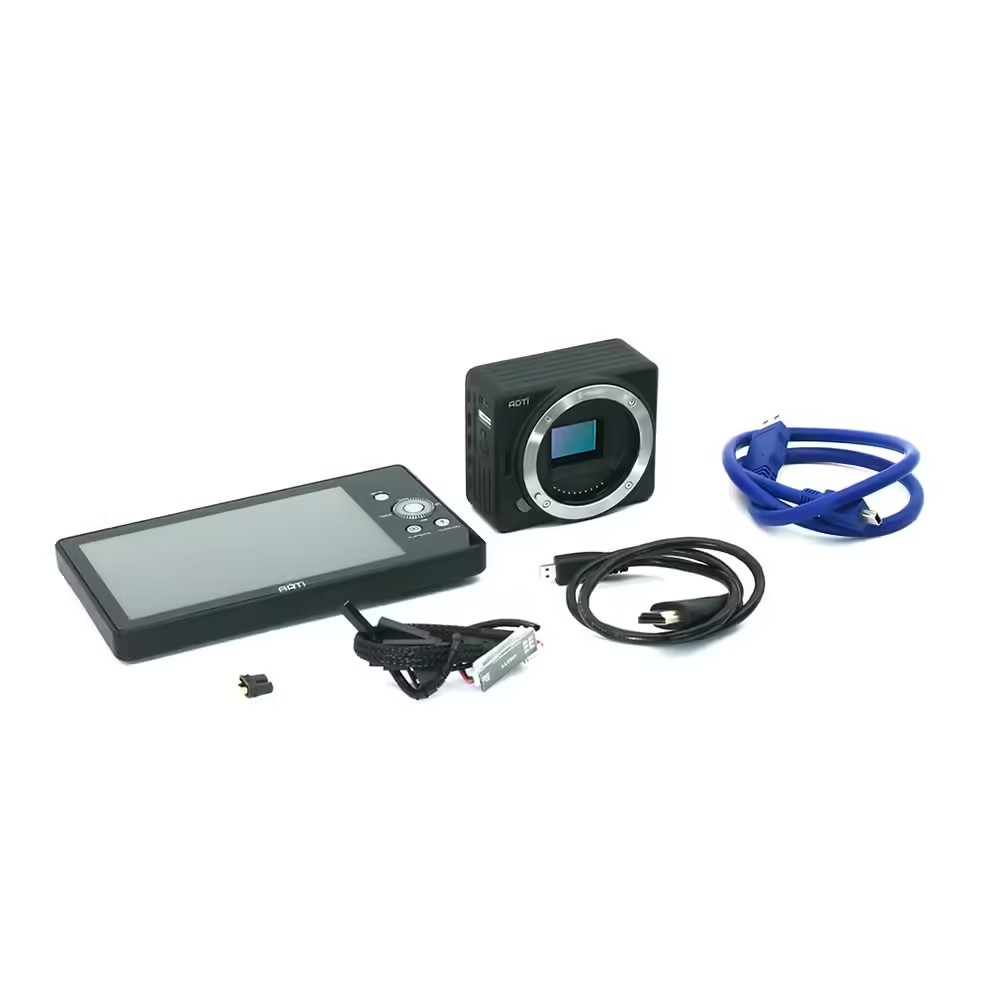

The ADTi 20MP 20L V1 APS-C Drone Mapping Cameras are designed for user convenience, featuring a separate 5-inch display equipped with a 5V DC power supply and user-friendly button controls. The display facilitates easy adjustment of camera settings and real-time shot monitoring. Operating in a temperature range from -10 to 40°C, the 20MP APS-C Drone Camera guarantees dependable operation across diverse environmental conditions. It is powered by a 10-25V DC Lipo or Li-ion battery, offering versatility and adaptability with various power sources.

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras: Features At A Glance

• Lightweight Design: Camera body weighs only 108 g.
• Compact Size: Measures 73 x 62 x 36 mm
• Efficient Performance: Balances image size with storage, light, and processing needs
• Activated Cooling Fan: Prevents overheating to maintain optimal performance

Sensor Specifications:

• Sensor Type: CMOS
• Sensor Manufacturer: Sony
• Effective Megapixels: 20
• Sensor Format: APS-C
• Sensor Size: 357.3 mm² (23.20 mm x 15.40 mm)
• Approximate Pixel Pitch: 4.25 microns
• Focal Length Multiplier: 1.5x
• Aspect Ratio: 3:2
• Color Filter Type: RGBG
• Anti-Aliasing Filter: Fixed
• Color Depth: 23.8 bits
• Maximum Effective ISO: 1,089

Image Capture Resolution:

• 5456 x 3632: 19.8 MP (3:2)
• 5456 x 3064: 16.7 MP (16:9)
• 3872 x 2576: 10.0 MP (3:2)
• 3872 x 2176: 8.4 MP (16:9)
• 2736 x 1824: 5.0 MP (3:2)
• 2736 x 1536: 4.2 MP (16:9)
• 12416 x 1856: 23.0 MP (other)
• 8192 x 1856: 15.2 MP (other)
• 2160 x 5536: 12.0 MP (other)
• 2160 x 3872: 8.4 MP (other)
• Image File Formats: JPEG, RAW, RAW+JPEG
• Continuous-mode Frames/Second: 2.0

Video Capture Resolution:

• 1920 x 1080: 60i or 24p (24/17 Mbps)
• 1440 x 1080: 30p (12 Mbps)
• 640 x 480: 30p (3 Mbps)
• Video File Formats: AVCHD 2.0 / MP4
• HD Video Out: Yes
• HD Video Connection: HDMI

Lens & Optics Specifications:

• Lens Mount: Sony E
• Normal Focus Range: 25 cm to Infinity
• Auto Focus: Yes
• Manual Focus: Yes

Display (Detached) Specifications:

• Power: 5V DC
• Buttons: Yes
• Screen Size: 5 inches

Camera Specifications:

• Camera Size: 73 x 62 x 36 mm
• Camera Weight: 108 g
• Package Size: 300 x 200 x 150 mm
• Package Weight: 500 g
• Power Supply: 10-25V DC Lipo or Li-ion
• Operating Temperature: -10 to 40 °C

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras

The ADTi 20MP 20L V1 APS-C Drone Mapping Cameras are sophisticated and versatile, engineered to fulfill the requirements of professional aerial imaging and mapping. With its lightweight and compact design, advanced sensor technology, and versatile imaging capabilities, this APS-C Sensor Drone Camera is perfectly suited for various applications. It is the ideal tool for capturing intricate agricultural data, performing land surveys, or inspecting infrastructure, providing the quality and dependability necessary for outstanding outcomes.

Package Include.

1 X  ADTi 20MP 20L V1 APS-C Drone Mapping Cameras.

Related Products

• Tarot Peeper Brushless Gimbal with HD 10X Optical Zoom Camera TL10A00
• Skydroid C10 Pro Three-axis gimbal camera
• F550 Hexacopter Frame Board

ADTi 20MP 20L V1 APS-C Drone Mapping Cameras Overview

The ADTi 20MP 20L V1 APS-C Drone Mapping Camera is a professional-grade aerial imaging solution designed for high-precision mapping and data acquisition. Featuring a Sony CMOS APS-C sensor, it delivers 20 effective megapixels and exceptional dynamic range for clear, detailed surveys in agriculture, land management, infrastructure inspection, and more.

Key Features of ADTi 20MP 20L V1 APS-C Drone Mapping Cameras

• 20MP Sony CMOS Sensor: High-resolution 20 megapixels for detailed aerial imagery.
• APS-C Format: Large 23.20 mm x 15.40 mm sensor area (357.3 mm²) captures more light and dynamic range.
• 4.25 µm Pixel Pitch: Balanced pixel size offers low noise and fine spatial detail.
• Broad Dynamic Range: Captures both bright highlights and deep shadows in a single pass.
• Durable Build: Rugged housing designed for aerial operations and varying environmental conditions.
• Fast Shipping from Zbotic: In-stock and ready to dispatch within 24 hours (wherever not backordered).

Applications and Use Cases

• Agricultural field mapping for crop health analysis and yield prediction.
• Land surveying and topographic modeling for urban planning.
• Infrastructure inspection, including bridges, power lines, and roads.
• Forestry management with high-resolution canopy and terrain mapping.
• Environmental monitoring to track erosion, flood zones, and habitat changes.
• Mining site surveys for volume calculations and safety assessments.

How to Use ADTi 20MP 20L V1 APS-C Drone Mapping Cameras

Mount the ADTi 20L V1 onto a compatible drone gimbal designed for APS-C cameras, secure power and data connections, then configure your flight plan in mapping software. Ensure proper sensor calibration, set imaging parameters (exposure, trigger interval), and conduct pre-flight checks. During flight, the camera will capture high-resolution frames automatically; download and process images afterward in photogrammetry or GIS platforms for accurate mapping outputs.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How does the APS-C sensor improve mapping quality?

The larger APS-C sensor (357.3 mm²) captures more light per pixel and offers wider dynamic range compared to smaller sensors. With 20 MP and 4.25 µm pixel pitch, it delivers sharper details and better low-light performance for precise photogrammetry.

Which drones support the ADTi 20L V1 camera?

This camera is compatible with professional mapping drones equipped with gimbal mounts rated for APS-C modules. Confirm your drone’s gimbal interface and power/data connector specifications before installation.

What maintenance is required for the Sony CMOS sensor?

Keep the sensor window clean using a blower or lint-free cloth; avoid touching the glass. Store the camera in a dry, dust-free case with the protective cap on. Perform sensor calibration in your mapping software as recommended to maintain geometric accuracy.
