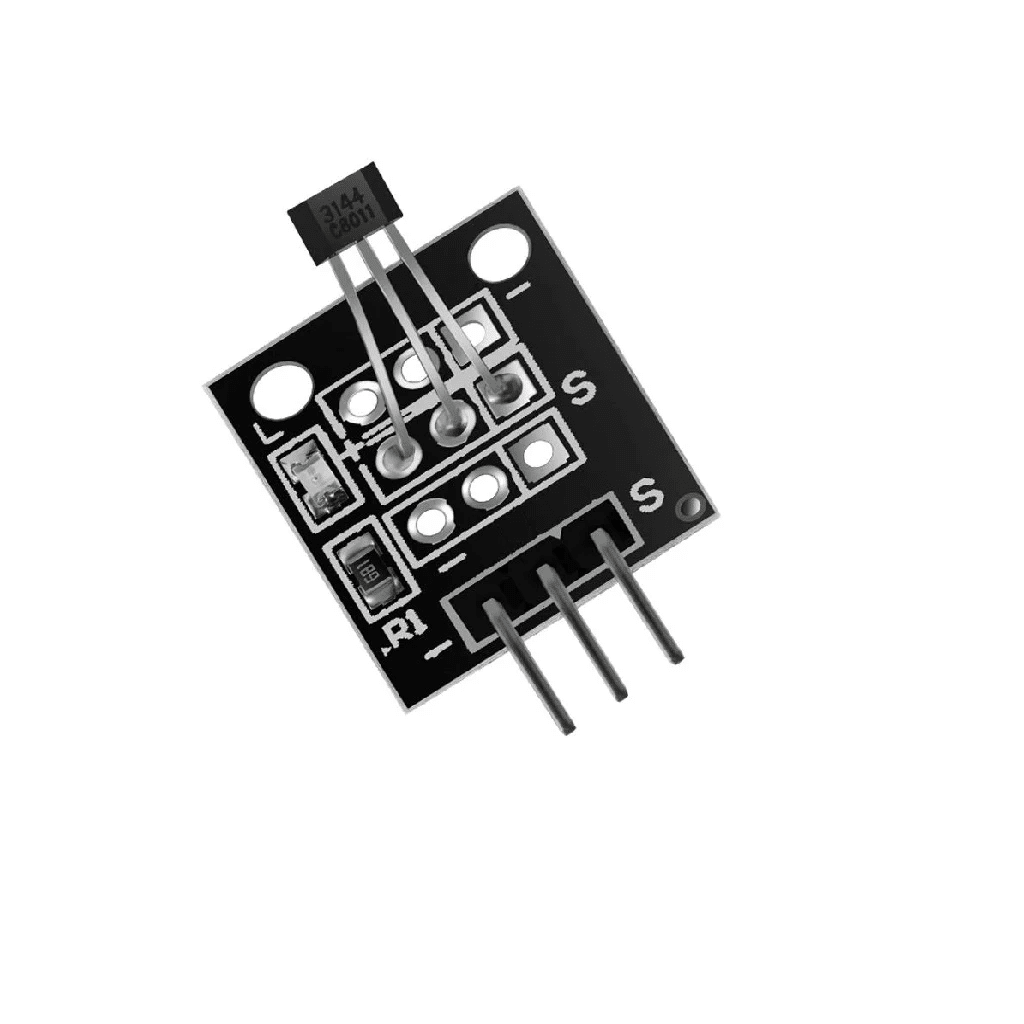

A3144 Hall Effect Sensor Module
The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a device that toggles on or off in response to a magnetic field. When there is no magnetic field, the sensor’s signal line is HIGH (3.5 V). When a magnetic field is present, the signal line drops to LOW, and the sensor’s LED illuminates. Additionally, an onboard LED will signal the presence of a magnetic field.
Pin Connection:
Connect the Power line (middle) to +5V and the ground (-) to GND. Connect the signal (S) to any digital pin on the Arduino.
Features
Digital Output Hall-effect sensor.
Operating voltage: typically 5V.
Output Current: 25mA.
It can be used to detect both the poles of a magnet.
The output voltage is equal to the operating voltage.
Operating temperature: -40°C to 85°C.
Turn on and Turn off time is 2 μsec each.
Inbuilt reverse polarity protection.
Suitable for Automotive and Industrial Applications.
Spcification
| Model Type: | Hall Effect Sensor |
|---|---|
| Model No.: | A3144 |
| Operating Voltage (V): | 5 |
| Color: | Black |
| Current Consumption (mA): | 8mA (when Switched) |
| Operating Temperature (°C): | -40 to 90 |
| Length (mm): | 20 |
| Width (mm): | 16 |
| Weight (g): | 2 |
| Shipping Weight | 0.005 kg |
Package Includes
1 x A3144 Hall Effect Sensor Module.
Hall Effect Sensor Guide: Working, Types & Arduino Projects
The Hall effect sensor is one of the most versatile and underappreciated components in electronics. Named after Edwin...
Read More →
Capacitor Bank Design: Filter Noise in Sensor Power Rails
Sensor circuits are only as accurate as the power rail feeding them. A noisy supply voltage corrupts ADC...
Read More →
ADXL345 Accelerometer: 3-Axis Motion and Tilt Detection with Arduino
The ADXL345 is one of the most versatile and affordable 3-axis digital accelerometers available to makers, students, and...
Read More →Technical Specifications
| Model | A3144 |
|---|---|
| SKU | AI0310 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The A3144 Hall Effect Sensor Module is a versatile hall sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
