This is the 8V variant of the WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino in Audio Amplifier Module. Available at ₹277.30 (₹235.00 + GST) with free shipping across India.
Looking for Wt588d Module? WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino is available at Zbotic with fast shipping across India.

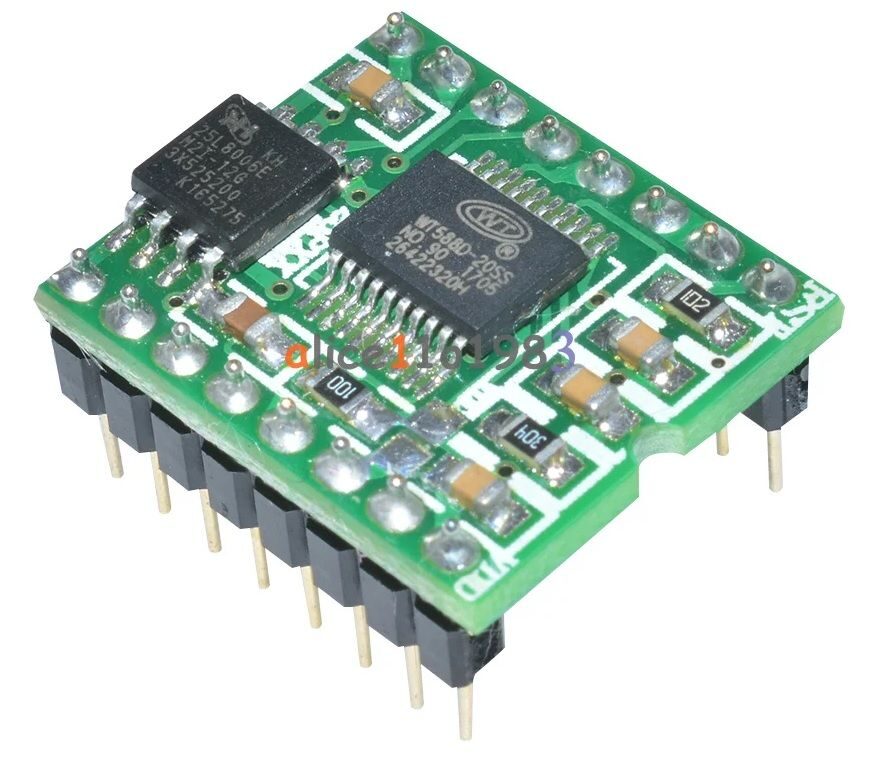

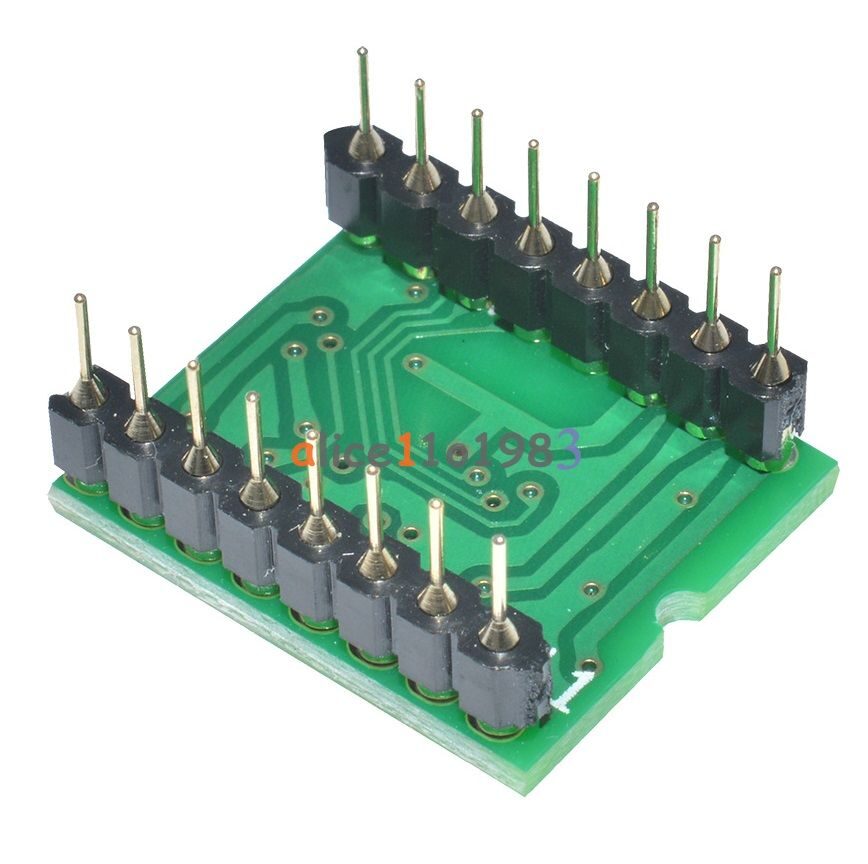

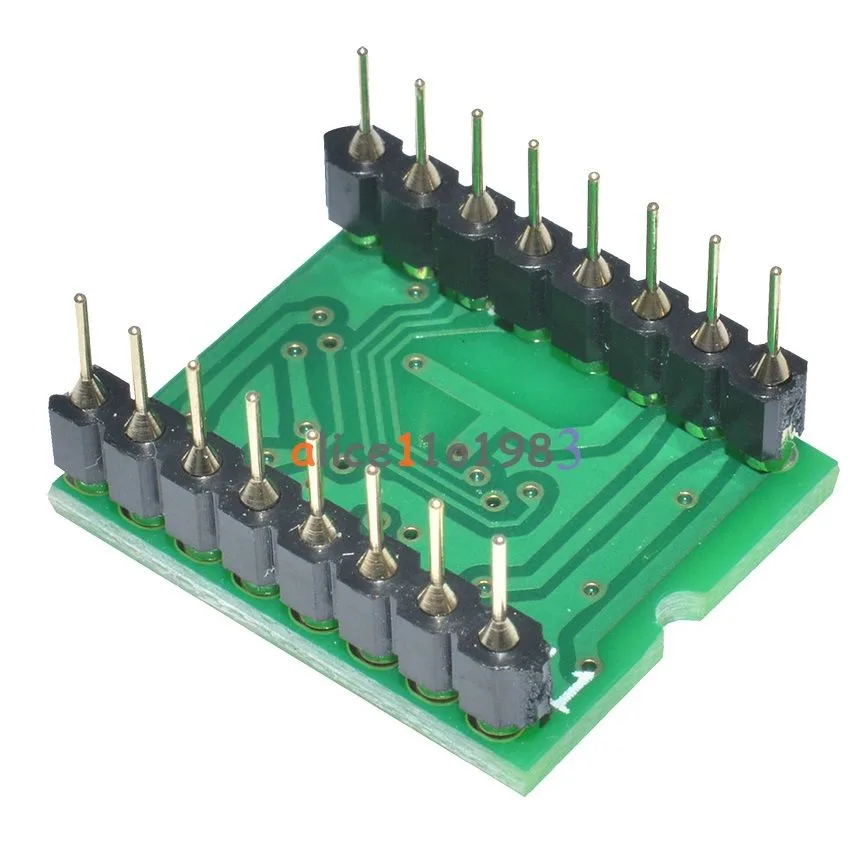

WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino
This is WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino Boards.
Module for playing MP3 and WAV files on a WT588D microcontroller with built-in memory. Easy-to-use file preparation software, easy download, and simple control of audio playback with decent quality. There is a PWM output for directly connecting a small speaker.
On the basis of the module, it is possible to build sound signaling devices, auto-informers, warning devices, answering machines and much more.
Features
- Module package (with FLASH memory and peripheral circuits) have DIP16, DIP28, chip packaging has DIP18, SSOP20, and LQFP32 form
- Built 13Bit/DA converter, and 12Bit/PWM output
- PWM output can directly drive 0.5W/8Ω speakers, push-pull current abundant support DAC / PWM output of two ways;
- Support for loading WAV audio formats;
- USB download mode, support for online download / offline download; WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash;
- Supports MP3 control mode, control mode button, 3 × 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I / O port expansion output mode;
- Support load 6K ~ 22KHz audio sampling rate
- Up to 500 segments can be loaded for editing audio.
Specifications:
| Input Supply voltage (V) | 2.8 ~ 5.5 |
|---|---|
| Current consumption (sleep mode) (µA) | 10 |
| Sampling frequency (kHz) | 6 ~ 22 |
| Length (mm): | 21 |
| Width (mm): | 18.5 |
| Height (mm): | 10 |
| Weight (g): | 5 |
Package Includes
1 x WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino.
WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Overview
The WT588D-16P module is a compact audio playback board integrating a WT588D microcontroller with built-in flash memory and peripheral circuits in a DIP16 package. Operating from 2.8V to 5.5V, it plays WAV (and supported MP3) files via a 13-bit DAC or 12-bit PWM output capable of directly driving small speakers. It’s ideal for Arduino-based projects requiring simple, reliable sound signaling.
Key Features of WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for
- Integrated WT588D microcontroller with on-board flash memory in DIP16 form
- 13-bit DAC and 12-bit PWM outputs for clear, high-quality audio
- PWM output can directly drive up to 0.5W/8Ω speakers in push-pull mode
- Supports WAV audio format with easy file preparation and USB download (online/offline)
- Wide operating voltage (2.8V–5.5V) compatible with 3.3V/5V Arduino boards
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Voice prompts and audible alerts in industrial control panels
- Custom greeting or announcement devices
- Interactive Arduino projects with audio feedback
- Low-cost warning systems or security alarms
- Talking toys and automated answering machines
- Sound signage and museum audio guides
How to Use WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for
Power the WT588D-16P with a 2.8–5.5V supply, then install the PC-based file preparation software to convert and name WAV files per module conventions. Connect via USB to download audio into internal flash memory in either online or offline mode. Wire the PWM output pins to an 8Ω speaker, and interface with Arduino digital pins or GPIO for play/stop control commands.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I load audio files onto the WT588D-16P?
Use the provided PC software to format WAV files and connect via USB to download them into the module’s flash memory. Both online and offline download modes are supported.
Can I connect a speaker directly to the module?
Yes, the built-in PWM output can drive an 8Ω speaker up to 0.5W in push-pull mode, eliminating the need for an external amplifier for small speakers.
What voltage range does the WT588D-16P support?
The module operates on 2.8V to 5.5V DC, making it compatible with both 3.3V and 5V Arduino boards without additional voltage regulation.
Technical Specifications
| Brand | Arduino |
|---|---|
| Model | WT588D-16P |
| Operating Voltage | 2.8V |
| SKU | AI1114 |
| Weight | 0.005 kg |
| Availability | Out of Stock |
Applications & Use Cases
The WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino is a versatile audio amplifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
