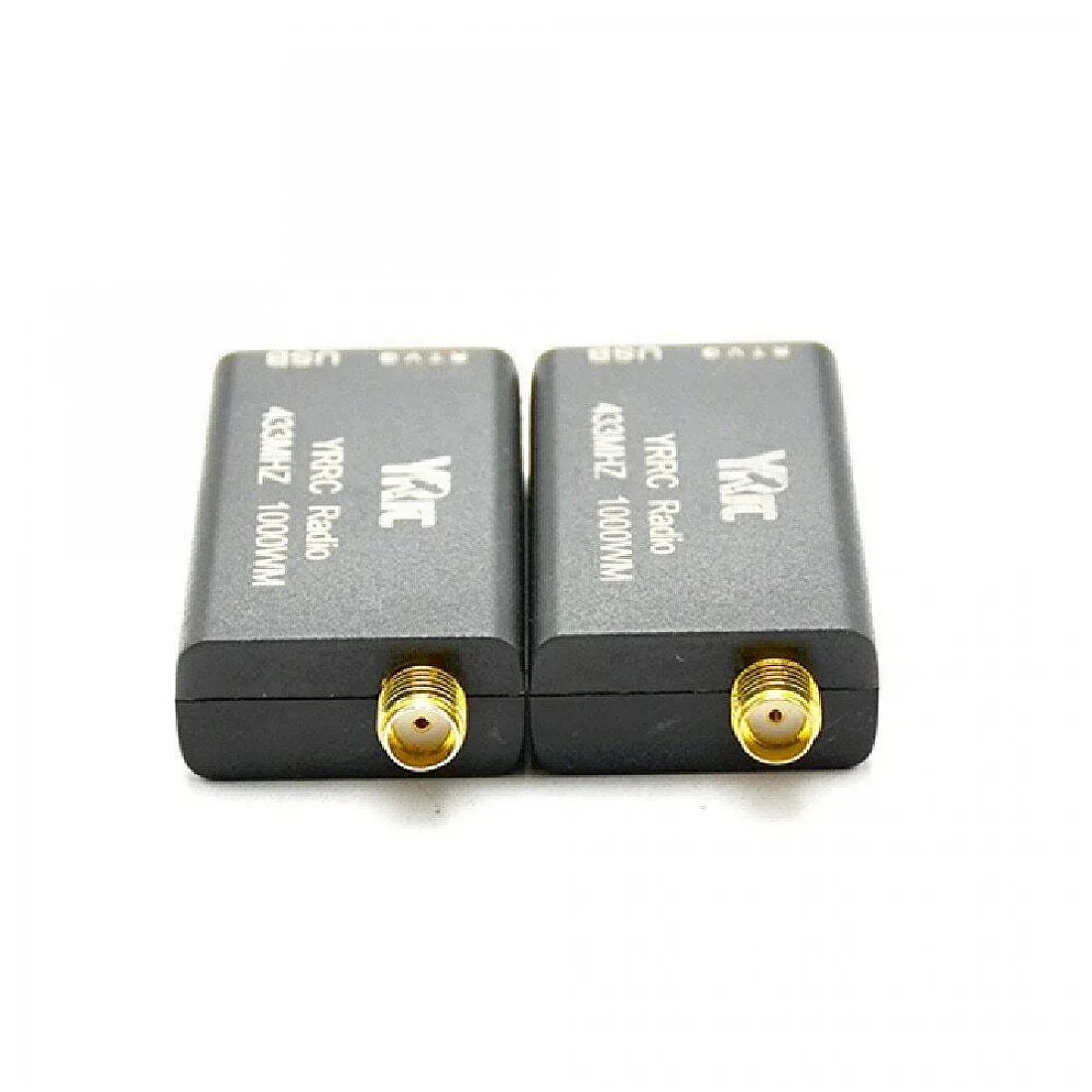

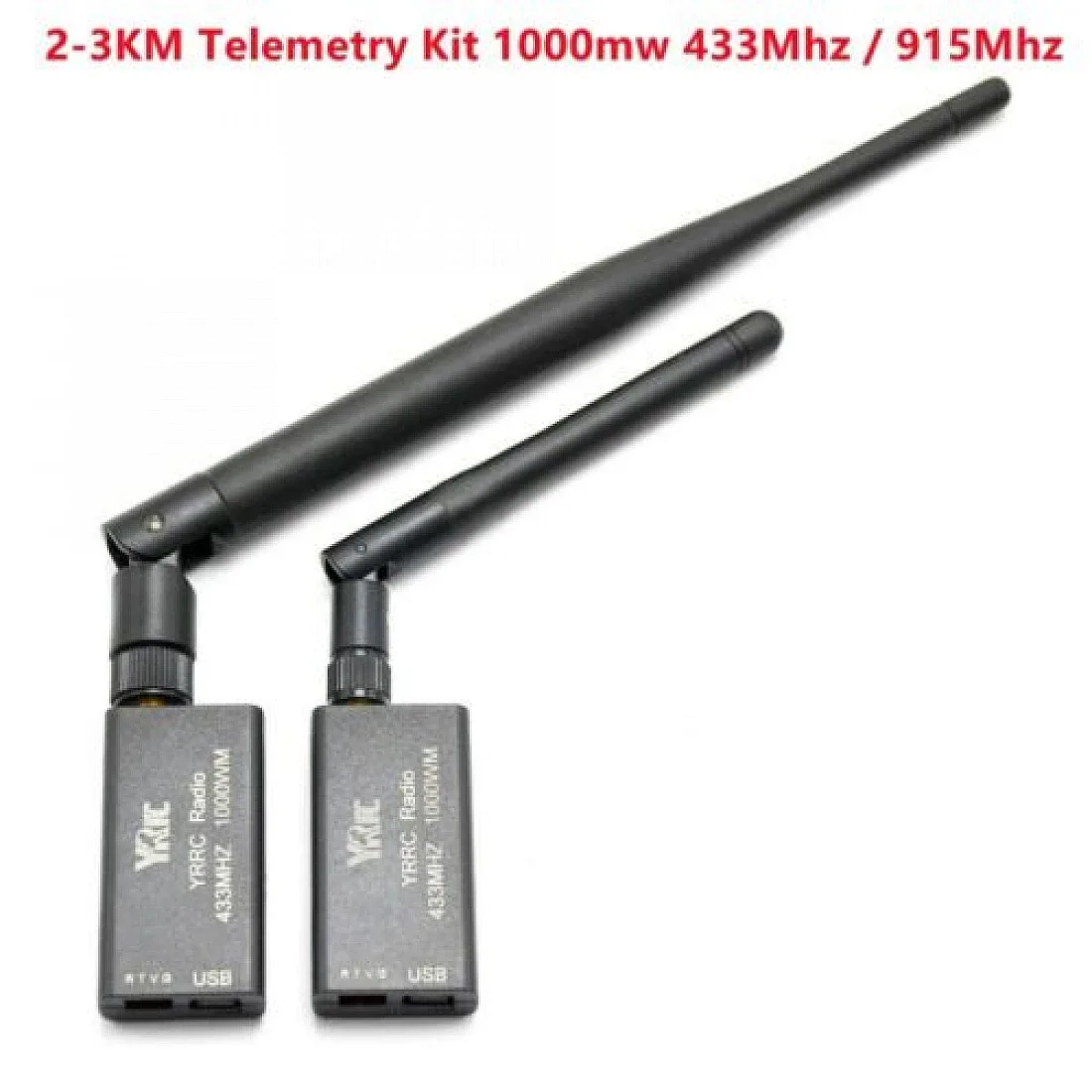

The 3DR Radio Telemetry 433Mhz 1000MW with 2~3km Data Telemetry has an independent signal amplifier (1W). Both modems here have the same design and can be used both in the ground station and in the air, and each also has a Micro USB TTL connector. The small omnidirectional antenna has a range of several kilometers, with a bidirectional amplifier a longer range is achievable. This product is based on HM-TRP radio modules with Si1000 8051 microcontrollers.
Features
- independent signal amplifier (1W)

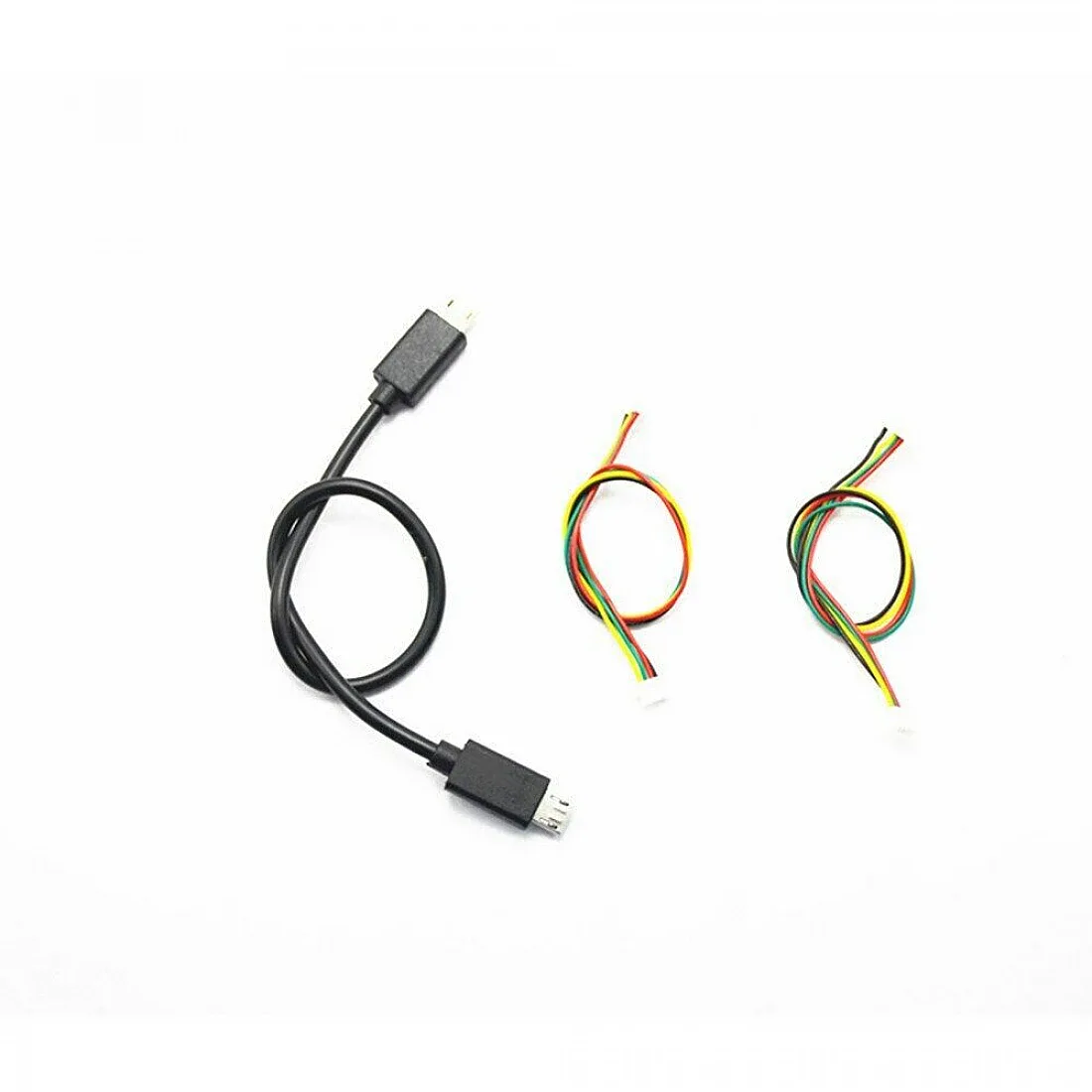

- 3 types of cables for APM and Pixhawk (5P for APM, 6P for Pixhawk) OGT
- open source firmware
- both modems have a Micro USB TTL connector
- same design for both modems
- both modems can be used in the ground station as well as in the air
- extend the range with bidirectional amplifier
- MAVLink protocol framing and status reporting
- Transparent serial connection
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built-in error correction code (up to 25% correction)
- AT commands for radio configuration
- RT commands for remote radio configuration
Specification:
- Model: 3DR Radio Telemetry V3
- Frequency: 433Mhz
- Receive sensitivity: -140dBm
- Transmit power: up to 30dBm (1000mW@9600bps)
- CP2102 USB to TTL Chips
- Air data rate: up to 250kbps

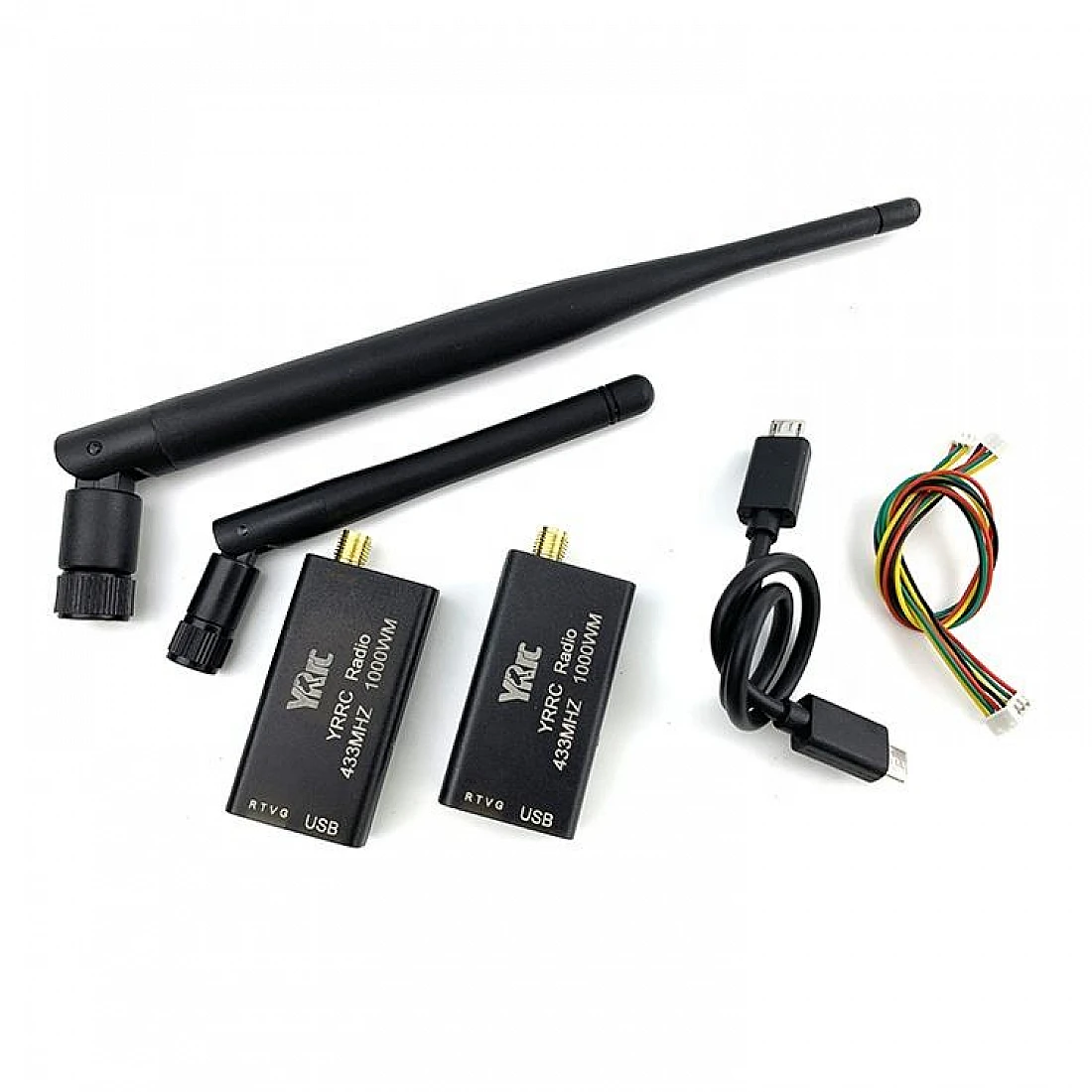

Package Include:
1 x 3Dr Radio Telemetry 433Mhz 1000Mw 2-3Km Data range Telemetry
3Dr Radio Telemetry 433Mhz 1000Mw 2-3Km Data range Telemetry Overview
The 3Dr Radio Telemetry V3 is a 433MHz bidirectional data link pair with up to 1000mW transmit power and -140dBm receive sensitivity, designed for real-time UAV telemetry and control. Based on HM-TRP radio modules with Si1000 microcontrollers, it delivers air data rates up to 250kbps over a 2–3km range in open-field conditions.
Key Features of 3Dr Radio Telemetry 433Mhz 1000Mw 2-3Km Data range Telemetry
- 433MHz operating frequency for stable long-range telemetry
- Up to 30dBm (1000mW) transmit power with independent 1W amplifier
- Receive sensitivity down to -140dBm for clear signal reception
- CP2102 USB-to-TTL adapter with Micro USB connector for easy PC linkage
- Includes APM (5P) and Pixhawk (6P) cables for direct flight controller mounting
- Genuine Product & Fast Shipping: Authorized unit shipped within 24 hours from Zbotic
Applications and Use Cases
- Real-time telemetry link for multirotor and fixed-wing drones
- Bidirectional data exchange with ground station software for parameter tuning
- Remote sensor data streaming (GPS, battery, IMU) to mission computers
- Integration in DIY UAV research and mapping projects
- Extended-range FPV video and control overlays via custom setups
How to Use 3Dr Radio Telemetry 433Mhz 1000Mw 2-3Km Data range Telemetry
Plug the CP2102-equipped ground module into your PC’s USB port and attach the air module to your flight controller’s telemetry port using the supplied cable. Configure matching frequency and baud rate (e.g., 9600bps) in your ground station software. Mount both omnidirectional antennas vertically with clear line of sight, power the modules, and verify link status LEDs before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the typical communication range of this 3DR Telemetry kit?
Under open-field conditions with clear line of sight, the 433MHz modules can reliably transmit telemetry data up to 2–3km. Actual range may vary based on antenna height, obstacles, and RF interference.
Can I use these modules with both APM and Pixhawk flight controllers?
Yes. The kit includes a 5-pin cable tailored for APM and a 6-pin cable for Pixhawk, allowing direct connection to each controller’s telemetry port without soldering.
How do I update the firmware on the telemetry radios?
Connect the module to your PC via Micro USB and use the open-source firmware tools available on the 3DR Radio GitHub repository to flash or upgrade firmware. Ensure both air and ground units run the same firmware version for proper pairing.
Technical Specifications
| Frequency | 433Mhz |
|---|---|
| SKU | AI4358 |
| Weight | 0.07 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 3Dr Radio Telemetry 433Mhz 1000Mw 2-3Km Data range Telemetry is a versatile fpv antennas and trans-receivers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
