This is the Black variant of the Team Blacksheep RP-SMA Antenna (Long) in FPV Antennas and Trans-Receivers. Available at ₹437.85 (₹417.00 + GST) with free shipping across India.

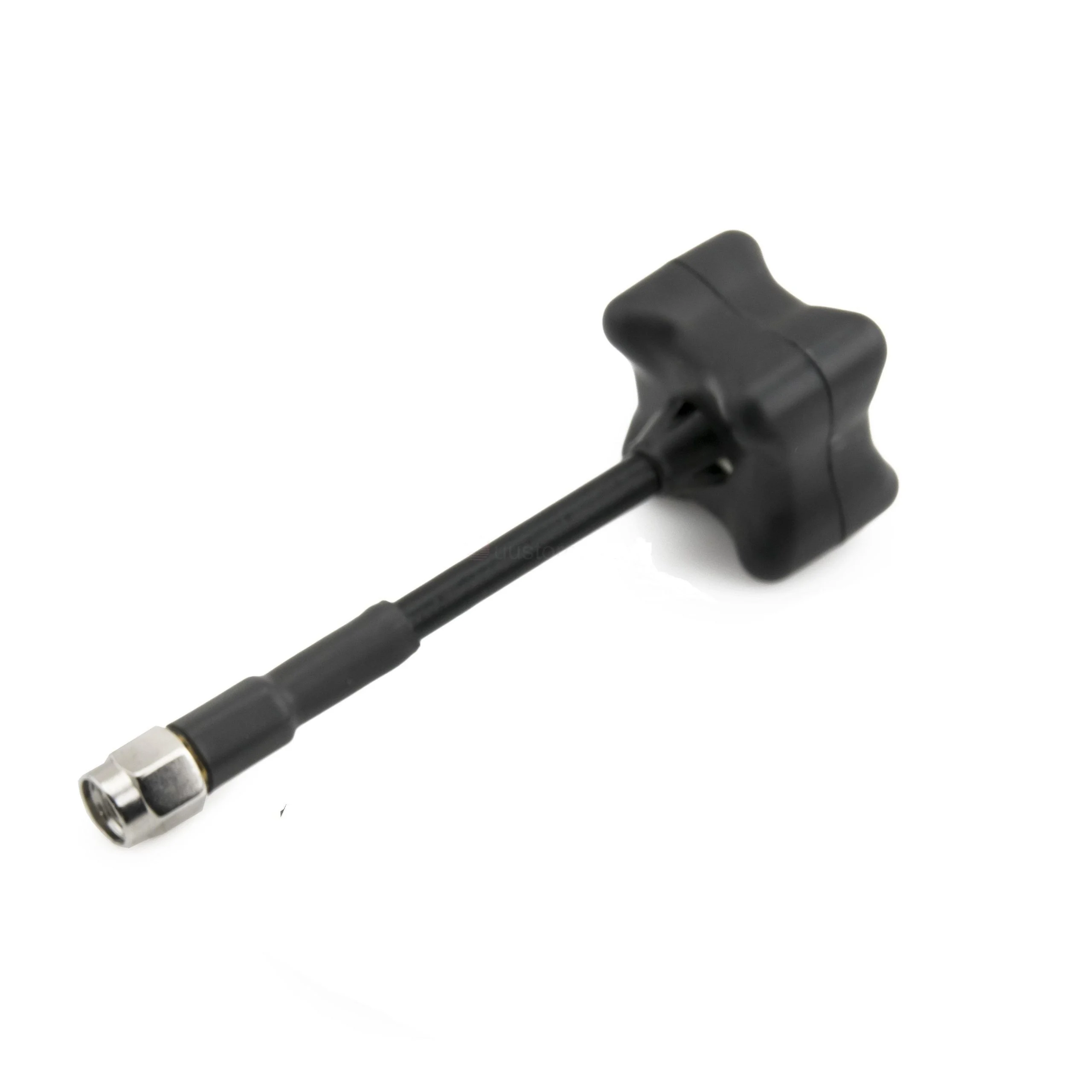

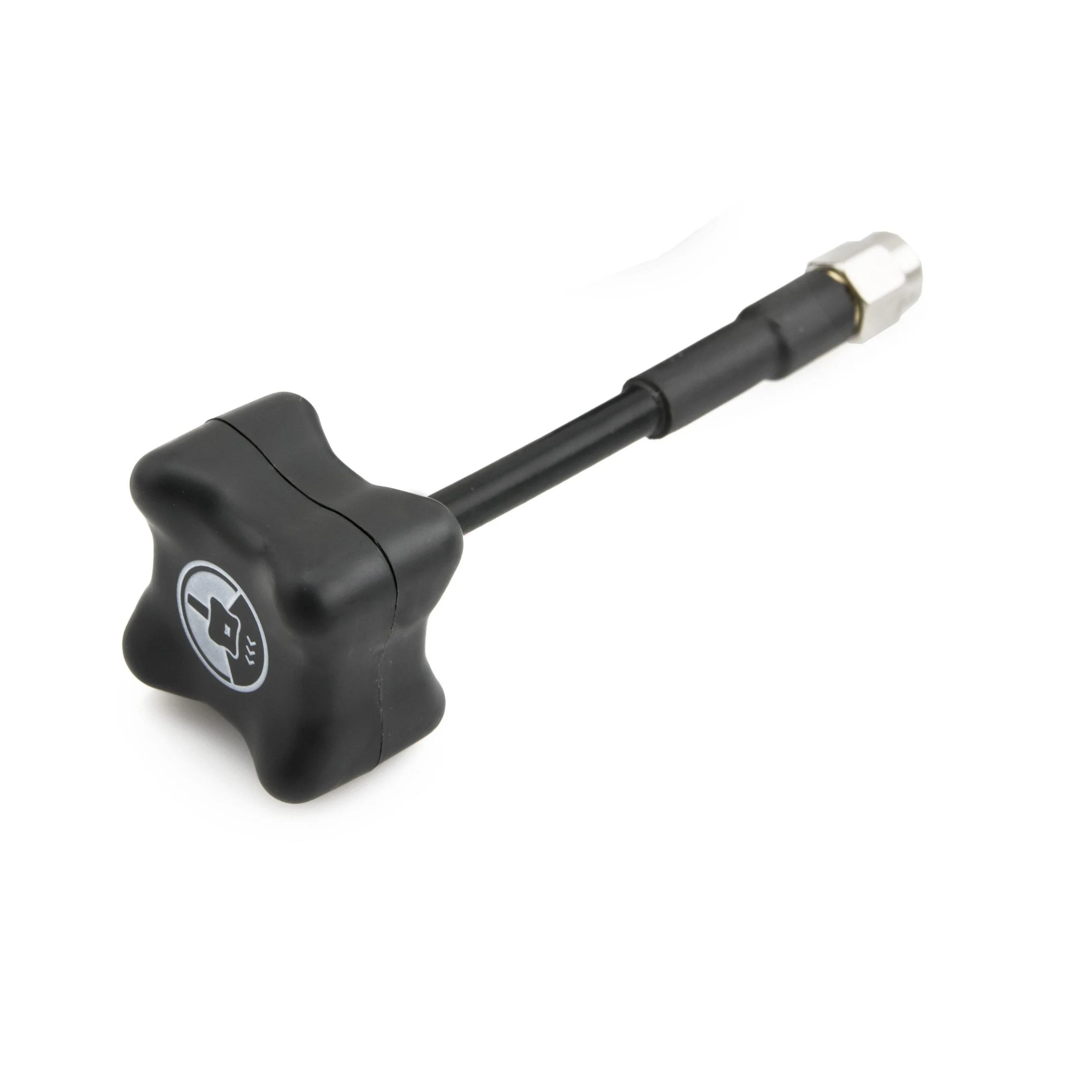

The RHCP TBS Triumph Antenna FPV RP-SMA 5.8GHz Antenna represents a significant improvement over many existing options in the FPV world. Video Aerial Systems LLC (IBcrazy) and Team BlackSheep collaborated to redefine the design and performance of modern 5.8 circular polarized antennas.
A key focus during its development was ensuring the Triumph’s durability. After numerous test flights and feedback from pilots, the decision was made to use a double-jacket heavy-duty semi-rigid cable and tin-plated connectors. For added protection, the antenna is housed in a special foam-filled and ultrasonically welded enclosure, safeguarding it from impacts with trees or other objects.
In pursuit of the best video signal quality and range, the design team moved beyond traditional Cloverleaf designs, investing significant effort in identifying and modifying the best antenna designs for FPV use.

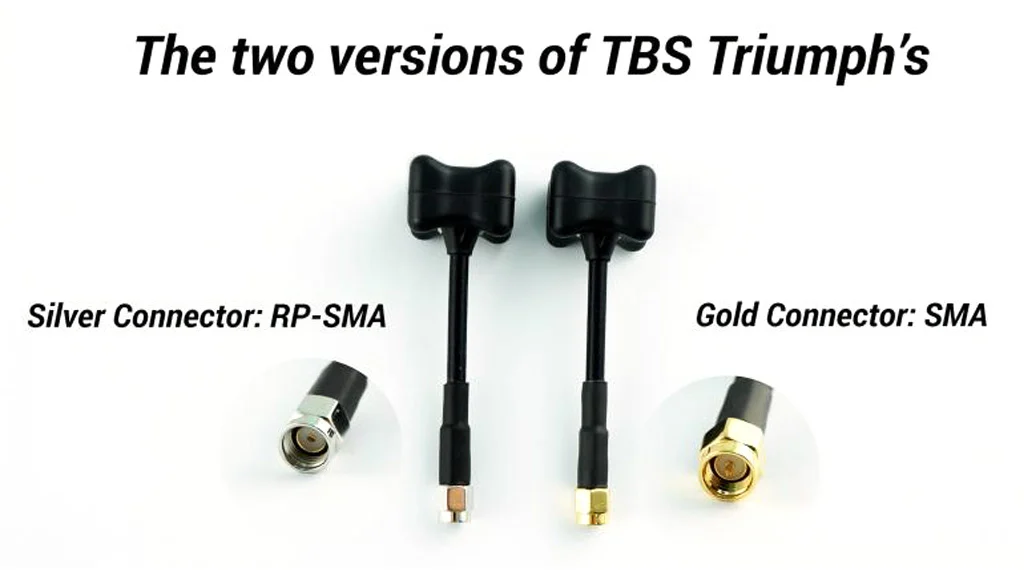

Regarding connectors, a female RP-SMA connector features a male contact body and a male inner hole sleeve contact, while the male RP-SMA connector is the opposite.
Note: This is not an original TBS product, but a high-quality clone of one.
Features:
- Manufactured and tested to highest standards.
- Best in class range and signal quality.
- Extra compact and low weight.
- Ultrasonic welded and foam infused cover for ultimate crash-protection.
- Double-jacket semi-rigid cable for heavy impact resistance.
Specification:
| Connector | RP-SMA Male |
|---|---|
| Polarization | RHCP |
| Frequency Range | 5500-6000MHz |

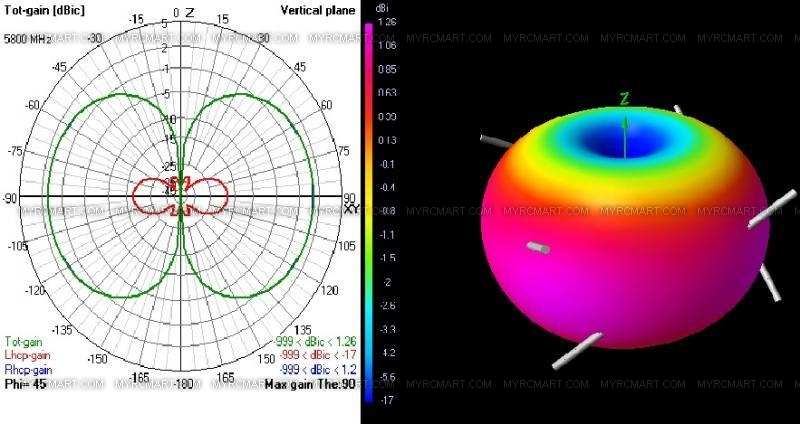

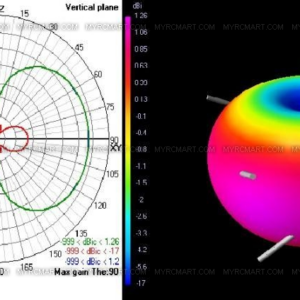

| Gain | 1.26dBiC |
| Axial Ratio | 0.74 |
| Antenna Length(mm) | 82 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 10 × 3 × 3 cm |
Package Includes :

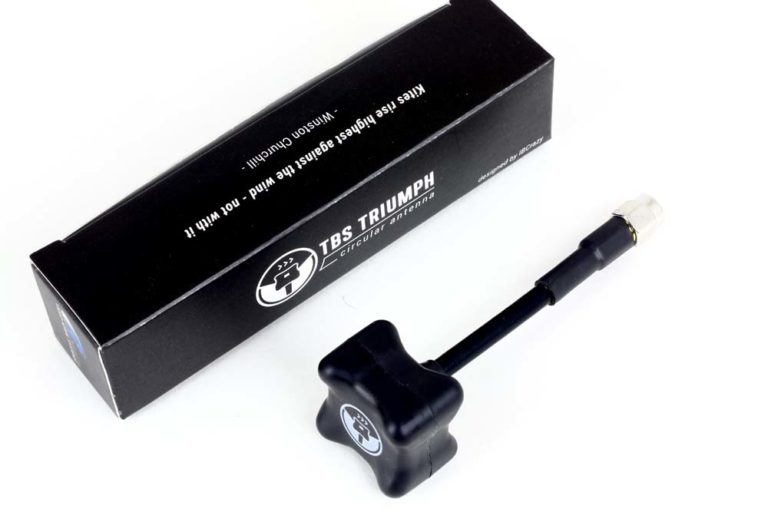

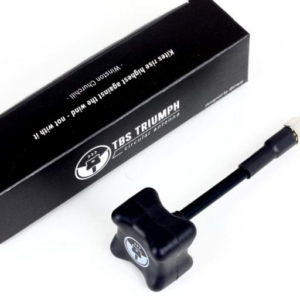

1 x TBS RHCP Triumph FPV Antenna With Male RP-SMA Connector.
Technical Specifications
| Color | Black |
|---|---|
| SKU | AI4586 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Team Blacksheep RP-SMA Antenna (Long) is a versatile fpv antennas and trans-receivers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
