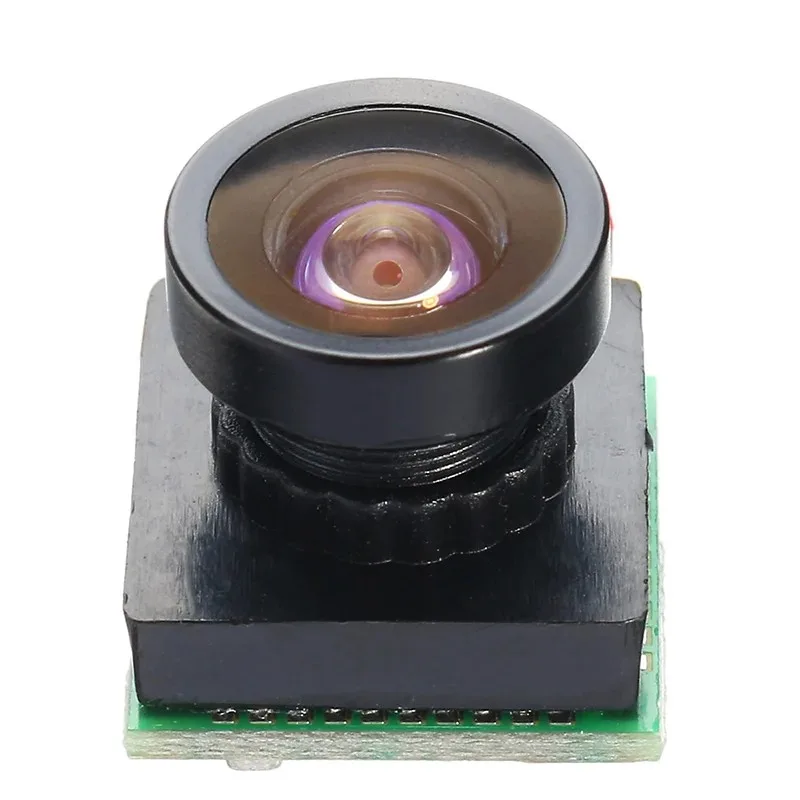

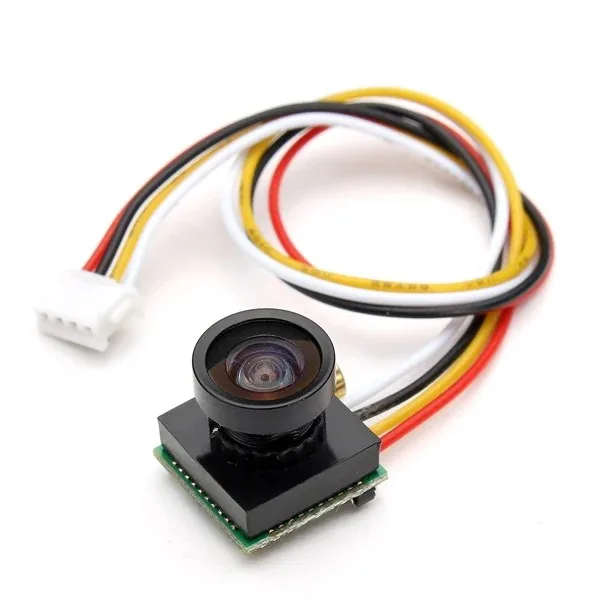

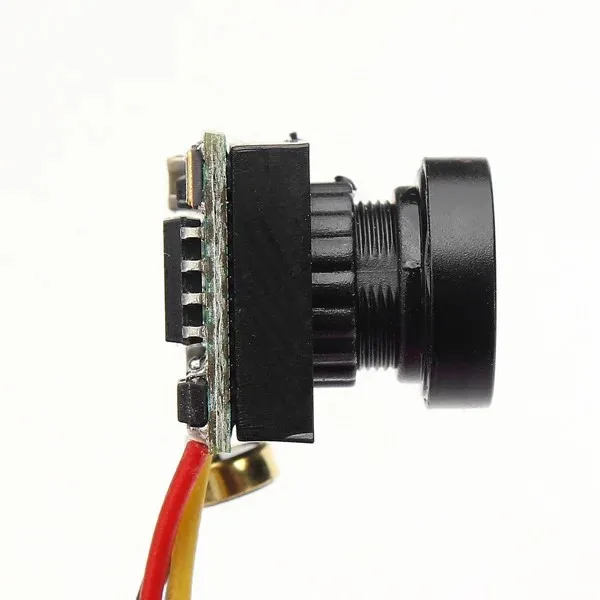

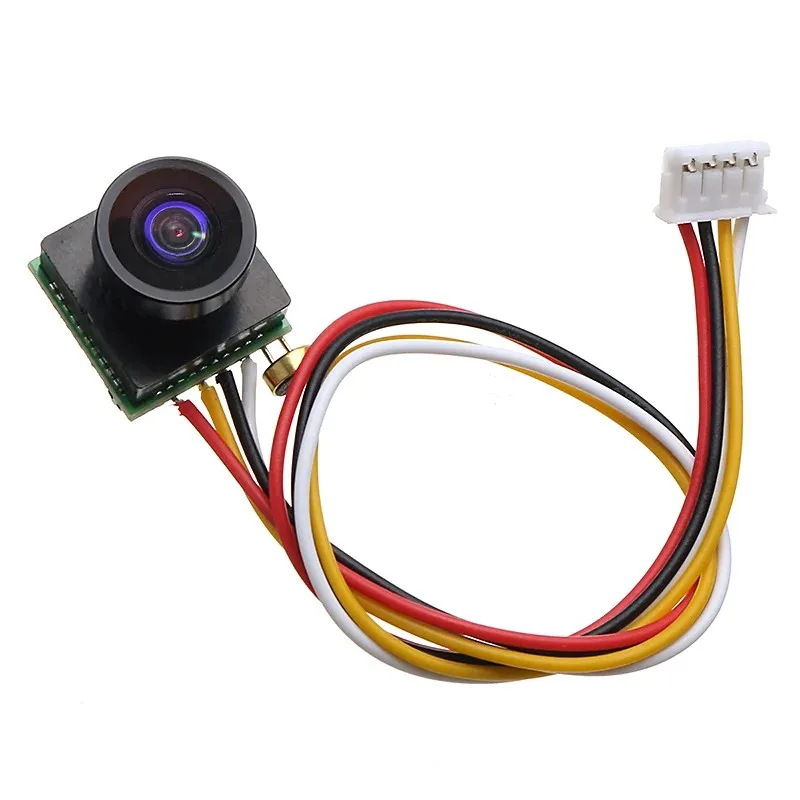

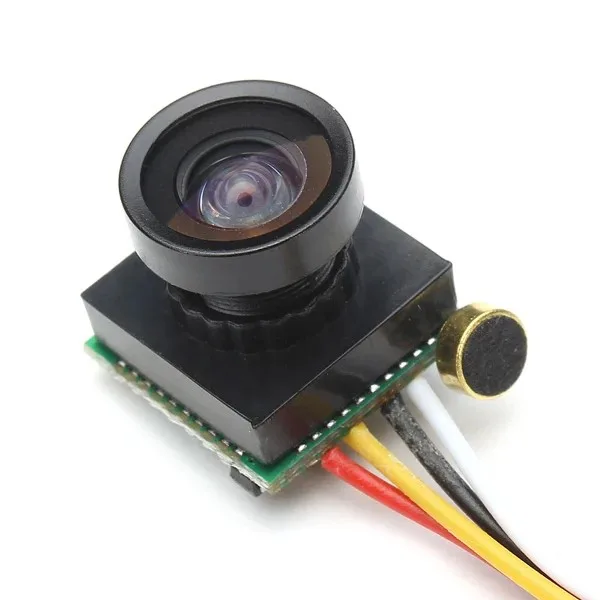

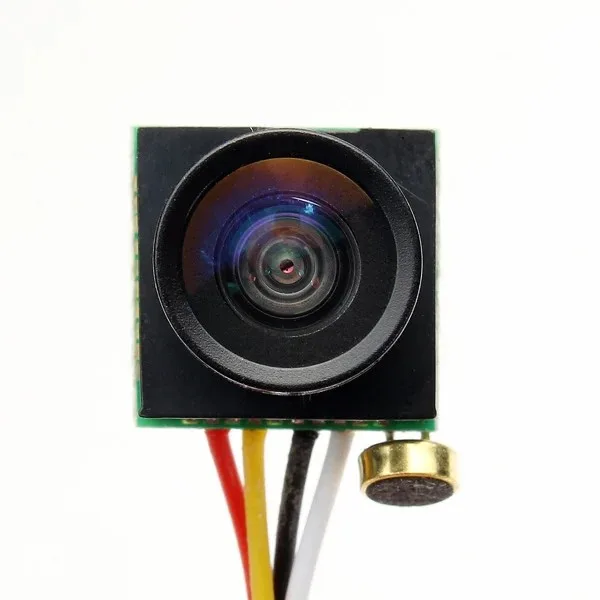

This 600TVL 170-degree Mini FPV AV Camera with Audio is suitable for Mini 200, 250, 300 Drones.
An FPV camera is crucial when building a drone, as it sends video or photos to the receiver. This camera supports both PAL and NTSC formats; PAL provides a sharper and clearer text display, while NTSC offers a slightly higher frame rate for smoother video playback. The lens can tilt up to 170 degrees, making it versatile for various applications such as aerial photography, cinematography, remote inspections, security, military, and entertainment.
The 600TVL 170-degree mini FPV camera is compact, lightweight, and equipped with audio, ideal for Mini 200/250/300 Quadcopters. It boasts a frame rate of approximately 50f/s, perfect for capturing slow-motion footage. With features like a 3.7-5V 100mA power requirement, 1280 x 960 resolution, and excellent low-light performance, it’s an excellent choice for quadcopter applications.
Note:

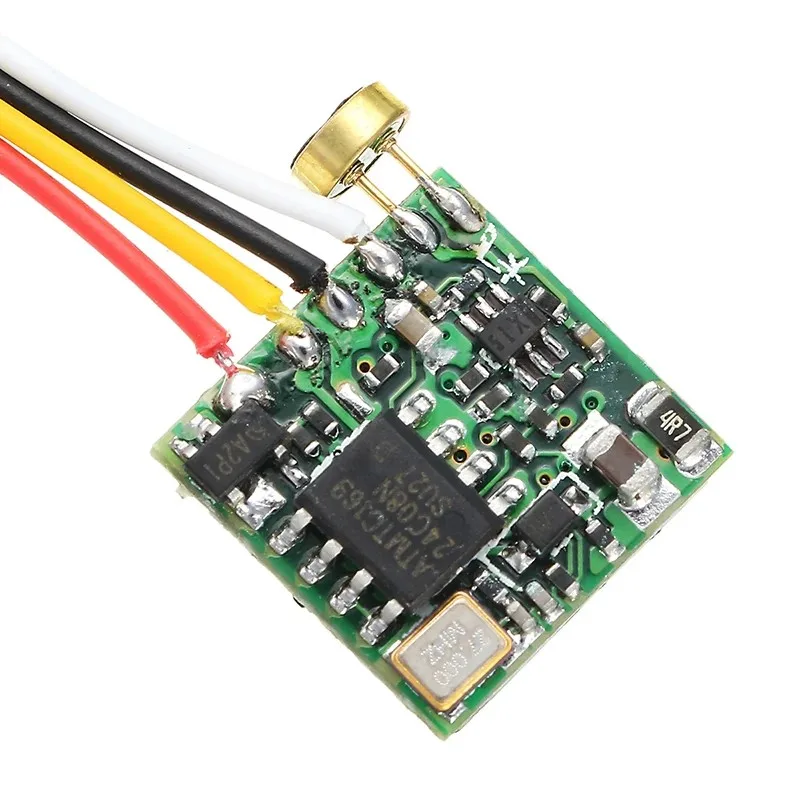

Image may vary from actual product in terms of IC branding and PCB design.
Features:
- Illumination: 0.5LUX
- Format: PAL / NTSC
- Audio Lens: Wide-angle 1.8mm (170 degrees)
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) × 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- Standard Lens : 1.8 mm
- Size of the lens : M10
- Power: DC5V ± 10% 70mA ± 10%
- Operating temperature Range: -10 °C ~ 60 °CRH95% Max
specification
| Item Type: | FPV Camera |
|---|---|
| Resolution (TVL) | 600 |
| Image Sensor | 1/4 CMOS |
| Minimum Illumination | 0.1 Lux / F1.2 |
| Resolution | 1280 x 960 |
| Video Output | 1.0Vp – P75Ω. |
| S/N Ratio (dB) | 48 |
| Operating Temperature (°C) | -10 to 50 |
| Dimensions (L x W x H) mm | 12.5 x 12.5 x 17 |

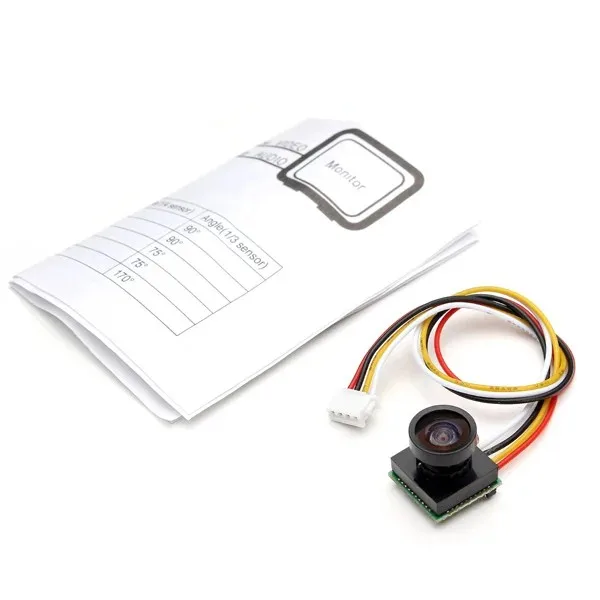

Package Includes :
About Fpv Av Camera
600TVL 170 Degree Mini FPV AV Camera with Audio for Mini 200 250 300 Drone is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI5811
- Price: Rs.23
- Category: FPV Cameras
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on orders above Rs.999. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Fpv Av Camera and other products.
Applications
Fpv Av Camera can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Fpv Av Camera today and start building.
About Fpv Av Camera
600TVL 170 Degree Mini FPV AV Camera with Audio for Mini 200 250 300 Drone is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI5811
- Price: Rs.24
- Category: FPV Cameras
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on orders above Rs.999. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Fpv Av Camera and other products.
Applications
Fpv Av Camera can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Fpv Av Camera today and start building.
Fpv Av Camera Overview
Power supply range: 3.7-5V 100mA
Resolution: 1280 x 960
Resolution: 600TVL
Illumination: 0.5LUX
Format: PAL / NTSC
Audio Lens: Wide-angle 1.8mm (170º)
Image sensor:1/4 CMOS image sensor
Sensitive area: 3.5964mm x 2.7084mm
Size of the lens: M10
The Fpv Av Camera is designed for electronics enthusiasts, engineers, and hobbyists working on aerial photography, FPV racing, agricultural drones, and autonomous UAV systems. As a FPV Cameras product, it provides the performance and reliability needed for both prototyping and production-level projects. Whether you are building your first circuit or designing a complex system, the Fpv Av Camera delivers consistent results that you can depend on.
Key Features of Fpv Av Camera
- Quality Assured: Every unit is tested before shipping to ensure reliability
- Wide Compatibility: Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other development boards
- Easy Integration: Well-documented with community support and code examples available online
- Fast Shipping: Ships within 24 hours with tracking from Zbotic warehouse
Applications and Use Cases for Fpv Av Camera
The Fpv Av Camera is versatile and can be used in numerous applications across different industries and project types:
- Aerial photography and videography
- Agricultural crop monitoring and spraying
- Search and rescue operations
- Surveying and mapping large areas
- Infrastructure inspection (bridges, towers, pipelines)
- FPV racing and freestyle flying
These are just some of the most common applications. The Fpv Av Camera can be adapted for many other uses depending on your specific project requirements. Browse our full range of FPV Cameras products to find complementary components for your build.
How to Use Fpv Av Camera
Mount the component securely on your drone frame using appropriate hardware. For flight controllers, ensure proper orientation and secure mounting with vibration dampening. For ESCs, solder motor wires and signal connections, then calibrate throttle range. For motors, mount with appropriate screws and attach propellers with correct rotation direction. For FPV equipment, mount cameras at the desired tilt angle and connect video transmitters with suitable antennas. Always perform pre-flight checks.
For detailed wiring diagrams, code examples, and tutorials for the Fpv Av Camera, check the product documentation or search for community-created guides online. Our support team at Zbotic is also available to help with technical questions.
Why Buy Fpv Av Camera from Zbotic?
Zbotic is India’s trusted online store for electronics components, development boards, sensors, motors, and robotics parts. When you buy the Fpv Av Camera from Zbotic, you get:
- Genuine Products: All items are sourced from authorized distributors and quality-checked
- Fast Shipping: Orders ship within 24 hours with real-time tracking
- Free Shipping: Free delivery on orders above Rs.999 across India
- COD Available: Pay via Cash on Delivery, UPI, cards, or net banking
- Technical Support: Expert assistance for wiring, coding, and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions about Fpv Av Camera
Where can I buy Fpv Av Camera in India?
You can buy Fpv Av Camera online at Zbotic.in with fast shipping across India. We offer genuine products with COD and multiple online payment options.
What is the price of Fpv Av Camera?
The Fpv Av Camera is available at Rs.830 at Zbotic. Prices may vary based on availability and offers.
Is this product compatible with Arduino and Raspberry Pi?
Most electronic components and modules available at Zbotic are compatible with popular development boards including Arduino, ESP32, and Raspberry Pi. Check the specifications for voltage compatibility.
What is the warranty on this product?
All products at Zbotic come with a quality guarantee. If you receive a defective product, contact our support team for a replacement or refund within the return window.
Do you provide technical support?
Yes, our technical support team can help with wiring diagrams, code examples, and troubleshooting. Contact us through the website or email.
Related Products
- High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera (without stand )
- Readytosky 1000TVL 110 Degree 1/3 CCD NTSC PAL Switchable Camera
- 1/3″ CMOS 700TVL Mini FPV Camera 2.1mm Lens PAL / NTSC
Technical Specifications
| Max Temperature | 170°C |
|---|---|
| SKU | AI5811 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The 600TVL 170 Degree Mini FPV AV Camera with Audio for Mini 200 250 300 Drone is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
