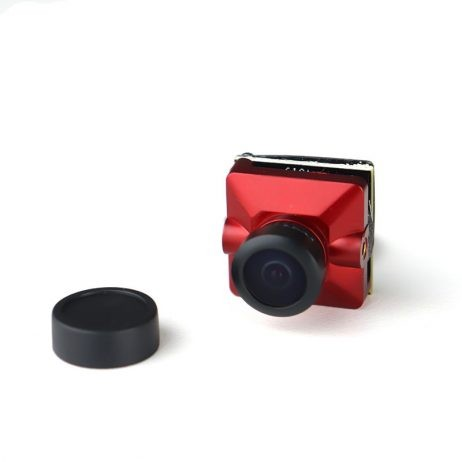

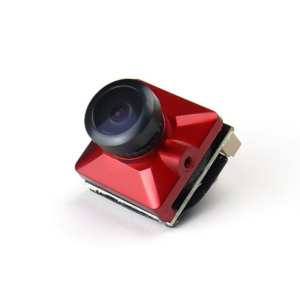

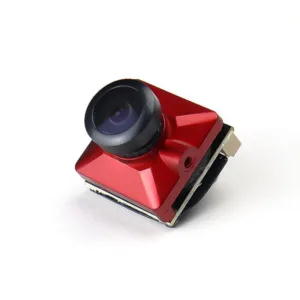

1/3″ CMOS 700TVL Mini FPV Camera 2.1mm Lens PAL / NTSC
This 700TVL CMOS Camera can be used as both PAL and NTSC. The toggle switch is provided on the camera by which you can enjoy the operation of PAL or NTSC mode. This camera is very compact and easy to use. This camera is tailored for FPV, dedicated to FPV HD aerial camera. It creates the delicate clear image, micro ultralight design, high definition color
Note: Color may be different in terms of camera
Features:
- Lens:2.1mm
- Min illumination:0.001Lux/1.2F
- Power: DC 5V-30V
- Electronic Shutter Speed: PAL
- Horizontal Resolution:1500TVL
- Day/Night:Auto/Color/B*W
- Signal System: PAL/NTSC
- DNR:3DNR
- Illumination, the effect is a good, quality-assured, ultra-small size, very suitable for FPV
- Color fidelity, low illumination, micropower consumption
Specification:
| Lens | 2.1mm |
|---|---|
| Image Sensor | 1/3” CMOS |
| Horizontal Resolution | 700TVL |
| Min illumination | 0.001Lux/1.2F |
| Signal System | PAL/NTSC (OSD Internal adjustable) |
| Auto Gain Control(AGC) | LOW/MIDDLE/HIGH |
| S/N Ratio | more than 60Db(AGC OFF) |
| Backlight Compensation(BLC) | YES |
| Electronic Shutter Speed | PAL |
| DNR | 3DNR |
| WDR | D-WDR |
| Power | DC 5V-12V |
| Dimensions | 19mm*19mm*19mm |
| Net Weight | 6.0g |
Package Includes:
1 x 1/3″ CMOS 700TVL Mini FPV Camera 2.1mm Lens PAL / NTSC

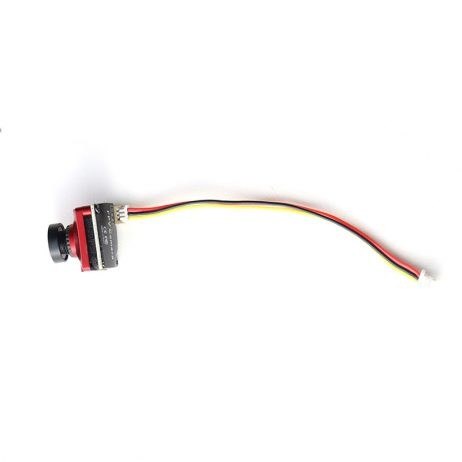

1 x 3Pin Cable
1 x Set of screws
1/3″ CMOS 700TVL Mini FPV Camera 2.1mm Lens PAL / NTSC Overview
The 1/3″ CMOS 700TVL Mini FPV Camera with a 2.1mm lens is a compact imaging module designed for real-time video transmission in FPV aircraft and RC vehicles. Its PAL/NTSC switchable signal system and day/night modes deliver clear, color or black-and-white video feeds under various lighting conditions.
Key Features of 1/3″ CMOS 700TVL Mini FPV Camera 2.1mm Lens PAL / NTSC
- 2.1mm Prime Lens: Wide-angle view for immersive FPV piloting.
- 700TVL Resolution: Sharp horizontal detail ideal for aerial photography.
- Dual Signal System: PAL/NTSC selectable via onboard toggle switch.
- Low-Light Sensitivity: 0.001 Lux at F1.2 for dusk and dawn operation.
- Flexible Power Input: Operates on DC 5 V–12 V from most flight controllers or battery packs.
- Auto Day/Night Modes: Automatic color to black & white switching for varied lighting.
- Compact & Lightweight: Micro design tailored for FPV drones and mini-quads.
- Fast Shipping from Zbotic: Dispatch within 24 hours across India.
Applications and Use Cases
- First-person view piloting on racing and freestyle FPV drones.
- Aerial inspection on mini UAVs for agriculture or infrastructure surveys.
- Onboard camera for RC cars, boats, and off-road vehicles.
- Embedded vision in compact robotics and DIY electronics projects.
- Helmet-mounted POV recording for motorsports and adventure sports.
- Backup or rear-view camera in light aircraft and ultralight vehicles.
How to Use 1/3″ CMOS 700TVL Mini FPV Camera 2.1mm Lens PAL / NTSC
Connect the camera’s red and black power leads to a regulated DC 5 V–12 V source, link the yellow video output to your FPV transmitter or monitor, then flip the PAL/NTSC switch on the rear housing to match your receiver. Secure the module with M2/M3 screws or zip-ties, adjust the lens angle, and power up your system to begin live video transmission.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I switch between PAL and NTSC modes?
Use the small toggle switch on the camera housing to select PAL or NTSC. Power cycle the camera after switching to ensure the new signal system takes effect.
What is the recommended power supply for this camera?
This camera is designed for DC 5 V–12 V input. For stable performance, use a regulated supply or BEC output from your flight controller.
Can this camera record in low-light conditions?
Yes. With a minimum illumination of 0.001 Lux at F1.2 and an auto day/night function, it delivers usable video in dim environments or twilight.
Technical Specifications
| Size | 2.1mm |
|---|---|
| SKU | AI5821 |
| Availability | Out of Stock |
Applications & Use Cases
The 1/3″ CMOS 700TVL Mini FPV Camera 2.1mm Lens PAL / NTSC is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
Manoj Srivastava (verified owner) –
Bought this for my college drone project. Works great, professor was impressed!
Manoj Chatterjee (verified owner) –
Amazing build quality! This 1/3″ CMOS 700TVL Mini FPV Camera is sturdy and lightweight at the same time.
Eshan Rao (verified owner) –
Been using this 1/3″ CMOS 700TVL Mini FPV Camera for 3 months now, zero issues. Great product.
Dinesh Dhawan (verified owner) –
Good quality 1/3″ CMOS 700TVL Mini FPV Camera. Minor scratches on arrival but functionally perfect.
Rashmi Batra (verified owner) –
Solid 1/3″ CMOS 700TVL Mini FPV Camera. Not the absolute best but excellent value for the price point.
Neeraj Khurana (verified owner) –
Amazing build quality! This 1/3″ CMOS 700TVL Mini FPV Camera is sturdy and lightweight at the same time.
Pallavi Parekh (verified owner) –
Very good quality 1/3″ CMOS 700TVL Mini FPV Camera. I’ve been building drones for 2 years now and this is one of the best I’ve used.
Shruti Vohra (verified owner) –
Excellent product for the price. My drone flies smoothly with this 1/3″ CMOS 700TVL Mini FPV Camera. Highly recommended!
Vinay Shetty –
Good 1/3″ CMOS 700TVL Mini FPV Camera. Works well for my drone build. Packaging could be slightly better.
Diya Hegde –
Nice 1/3″ CMOS 700TVL Mini FPV Camera, does the job. Delivery took a couple of extra days but product is solid.
