This is the 8mm variant of the High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera (without stand ) in FPV Cameras. Available at ₹1,123.36 (₹952.00 + GST) with free shipping across India.
Looking for 2.8mm Camera? High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera (without stand ) is available at Zbotic with fast shipping across India.

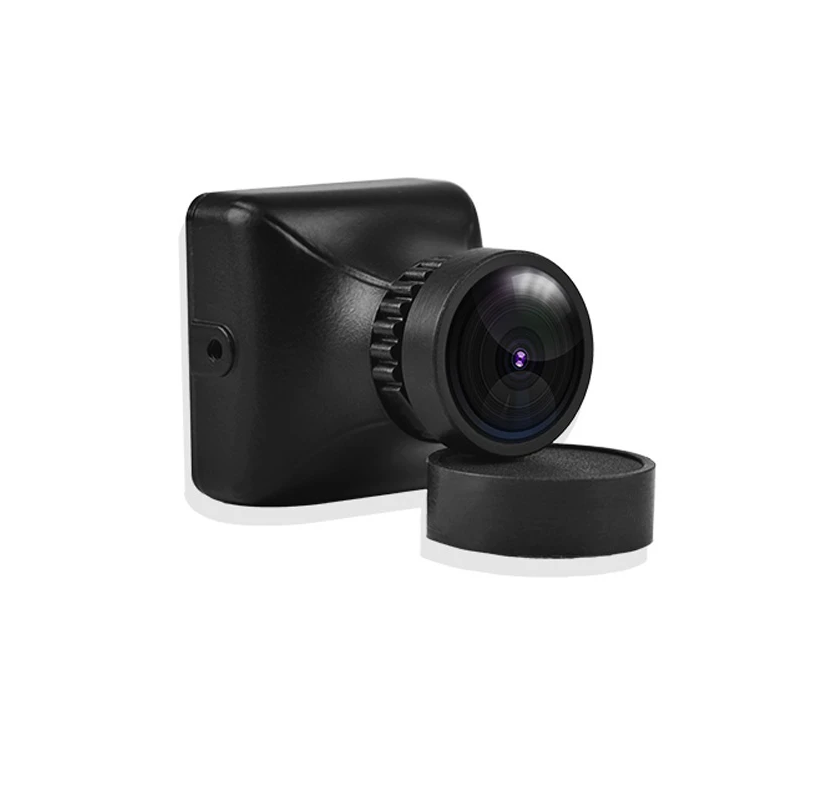

High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera
Introducing the High Definition 1200TVL CMOS Camera with a 2.8mm lens, designed specifically for FPV RC drone quadcopters. This camera features a 1/3″ CMOS SUPER HAD II image sensor, enabling it to capture clear images even in low light conditions, with a minimum illumination of just 0.01Lux at F1.2. It also includes a user-friendly parameter setup interface for easy customization.
Operating on a voltage range of 7 to 12V, this camera offers an electronic shutter speed of PAL: 1/50 to 1/100,000. This versatility makes it an excellent choice for drones and multicopters, perfect for recording videos and capturing stunning images.
Features
Model: FPV cameras
Signal System: PAL
Auto Gain Control(AGC)
Backlight compensation(BLC)
WDR D-WDR
DNR 2DNR
Day/Night Auto/Color/B*W
Electronic Shutter Speed PAL: 1/50-100.000
Specifications
| Image Sensor | 1/3 CMOS SUPER HAD II |
|---|---|
| Horizontal Resolution (TVL) | 1200 |
| Minimum Illumination | 0.01Lux/1.2F |
| AGC & Backlight Compensation | Yes |
| S/N Ratio (dB) | >60 |
| Operating Temperature (°C) | -10 to 50 |
| Dimensions (LxWxH) mm | 26 x 26 x 30 |
| Weight (g): | 15 |
Package Includes(High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera (without stand ))
1 x High Definition 1200TVL CMOS Camera.
1 x Connecting Cable & Accessory.
High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera Overview
The High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera is a compact video solution designed for RC drone and quadcopter pilots who demand crisp real-time video transmission. Equipped with a 1/3″ CMOS SUPER HAD II sensor and a wide-angle 2.8mm lens, this camera delivers clear imagery even in low-light conditions, making it ideal for first-person view (FPV) applications.
Key Features of High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera
- 1200TVL resolution for sharp, detailed FPV video feeds
- 2.8mm wide-angle lens provides approximately 120° field of view
- 1/3″ CMOS SUPER HAD II sensor with 0.01 Lux (F1.2) minimum illumination for low-light performance
- PAL video signal system compatible with most European and Indian FPV video transmitters
- High signal-to-noise ratio (S/N > 60 dB at AGC OFF) for a cleaner image
- Electronic shutter speed PAL: 1/50–1/100,000 s to handle varying lighting
- Operates on 7–12 V DC, suitable for standard drone power rails
- Fast shipping from Zbotic across India
Applications and Use Cases
- FPV racing drones requiring high-definition, low-latency video
- Aerial photography platforms for smooth daytime and dusk flights
- Survey multicopters inspecting rooftops, pipelines or agricultural fields
- Fixed-wing RC aircraft seeking lightweight video payloads
- FPV training rigs for pilot skill development
- Custom UAV builds where compact, high-performance cameras are needed
How to Use High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera
Mount the camera to your drone’s frame using double-sided tape or a 3D-printed bracket (sold separately), then connect its power leads to a regulated 7–12 V supply. Plug the video output into a compatible FPV transmitter on PAL mode. Use the built-in parameter setup interface to adjust brightness, contrast, and exposure before flight. Align the 2.8mm lens for your desired field of view, secure all connections, and power on to begin live video transmission.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non-backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this camera compatible with NTSC systems?
No. This model outputs video in PAL format only. Ensure your video transmitter and goggles support PAL.
What voltage input does the camera require?
The camera operates on a DC input between 7 and 12 V. Using a stable BEC or voltage regulator is recommended to avoid voltage spikes.
How can I adjust brightness and contrast?
Use the on-camera parameter setup interface. Cycle through the OSD menu to tweak brightness, contrast, and exposure settings before securing the camera for flight.
Technical Specifications
| Size | 2.8mm |
|---|---|
| SKU | AI7085 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The High Definition 1200TVL FPV 2.8mm Lens Aircraft Camera (without stand ) is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
