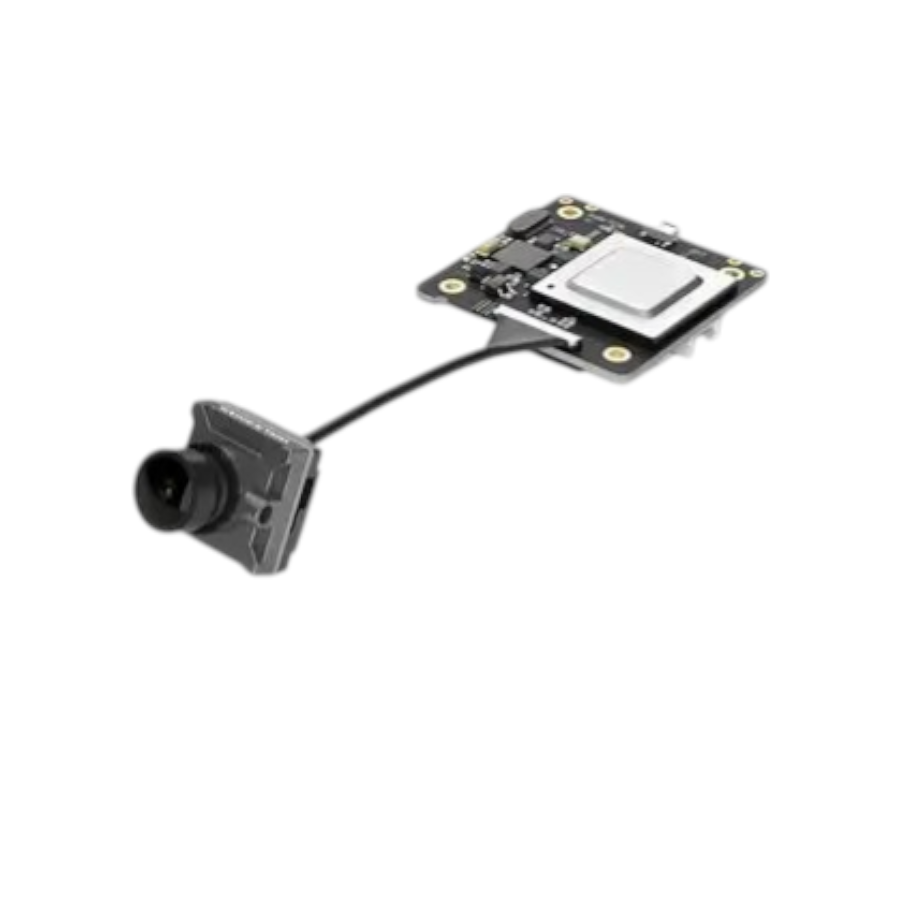

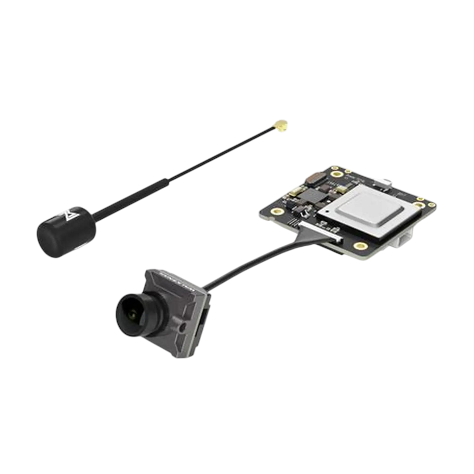

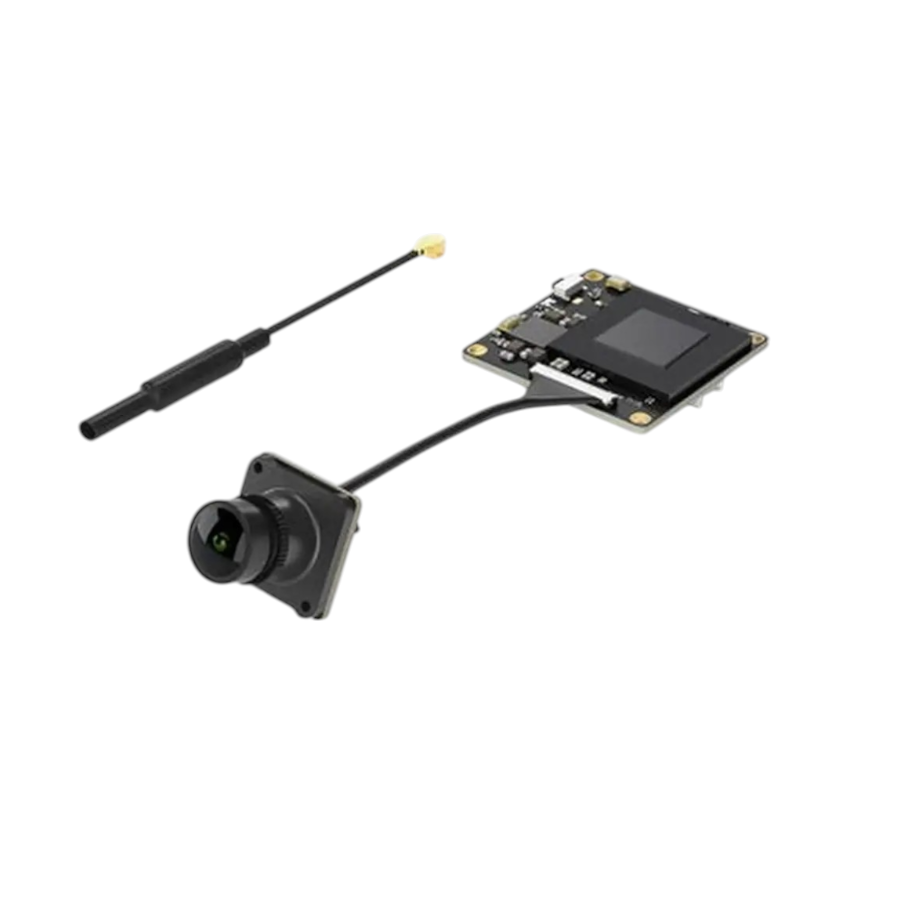

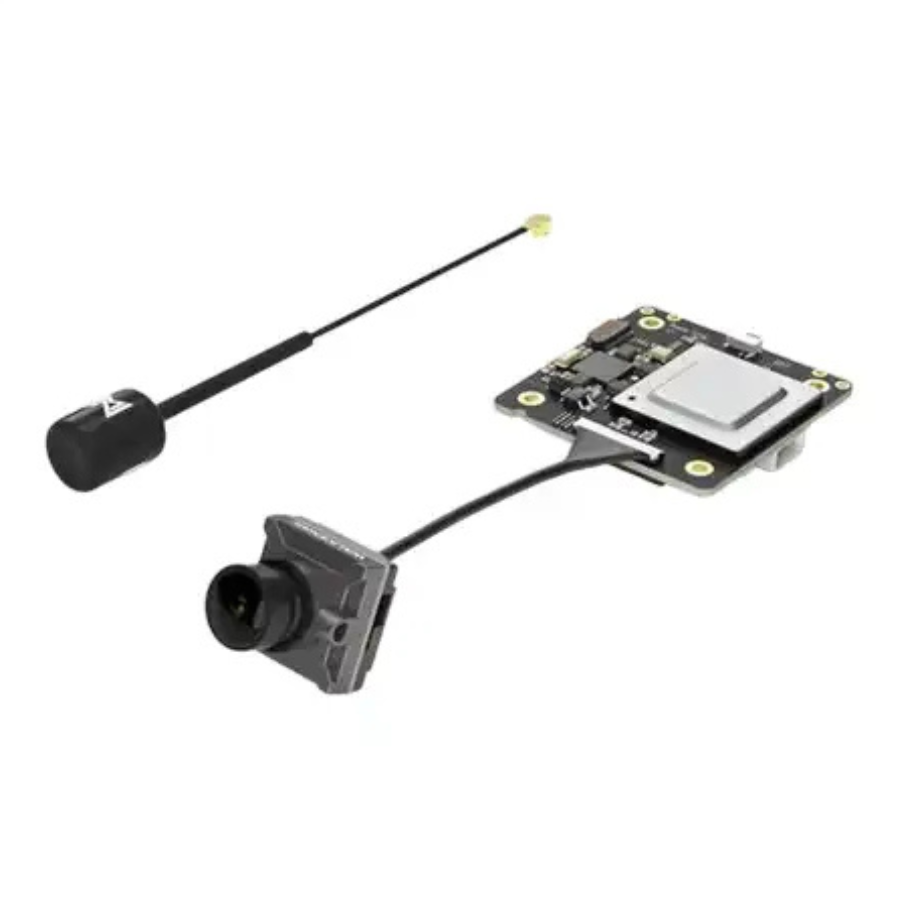

Walksnails Avatar Mini 1S Kit
Description:
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. The Avatar mini 1S VTX weighs only 6.8g and fits perfectly with the 75X quad. Supports both high frame rate and standard frame rate, in high frame rate, it has an average latency of 22ms. The Avatar mini 1s vtx comes with 8g built-in storage, it can record 1080p with 60fps or 720p with 100fps/60fps HD flight videos without interference.
Features:
- 1080P/60fps, 22ms low latency
- 3.1V-5V, Power 350mW
- Built-in 8G storage
- 6.8g lightweight
- The Avatar HD system uses H.265 code
- An industry-leading technology
- To provide 1080p FPV image quality with ultra-low latency
Specifications:
| Item Type: | FPV System |
|---|---|
| Model Name: | Avatar nano |
| Image Sensor | 1/2.7”1nch |
| Resolution: | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| Field of View (FOV): | 170° |
| Aperture | F2.0 |
| Shutter Type: | Rolling Shutter |
| Min. Illumination | 0.001Lux |
| VTX Model | Avatar mini 1s module |
| Frequency (GHz): | 5.725-5.850GHz |
| Transmitter Power | (EIRP) FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in) JST0.8*4(USB) |
| Storage | 8G |
| Recording | 1080p/720p |
| Channels | 8 |
| Wide Power Input | 3.1V-5V |
| Supported FC System | Beta flight |
| OSD | Canvas mode |
| Additional Specs.: | Bitrate: 25mbps 50mbps |
| Latency | Average delay 22ms |
| Antenna (Y/N): | IPEX |
Package Includes:
1 x Walksnails Avatar Mini 1S Kit
Technical Specifications
| Brand | CADDXFPV |
|---|---|
| Cell Configuration | 1S |
| SKU | AI7987 |
| Weight | 0.06 kg |
| Availability | In Stock |
Applications & Use Cases
The Walksnails Avatar Mini 1S Kit is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
