This is the 5V variant of the 5V 16 Channel Relay Module with Light Coupling LM2596S Power Supply in Relay Modules. Available at ₹536.90 (₹455.00 + GST) with free shipping across India.

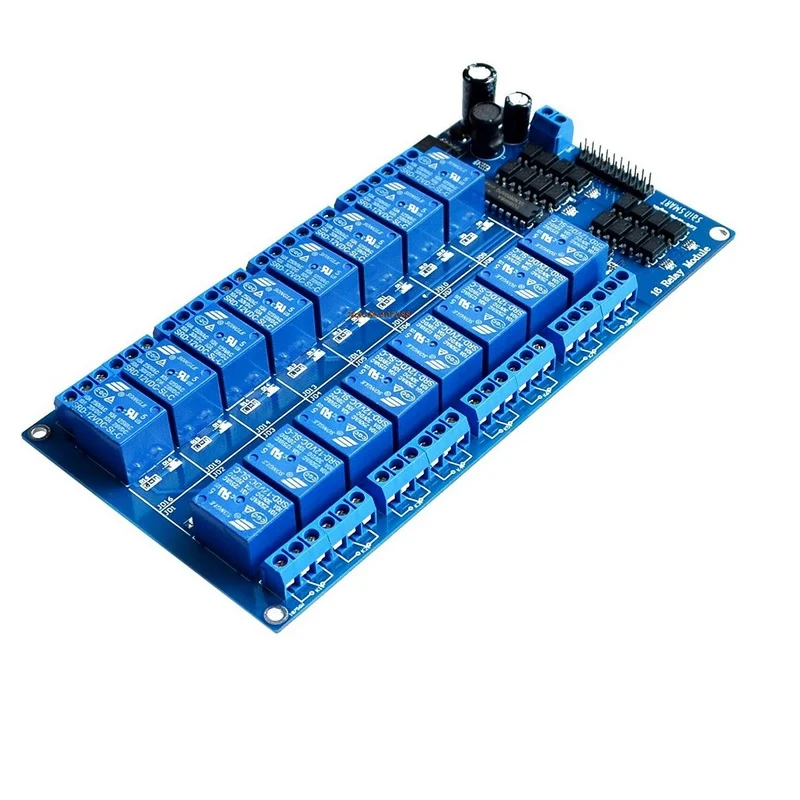

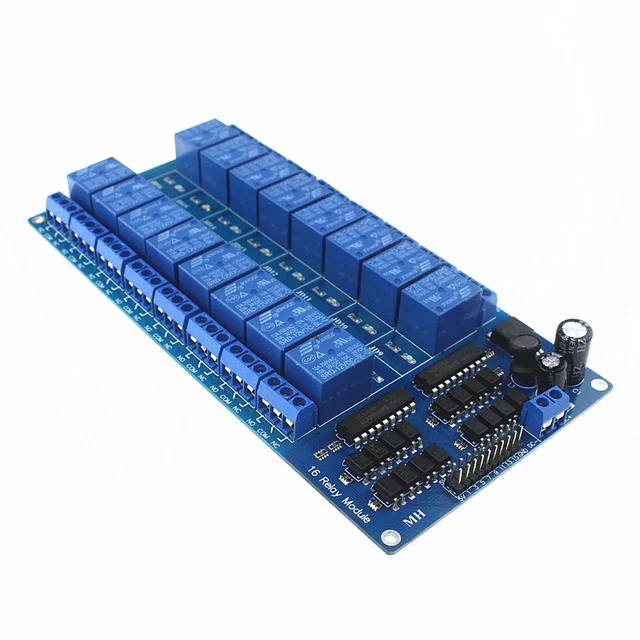

5V 16 Channel Relay Module with Light Coupling LM2596S Power Supply
This is a 5V 16 Channel Relay Module with Light Coupling LM2576 Power Supply, Be able to control various appliances and other equipment with a large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic).
This is 5V 16-Channel Relay interface board and each one of the individual relays needs 15-20mA Driver Current. The board features indication LED for Relay output status and the standard interface that can be controlled directly by many of widely used microcontrollers like Arduino etc.

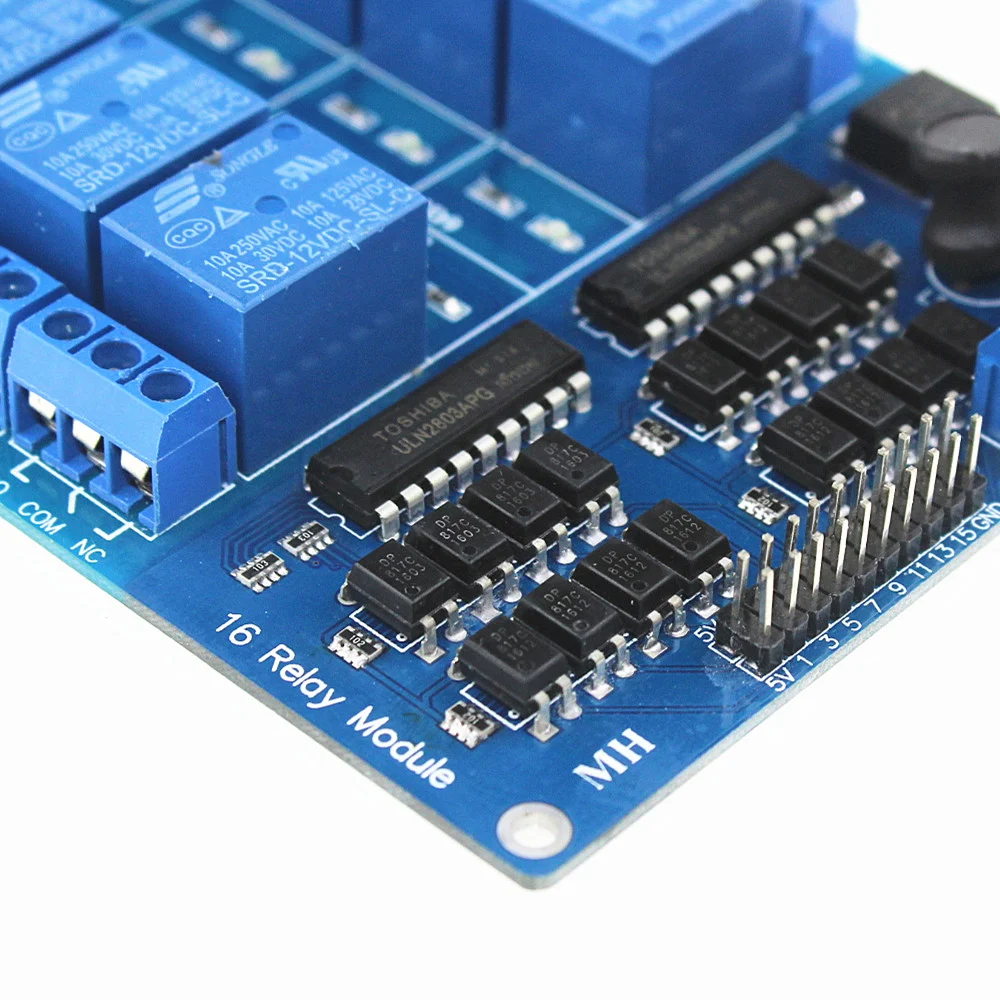

The 5V electromechanical relay module with AC contact capacity of 250V which also include light coupling protection(optocoupler) for isolation of control circuitry. The plate load power module doesn’t need an external power supply. It supports all SCM Drive.

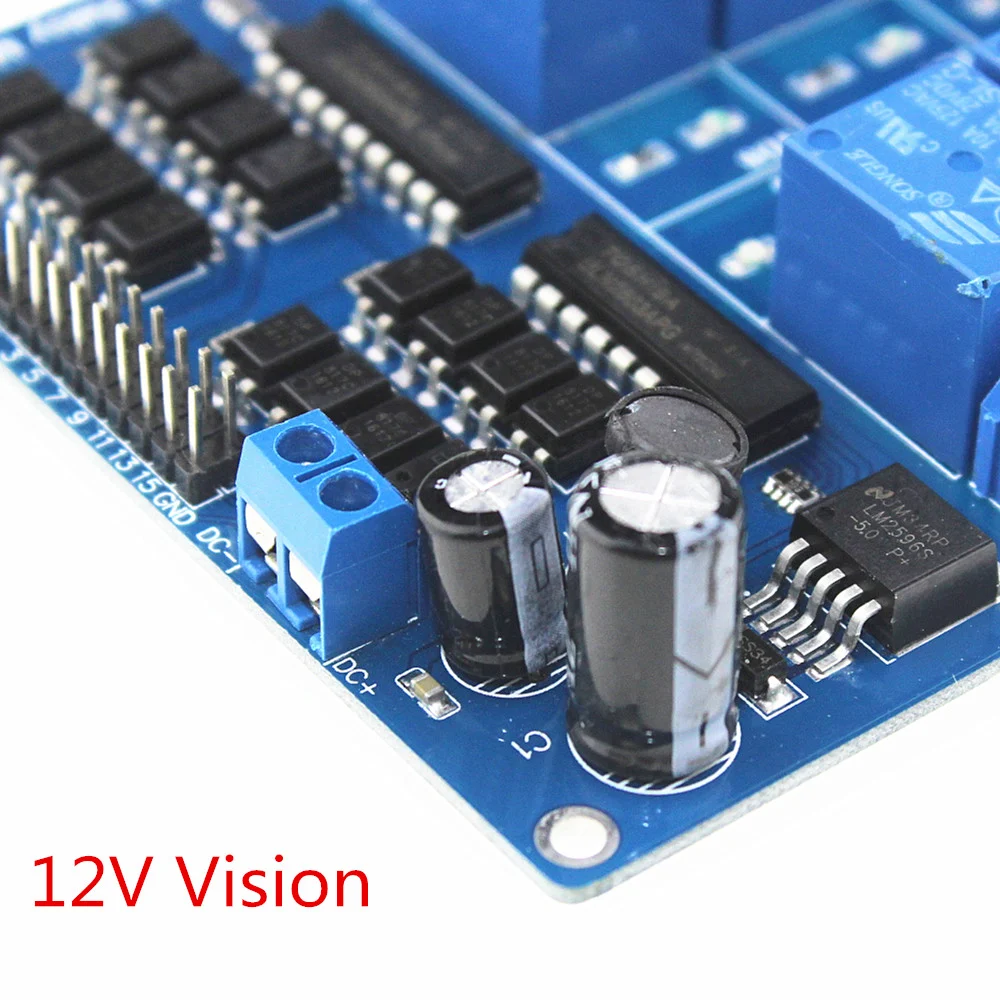

The LM2596S buck chip in this relay module shows a slight fever which is a normal phenomenon as relays, long working hours have normal fever characteristics. 4 relay load power to give leave some margin, should avoid high-power (about 2000W) and long working environment, there will be some impact on the life of the product.
Noted: The relay module is SRD-5VDC-SL-C.
Features:
- 5V relay with AC contact capacity of 10A 250V and optocoupler protection.
- Onboard power supply module does not need an external power supply. I / O port driver is active low.
- The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
- It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
- The 1-16 road can be any full on/off or any road.
- Each relay common terminal “COM” are independent, user-friendly access to different signals, each relay are normally closed and normally open with the port.
- Each relay is equipped with motion lights.
- All interfaces can be directly connected through the terminal leads, very convenient.
Specification:
| Trigger Voltage (VDC) | 5 |
|---|---|
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Length (mm): | 180 |
| Width (mm): | 90 |
| Height (mm): | 20 |
| Weight (g): | 220 |
Package Includes:
1 x 5V 16 Channel Relay Module with Light Coupling LM2576 Power Supply
IoT Street Light Controller: Smart City Lighting
Table of Contents Smart Street Lighting Overview Light Sensors and Controllers Hardware Design for Outdoor Use Wireless Network...
Read More →
IoT Water Management: Smart Metering for Indian Cities
Table of Contents The Water Monitoring Challenge in India Sensor Technologies for Water Building the Sensor Node Data...
Read More →
ESP32-C3 Beginner Guide: RISC-V WiFi+BLE on a Budget
If you are looking for a solid esp32-c3 beginners guide, you have come to the right place. The...
Read More →Technical Specifications
| Model | LM2596S |
|---|---|
| Operating Voltage | 5V |
| Channels | 16-channel |
| SKU | AI5291 |
| Weight | 0.3 kg |
| Availability | In Stock |
Applications & Use Cases
The 5V 16 Channel Relay Module with Light Coupling LM2596S Power Supply is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
