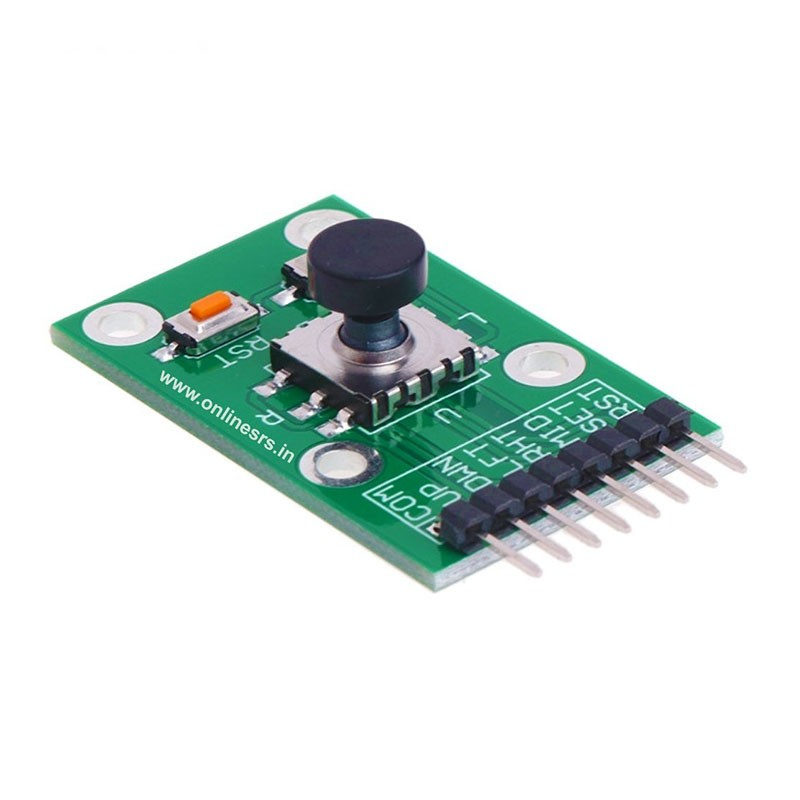

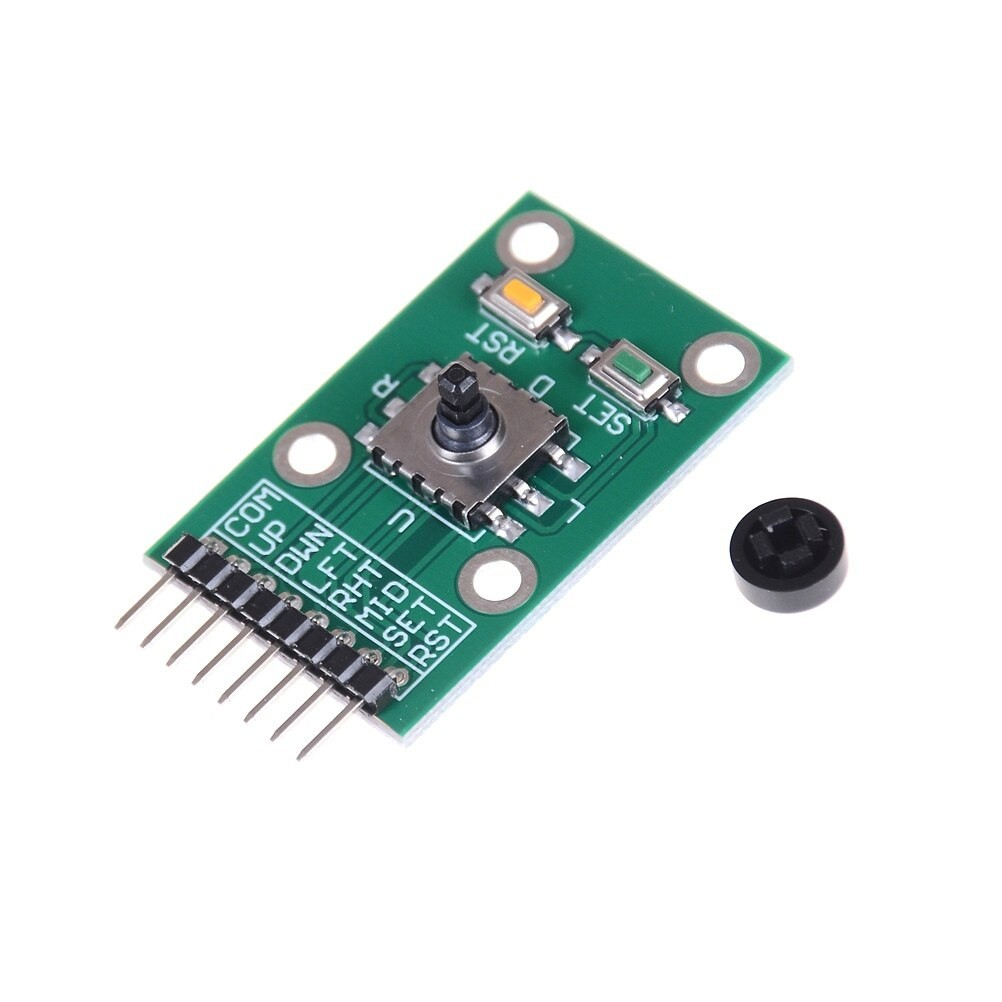

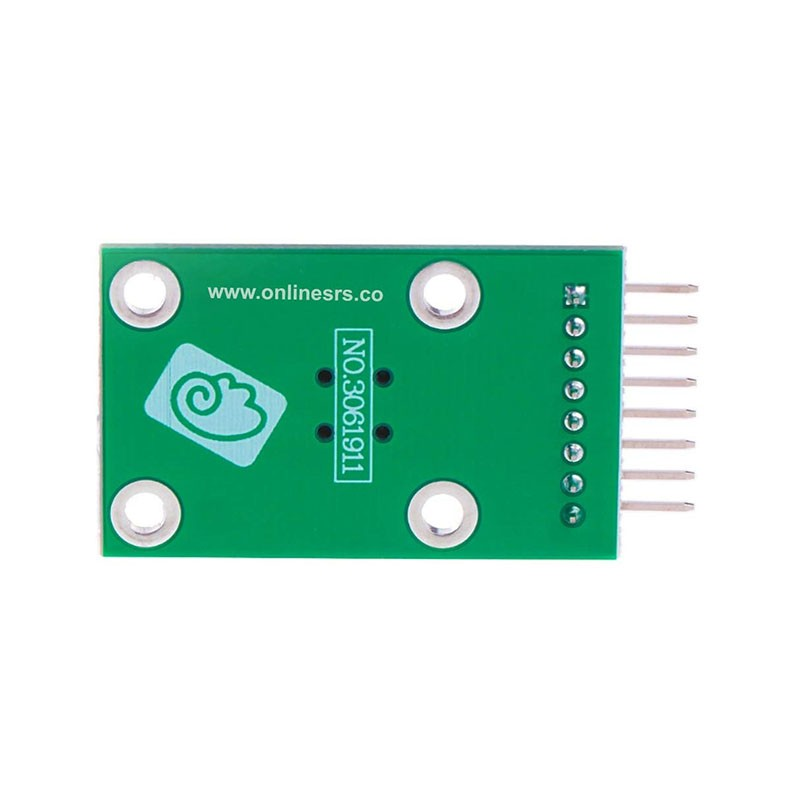

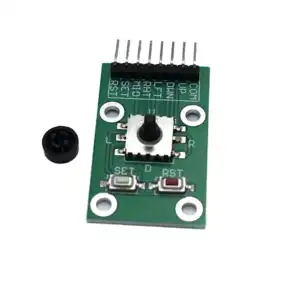

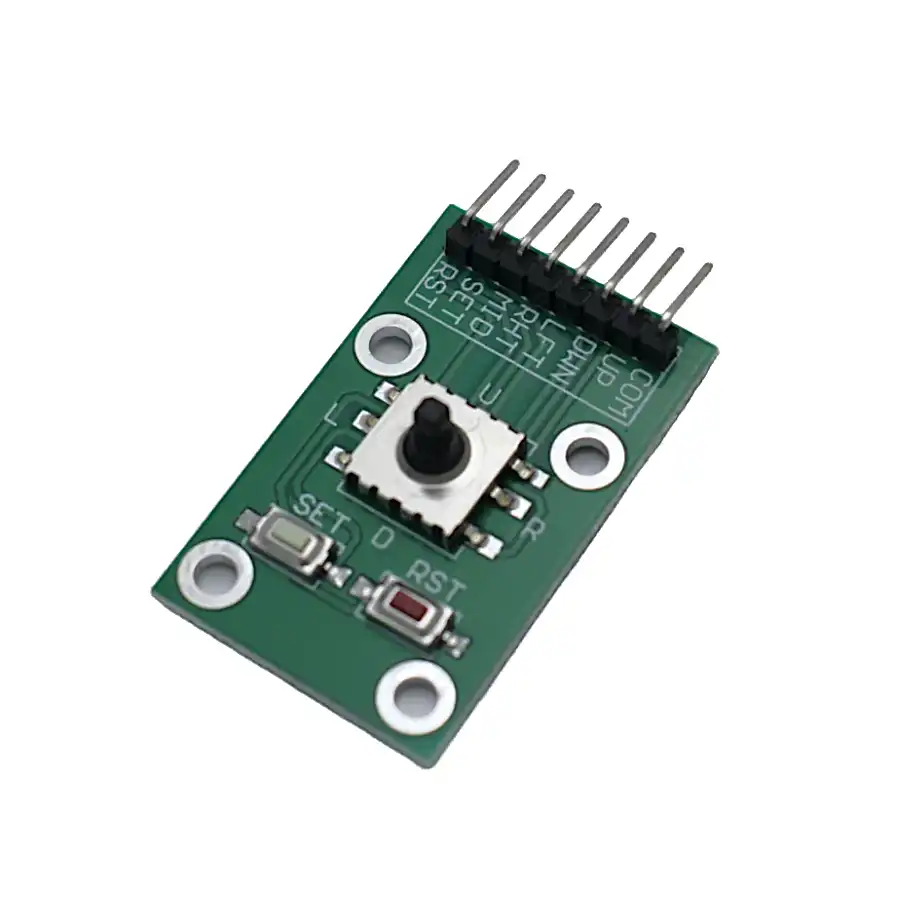

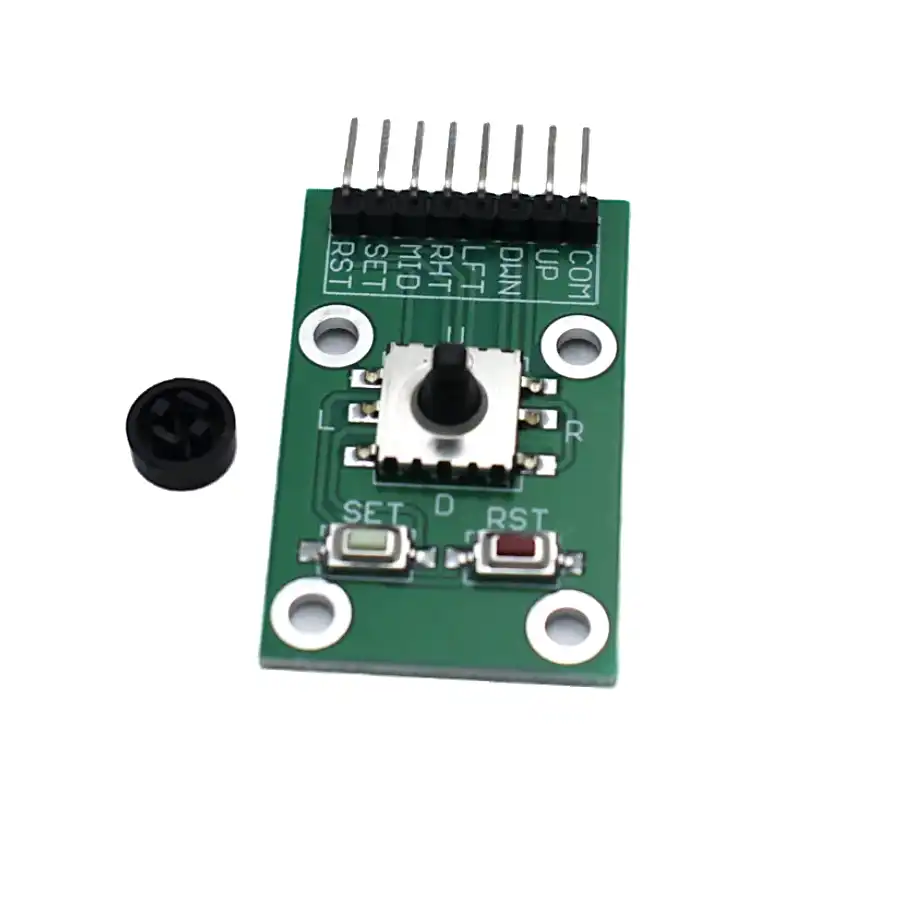

5D Rocker Joystick for Arduino, MCU, AVR Game
Do you need a 5D navigation button module? Here we have Five Direction Navigation Button Module especially for you. You can use it for MCU AVR Game 5D Rocker Joystick and as an Independent Keyboard for Arduino Joystick Module.
Pin Description:
- COM (Common end): VCC or GND connected to the MCU development board
- UP (Up direction button): Connect to IO pin of the MCU
- DWN (Down direction button): Connect to IO pin of the MCU
- LFT (Left direction button): Connect to IO pin of the MCU
- RHT (Right direction button): Connect to IO pin of the MCU
- MID (Middle direction button): Connect to IO pin of the MCU
- SET (Set button): Connect to IO pin of the MCU
- RST (Reset button): Connect to IO pin of the MCU
Features:
- supports up/down/left/right/middle with extra set and reset button
- 2V-9V wide working voltage
- 7 IO port pinout compatible for most MCU development board
Specifications:
| Operating Voltage (VDC): | 2 ~ 9 |
|---|---|
| Operating Temperature (°C) | 40 to 85 |
| Length (mm): | 40 |
| Width (mm): | 25 |
| Height (mm): | 12 |
| Weight (g): | 4 |
Package Includes:
1 x Five Direction Navigation Button Module
Technical Specifications
| SKU | AI5926 |
|---|---|
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5D Rocker Joystick for Arduino, MCU, AVR Game is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
