This is the Yellow variant of the Yellow Electronic Building Blocks Big Key Button Module High Level Output in Electronic Switches/Keypads Modules. Available at ₹16.17 (₹13.70 + GST) with free shipping across India.
Looking for Yellow Electronic Building Module? Yellow Electronic Building Blocks Big Key Button Module High Level Output is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION

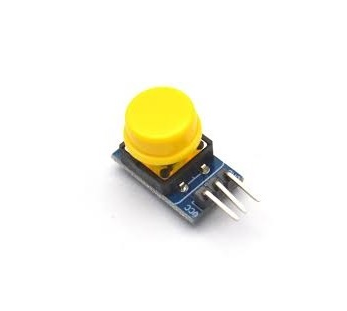

This is a module for a big yellow button that works with electronic building blocks. You can use an analog port to read the button states with a sensor expansion board. This way, you can use multiple buttons at the same time. The button is high-quality and compatible with the sensor expansion board port. When you press the button, it outputs a low level. When you release it, it outputs a high level.
Features:
- This button module kit includes 1PCS of button modules with Yellow cap.
- When you press the button, it will output a high level and it will turn to be LOW when you release it.
- Great for Children and Visual programming aids.
- Interface: Standard electronic block (GND, VCC, SIG)
- Output: digital level (press high, release low)
- Great for DIY projects
Specification:
| Interface | Standard electronic block (GND, VCC, SIG) |
|---|---|
| Working Current | 0.55mA(MAX) |
| Output | digital level (press high, release low) |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 7 × 5 × 2 cm |
Yellow Electronic Building Blocks Big Key Button Module Overview
The module is a large yellow key button designed to integrate seamlessly with electronic building blocks. It provides a simple digital output—HIGH when pressed and LOW when released—and is ideal for adding tactile input to your DIY electronics projects using a compatible sensor expansion board.
Key Features of Yellow Electronic Building Blocks Big Key Button Module
- Interface: Standard electronic block pinout (GND, VCC, SIG) for easy plug-and-play
- Wide operating voltage: 2–5.5 V DC compatible with 3.3 V and 5 V systems
- Low current draw: Only 0.55 mA maximum during operation
- Digital level output: Delivers HIGH when pressed and LOW when released
- High-quality tactile switch with bright yellow key cap for clear user feedback
- Fast shipping from Zbotic across India—get it delivered within days
- Genuine product sourced directly for reliable performance
Applications and Use Cases
- Creating custom control panels for Arduino and Raspberry Pi projects
- Implementing user input buttons in robotics and automation prototypes
- Designing interactive exhibits or educational STEM kits
- Triggering events in alarm and alert systems
- Building arcade-style game controllers with multiple big key inputs
- Prototyping user interfaces for wearable or handheld electronics
How to Use Yellow Electronic Building Blocks Big Key Button Module
Connect the GND pin to the ground rail and VCC to a 2–5.5 V supply on your sensor expansion board, then insert the SIG pin into any available input port. Use the onboard digital read function to detect a HIGH output when the button is pressed and a LOW output when it is released. Mount the yellow key cap where it is easily accessible in your project enclosure.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does this button module support?
The Yellow Electronic Building Blocks Big Key Button Module operates on 2–5.5 V DC, making it suitable for both 3.3 V and 5 V electronics platforms.
How many button modules are included in the kit?
This kit includes one yellow key button module, ready to plug into your electronic building block expansion board.
Can I connect multiple key button modules together?
Yes, by using a compatible sensor expansion board you can plug multiple modules into separate ports to read individual button states simultaneously.
Technical Specifications
| Color | Yellow |
|---|---|
| SKU | AI3082 |
| Weight | 0.00325 kg |
| Availability | In Stock |
Applications & Use Cases
The Yellow Electronic Building Blocks Big Key Button Module High Level Output is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
