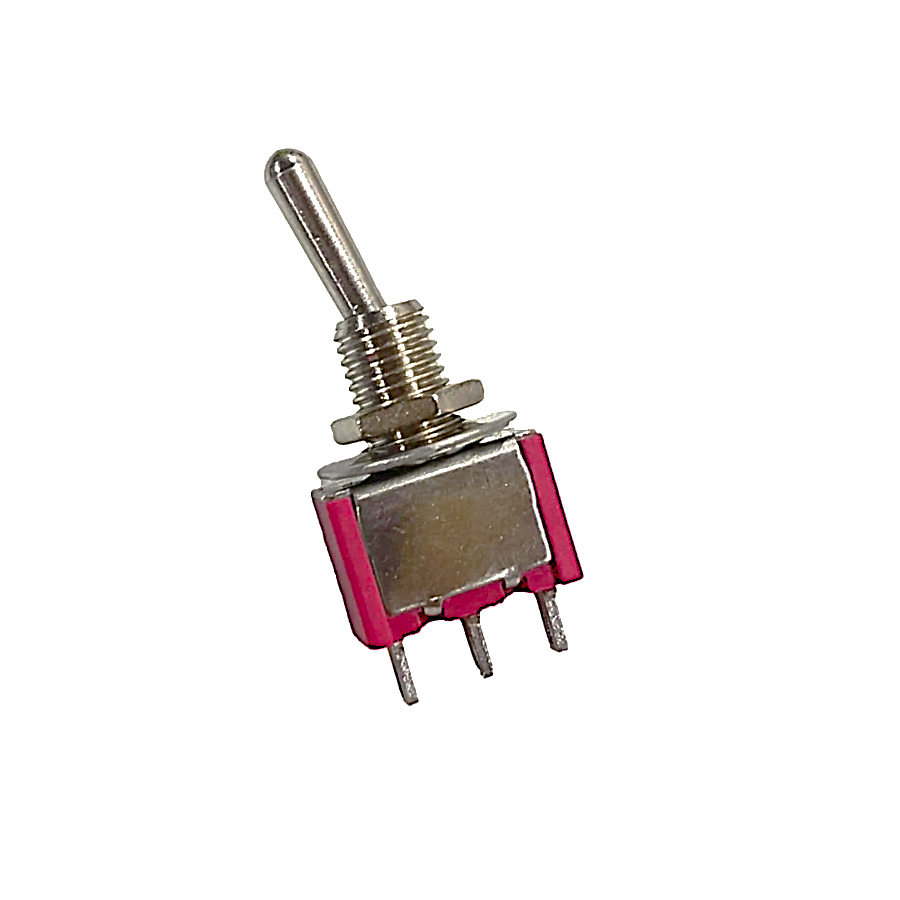

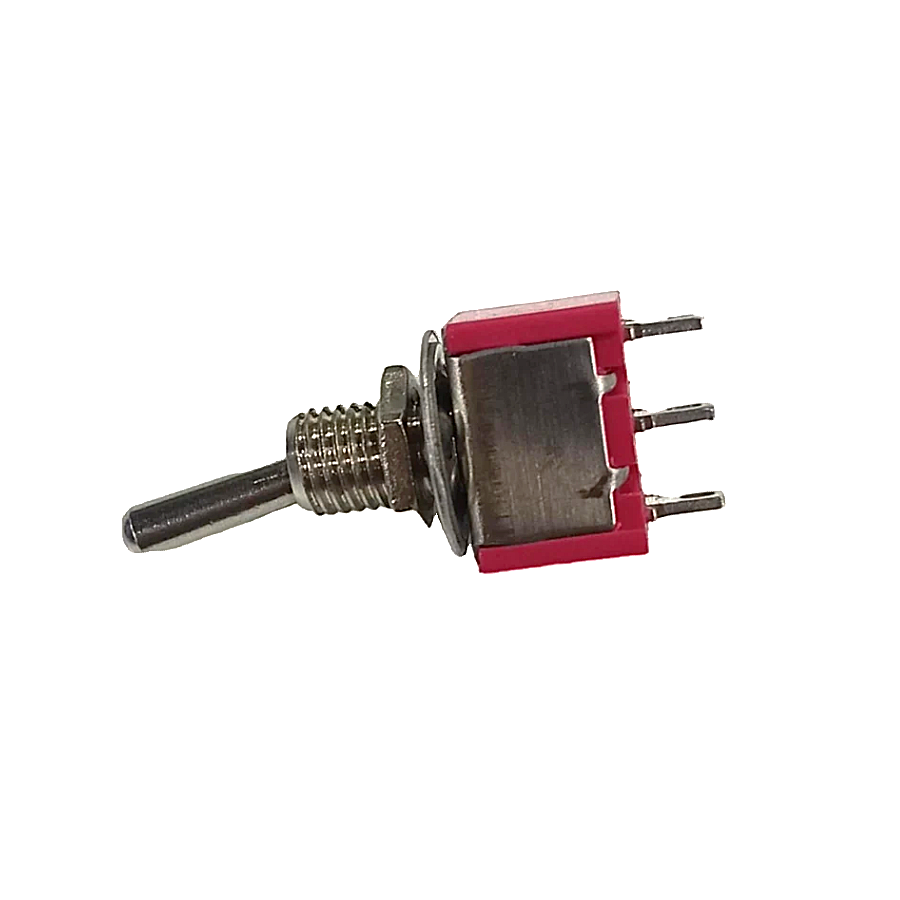

5A 3 Pin SPDT (ON-ON) Toggle Switc
Description :

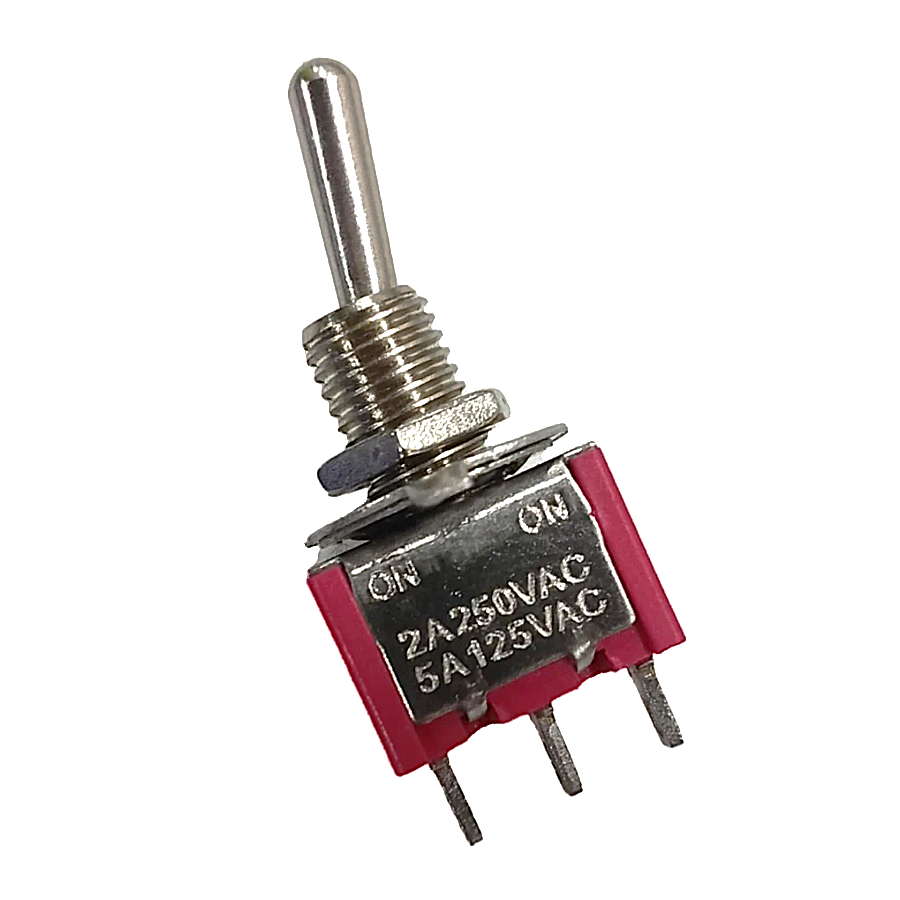

This heavy-duty single-pole, double-throw (SPDT) toggle switch makes a great power switch or state selector for user interfaces. It is rated for 5 A at 125 VAC and 2 A at 250 VAC.
Features:
- Easy to install.
- Durable in use.
- It can be used on low voltage or high voltage circuits.
- Ideal for switching lights or motors.
Specifications:
| Rated Voltage (V) | 120V AC |
|---|---|
| Rated Current (A) | 5 |
| Contact Resistance | 100mΩ (Max.) |
| Insulation Resistance (MΩ) | 1000 |
| Mech. & Electrical Lifecycle | ≈ 100,000 |
| Operating Temperature (°C) | -30 to 85 |
| Switch Type | SPDT |
| Length (mm): | 13 |
| Width (mm): | 7 |
| Height (mm): | 10 |
| Weight (g): | 4 |
Package Includes:
1 x 5A 3 Pin SPDT (ON-ON) Toggle Switch.
Technical Specifications
| Current Rating | 5A |
|---|---|
| Pin Count | 3-pin |
| SKU | AI4896 |
| Weight | 0.003348 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5A 3 Pin SPDT (ON-ON) Toggle Switch is a versatile toggle switches used across a wide range of applications including control panels, DIY electronics, industrial equipment, automotive dashboards, and arcade machines.
Common use cases:
- Adding a power switch to a project enclosure
- Building a custom control panel
- Replacing a worn-out switch in equipment
This product is ideal for electronics builders, panel designers, and DIY enthusiasts.
Technical Tip: Momentary switches return to OFF when released; latching switches stay in position. Check voltage and current ratings for your load.
