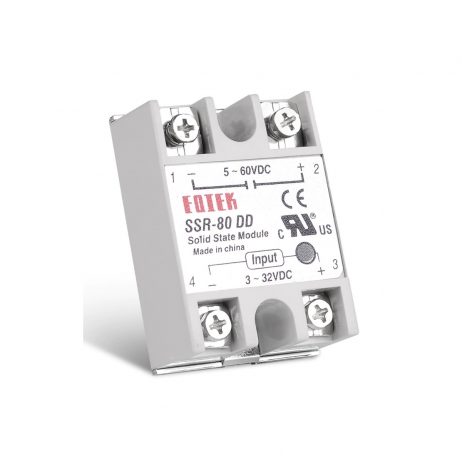

This is the 60V variant of the 5-220V SSR-80DD Solid State Relay in Solid State Relays, Relays. Available at Original price was: ₹696.20.₹634.84Current price is: ₹634.84. (₹538.00 + GST) with free shipping across India.

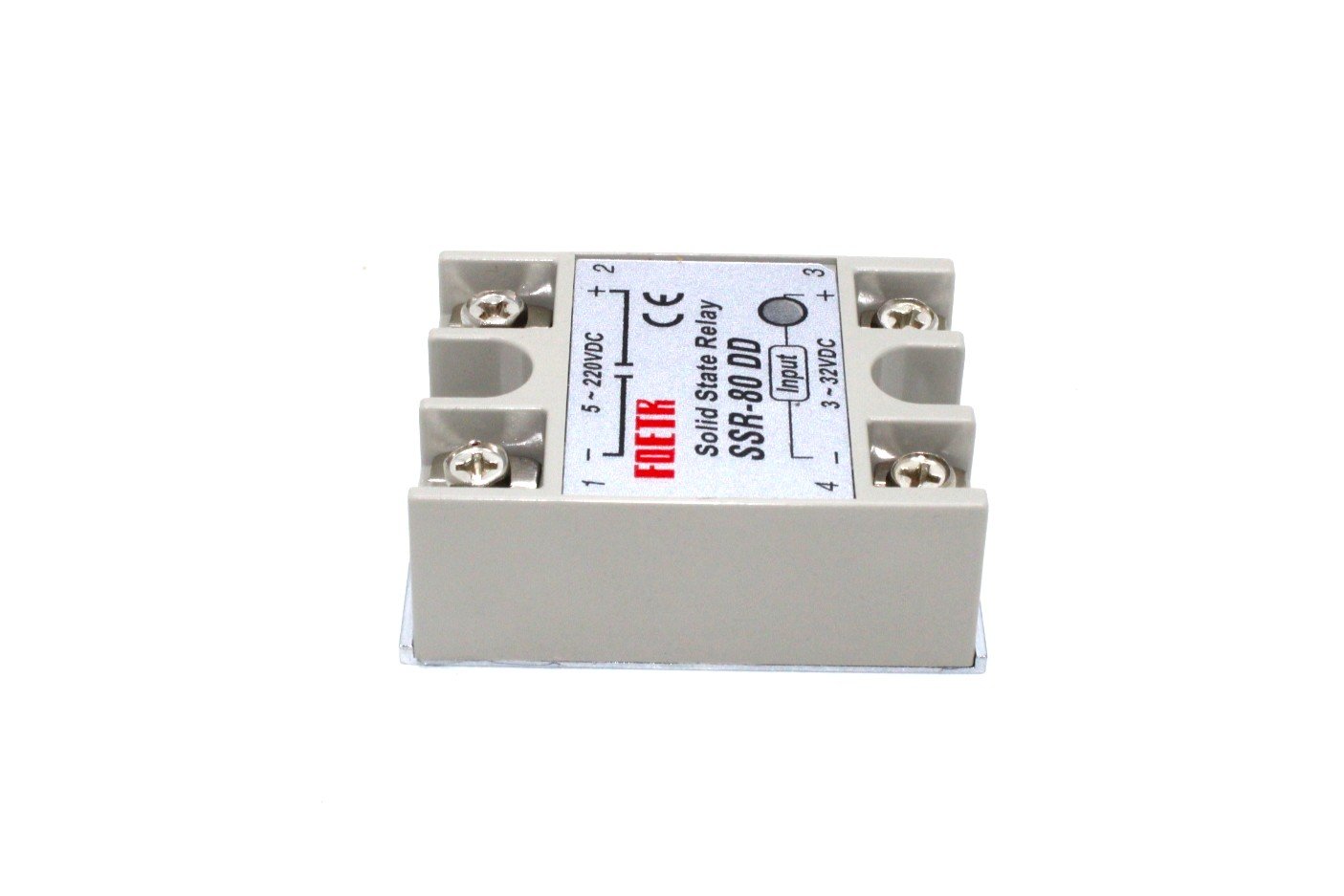

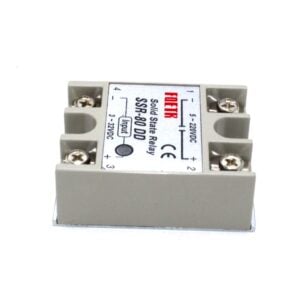

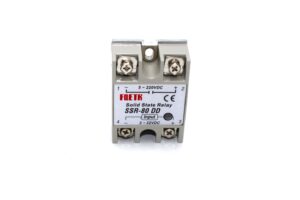

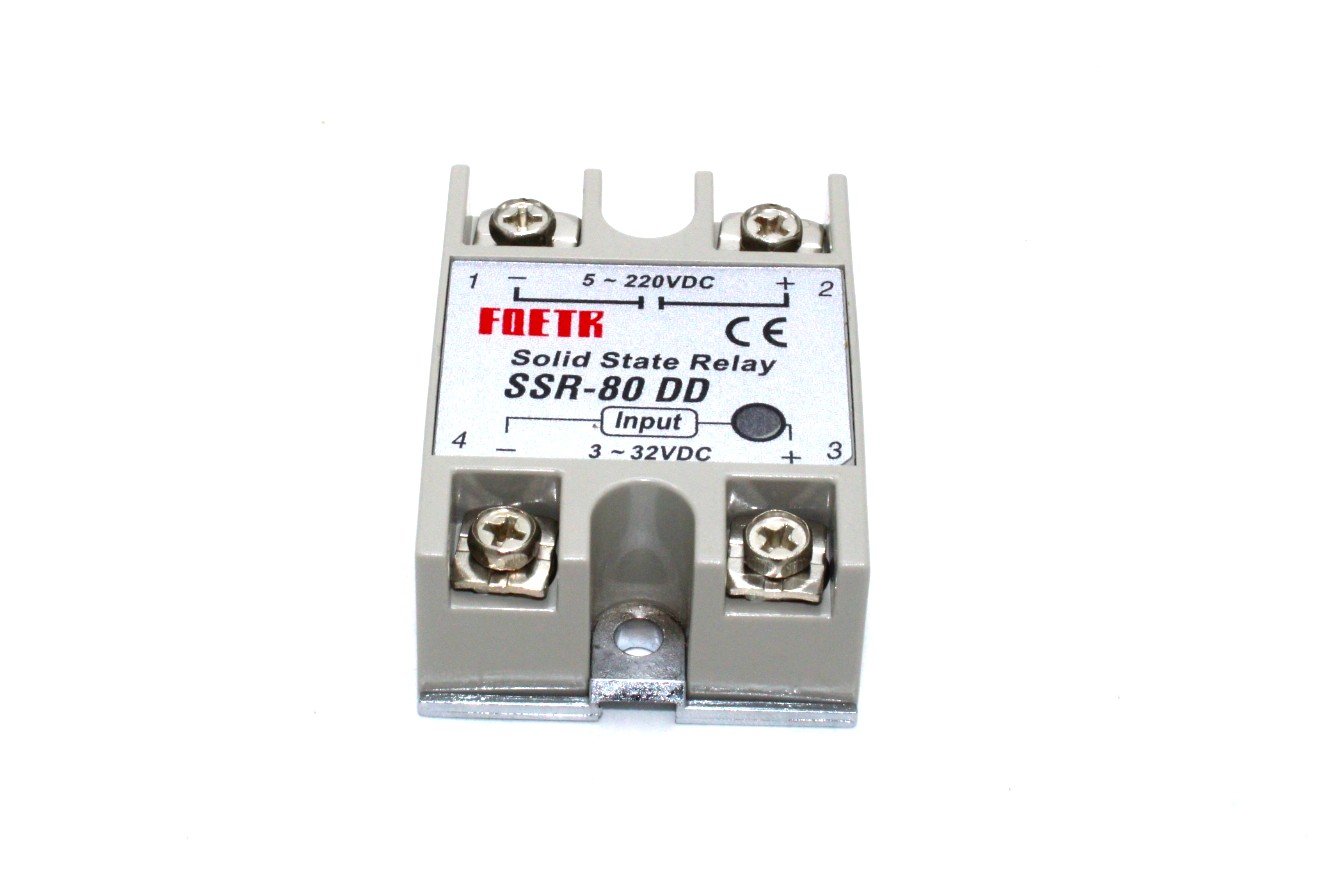

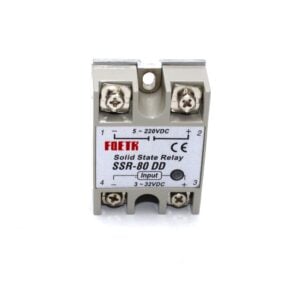

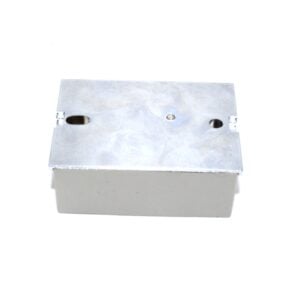

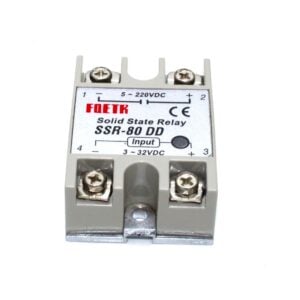

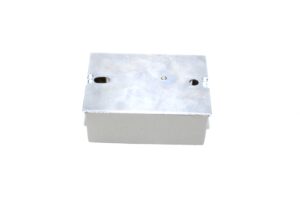

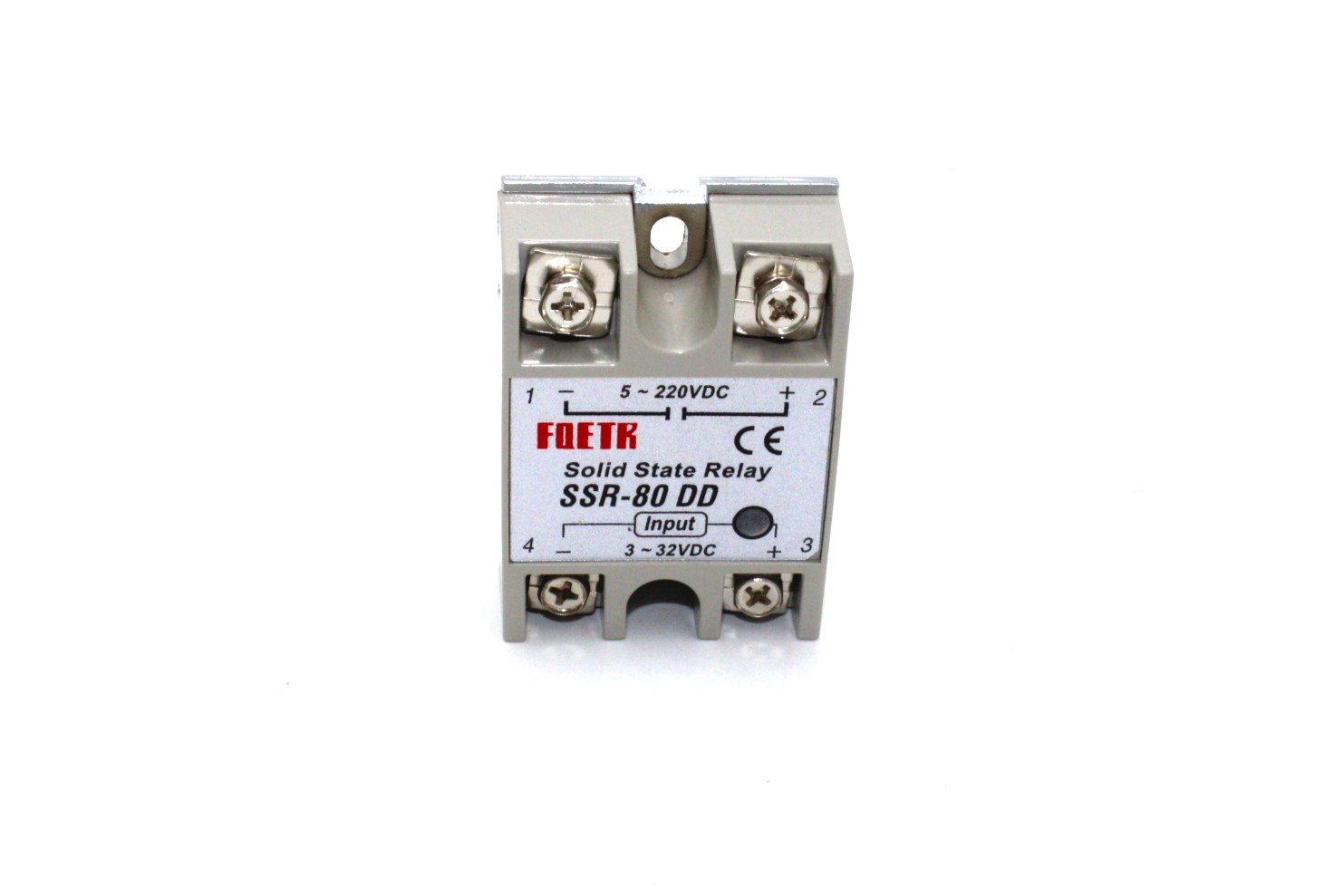

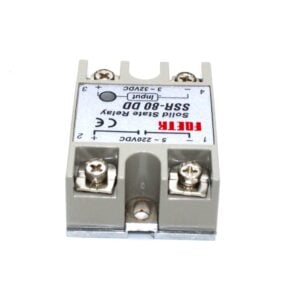

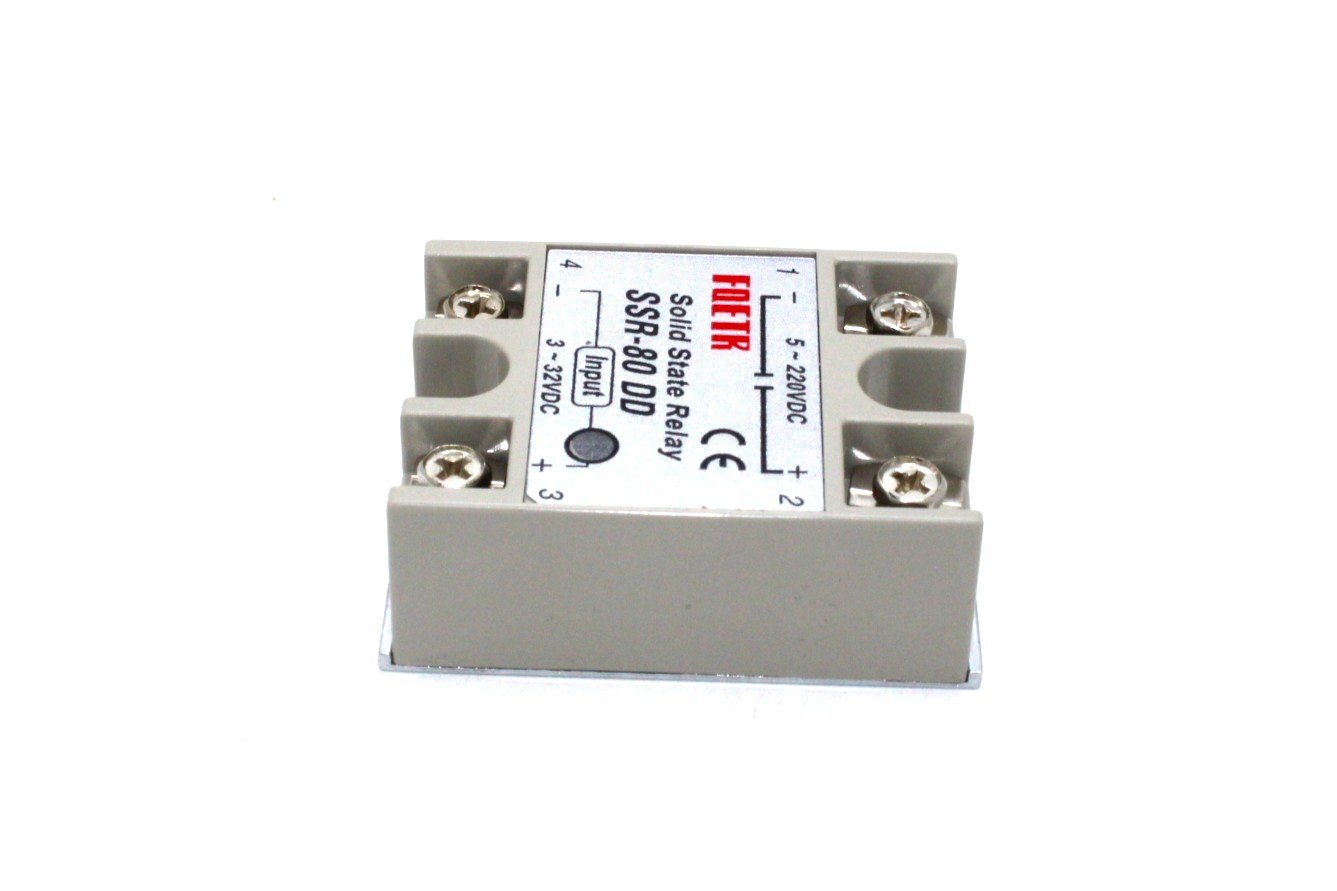

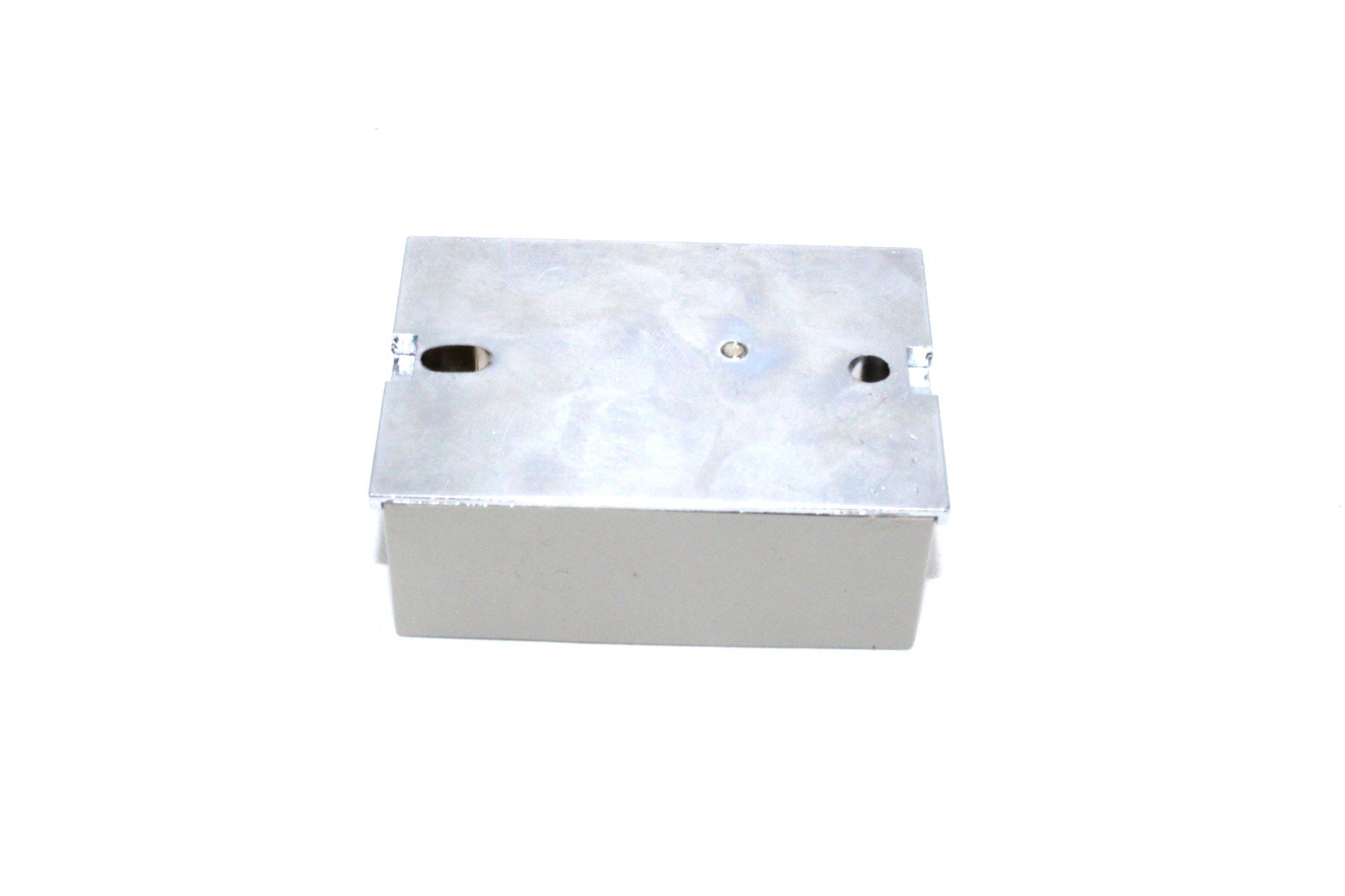

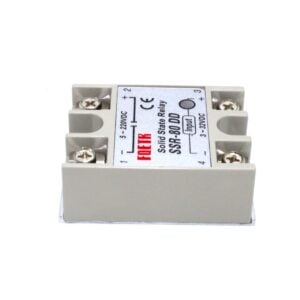

5-220V SSR-80DD Solid State Relay
The DC To DC SSR-80DD Solid State Relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal which is isolated optically from the load.
The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
Specification:
| Specification | Description |
|---|---|
| Product Name | SSR-80DD Solid State Relay |
| Load Type | DC |
| Control Signal | Low-voltage signal |
| Isolation | Optically isolated |
| Switching Components | Back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor |
| Rated Load Current | 80A |
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger Voltage (VDC) | 3-32VDC |
| Switching Voltage (VDC) | 5-220V |
| Operating Temperature Range | -20 to 85°C |
| Service Life | Long |
| Electromagnetic Interference | Reduced |
Package Includes:
1 x 5-220V SSR-80DD Solid State Relay
MQTT Tutorial for IoT: ESP32 + Sensors
MQTT is the backbone of modern IoT communication, and learning to use MQTT with ESP32 unlocks a whole...
Read More →
Smart Classroom IoT: Attendance, Air Quality, Projector Control
Table of Contents Smart Classroom Concept Attendance Tracking with IoT Air Quality Monitoring Projector and AV Control Energy...
Read More →
ESP32 vs W600: Cheap WiFi MCU for IoT India Comparison
When searching for the most affordable cheap IoT WiFi MCU for India, two names that often come up...
Read More →Technical Specifications
| Model | SSR-80DD |
|---|---|
| SKU | AI3172 |
| Weight | 0.13 kg |
| Availability | In Stock |
Applications & Use Cases
The 5-220V SSR-80DD Solid State Relay is a versatile solid state relays used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
