This is the 36V variant of the 5-36V Switch Drive High-Power MOSFET Trigger Module in Electronic Modules. Available at ₹23.72 (₹20.10 + GST) with free shipping across India.

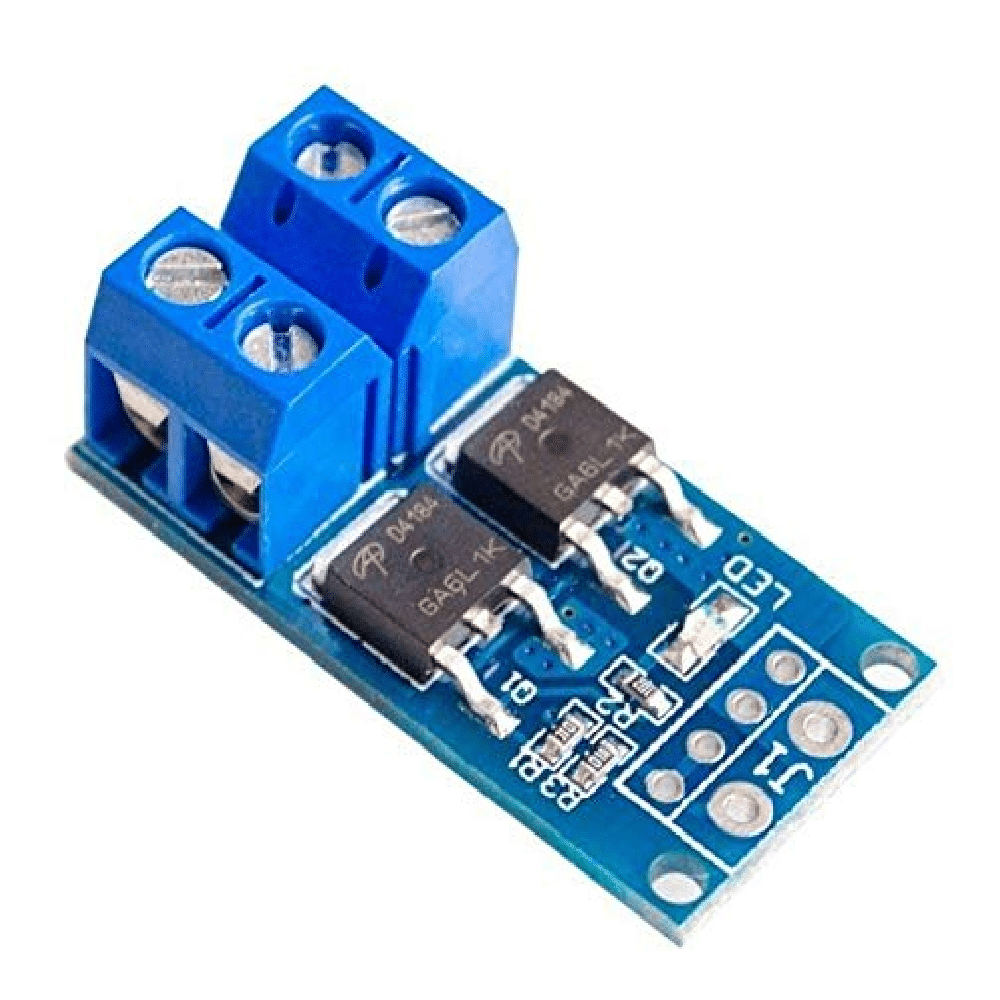

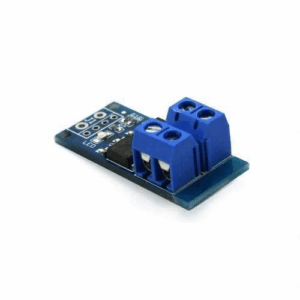

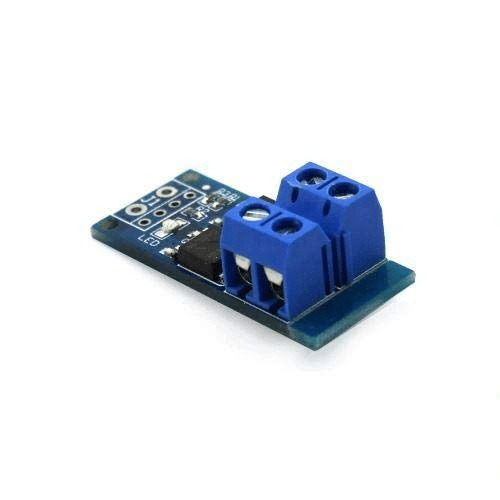

5-36V Switch Drive High-Power MOSFET Trigger Module
The 5-36V Switch Drive High-Power MOSFET Trigger Module is a powerful control board designed for electronic switching using field-effect transistors. It features imported dual MOSFETs arranged in a parallel active output configuration, which minimizes internal resistance, increases current capacity, and enhances overall power handling.
Operating at 15A and 400W under standard temperature conditions, this module is versatile enough for various applications. It simplifies the control of high-power devices such as electric motors and light bulbs, making it easy to adjust motor speeds and lamp brightness.
Thanks to its dual-MOS design, the module delivers strong performance with lower resistance and higher current capabilities. It supports a wide voltage range and is fully compatible with PWM signals, allowing for precise control of high-power applications. Simply input a PWM signal to effortlessly manage motor speeds or light brightness.
Features

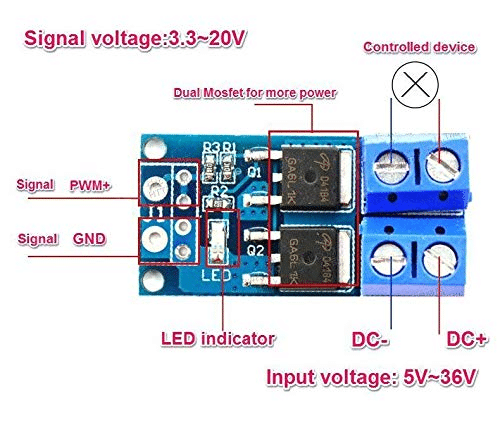

The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
Specifications:
| Continuous Current (A) | 15 |
|---|---|
| No. of Channels | 1 |
| Battery Protection Mode | No |
| Operating temperature | -40 ~ +85 |
| Cooling Fan | No |
| Arduino Sheild | No- can be used with Wire connection |
| Speed Control | Yes |
| Polarity Protection | NO |
| Dimensions (LxWxH) mm | 34 x 17 x 12 |
| Weight (g): | 6 |
Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, PWM, motor speed control, lamp brightness. etc.
Package Includes
1 x 5-36v Switch Drive High-Power MOSFET Trigger Module
Technical Specifications
| SKU | AI0289 |
|---|---|
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 5-36V Switch Drive High-Power MOSFET Trigger Module is a versatile electronic modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
